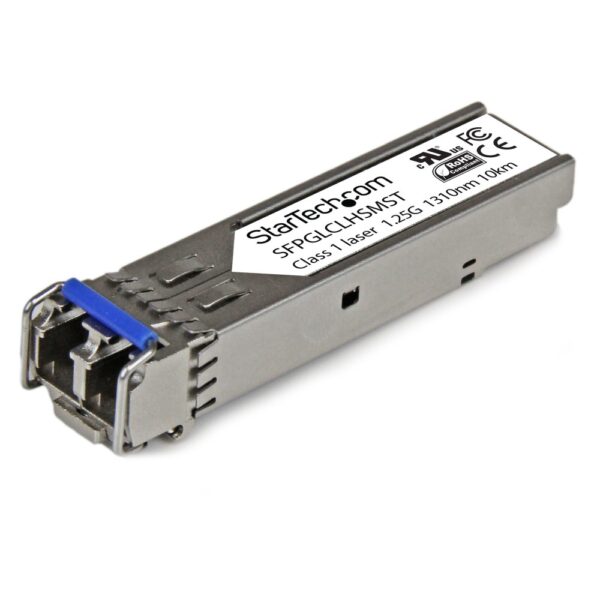

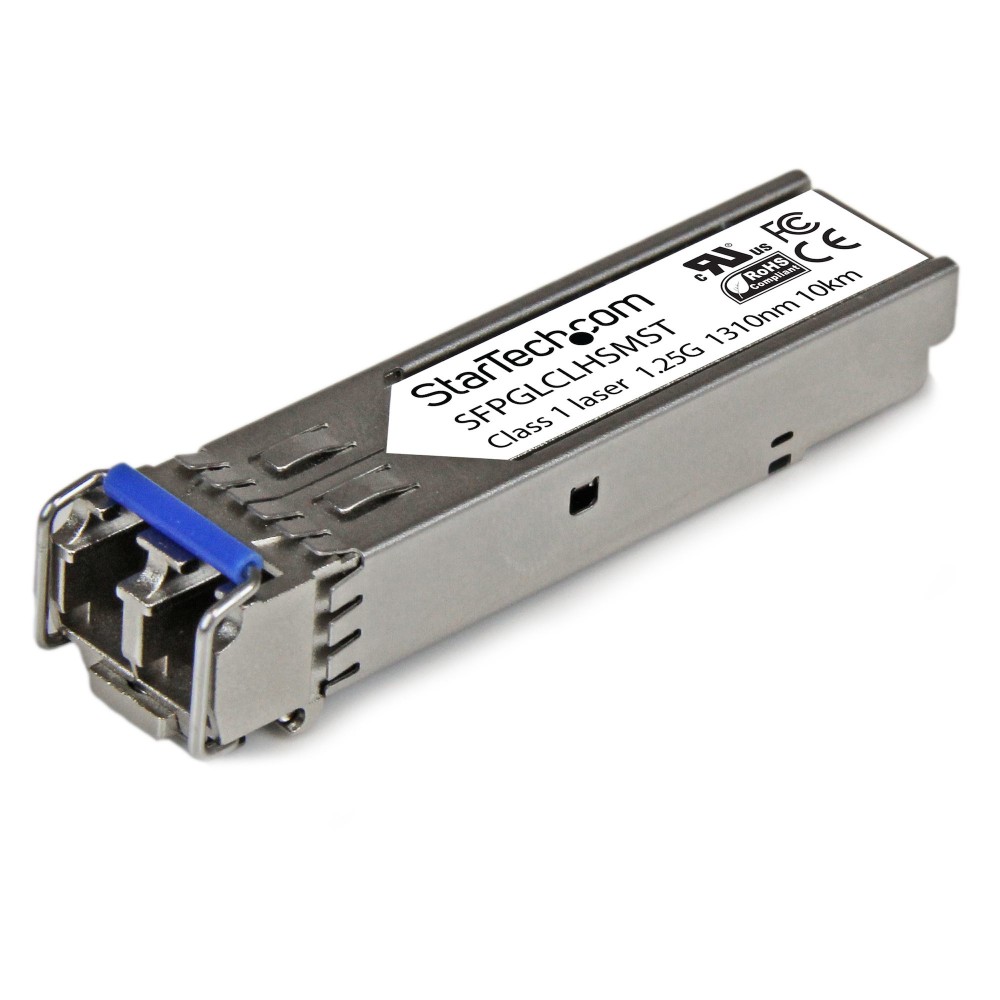

StarTech.com SFPGLCLHSMST SFP Module 1000BASE-LX/LH 1GbE 10km LC for Cisco IE3400/3300/3200
£46.43
Out of stock
Out of stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Fibre optic SFP transceiver module
- 1250 Mbit/s maximum data transfer rate
- 10 km maximum transfer distance
- LC fibre optic connector
- Hot-swappable design
- Compatible with Cisco IE3400/3300/3200
- RoHS, CE, FCC, UL certified
Available alternatives
StarTech.com Cisco GLC-SX-MMD Compatible SFP Module 1GbE Multimode LC 550m 850nm DDM
In stock
You may also like
StarTech.com Gigabit Ethernet to SC Fibre Media Converter, Single-Mode, 1310nm, 10km
In stock
StarTech.com Gigabit Ethernet to SC Fibre Media Converter, Multi-Mode, 850nm, 550m, Black
In stock
TP-Link Omada 10G SFP Media Converter
In stock
StarTech.com Cisco GLC-SX-MMD Compatible SFP Module 1GbE Multimode LC 550m 850nm DDM
In stock
StarTech.com HPE J9151E Compatible SFP+ Transceiver Module 10GbE 10km LC 1310nm DDM Silver
In stock
StarTech.com Multi-Mode LC Fibre Media Converter 10/100/1000 Networks 550m Black
In stock
StarTech.com Gigabit Ethernet to Fibre Media Converter MM/SM Open SFP Slot TAA Black
In stock
StarTech.com SFPGLCLHSMST – Seamless 1GbE Connectivity
The StarTech.com SFPGLCLHSMST SFP Module 1000BASE-LX/LH 1GbE 10km LC for Cisco IE3400/3300/3200 offers reliable gigabit Ethernet connectivity. This module is ideal for IT professionals extending network reach with Cisco infrastructure. We ensure dependable 1GbE performance over fibre optic cables.
Core specifications
| Metric | Spec. |
|---|---|
| Max Data Transfer Rate | 1.25 Gbps |
| Max Transfer Distance | 10 km |
| Wavelength | 1310 nm |
| Connector Type | LC |
| Hot-Swap | Yes |
| MTBF | 3,092,408 hours |
Optimised for Cisco Networks
This SFP module is specifically designed for Cisco switches and routers. It ensures full compatibility and seamless integration. This means a straightforward setup and reliable operation within your existing Cisco environment.
Extend Your Network Reach
Achieve network connections up to 10 km with this module. It supports both single and multi-mode fibre. This extended range is perfect for connecting distant network segments or buildings.
Minimise Downtime with Hot-Swap Capability
The hot-swappable design allows for easy installation or removal without interrupting network traffic. This feature is crucial for maintaining continuous service. It simplifies maintenance and upgrades.
Robust and Certified Performance
This module boasts a Mean Time Between Failures (MTBF) of over 3 million hours. It is also CE, FCC, and UL certified. We provide a highly reliable component for demanding network environments.
Before you order
Confirm your Cisco switch or router is from the IE3400, IE3300, or IE3200 series.Confirm your network requires 1000BASE-LX/LH compliant connectivity.Confirm your fibre optic cabling uses LC connectors.
Frequently Asked Questions
Q: Is this module compatible with non-Cisco equipment?
A: It is designed and tested for Cisco brand switches and routers.
Q: What types of fibre does this module support?
A: It supports both single-mode and multi-mode fibre connections.
Q: Can I replace this module without turning off my network?
A: Yes, its hot-swappable design allows for replacement without network interruption.
Q: What is the maximum data transfer rate?
A: The maximum data transfer rate is 1.25 Gbps.
Our final thoughts
This module is an excellent choice for businesses using Cisco IE3400, IE3300, or IE3200 series hardware. It delivers dependable 1GbE performance over extended distances.
| Performance | |
|---|---|
| SFP transceiver type | Fibre optic |
| Wavelength-division multiplexing (WDM) | No |
| Digital Diagnostics Monitoring (DDM) | No |
| Fibre optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Duplex system | Full, Half |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fibre (MMF) supported | Yes |
| SFP transceiver standard | LH, LX |
| Product colour | Stainless steel |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3092408 h |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Stainless steel |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3092408 h |
| Certification | CE, FCC, UL |
| Power | |
| Power consumption (typical) | 1 W |
| Certificates | |
| Certification | CE, FCC, UL |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 30 - 70% |
| Network | |
| SFP transceiver type | Fibre optic |
| Fibre optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 60 mm |
| Height | 10 mm |
| Weight | 20 g |
| Package depth | 114 mm |
| Package width | 93 mm |
| Package height | 34 mm |
| Package weight | 46 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 93 mm |
| Package height | 34 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Duplex system | Full, Half |
| Compliance certificates | RoHS |
| Packaging data | |
| Package depth | 114 mm |
| Package width | 93 mm |
| Package height | 34 mm |
| Package weight | 46 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Master (outer) case width | 342 mm |
| Master (outer) case length | 426 mm |
| Master (outer) case height | 354 mm |
| Products per master (outer) case | 108 pc(s) |
| Harmonized System (HS) code | 85369010 |
| Identifiers | |
| Additional EANs | 0650308506430 |
