TP-Link Omada AX1800 Ceiling Mount Wi-Fi 6 Access Point
£137.15 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Wi‑Fi 6 (IEEE 802.11ax) with 2.4 GHz and 5 GHz bands and OFDMA
- Maximum data transfer rate up to 1201 Mbit/s (574 Mbit/s 2.4 GHz, 1201 Mbit/s 5 GHz)
- Multi‑User MIMO, Band Steering and Airtime Fairness for high‑density connectivity
- 1 × Gigabit Ethernet LAN (10/100/1000 Mbit/s) with Power over Ethernet (Active/PoE)
- Ceiling or wall placement, white, internal omni‑directional antennas, 160 × 160 × 33 mm
- Central management via Omada SDN with VLAN, QoS, rate limiting, ACL and RADIUS
Payment Methods:
You may also like
TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point – High-density wireless for business
We supply the TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point to UK businesses needing reliable, high-capacity Wi-Fi. It suits busy offices, retail sites, and schools where many devices connect at once. With OFDMA and MU-MIMO, it delivers up to four times the capacity of older Wi-Fi 5 access points, keeping video calls and till systems smooth.
Core numbers
| Metric | Spec. |
|---|---|
| Max data rate | 1201 Mbit/s (5 GHz) |
| 2.4 GHz speed | 574 Mbit/s |
| Ethernet port | 1 × Gigabit LAN |
| PoE support | Active and Passive PoE |
| Users per AP | Up to 1020 |
| Wi-Fi standard | 802.11ax (Wi-Fi 6) |
Faster throughput with Wi-Fi 6 efficiency
The EAP uses OFDMA and MU-MIMO to serve multiple clients at the same time. This cuts airtime contention in busy areas, so devices get data more often and with lower latency. In practice, your staff and customers see a steadier connection during peak hours.
Smooth roaming for calls and video
With 802.11k/v support, clients switch automatically to the best nearby AP as they move. This keeps VoIP calls and video meetings uninterrupted across your site. For example, staff can walk between rooms without dropping their conference.
Centralised cloud management
Omada SDN integrates access points, switches, and gateways for a single, cloud‑managed network. You can monitor, configure, and update from one place, which helps maintain security and uptime. We recommend confirming your network design covers PoE and switch capacity before deployment.
Flexible mounting and power options
The unit mounts to a ceiling or wall using the included kit, with a discreet white housing. It supports Power over Ethernet (Active and Passive PoE) and also accepts a 12 V DC input. So you can choose the power method that suits your existing infrastructure.
Robust security and guest access
The AP supports WPA3, WPA2‑Enterprise, VLANs, and ACLs for layered protection. Guest networks can use captive portal, SMS, or Facebook login to control access. This helps you keep business traffic separate while offering secure Wi‑Fi to visitors.

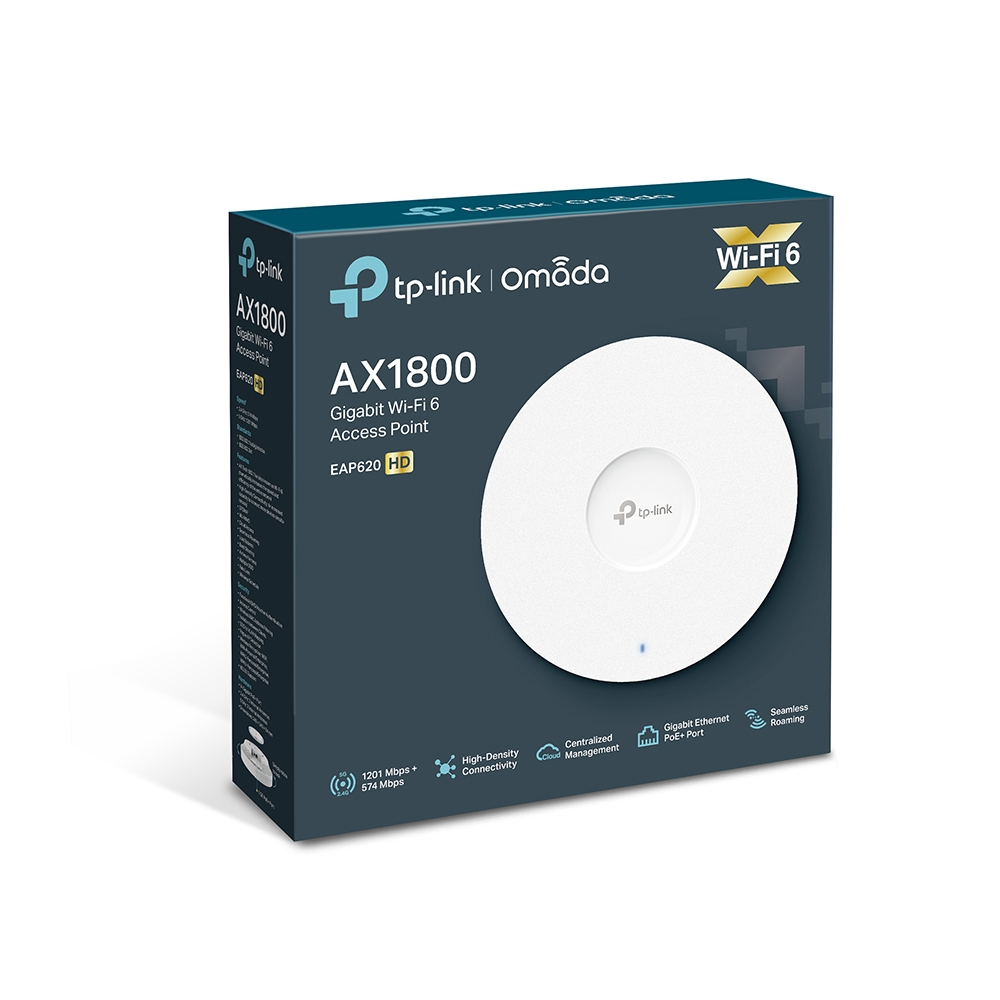

In the box
- TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point
- Ceiling and wall mounting kit
- Quick start guide
- Network cable not included
Before you order
- Confirm your ceiling or wall location has adequate PoE coverage or a nearby DC power point.
- Check your switch supplies Active or Passive PoE as required by your install.
- Verify your controller plan: Omada SDN cloud or on‑prem controller for full features.
- Ensure your cabling is Cat5e or better for Gigabit uplink.
Frequently Asked Questions
Does this access point support Wi‑Fi 6?
Can I power it with PoE?
How many devices can it handle?
Will clients roam between APs without dropping calls?
Is a controller required?
Who should choose this AP
This TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point is a strong fit for UK businesses with dense device counts and cloud‑managed needs. It balances performance, security, and ease of management in a compact unit. Warranty cover varies by product, so please contact us to confirm.
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1201 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Flow control support | Yes |
| Automatic channel selection | Yes |
| Syslog | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Spread spectrum method | OFDMA |
| Frequency band | 2.4 - 5 GHz |
| Number of users | 1020 user(s) |
| Web-based management | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | CE, FCC, RoHS |
| Maximum data transfer rate | 1201 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Wireless LAN features | |
| Frequency band | 2.4 - 5 GHz |
| Network | |
| Spread spectrum method | OFDMA |
| Number of users | 1020 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Management features | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Firmware upgradeable | Yes |
| Web-based management | Yes |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Flow control support | Yes |
| Automatic channel selection | Yes |
| Spread spectrum method | OFDMA |
| Frequency band | 2.4 - 5 GHz |
| Number of users | 1020 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Maximum data transfer rate | 1201 Mbit/s |
| Transmitting power (FCC) | 23 dBm |
| Transmitting power (CE) | 20/23 dBm |
| Automatic channel scanning | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Fit AP mode features | Mesh networking |
| BeamForming | Yes |
| Security | |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE, Passive PoE |
| DC voltage range | 12 V |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Technical details | |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Indication | |
| LED indicators | Yes |
| Software | |
| Automatic channel scanning | Yes |
| Access Control List (ACL) | Yes |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 33 mm |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Package type | Box |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Identifiers | |
| Distributor SKUs | 10366258, 74902, 6179424, EF004056, 17032, EAP620-HD, EAP620HD*, 3860336, EAP620HDNEW, NS74902 |
| Additional EANs | 6935364030759 |
