TP-Link AX3000 Wall Plate WiFi 6 AP
£81.36 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Wall plate WiFi 6 access point with 4 internal antennas
- Ethernet LAN speeds up to 1000 Mbit/s with 4 RJ-45 ports
- Supports IEEE 802.11a/b/g/n/ac/ax wireless standards
- Power over Ethernet (PoE) for simplified installation
- Advanced security with WPA/WPA2/WPA3 and 16 SSID support
- Quality of Service (QoS) and VLAN support for network management
Payment Methods:
You may also like

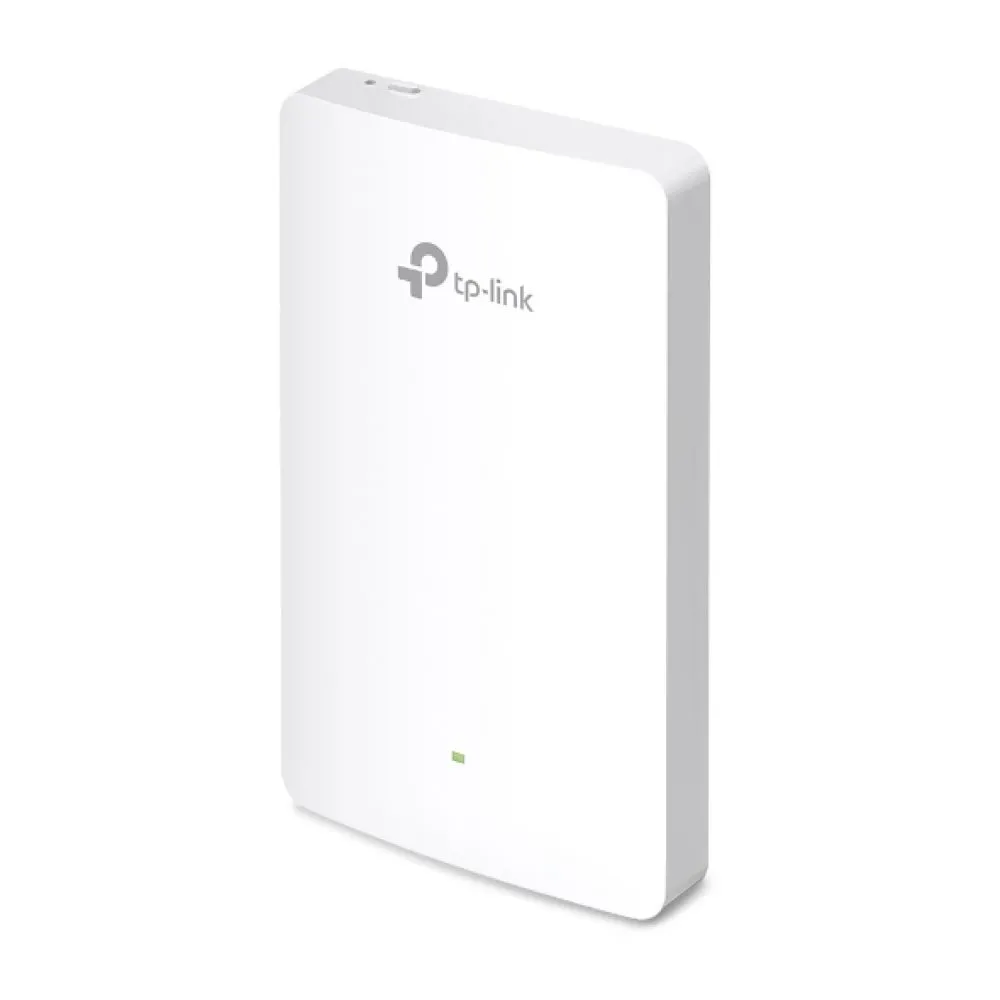

TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point | Enterprise-Grade Wall-Mount Access Point
The TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point delivers enterprise-grade wireless performance in a compact wall-mounted design. Designed for hotels, offices, and multi-room environments, this access point supports WiFi 6 speeds up to 1774 Mbps and can handle multiple simultaneous connections without performance drop. Its sleek white finish blends into any wall while providing reliable, high-speed connectivity across your space.
Key Specifications
| Metric | Spec |
|---|---|
| WiFi Standard | Wi-Fi 6 (802.11ax) |
| Max Data Rate | 1774 Mbps |
| Ethernet Ports | 4 x Gigabit (10/100/1000 Mbps) |
| Power Supply | PoE (Power over Ethernet) |
| Security | WPA3, WPA2, WPA |
Enterprise-Grade WiFi 6 Performance

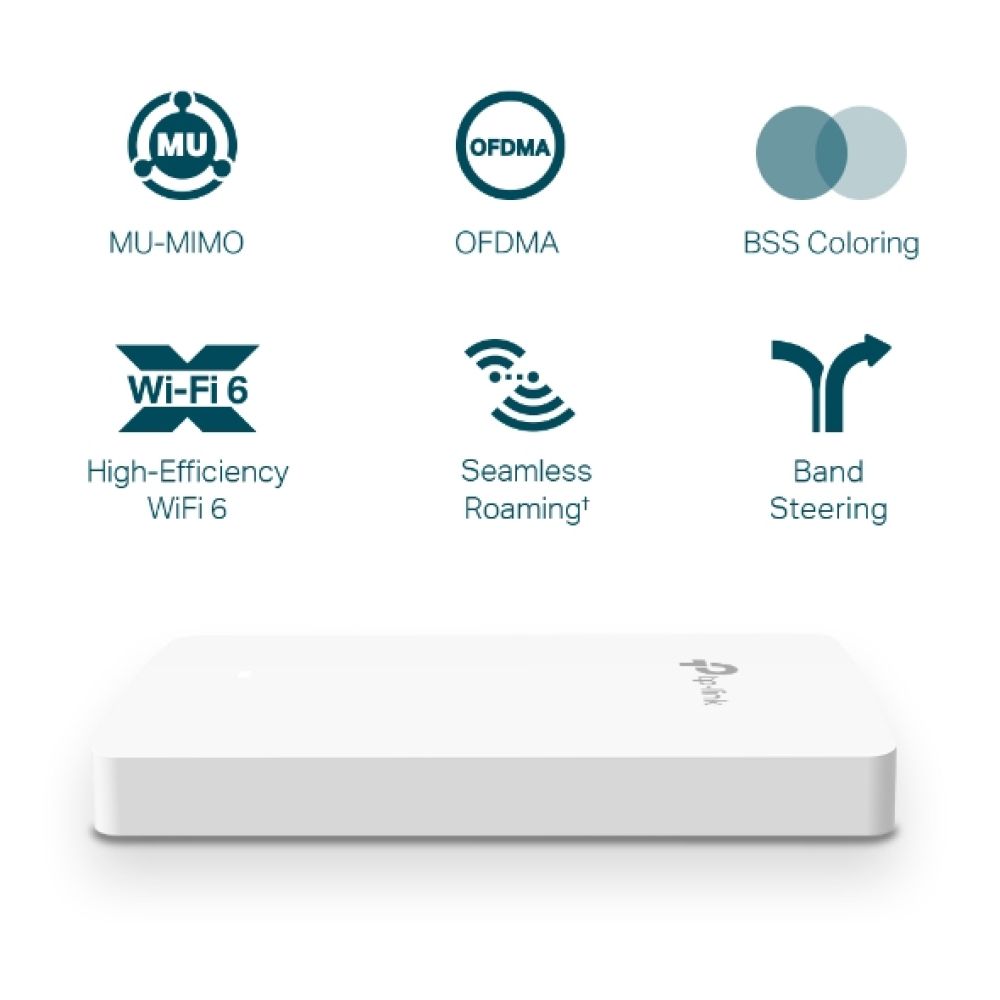

The AX3000 supports dual-band operation with 2.4 GHz (574 Mbps) and 5 GHz (1201 Mbps) frequencies, delivering seamless connectivity for bandwidth-intensive applications. Multi-User MIMO technology allows multiple devices to communicate simultaneously without interference, making it ideal for environments with many connected users. Beamforming technology focuses the wireless signal directly to connected devices for stronger, more reliable connections throughout your space.
Advanced Network Management Features
This access point includes comprehensive enterprise features including VLAN support, Quality of Service (QoS) for traffic prioritisation, and rate limiting to control bandwidth usage. The built-in Access Control List (ACL) provides network security, while Syslog support enables detailed monitoring and troubleshooting. Automatic channel selection optimises wireless performance by selecting the least congested channels, and Band Steering directs dual-band clients to the optimal frequency band.
Simple Installation and Management

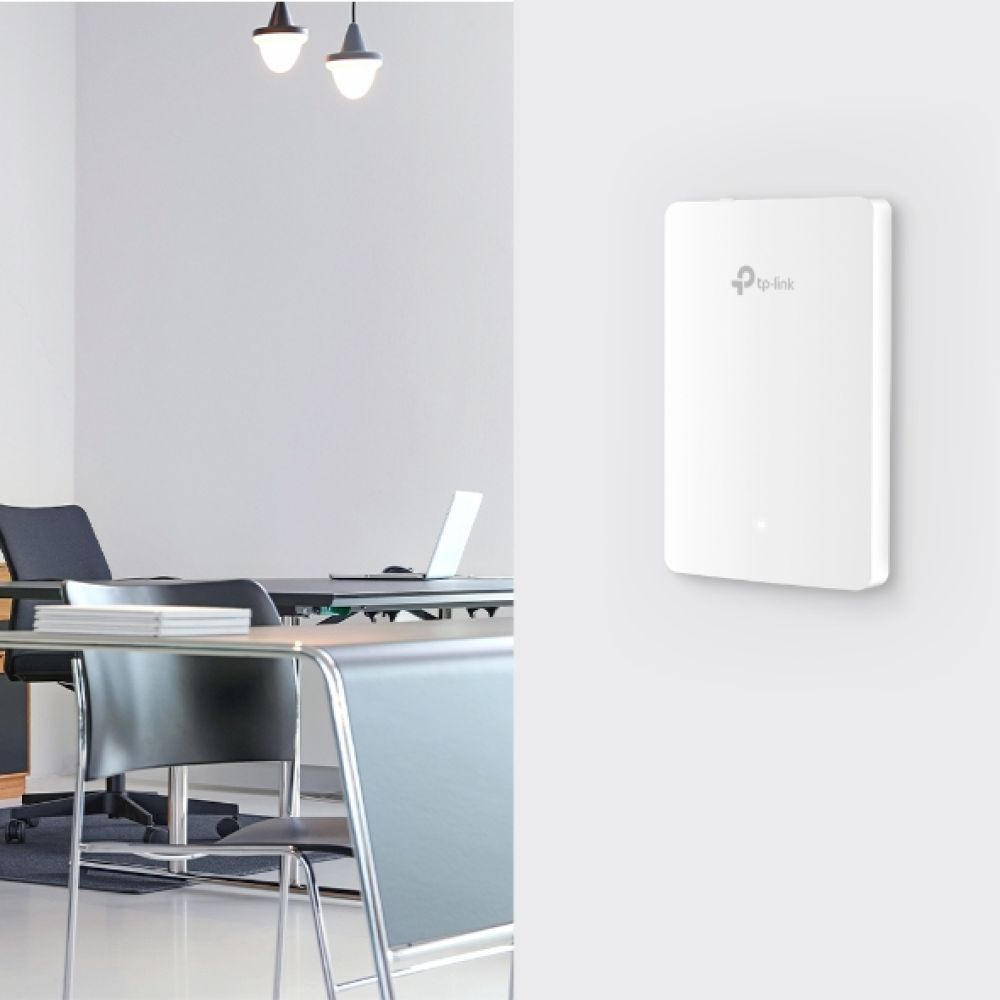

The wall-plate design allows for discreet installation in any standard electrical box, creating a clean, professional appearance. Power over Ethernet eliminates the need for separate power adapters, reducing cable clutter and simplifying installation. The Omada ecosystem provides cloud-based management through TP-Link’s intuitive interface, allowing you to configure and monitor your network from anywhere. A physical on/off switch and reset button provide convenient local control when needed.
Box Contents
- TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point
- Mounting hardware
- Quick installation guide
Check before you buy
- Confirm your network switch supports PoE (802.3af/802.3at) for power delivery
- Verify you have a compatible Omada controller for centralised management

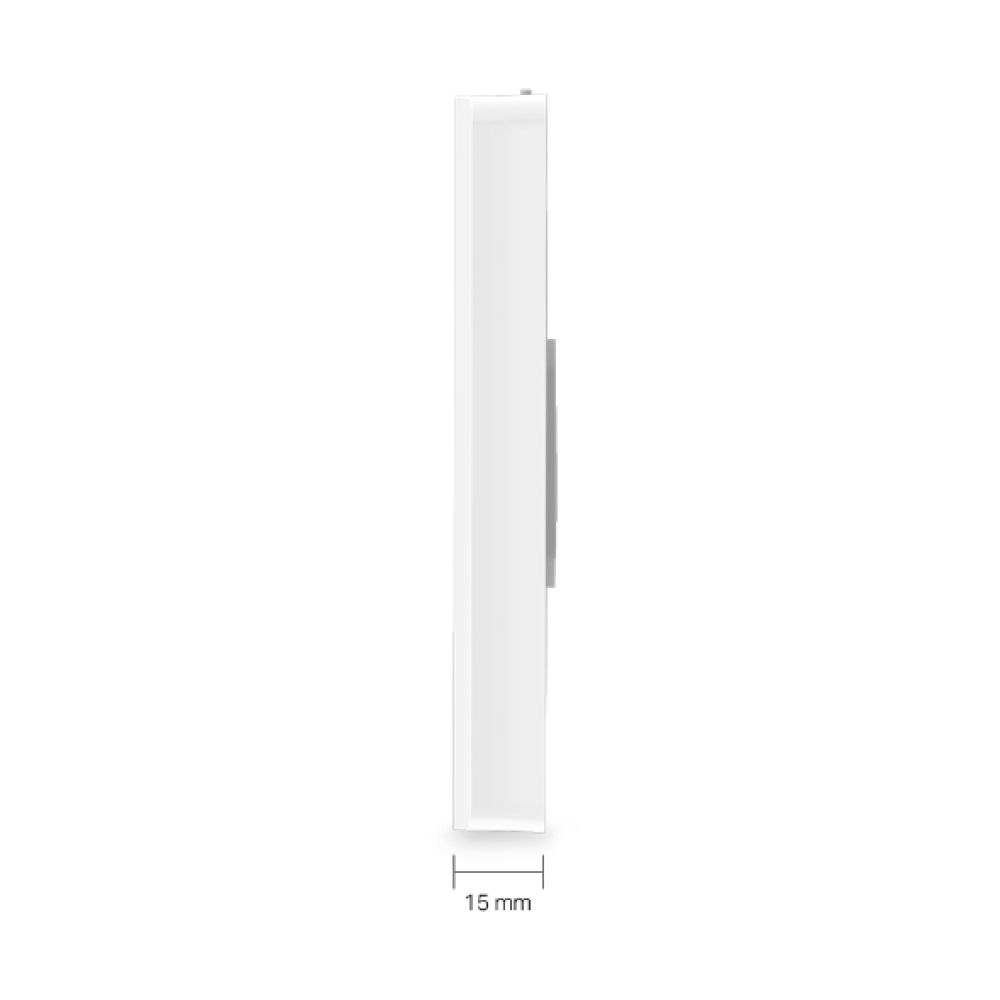

- Check wall box dimensions (143 x 86 x 20 mm) will fit your installation space
- Ensure your network infrastructure supports 802.11ax WiFi 6 devices
Frequently Asked Questions
Does this access point support mesh networking?
What is the maximum number of clients this can support?
Can I manage this without an Omada controller?
Is this suitable for outdoor use?
What security protocols are supported?
Summary & warranty
The TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point is the ideal solution for businesses, hotels, and offices requiring discreet, high-performance wireless coverage in multiple rooms. Its combination of WiFi 6 speeds, enterprise management features, and wall-mounted design makes it perfect for environments where both performance and aesthetics matter. The PoE capability and Omada ecosystem integration provide a scalable foundation for growing networks. Covered by the applicable manufacturer warranty.
| Weight | 0.35 kg |
|---|---|
| Certification | CE, FCC, RoHS |
| Syslog | Yes |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Automatic channel selection | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service QoS support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1774 Mbit/s |
| Transmitting power FCC | 21 dBm |
| Transmitting power CE | 20 dBm |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness ATF | Yes |
| Maximum data transfer rate 2.4 GHz | 574 Mbit/s |
| Maximum data transfer rate 5 GHz | 1201 Mbit/s |
| BeamForming | Yes |
| Number of SSID supported | 16 |
| Security algorithms | WPA, WPA2, WPA3 |
| Remote Authentication Dial-In User Service RADIUS | Yes |
| Service Set Identifier SSID features | Multiple SSIDs |
| Ethernet LAN RJ-45 ports | 4 |
| Cabling technology | 10/100/1000Base-T(X) |
| Placement | Wall |
| On/off switch | Yes |
| Product colour | White |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level max | 4 dBi |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| LED indicators | Power |
| Automatic channel scanning | Yes |
| Access Control List ACL | Yes |
| Width | 143 mm |
| Depth | 86 mm |
| Height | 20 mm |
| Package width | 385 mm |
| Package depth | 495 mm |
| Package height | 210 mm |
| Package weight | 330 g |
| Operating relative humidity H-H | 10 – 90% |
| Operating temperature T-T | 0 – 40 °C |
| Storage temperature T-T | -40 – 70 °C |
| Storage relative humidity H-H | 5 – 90% |
| Harmonized System HS code | 85176990 |
