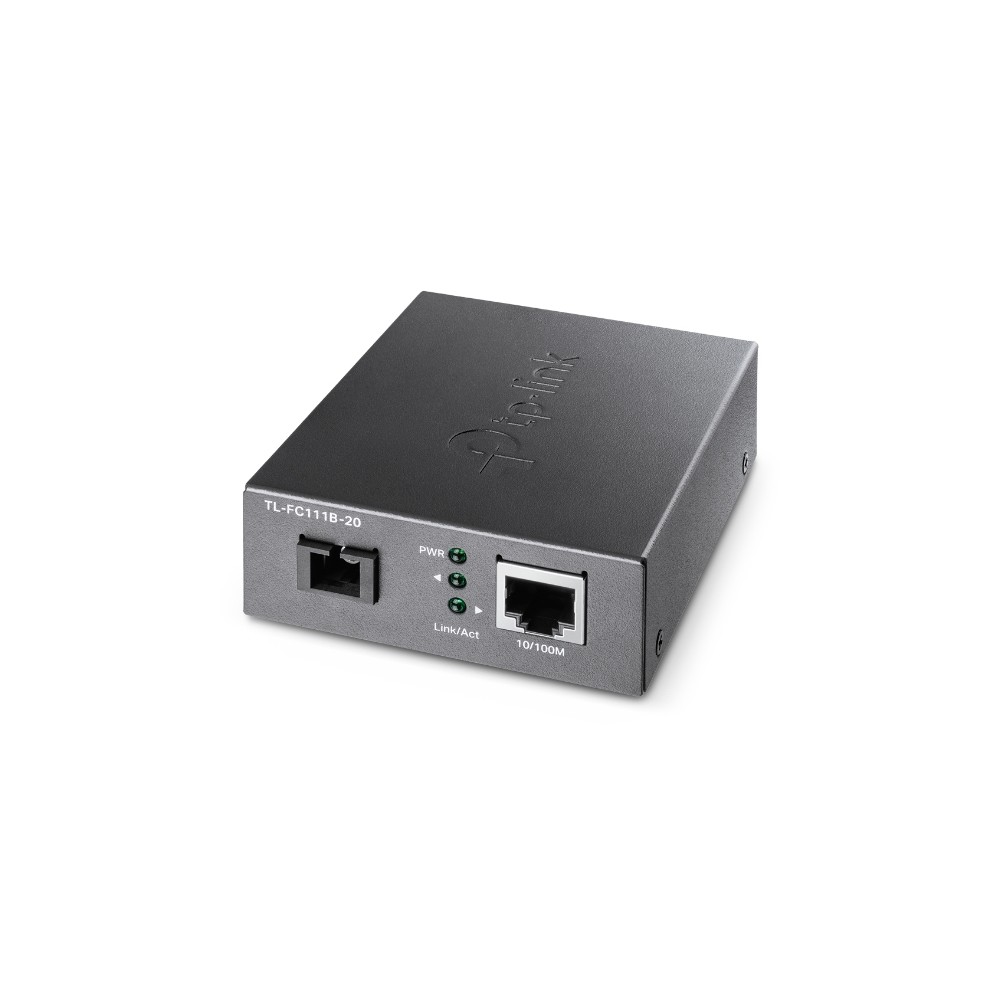

TP-Link Omada TL-FC111B-20 Bi-Directional WDM Fiber Media Converter 100 Mbps SC Single-mode 20km

TP-Link Omada – Extend Your Network Reach

We offer the TP-Link Omada TL-FC111B-20 Bi-Directional WDM Fiber Media Converter 100 Mbps SC Single-mode 20km for reliable network extension. This unit is ideal for businesses needing to bridge distances between network segments. It efficiently converts electrical signals to optical, supporting connections up to 20 kilometres. This can significantly reduce cabling costs in larger installations.

Core Connectivity Details

Streamlined Single-Fibre Operation

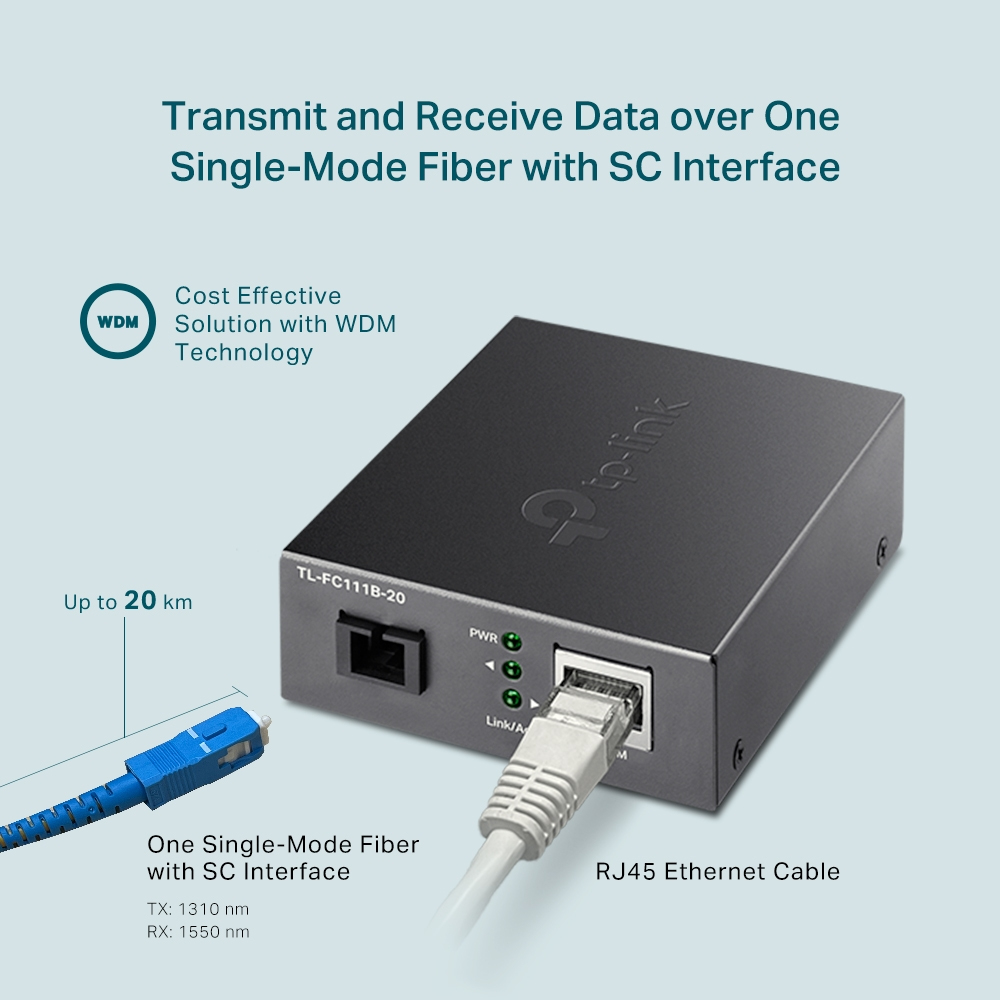

This media converter utilises WDM (Wavelength Division Multiplexing) technology. This means it can send and receive data over a single fibre optic cable. In practice, this halves your fibre cabling requirements. It transmits at 1310nm and receives at 1550nm.

Robust 100 Mbps Performance

The TL-FC111B-20 maintains a consistent 100 Mbps data transfer rate. It supports both 10BASE-T and 100BASE-T copper ethernet. This ensures compatibility with common network equipment. Auto-negotiation and flow control contribute to stable data flow.

Remote Network Bridging

Achieve network links over substantial distances with this converter. It supports a maximum transfer distance of 20,000 metres (20 km). This is particularly useful for campus environments or distributed office setups. The single-mode fibre structure is designed for these extended runs.

Simple Installation and Monitoring

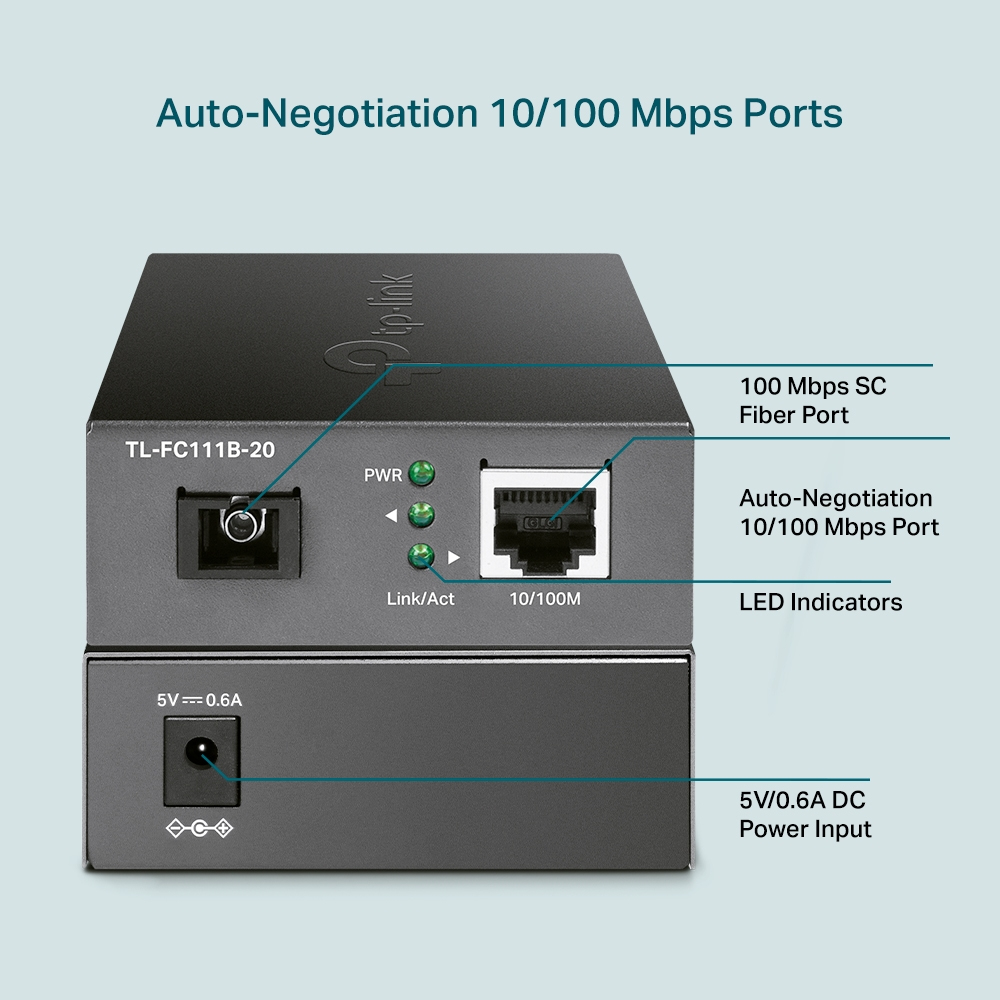

This unit is designed for straightforward deployment. It can function as a standalone device. Alternatively, it integrates with TP-Link’s TL-FC1420 rack system. LED indicators for activity, link, and power provide instant status updates. Auto MDI/MDI-X simplifies cable connections.

Before You Order

• Confirm your existing network infrastructure operates at 100 Mbps.
• Ensure you have compatible single-mode SC fibre optic cabling.
• Verify the need for bi-directional WDM technology for single-fibre use.

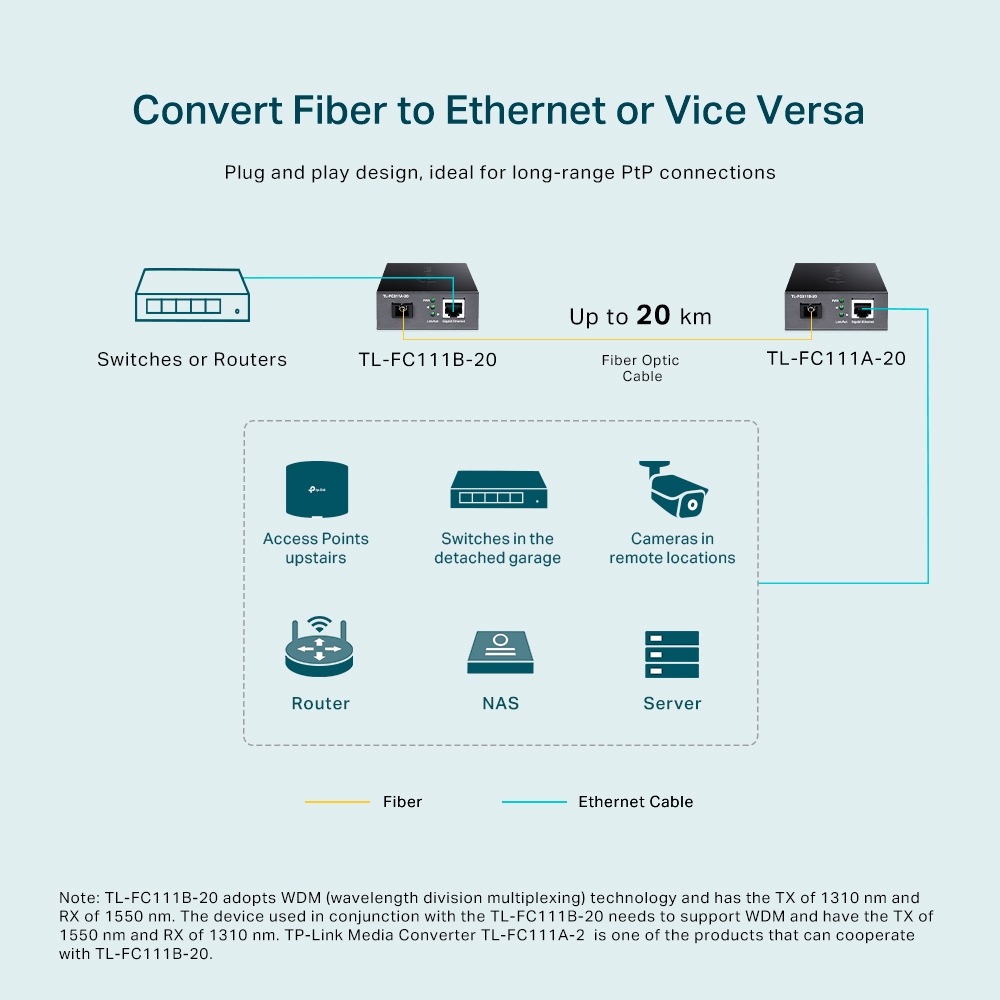

• Note that this unit requires a paired TL-FC111A-20 at the other end.

Frequently Asked Questions

Q: What type of fibre cable does this converter use?

A: It uses single-mode fibre with an SC connector.

Q: Can I use this for Gigabit Ethernet?

A: No, this model supports a maximum data transfer rate of 100 Mbps.

Q: Does it need a power adapter?

A: Yes, an external power adapter is included.

Q: What is WDM technology?

A: WDM allows data to be sent and received over a single fibre strand.

Q: Is this converter compatible with other brands?

A: It is designed to work with a paired unit, such as the TL-FC111A-20.

The Bottom Line

The TP-Link Omada TL-FC111B-20 Bi-Directional WDM Fiber Media Converter 100 Mbps SC Single-mode 20km is a practical choice for extending 100 Mbps networks over long distances using a single fibre. It’s built for reliability and ease of use in commercial settings. Warranty cover varies by product, so please contact us to confirm.
