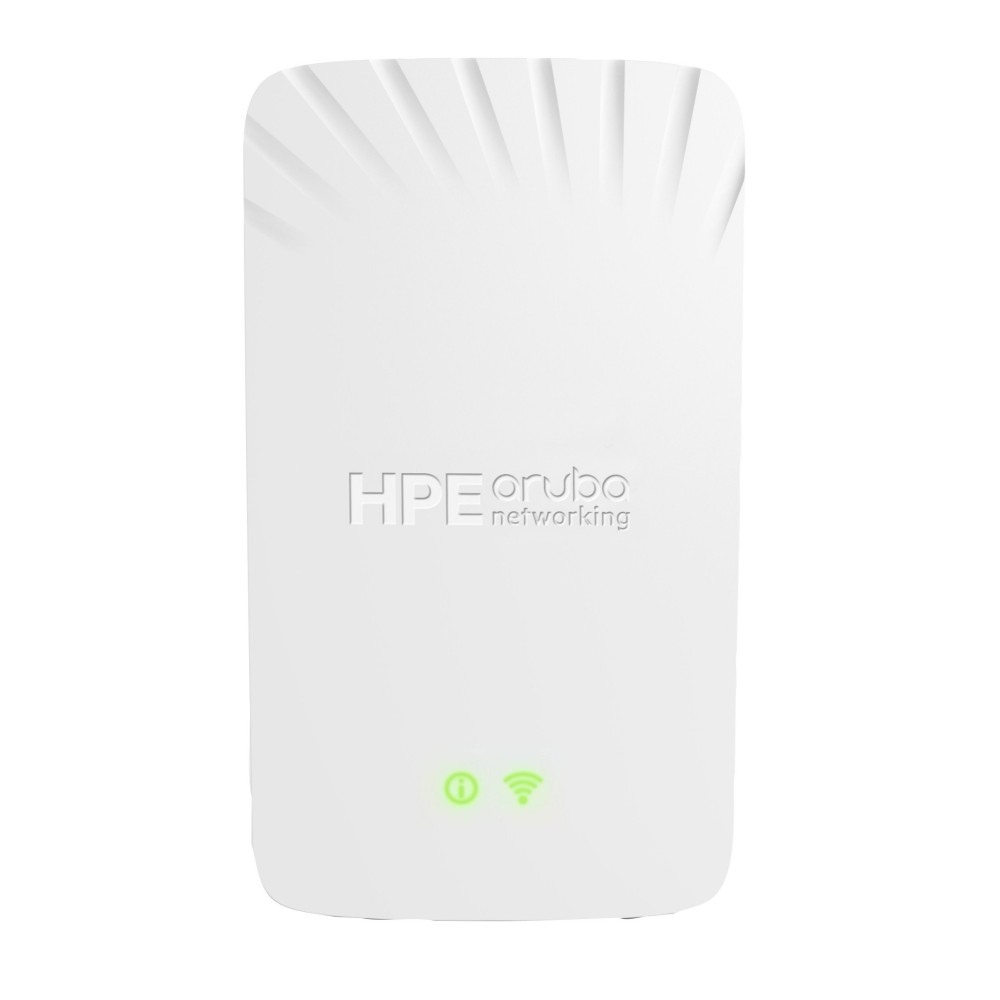

HPE Aruba AP-505H (RW) Wi-Fi 6 Hospitality AP
£372.94 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Wi-Fi 6 (802.11ax) dual-band connectivity with up to 1487 Mbit/s maximum data transfer rate
- Multi User MIMO and OFDMA support for enhanced multi-user efficiency
- Five Gigabit Ethernet ports, including four LAN ports and one uplink port, with Auto MDI/MDI-X
- Integrated Bluetooth 5.0 for IoT readiness
- WPA3 and Enhanced Open security algorithms for robust network protection
- Compact design for table or wall placement
- Zero Touch Provisioning (ZTP) for simplified deployment
Payment Methods:
You may also like
HPE Aruba Networking AP-505H – Advanced Wi-Fi 6 for Hospitality
We offer the HPE Aruba Networking AP-505H (RW) Dual Radio 802.11ax 2×2 1+4 Ethernet PSE USB Hospitality AP for demanding environments. This access point provides cost-effective Wi-Fi 6 coverage. It suits hotels, residence halls, and remote offices. Guests and staff benefit from improved wireless experiences.
Core Connectivity Details
| Metric | Spec. |
|---|---|
| Maximum Data Rate | 1487 Mbit/s |
| Ethernet LAN Rates | 1000, 5000 Mbit/s |
| Wi-Fi Standards | 802.11ax, 802.11mc |
| USB Ports | 1 (Type-A) |
| Ethernet RJ-45 Ports | 4 (downlink) |
Enhanced Multi-User Efficiency
This access point uses Orthogonal Frequency-Division Multiple Access (OFDMA). This improves efficiency in multi-user environments. Many devices can connect without performance degradation. For example, a busy hotel lobby maintains fast connections for all guests.
Secure and Reliable Wireless
WPA3 and Enhanced Open (OWE) provide robust security. This protects user data and ensures guest privacy. Dynamic segmentation further enhances network safety. Policies are consistently enforced across your network infrastructure.
Optimised for IoT Devices
Integrated Bluetooth 5 and Zigbee support offers IoT readiness. This extends connectivity options for various devices. Target Wake Time (TWT) prolongs battery life for connected IoT sensors. We ensure your smart devices run efficiently.
Simplified Deployment and Management
Zero Touch Provisioning (ZTP) streamlines setup. It allows remote site implementation without requiring on-site technical staff. We help you deploy quickly and easily. Management options include on-premises, public cloud, and virtual private cloud.
Before You Purchase
- Confirm your existing network infrastructure supports Wi-Fi 6.
- Confirm your power delivery method, noting PoE support.
- Confirm your planned mounting location (table or wall).
- Confirm compatibility with HPE Aruba Networking Operating System 10.2.0.0 or Instant OS 8.7.0.0.
Frequently Asked Questions
Q: What is the maximum data rate?
A: The maximum combined data transfer rate is 1487 Mbit/s.
Q: Does it support Wi-Fi 6?
A: Yes, it is Wi-Fi CERTIFIED 6 (802.11ax).
Q: How many Ethernet ports does it have?
A: It features one uplink and four downlink 10/100/1000BASE-T RJ-45 ports.
Q: Can it be powered by Ethernet?
A: Yes, it supports Power over Ethernet (PoE).
Q: What operating systems are compatible?
A: It is compatible with HPE Aruba Networking Operating System 10.2.0.0 and Instant OS 8.7.0.0.
Our Recommendation
This HPE Aruba Networking AP-505H (RW) Dual Radio 802.11ax 2×2 1+4 Ethernet PSE USB Hospitality AP is ideal for organisations needing reliable, secure, and high-performance Wi-Fi 6. It particularly suits hospitality, residential, and remote office environments. Its comprehensive features and simplified deployment make it a strong choice. It comes with a limited lifetime warranty.
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 1000,5000 Mbit/s |
| Maximum data transfer rate | 1487 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 1000,5000 Mbit/s |
| Certification | Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3–Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location (AP-505H only) Bluetooth SIG Ethernet Alliance (PoE) |
| Maximum data transfer rate | 1487 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Compatible operating systems | HPE Aruba Networking Operating System and HPE Aruba Networking Instant OS 8.7.1.0 (AP-503H) and 8.7.0.0 (AP-505H), HPE Aruba Networking Operating System 10.3.0.0 (AP-503H), 10.2.0.0 (AP-505H) |
| Wireless LAN features | |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Network | |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ports & interfaces | |
| I/O ports | 1 x 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX 4 x 10/100/1000BASE-T (RJ-45) ports, auto-sensing link speed and MDI/MDX |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 1000,5000 Mbit/s |
| Maximum data transfer rate | 1487 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 287 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| MACsec support | No |
| Compatible operating systems | HPE Aruba Networking Operating System and HPE Aruba Networking Instant OS 8.7.1.0 (AP-503H) and 8.7.0.0 (AP-505H), HPE Aruba Networking Operating System 10.3.0.0 (AP-503H), 10.2.0.0 (AP-505H) |
| Security | |
| Security algorithms | WPA, WPA2, WPA3 |
| Management features | |
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Power | |
| Power consumption (max) | 50 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Table, Wall |
| Product colour | White |
| Certification | Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3–Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location (AP-505H only) Bluetooth SIG Ethernet Alliance (PoE) |
| Recommended usage | Indoor |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5.4 dBi |
| Antenna direction type | Semi-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Weight (imperial) | 0.363 kg (0.8 lbs) |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Certificates | |
| Certification | Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3–Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location (AP-505H only) Bluetooth SIG Ethernet Alliance (PoE) |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Weight & dimensions | |
| Width | 86 mm |
| Depth | 47 mm |
| Weight | 360 g |
| Height | 150 mm |
| Other features | |
| I/O ports | 1 x 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX 4 x 10/100/1000BASE-T (RJ-45) ports, auto-sensing link speed and MDI/MDX |
| Weight (imperial) | 0.363 kg (0.8 lbs) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| System requirements | |
| Compatible operating systems | HPE Aruba Networking Operating System and HPE Aruba Networking Instant OS 8.7.1.0 (AP-503H) and 8.7.0.0 (AP-505H), HPE Aruba Networking Operating System 10.3.0.0 (AP-503H), 10.2.0.0 (AP-505H) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Identifiers | |
| Distributor SKUs | 2M2TMA7, 5723528, STD10214571, CLR3V46A |
| Additional EANs | 5715063082683 |
