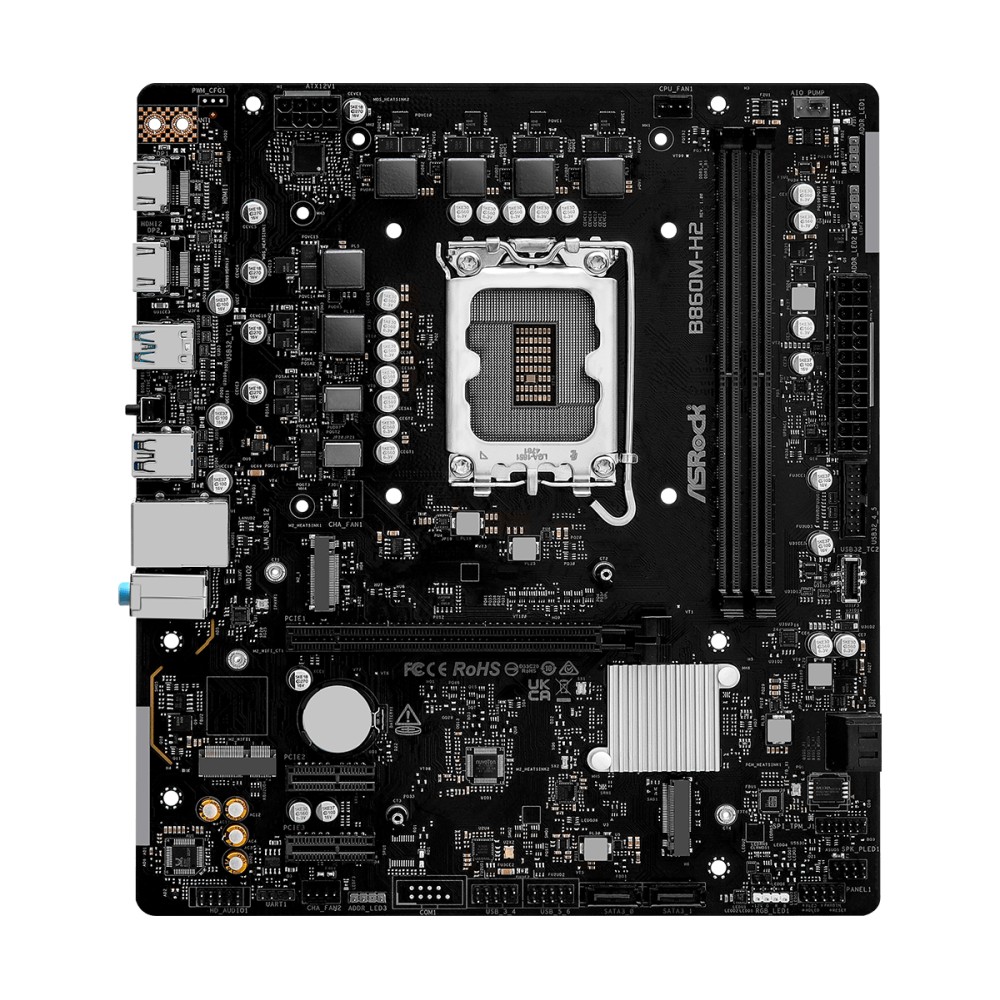

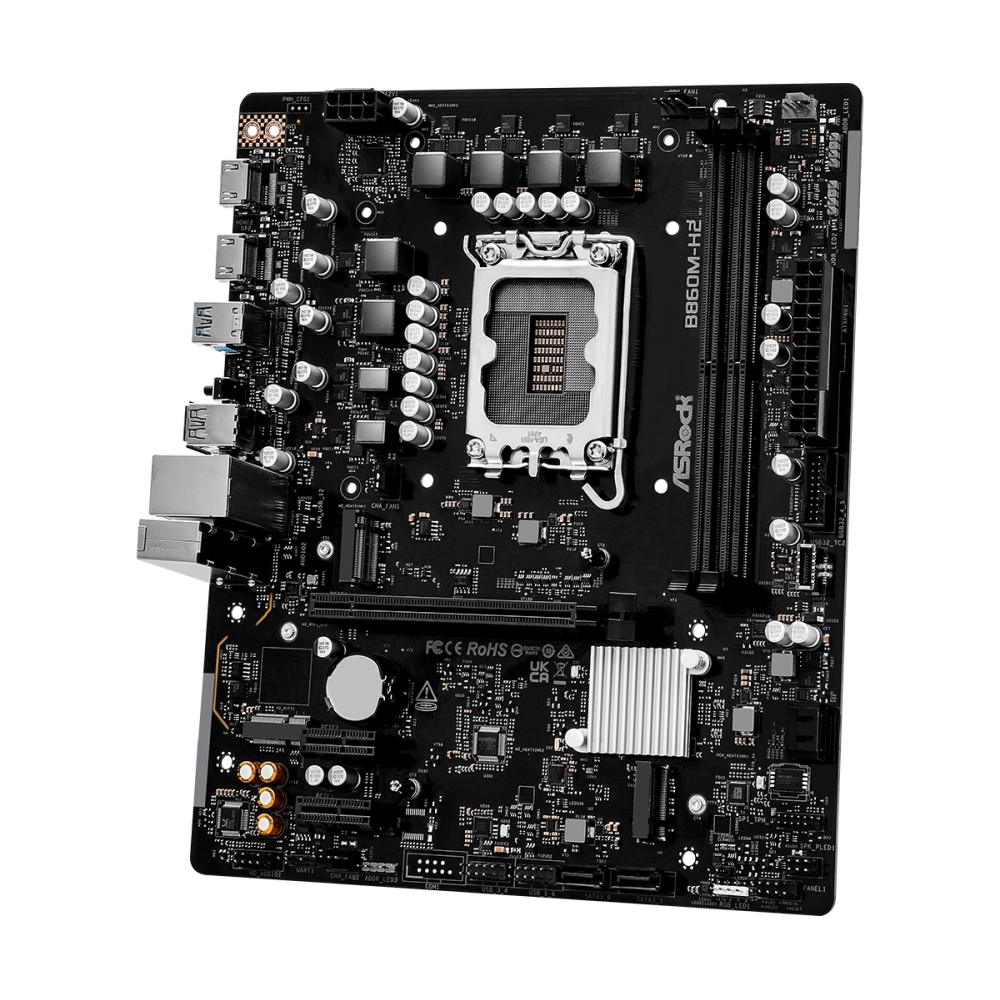

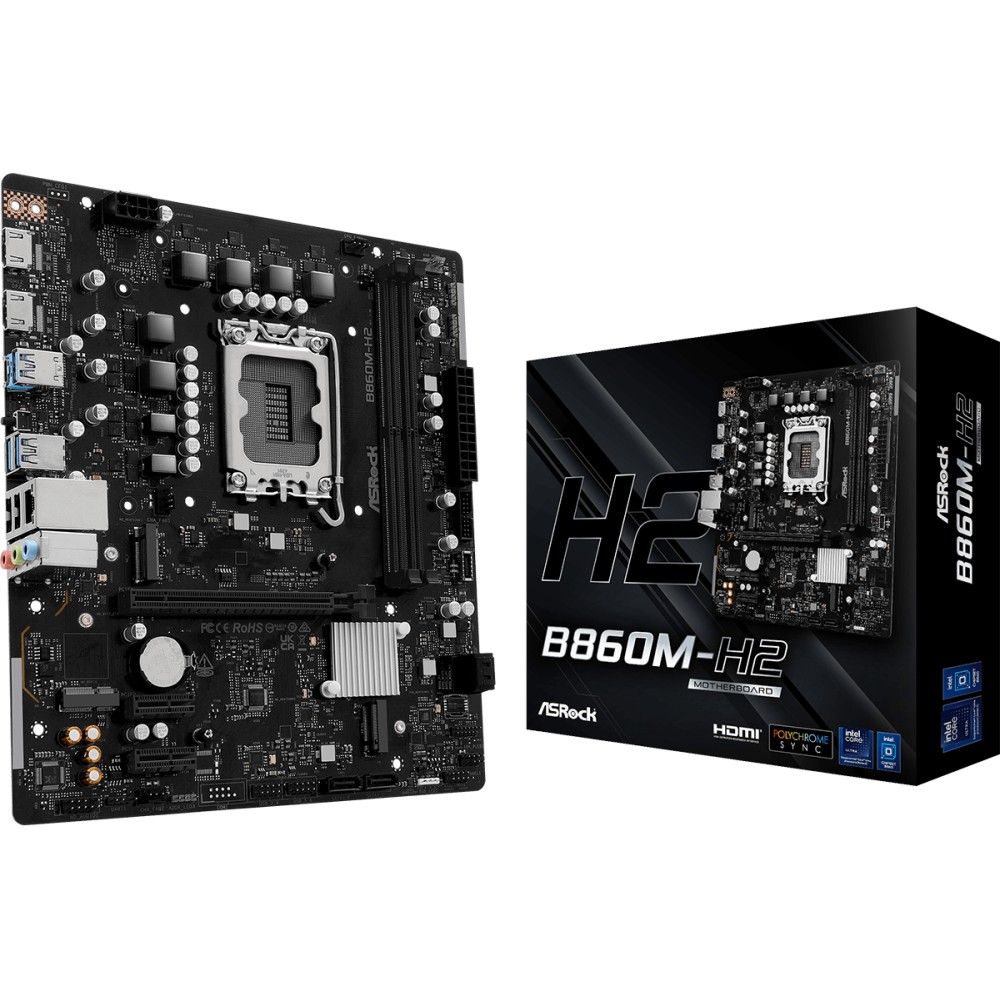

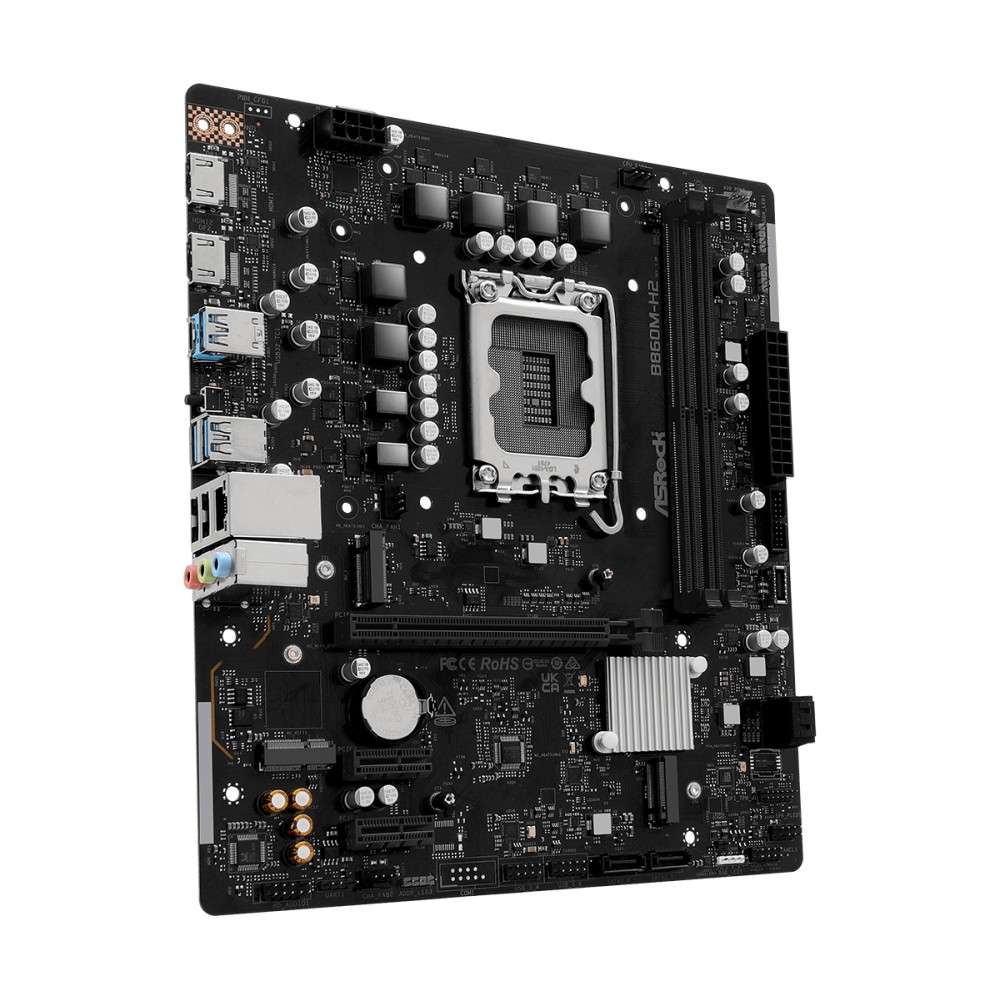

ASRock B860M-H2 Motherboard LGA 1851 Intel B860 micro ATX DDR5 Black

ASRock B860M-H2 Motherboard LGA 1851 Intel B860 micro ATX DDR5 Black Overview

We recommend the ASRock B860M-H2 Motherboard LGA 1851 Intel B860 micro ATX DDR5 Black for builders. It offers next-gen Intel support in a small chassis. This board delivers robust connectivity and modern storage speeds without taking up excessive case space. It supports the latest Core Ultra processors effectively.

Core technical numbers

Unlock rapid storage performance

The onboard M.2 slot supports PCIe Gen5 standards. You achieve twice the bandwidth of previous generations. This ensures your fastest SSDs run at full speed.

Versatile data transfer options

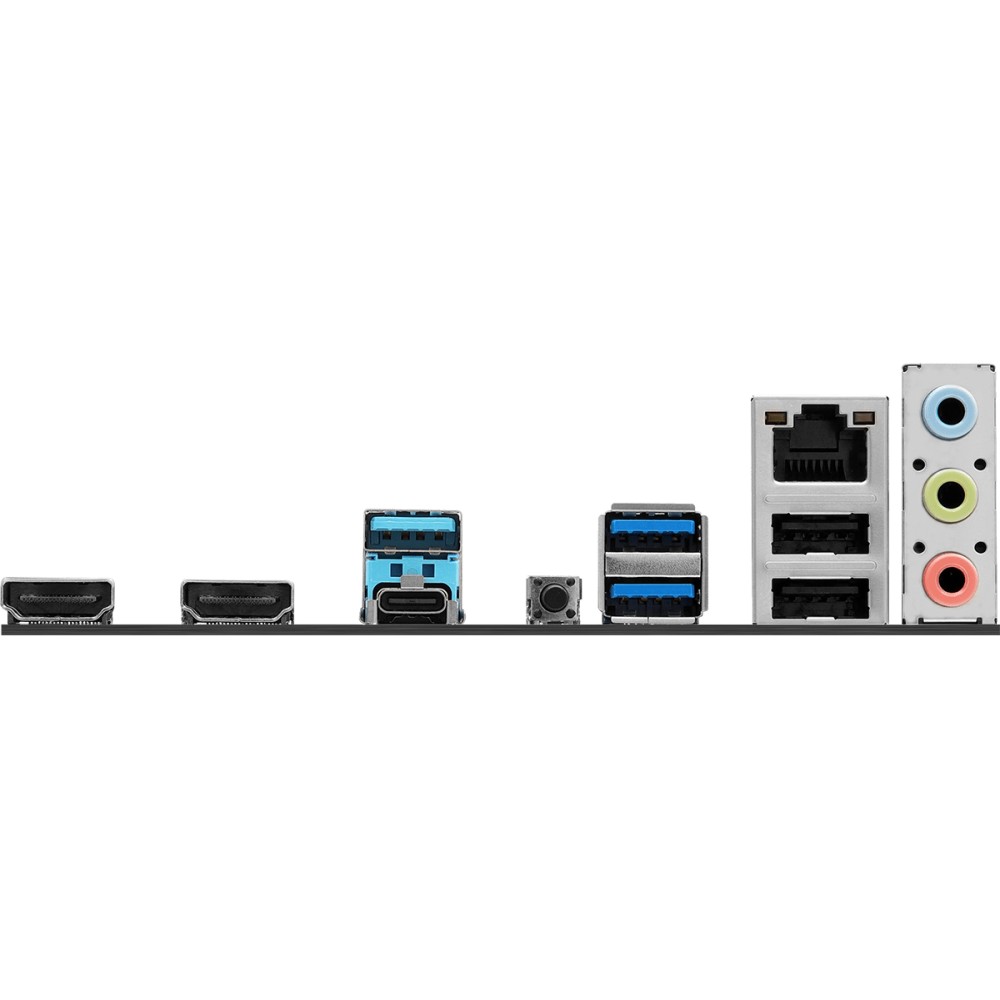

Rear ports include a USB 3.2 Gen 2×2 Type-C connector. It offers up to 20 Gbps transfer rates. Front headers also support modern reversible USB designs.

Expand your system easily

You get one PCI Express x16 slot for graphics. Two additional x1 slots handle extra cards. The micro ATX shape fits many standard cases.

Update BIOS without a CPU

BIOS Flashback lets you update firmware simply. Just use a USB drive and power supply. No processor or memory is required for this task.

What you receive

We include standard SATA cables with the package. These enable connections to your storage drives. No other accessories are typically provided.

Before you order

• Confirm your case supports micro ATX motherboards.
• Check that your CPU uses the LGA 1851 socket.
• Ensure your power supply has the required connectors.

Frequently Asked Questions

Q: Does it support Wi-Fi?

A: No, this model does not include built-in Wi-Fi. You must add a separate card if needed.

Q: How many memory slots are there?

A: There are two DIMM slots for DDR5 memory. You can install up to 128 GB total.

Q: Does it have HDMI outputs?

A: Yes, it comes equipped with two HDMI ports. This allows easy connection to multiple monitors.

Q: Is RAID supported?

A: Yes, the chipset supports RAID levels 0, 1, 5, and 10. You can combine drives for performance or safety.

Q: What operating systems work?

A: It supports Windows 11 x64 operating systems. Always check driver availability before installing your OS.

Our final assessment

This board suits compact builds needing modern Intel features. It balances speed and size well for home users. We stand by the quality and design of the ASRock B860M-H2 Motherboard LGA 1851 Intel B860 micro ATX DDR5 Black.
