DrayTek VigorAP 918R 866 Mbit/s PoE White

DrayTek VigorAP 918R | Outdoor PoE Wireless Access Point

The DrayTek VigorAP 918R 866 Mbit/s White Power over Ethernet (PoE) is designed for outdoor wireless coverage. It suits UK restaurants, gardens, and educational premises. This dual-band 802.11ac Wave 2 unit delivers reliable connectivity. It supports mesh networking to extend coverage without expensive cabling. Because it uses PoE, installation is flexible and clean.

DrayTek VigorAP 918R 866 Mbit/s White Power over Ethernet (PoE)

This section highlights the core product. It is a white, outdoor access point. It offers directional internal antennas with 11 dBi gain. The unit supports fast roaming and mesh deployments. You can manage it centrally or as a stand-alone device.

Slim Specs Table

Dual-Band Performance for Outdoor Use

The VigorAP 918R operates on 2.4 GHz and 5 GHz bands. It delivers up to 400 Mbit/s on 2.4 GHz. The 5 GHz band reaches 866 Mbit/s. This handles streaming and browsing in crowded areas. Because it uses Multi-User MIMO, multiple devices connect efficiently. So, performance stays consistent outdoors.

Robust IP67 Weatherproofing

This unit has an IP67 rating. It resists dust and water ingress. The operating temperature range is -40 to 70 °C. Therefore, it suits harsh UK weather. However, you should verify mounting hardware for your specific wall or pole. Also, confirm cable glands are sealed properly during install.

Flexible Mesh and Range Extension

The VigorAP 918R supports DrayTek Mesh Wireless. Up to eight units can form a mesh. One unit acts as the root controller. This eliminates Wi-Fi dead zones without new cables. For example, extend coverage across a garden or marina. In practice, the Wireless app simplifies setup.

Centralised Management Options

Manage this access point through several platforms. Use VigorACS for central control. Alternatively, use VigorConnect or Router AP Management. It also works as a stand-alone unit. The Web-based management interface is available. CLI access via Telnet is supported for advanced users. However, verify your preferred management tool compatibility.

Advanced Security and Network Features

The VigorAP 918R supports VLANs and wireless isolation. Security algorithms include WPA2, WPA, and HTTPS. You can filter by IP and MAC address. Hidden SSID and multiple SSIDs are supported. Fast roaming helps devices switch APs smoothly. Therefore, it fits secure, multi-tenant environments.

Easy Installation with PoE

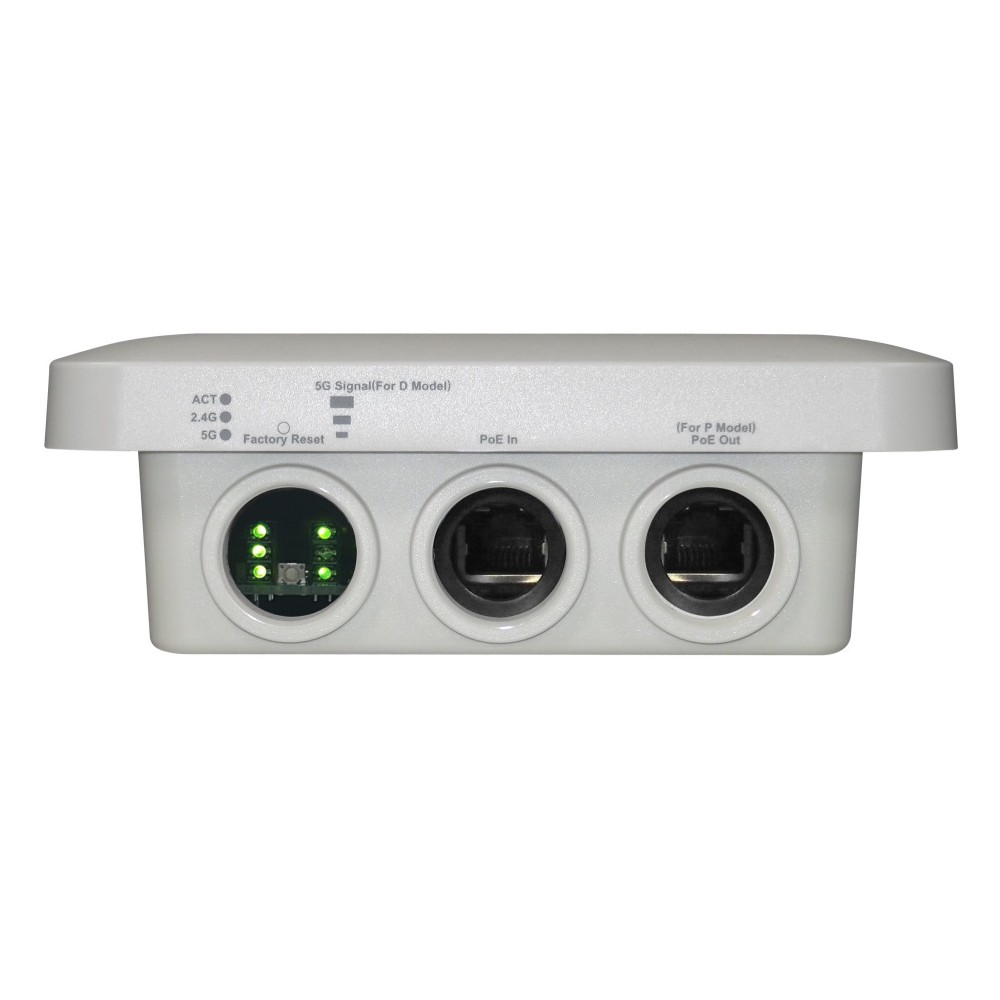

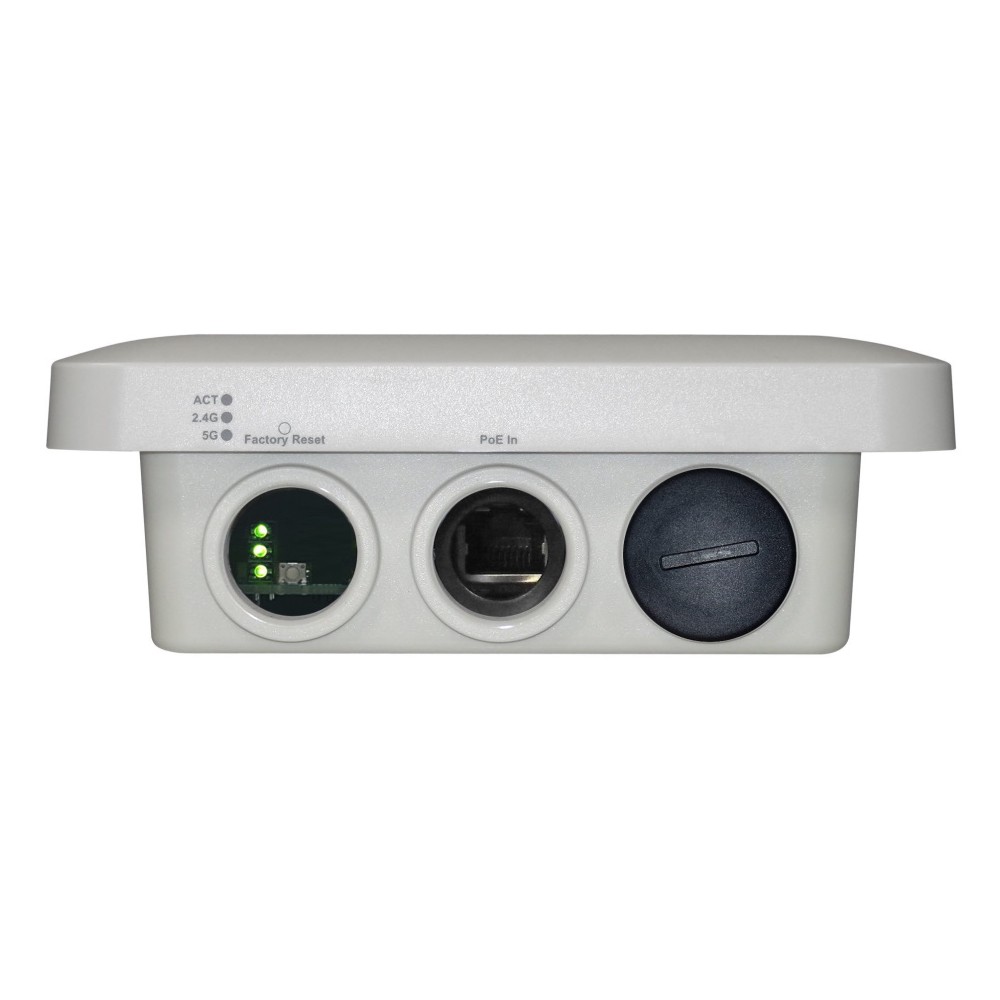

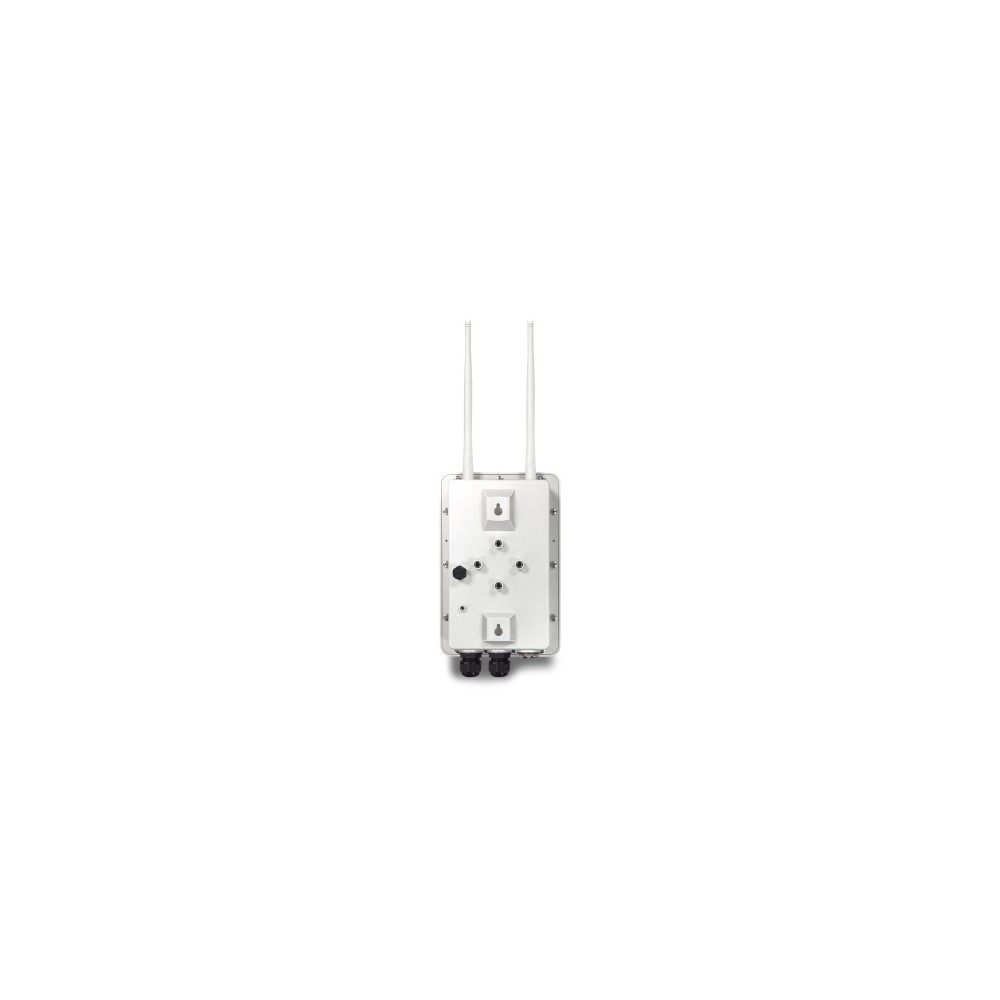

Power over Ethernet (PoE) simplifies deployment. You only need one cable for data and power. The unit has one internal RJ-45 port. Maximum power consumption is 43.2 W. It can be mounted on a wall or pole. However, confirm your PoE injector or switch provides adequate power.

Box contents

• DrayTek VigorAP 918R unit
• LAN (RJ-45) cable
• Quick start guide

Check before you buy

• Confirm your PoE switch or injector supports 43.2 W max power.
• Verify UKCA or CE marking suits your installation site.
• Check that your management platform supports this model.
• Ensure the 5 GHz band is suitable for your local Wi-Fi channel plan.

Frequently Asked Questions

Q: Is the DrayTek VigorAP 918R suitable for UK outdoor use?

A: Yes, it has IP67 weatherproofing and a wide temperature range.

Q: Does it support mesh networking?

A: Yes, up to eight units can form a DrayTek mesh.

Q: Can I manage it without a controller?

A: Yes, it works as a stand-alone AP with Web management.

Q: What power source is needed?

A: It uses Power over Ethernet; verify your injector or switch meets 43.2 W max.

Q: Are the antennas detachable?

A: Yes, the antenna features include detachable antennas.

The Consultant’s verdict & warranty

Buy the DrayTek VigorAP 918R if you need reliable outdoor Wi-Fi with PoE. It suits UK businesses requiring mesh coverage in gardens, marinas, or campuses. The directional antennas and IP67 rating provide robust performance. However, confirm PoE power and management compatibility before purchase. Covered by the standard Manufacturer Warranty.
