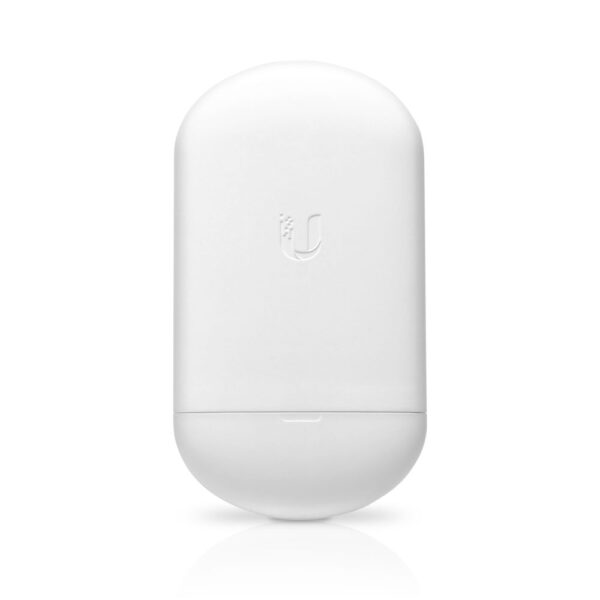

Ubiquiti NanoStation 5AC Loco 1000 Mbps White
Original price was: £67.19.£63.59Current price is: £63.59.
In stock
In stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- 1000 Mbps Ethernet LAN data rates with 5 GHz frequency band
- Maximum outdoor range of 10,000 m with 450 Mbps throughput
- AirOS operating system with 64 MB internal memory
- Power over Ethernet (PoE) support with 24 V AC input
- Compact ceiling-mountable design with white finish
You may also like
TP-Link Omada EAP725-WALL Wi-Fi 7 Access Point
In stock
Ubiquiti airCube 867 Mbps PoE Black
In stock
TP-Link Omada EAP610 WiFi 6 Access Point
In stock
DrayTek VigorAP 805 Mesh AX3000 Access Point
In stock
Ubiquiti U7 Lite 4300 Mbps PoE White
In stock
Ubiquiti U7 Long-Range 7300 Mbps PoE
In stock
TP-Link AX3000 Ceiling WiFi 6 Access Point
In stock
TP-Link Omada EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point
In stock
TP-Link AC1200 MU-MIMO Wall Access Point
In stock
TP-Link Omada AX3000 WiFi 6 Access Point
In stock
Ubiquiti NanoStation 5AC Loco | Compact Outdoor 5 GHz CPE
The Ubiquiti NanoStation 5AC Loco 1000 Mbit/s White Power over Ethernet (PoE) delivers high-performance wireless connectivity in a compact, weather-resistant form factor. Designed for point-to-point and point-to-multipoint deployments, this device leverages airMAX AC technology to provide reliable long-range links up to 10 km outdoors.
Product Specifications
| Metric | Spec |
|---|---|
| Frequency Band | 5.150 – 5.250, 5.250 – 5.350, 5.470 – 5.725, 5.725 – 5.850 GHz |
| Maximum Throughput | 450 Mbit/s |
| Ethernet Ports | 1 x Gigabit RJ-45 (PoE Passthrough) |
| Operating Range | -40 to 70 °C |
| Dimensions | 179 x 77.5 x 59.1 mm |
Extended outdoor range for challenging deployments
With a maximum outdoor range of 10,000 metres, the NanoStation 5AC Loco excels in rural and semi-rural deployments where distance is the primary challenge. The integrated antenna design eliminates the need for external cabling, reducing potential signal loss and installation complexity. This makes it particularly suitable for connecting remote buildings, agricultural sites, or extending network coverage across large properties.
AirMax AC technology for superior performance
Operating across four 5 GHz frequency bands, this device supports advanced modulation schemes including 16-QAM, 64-QAM, and 256-QAM. The airMAX AC protocol delivers 450 Mbps throughput, ensuring smooth video streaming, VoIP calls, and data transfers even in challenging RF environments. The dedicated Wi-Fi radio enables quick configuration via mobile device, streamlining the setup process for installers.
Weather-resistant design for year-round reliability
The NanoStation 5AC Loco’s robust enclosure protects internal components from harsh weather conditions, operating reliably in temperatures from -40°C to 70°C. Enhanced surge protection guards against ESD events, while the white housing provides UV resistance for long-term outdoor deployment. The internal antenna design maintains a low profile while delivering consistent performance across the specified frequency bands.
Dual Ethernet for flexible power options
The single Gigabit Ethernet port supports Power over Ethernet (PoE), allowing both data and power delivery through a single cable. The device can also provide PoE passthrough to connected devices such as security cameras or access points, simplifying network infrastructure requirements. This flexibility makes it ideal for installations where power outlets are limited or where clean cable management is essential.
Box contents
- Ubiquiti NanoStation 5AC Loco
- PoE injector
- Mounting hardware
- Quick start guide
Key points to check
- Confirm the 5 GHz frequency bands match your regional regulations
- Verify you have compatible airOS-compatible management software
- Check mounting requirements for your installation location
- Confirm PoE injector compatibility with your existing infrastructure
Common questions
What is the maximum wireless range?
Does this device support PoE passthrough?
Can I configure this device using a mobile phone?
What operating systems are supported?
Is this device suitable for indoor use?
Buying advice
The Ubiquiti NanoStation 5AC Loco represents an excellent solution for extending wireless networks across challenging distances. Its combination of weather resistance, advanced airMAX AC technology, and flexible power options makes it particularly suitable for rural broadband, remote site connectivity, and large property coverage. Covered by the applicable manufacturer warranty.
| Weight | 0.39 kg |
|---|---|
| Certification | CE, FCC, IC |
| 5 GHz | Yes |
| Frequency band | 5.150 – 5.250, 5.250 – 5.350, 5.470 – 5.725, 5.725 – 5.850 GHz |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Maximum outdoor range | 10000 m |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Throughput data rate | 450 Mbit/s |
| Operating system installed | AirOS |
| Internal memory | 64 MB |
| Ethernet LAN RJ-45 ports | 1 |
| Input current | 0.5 A |
| AC input voltage | 24 V |
| Placement | Ceiling |
| Product colour | White |
| Antenna type | Internal |
| Built-in processor | Yes |
| LED indicators | Network, Power, Signal strength |
| Width | 179 mm |
| Depth | 77.5 mm |
| Weight | 180 g |
| Height | 59.1 mm |
| Operating relative humidity H-H | 5 – 95% |
| Operating temperature T-T | -40 – 70 °C |
| Harmonized System HS code | 85176990 |
