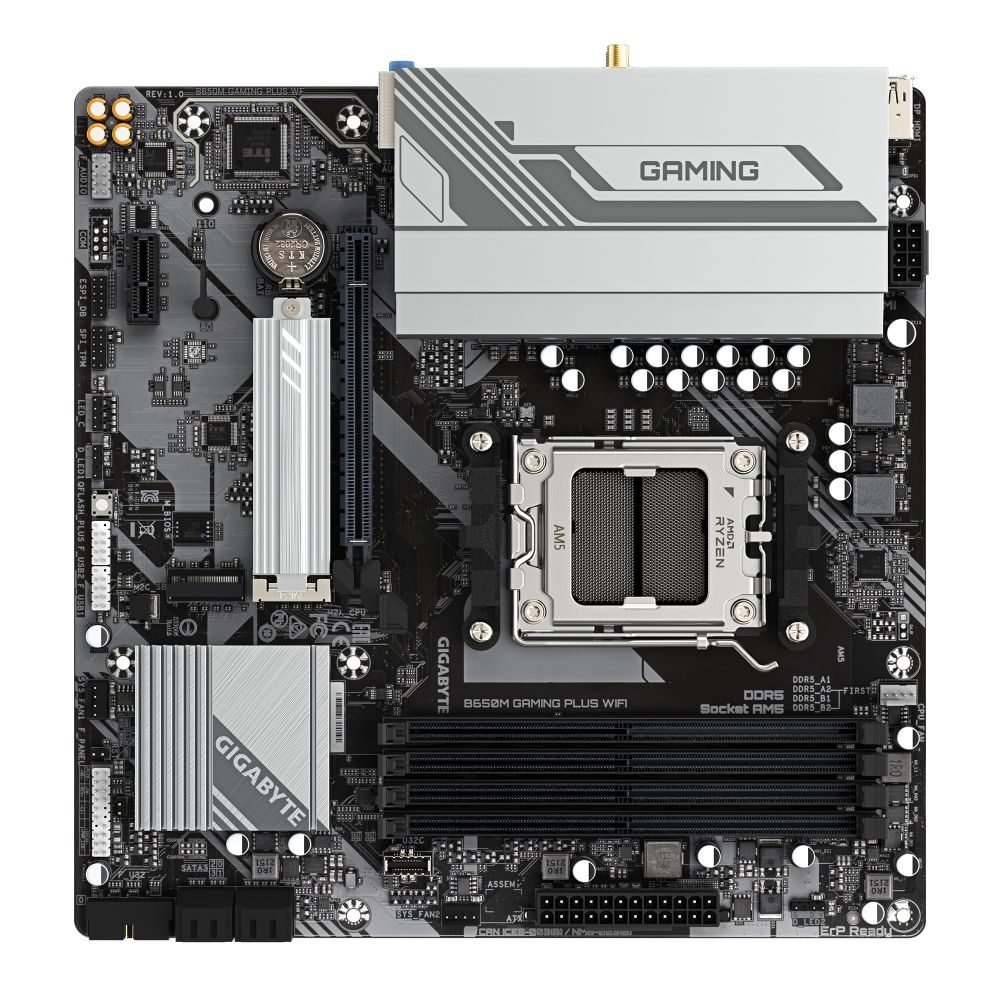

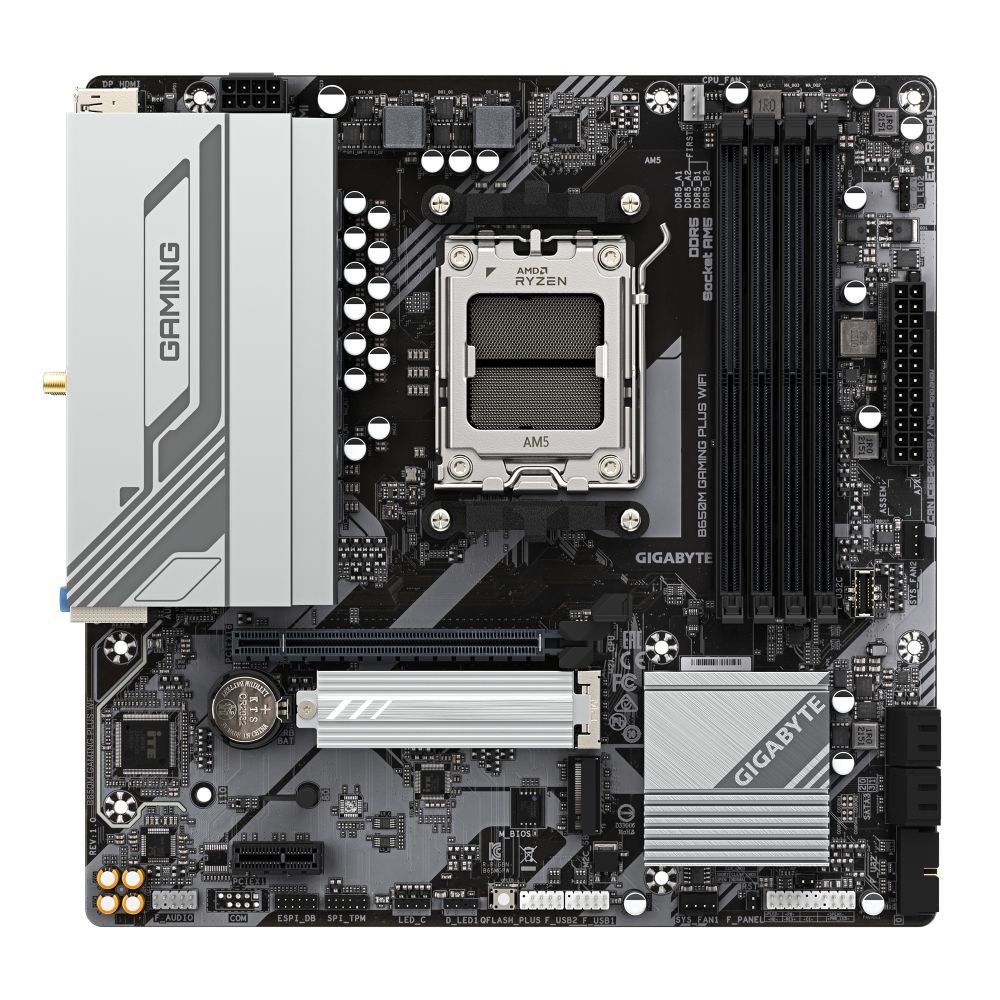

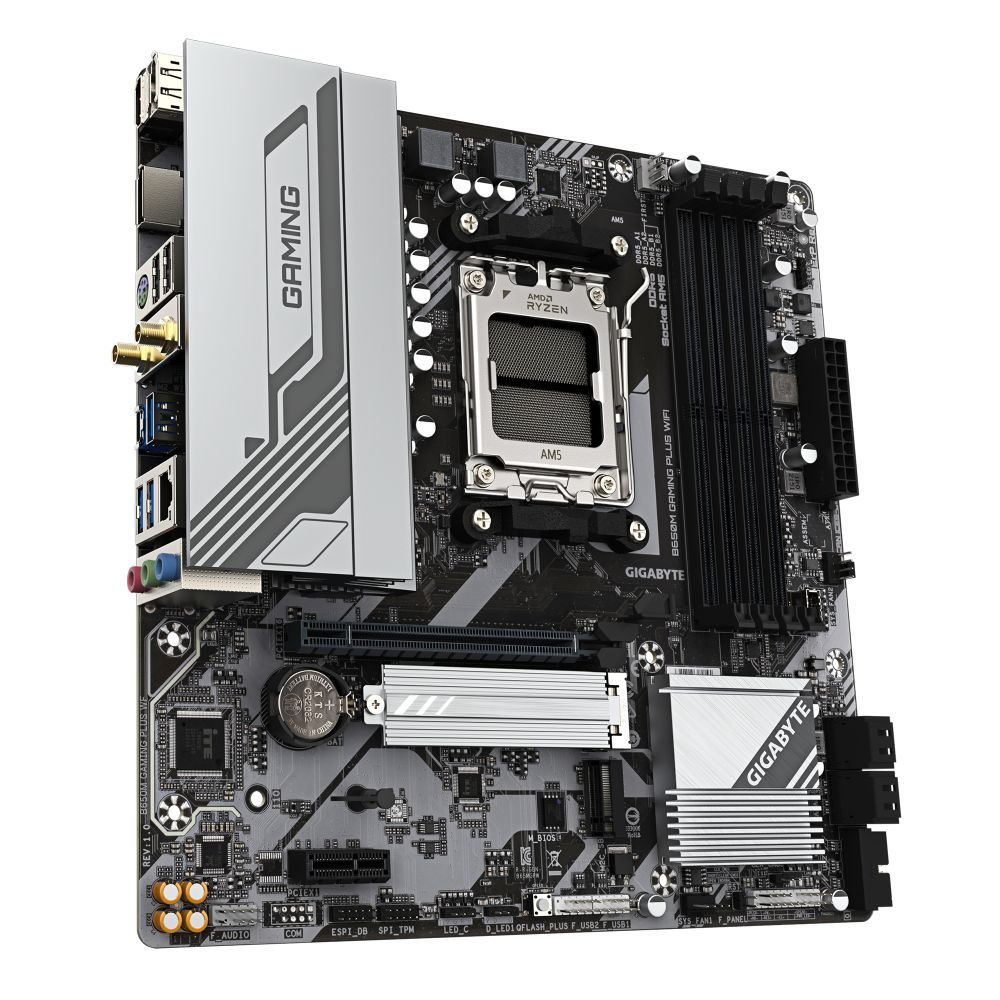

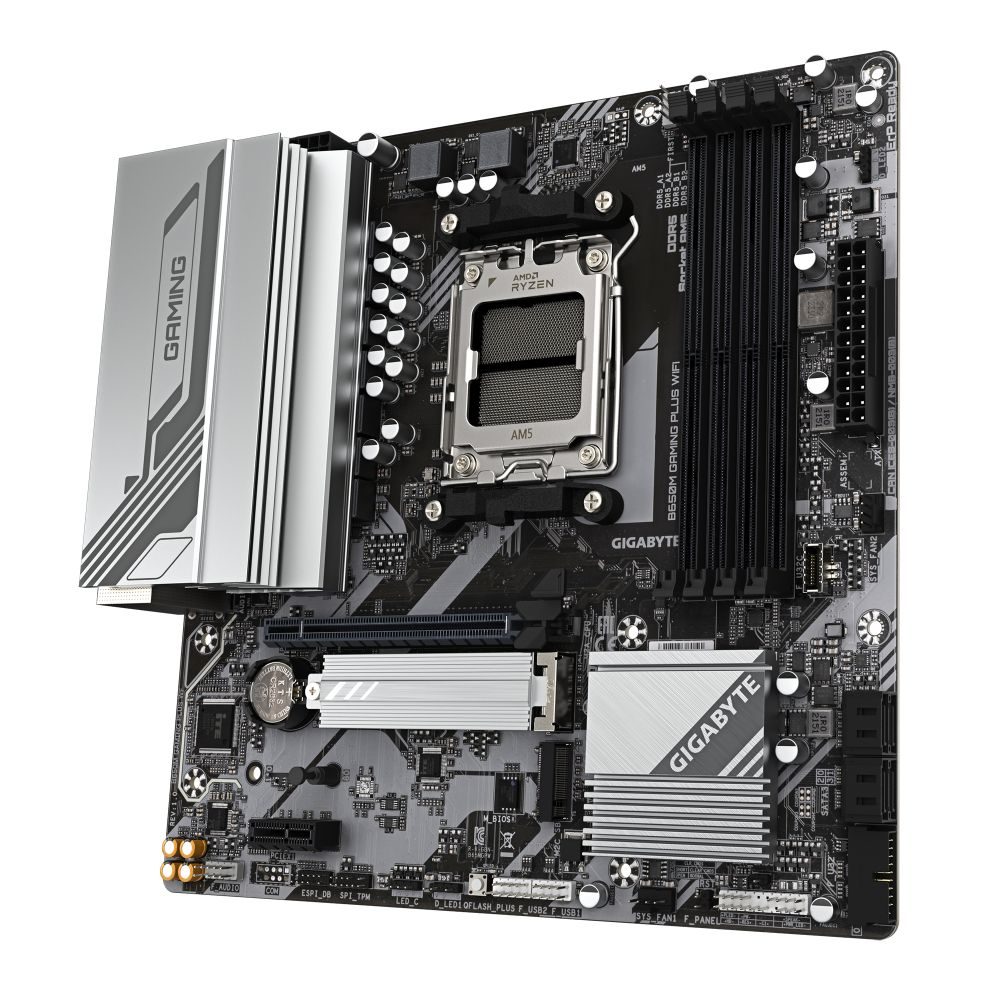

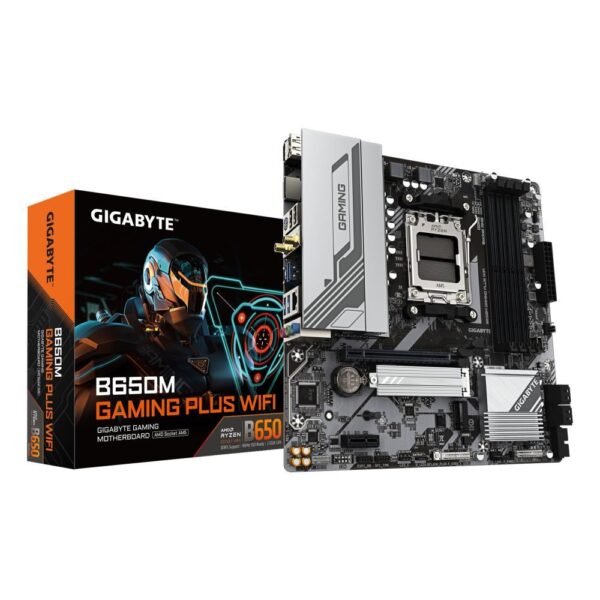

GIGABYTE B650M GAMING PLUS WIFI Motherboard – AM5, DDR5, mATX
£125.76 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- AMD B650 chipset supporting AMD Ryzen 7000/8000/9000 Series CPUs on Socket AM5
- Four DDR5 DIMM slots with dual-channel architecture up to 8000 MHz (256 GB max)
- Two PCIe 4.0 M.2 slots plus four SATA III connectors for flexible storage options
- Micro ATX form factor with PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot
- Wi-Fi 6E and 2.5GbE LAN with Bluetooth 5.3 for high-speed connectivity
- Comprehensive rear I/O including HDMI 2.1, DisplayPort 1.4, USB 3.2 Gen 1, and 7.1 audio
- Three-year warranty with bundled Norton Internet Security software
Payment Methods:
You may also like
GIGABYTE B650M GAMING PLUS WIFI | AMD Ryzen 9000 Ready mATX
The GIGABYTE B650M GAMING PLUS WIFI Motherboard – AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 8000MHz DDR5, 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 1 is a micro-ATX board for UK builders. It targets gamers and creators using AMD Ryzen 7000, 8000, and 9000 series processors. Key USPs include PCIe 4.0 storage, Wi-Fi 6E, and 2.5GbE LAN.
Specifications
| Metric | Spec. |
|---|---|
| Chipset | AMD B650 |
| Socket | AM5 |
| Memory | 4x DDR5, up to 8000 MHz (OC), 256 GB max |
| Graphics Outputs | HDMI 2.1, 2x DisplayPort 1.4 |
| LAN | Realtek 2.5GbE |
| Wi-Fi & BT | Wi-Fi 6E, Bluetooth 5.3 |
Platform Stability and Power Delivery
The board uses a 5+2+2 phase VRM design. This supports high-TDP Ryzen 9000 CPUs reliably. Passive cooling aids long-term stability. Because VRM thermals are managed well, sustained workloads feel consistent.
High-Speed Memory Support
You get four DDR5 DIMM slots. They support speeds up to 8000 MHz via overclocking. The board handles up to 256 GB total. Dual-channel architecture improves bandwidth for gaming and editing.
Dual PCIe 4.0 M.2 Storage
Two M.2 slots support PCIe 4.0 NVMe drives. The first slot fits 2280 cards. The second fits up to 22110. Both use the chipset lanes. So, fast boot times and quick file transfers are achievable. Note: This listing does not state if heatsinks are included; verify this before purchase.
Networking and Connectivity

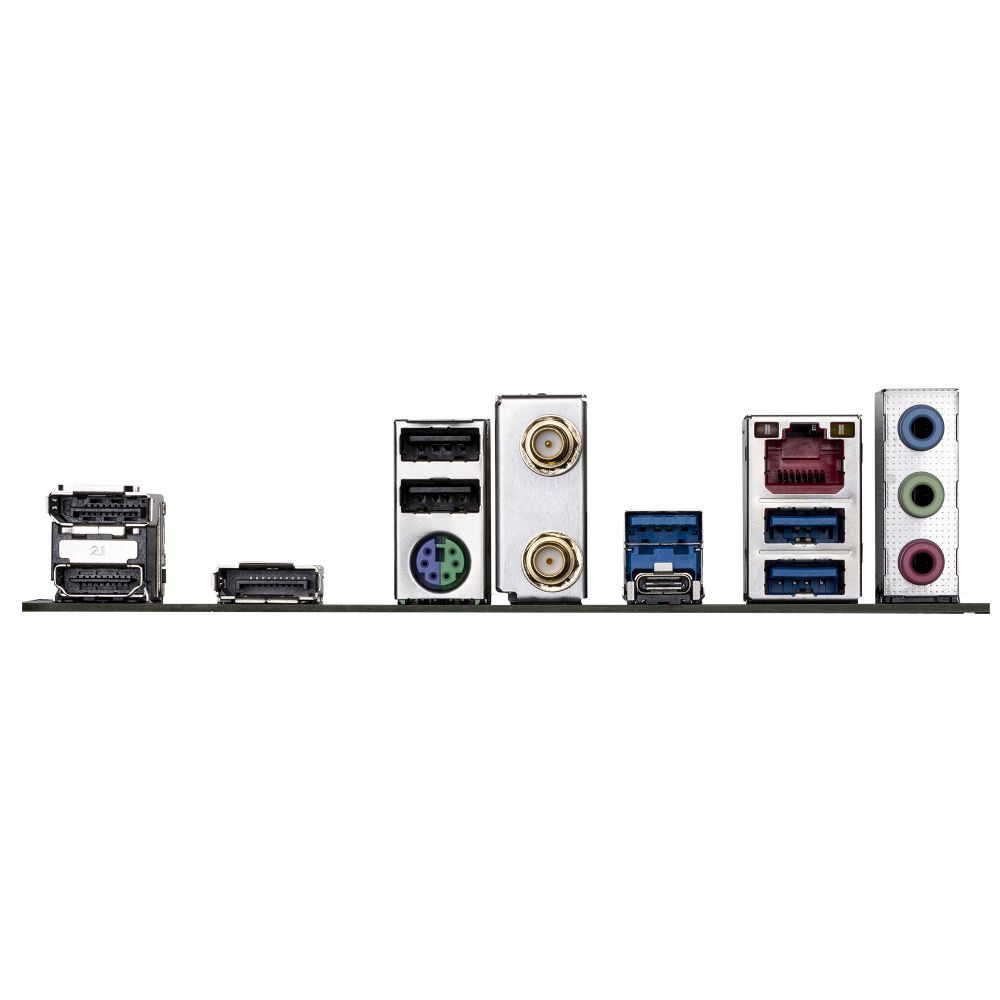

You get 2.5GbE LAN via Realtek RTL8125. Wi-Fi 6E and Bluetooth 5.3 are integrated. The rear I/O includes three USB 3.2 Gen 1 Type-A ports and one Type-C port. Also, two USB 2.0 ports and a PS/2 port are present. This mix suits peripherals and legacy devices.
Audio and Visual Outputs
The Realtek ALC897 audio chip delivers 7.1-channel sound. For displays, you get one HDMI 2.1 port and two DisplayPort 1.4 ports. Maximum resolution is 4096 x 2160. HDCP support is included. DirectX 12.0 is supported.
Internal Headers and Expansion
The board includes four SATA III connectors. You also get two USB 2.0 headers and two USB 3.2 Gen 1 headers. Front panel, audio, and TPM connectors are present. There is one PCIe x16 Gen 4 slot and one PCIe x1 Gen 3 slot. RGB support includes three pin headers. Fan headers include one CPU and two chassis fans.
PC Health Monitoring
The board supports monitoring of fan speeds, temperatures, and voltages. This helps maintain system health. Clear CMOS jumper is available for BIOS resets. BIOS is UEFI AMI with 256 Mbit memory.
Box contents
- GIGABYTE B650M GAMING PLUS WIFI Motherboard
- Antenna
- Screws
- Batteries (CR2032)
- Bundled software: Norton Internet Security (OEM), LAN bandwidth management
Check before you buy
- Confirm your case fits micro-ATX (244 mm x 244 mm).
- Verify Wi-Fi 6E band support matches your router.
- Check UKCA/CE marking for your region.
- Confirm warranty service is available in the UK.
Questions and answers
Is this board compatible with Ryzen 9000 series?
How many M.2 slots are available?
Does it include Wi-Fi and Bluetooth?
What is the maximum memory speed supported?
Are heatsinks included for the M.2 slots?
What video outputs are available?
Final thoughts
This board suits UK builders building a compact AMD Ryzen system. It offers strong VRM design, fast storage options, and modern networking. It is ideal for gamers and creators who need a micro-ATX form factor. Covered by the applicable manufacturer warranty.
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|---|---|
| Number of M.2 M slots | 2 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors 8-pin | 1 |
| Number of RGB LED pin headers | 3 |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage |
| Parallel processing technology support | Not supported |
| Cooling type | Passive |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio output channels | 7.1 channels |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| RAID levels | 1, 10 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 8000 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 3 |
| USB 3.2 Gen 1 3.1 Gen 1 Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 2 |
| Line-in | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| LAN controller | Realtek RTL8125 |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Realtek RTL8852CE |
| Power source type | ATX |
| Audio chip | Realtek ALC897 |
| Product colour | Dark brown |
| PCI Express x1 Gen 3.x slots | 1 |
| PCI Express x16 Gen 4.x slots | 1 |
| 1st M.2 largest key size | 2580 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS SMBIOS version | 2.7 |
| Desktop Management Interface DMI version | 2.7 |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.53 kg |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Products per shipping inner case | 1 pc(s) |
| Height | 35 mm |
| Weight | 1.44 kg |
| Width | 244 mm |
| Depth | 244 mm |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Distributor SKUs | MBGIG-B650MGPW, 126805, 544990 |
