GIGABYTE B850 EAGLE WIFI7 ICE Motherboard – AM5, DDR5, PCIe 5.0
£173.70 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- AMD B850 chipset with Socket AM5 for AMD Ryzen 7000/8000/9000 Series CPUs
- DDR5 memory support up to 8200 MHz (OC) with 4 DIMM slots for up to 256 GB
- Connectivity includes Wi-Fi 7, 2.5 Gigabit Ethernet, and Bluetooth 5.4
- Multiple storage options featuring 1x PCIe 5.0 and 2x PCIe 4.0 M.2 slots, plus 4 SATA III ports
- ATX form factor with 7.1 channel audio and passive cooling
- Extensive I/O: HDMI, DisplayPort, various USB 2.0/3.2 ports
- Features PC health monitoring for fan, temperature, voltage, and water cooling
Payment Methods:
You may also like
GIGABYTE B650 GAMING X AX V2 Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0 M.2
In stock

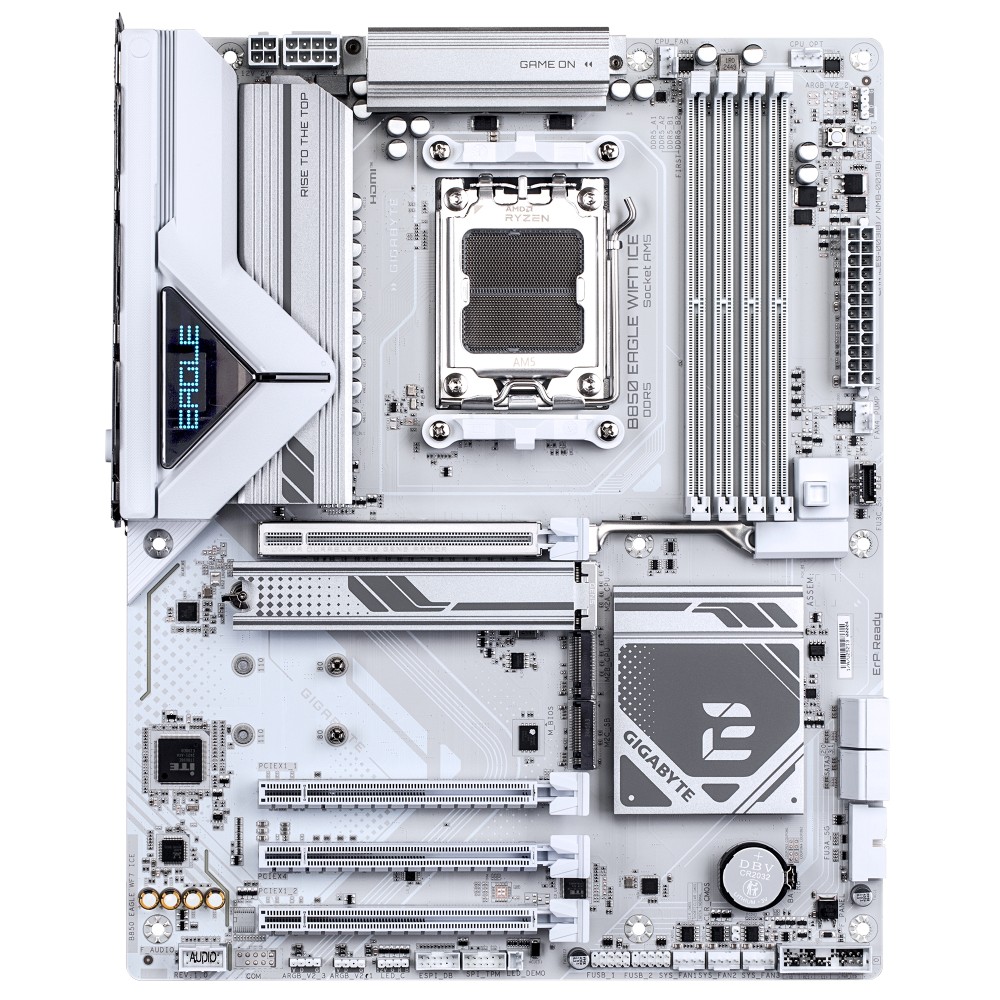

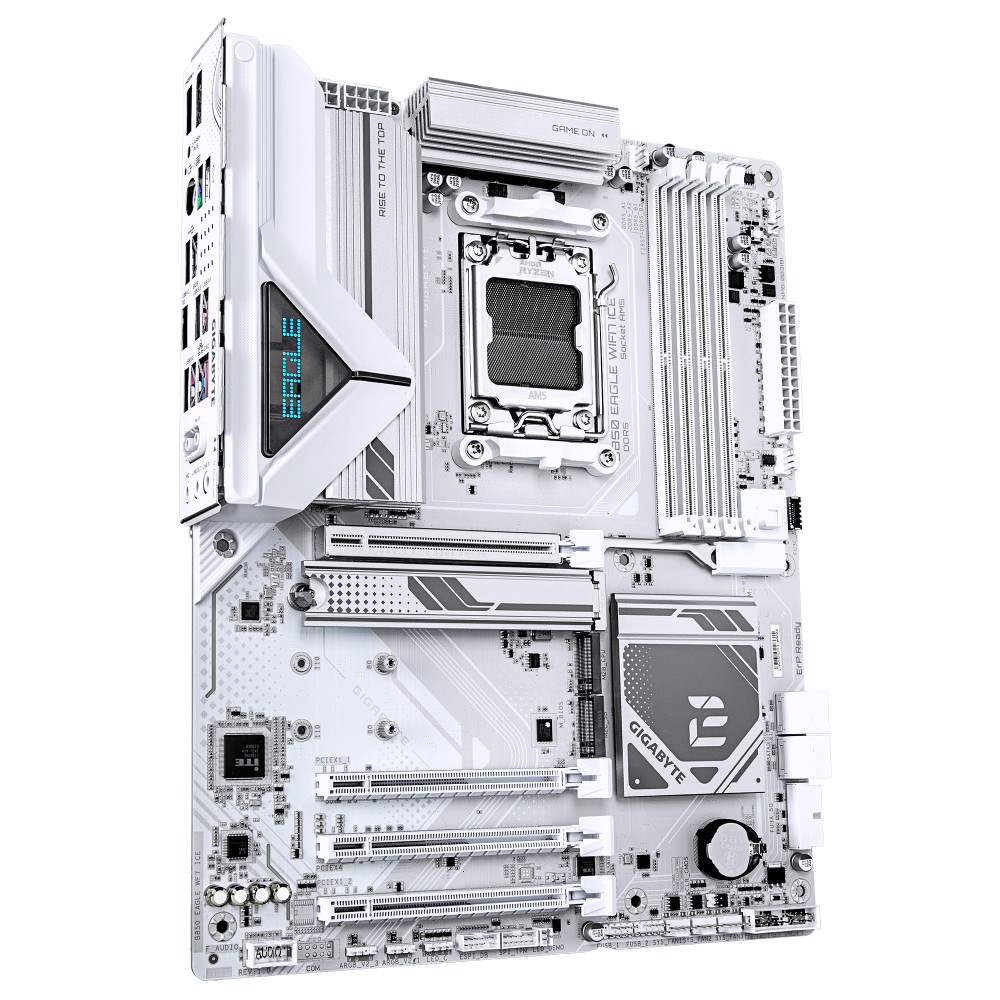

GIGABYTE B850 EAGLE – Next-Gen AM5 Performance
We are pleased to present the GIGABYTE B850 EAGLE WIFI7 ICE Motherboard – AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, WIFI 7, 2.5 GbE LAN, USB…, an excellent foundation for your high-performance AMD system. This board is ideal for builders seeking robust power delivery and cutting-edge connectivity. It provides a stable and powerful platform for the latest AMD Ryzen processors.
Core System Metrics
| Metric | Spec. |
|---|---|
| Processor Socket | Socket AM5 |
| Memory Type | DDR5-SDRAM |
| Max Memory Speed (OC) | 8200 MHz |
| M.2 Slots | 3 |
| Wired LAN | 2.5 Gigabit Ethernet |
| Wireless LAN | Wi-Fi 7 |
Power Delivery for Demanding CPUs
This motherboard features an 8+2+2 phases digital VRM design. This ensures stable and efficient power delivery to your AMD Ryzen 7000, 8000, or 9000 Series CPU. Expect consistent performance even under heavy loads. This robust power solution helps unlock the full potential of your processor.
Ultra-Fast Memory Support
The B850 EAGLE WIFI7 ICE supports DDR5 memory speeds up to an impressive 8200 MHz (OC). With four DIMM slots, you can install up to 256 GB of unbuffered DDR5 RAM. This provides ample bandwidth for gaming, content creation, and demanding applications. Experience faster load times and smoother multitasking.
Advanced Storage Expansion
Three M.2 slots offer extensive storage options. One slot supports PCIe 5.0, delivering incredible speeds for your primary NVMe SSD. The remaining two M.2 slots support PCIe 4.0. You can also connect up to four SATA III drives. This flexibility allows for a high-speed and high-capacity storage setup.
Next-Generation Connectivity
Stay ahead with integrated Wi-Fi 7 for the fastest wireless speeds available. A 2.5 Gigabit Ethernet LAN port provides a stable and quick wired connection. Bluetooth 5.4 is also included for seamless peripheral connections. This ensures you have versatile and high-speed networking options.
Comprehensive Cooling Solutions
The motherboard incorporates passive cooling for critical components. Multiple fan connectors and two water pump connectors are available. These allow for comprehensive cooling setups. Monitor your PC’s health effectively with built-in fan, temperature, voltage, and water cooling monitoring.

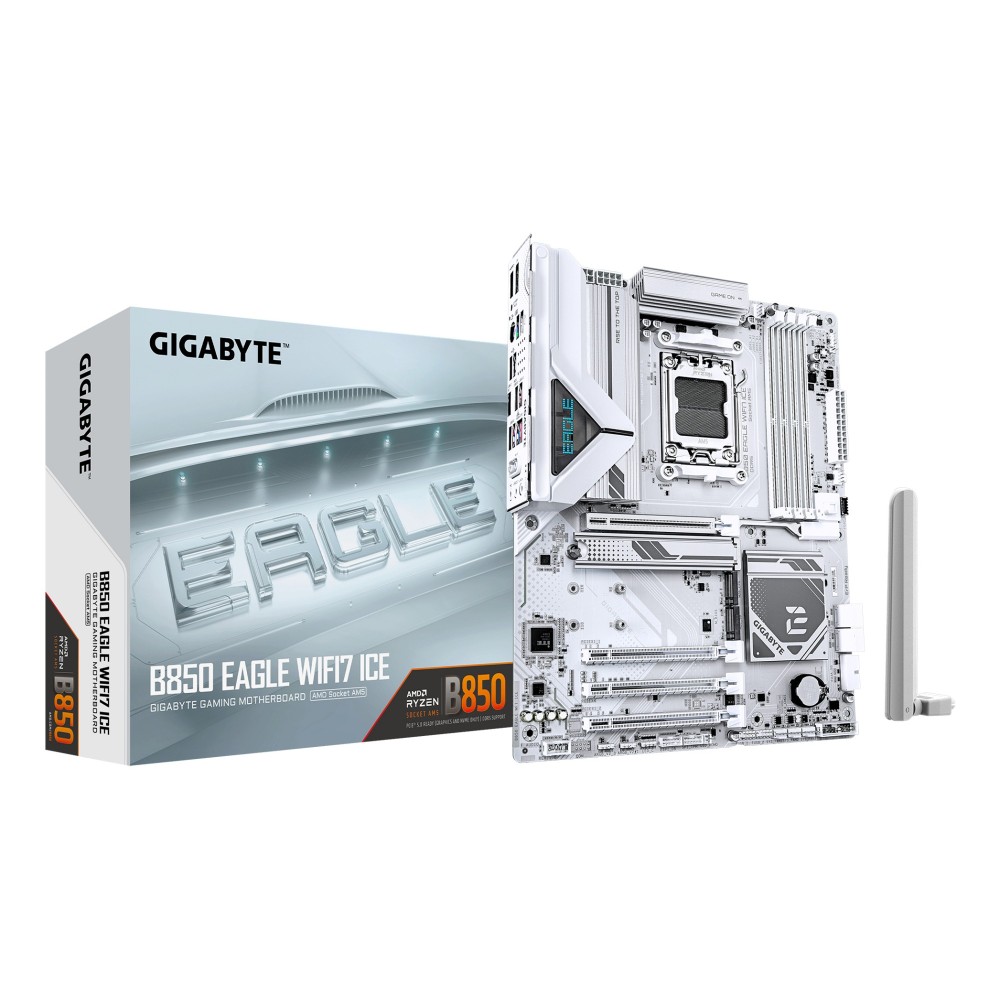

Included Accessories
We include essential items to get your build started. You will find screws and an antenna in the package. Batteries are also provided for immediate use.
Before you Order
- Confirm your chosen CPU uses the AM5 socket.
- Ensure your power supply has an 8-pin EPS connector.
- Check your PC case supports an ATX form factor motherboard.
- Verify your operating system is Windows 11 x64 for full compatibility.
Frequently Asked Questions
Q: Which AMD Ryzen CPUs are compatible?
A: This motherboard supports AMD Ryzen 7000, 8000, and 9000 Series processors.
Q: What is the maximum RAM capacity?
A: The board supports up to 256 GB of DDR5 RAM across four DIMM slots.
Q: Does it support RAID configurations?
A: Yes, it supports RAID levels 0, 1, and 10 for your storage drives.
Q: Are there any on-board video outputs?
A: Yes, it features one HDMI 1.4 port and one DisplayPort 1.4.
Q: What is the warranty period for this motherboard?
A: This product comes with a 3-year warranty.
The Hardvance Recommendation
The GIGABYTE B850 EAGLE WIFI7 ICE Motherboard is an excellent choice for users building a high-performance AMD system. Its robust power delivery, fast memory support, and advanced connectivity make it suitable for demanding tasks. Gamers, content creators, and power users will benefit from its comprehensive features. This board provides a solid and future-proof foundation for your next PC build.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| HDMI version | 1.4 |
| Cooling type | Passive |
| Motherboard form factor | ATX |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8200 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |

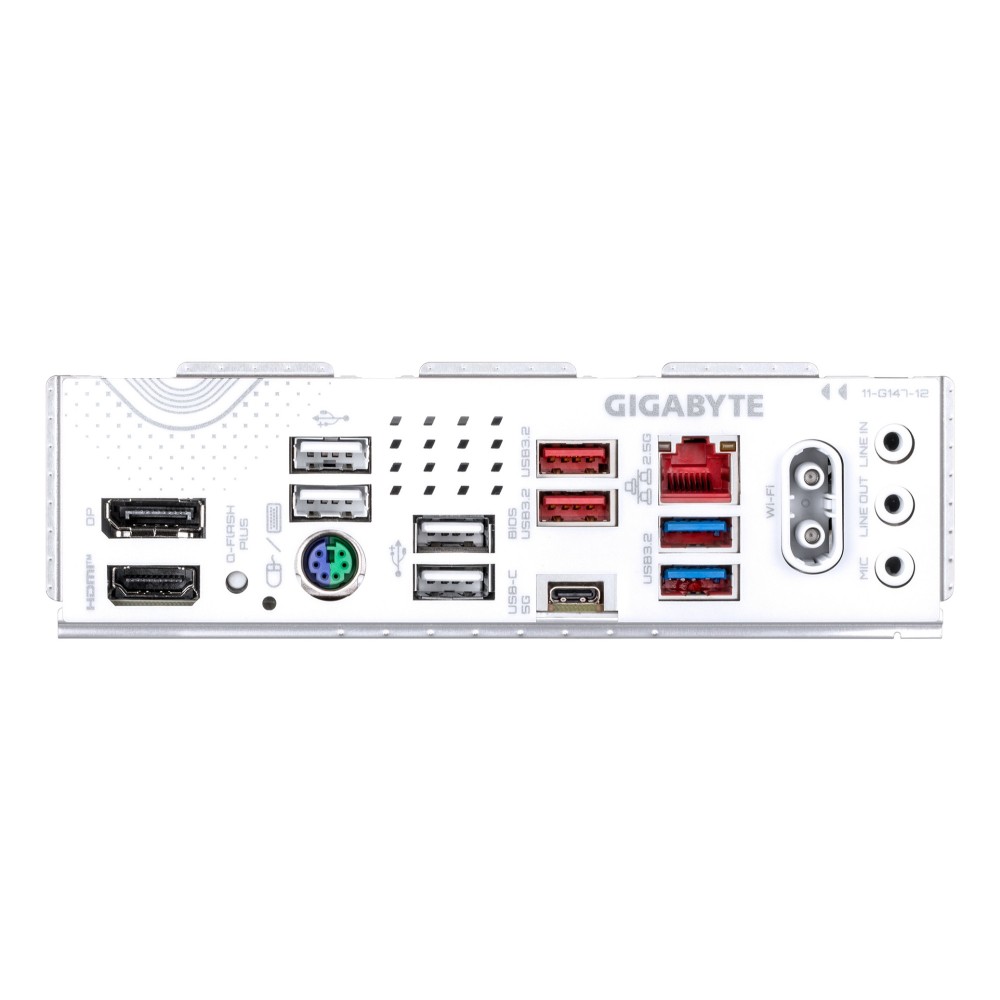

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| LAN controller | Realtek RTL8125 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | Realtek RTL8922AE |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | White |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.89 kg |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.89 kg |
| Weight | 1.69 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.89 kg |
| Weight | 1.69 kg |
| Identifiers | |
| Distributor SKUs | MBGIG-B850EAGW7I, 127365, 553390, B850 EAGLE WIFI7 ICE |
| Additional EANs | 0889523049730 |
