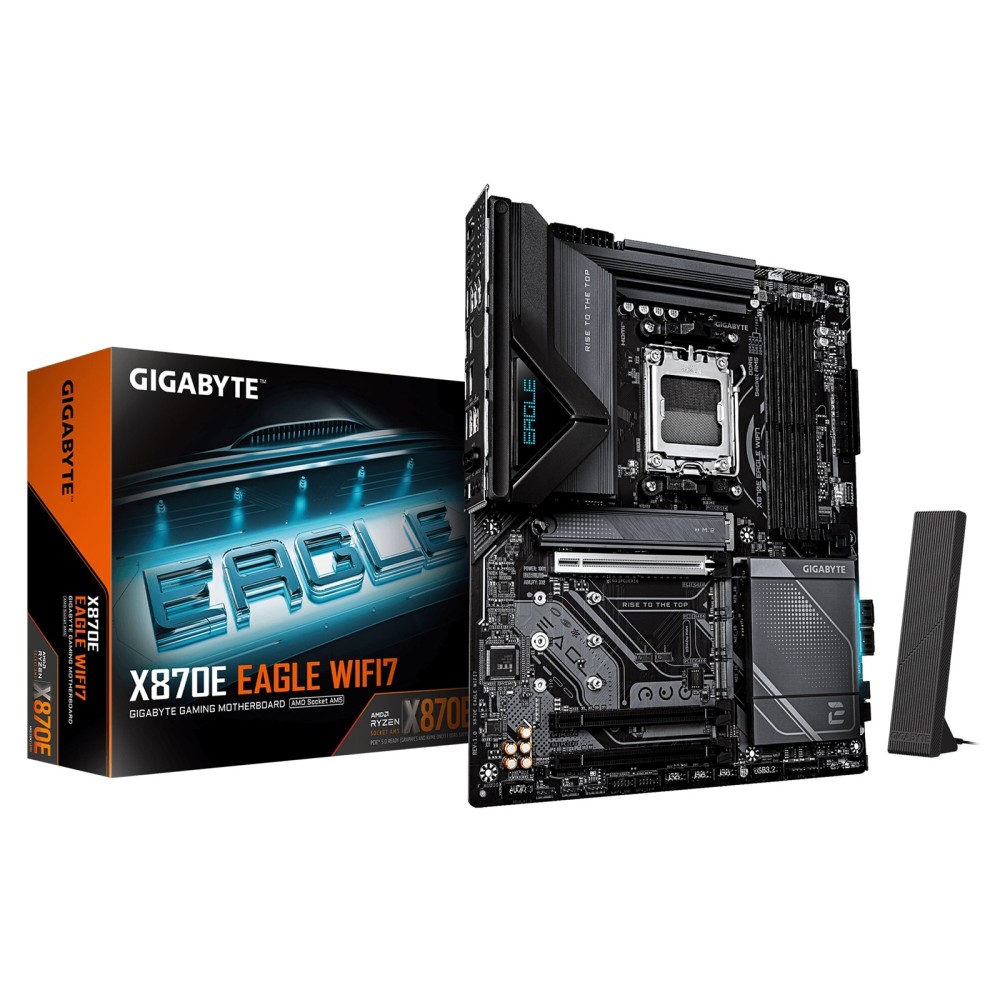

Gigabyte X870E EAGLE WIFI7 AM5 ATX Motherboard, DDR5, Wi-Fi 7

Gigabyte X870E EAGLE – Next-Gen AM5 Performance

We are pleased to present the Gigabyte X870E EAGLE WIFI7 AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Socket, Fitted I/O Shield, 5GbE LAN, Wi-Fi 7, 1x HDMI Port / 2x USB-C (USB4). This ATX motherboard is designed for enthusiasts and builders seeking a powerful foundation for their AMD Ryzen 7000, 8000, or 9000 Series processor. It provides cutting-edge connectivity and robust power delivery.

Core System Overview

Effortless Installation with EZ-Latch Designs

Building your PC should be straightforward. The EZ-Latch Plus system simplifies PCIe and M.2 installations. You benefit from quick release and screwless designs. Furthermore, EZ-Latch Click extends this convenience to M.2 heatsinks. This means faster assembly and maintenance.

Advanced Power Delivery for Peak Performance

The Gigabyte X870E EAGLE WIFI7 features a digital twin 16+2+2 phase VRM solution. This robust power delivery ensures stable performance for AMD Ryzen 9000, 8000, and 7000 Series processors. Efficient VRM Thermal Armor Advanced cooling maintains optimal temperatures. Therefore, your system can sustain high clock speeds reliably.

Blazing-Fast Connectivity Options

Experience next-level networking with Realtek 5GbE LAN and Wi-Fi 7. The Wi-Fi 7 module includes a directional ultra-high gain antenna for improved signal strength. For peripherals, you have dual USB4 Type-C ports with DisplayPort Alt Mode. There are also multiple USB 3.2 Gen 2 and Gen 1 ports.

Comprehensive Storage Solutions

This motherboard provides four M.2 slots for high-speed storage. One slot supports PCIe 5.0 x4 for the fastest NVMe SSDs. The remaining three M.2 slots operate at PCIe 4.0 x4. You also have four SATA 6Gb/s connectors. RAID 0, 1, and 10 are supported for both NVMe and SATA devices.

Before You Order

• Confirm your chosen CPU uses the AMD AM5 socket.
• Check your PC case supports the ATX form factor.
• Verify your RAM modules are DDR5 compatible.
• Ensure your power supply has the necessary 24-pin and 8-pin ATX 12V connectors.

Frequently Asked Questions

Q: Which AMD Ryzen processors are compatible with this motherboard?

A: It supports AMD Ryzen 9000, 8000, and 7000 Series Processors.

Q: What is the maximum DDR5 memory capacity?

A: This motherboard supports up to 256 GB of DDR5 system memory across four DIMM slots.

Q: Does it support PCIe 5.0 graphics cards?

A: Yes, the primary PCI Express x16 slot supports PCIe 5.0 x16 mode with Ryzen 9000/7000 Series CPUs.

Q: Does this motherboard include Wi-Fi 7 connectivity?

A: Yes, it features Realtek Wi-Fi 7 (RTL8922AE) with a directional ultra-high gain antenna.

Q: Are there any USB4 ports on this board?

A: Yes, it includes two USB4 Type-C ports on the back panel with DisplayPort Alt Mode.

The Bottom Line

The Gigabyte X870E EAGLE WIFI7 AMD AM5 Socket Motherboard offers a premium platform for high-performance AMD builds. Its robust power delivery, next-gen connectivity, and user-friendly features make it suitable for discerning enthusiasts. Warranty cover varies by product, so please contact us to confirm.
