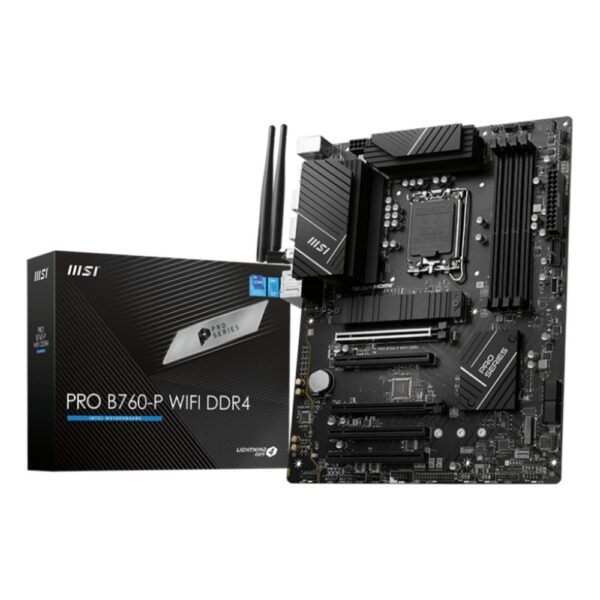

MSI PRO B760-P WIFI DDR4 LGA1700 ATX Motherboard

MSI PRO B760-P WIFI DDR4 | Intel LGA 1700 ATX Motherboard

The MSI PRO B760-P WIFI DDR4 motherboard LGA 1700 ATX is engineered for professionals who require stability and productivity. This board supports Intel Core 12th and 13th Gen processors, making it a solid foundation for a reliable UK workstation. It offers integrated Wi-Fi, robust power delivery, and extensive connectivity for multitasking efficiency.

Slim Specs Table

Efficient Thermal Management

This motherboard features an extended heatsink design. It enlarges the surface area for heat dissipation. Consequently, the system maintains stable performance even under heavy professional workloads. The heavy plated VRM heatsink covers the upper MOS to help dissipate heat effectively.

Additionally, a 7W/mK thermal pad and extra choke pad ensure stable power delivery. The chipset heatsink is designed to reduce dust and noise. So, your build stays cool and quiet during long UK office hours.

High-Speed Connectivity

You get a Lightning USB 3.2 Gen 2 10G port. This provides double the bandwidth of the previous generation. In practice, it delivers speeds up to 10Gb/s via the rear USB Type-C. Also, the board includes multiple USB 2.0 and USB 3.2 Gen 1 ports for peripherals.

The integrated 2.5G LAN offers fast wired networking. Wi-Fi 6 and Bluetooth are included for wireless flexibility. However, the specific Wi-Fi bands are not detailed in the input; please verify 2.4GHz and 5GHz support for your router.

Future-Ready Storage and Expansion

The board supports two M.2 slots with Shield Frozr cooling. This thermal solution keeps your SSD safe and ensures consistent performance. It also features four SATA III connectors for additional drives. RAID 0, 1, 5, and 10 support is available for data redundancy or speed.

For graphics, there are five PCI Express x16 slots with reinforced solder points. They support the weight of heavy graphics cards. The Lightning Gen 4 interface offers a bandwidth of 64GB/s for next-gen GPUs and NVMe SSDs.

Professional Audio and Build Quality

The Realtek ALC897 audio chip provides 7.1-channel output. This is suitable for clear conference calls and immersive media playback. The board uses a 256 Mbit UEFI AMI BIOS for straightforward system configuration.

Its ATX form factor fits standard cases, with dimensions of 243.8 mm x 304.8 mm. The black PCB offers a professional aesthetic. However, note that there is no on-board graphics card; you must use a discrete GPU.

MSI PRO B760-P WIFI DDR4 motherboard LGA 1700 ATX

Box contents

• MSI PRO B760-P WIFI DDR4 motherboard
• User manual
• SATA cables
• Wi-Fi antenna
• I/O shield
• M.2 screw packages

Check before you buy

• Confirm your CPU is an Intel LGA 1700 socket processor (12th/13th Gen).
• Verify your case supports ATX form factor (243.8 mm x 304.8 mm).
• Confirm your power supply has a 24-pin ATX connector.
• Check if your region requires UKCA marking for electrical goods.

Frequently Asked Questions

Q: Does this motherboard support Intel 14th Gen processors?

A: No, it supports Intel 12th and 13th Gen processors on the LGA 1700 socket.

Q: Is ECC memory supported?

A: No, this motherboard does not support ECC memory; it uses non-ECC DDR4.

Q: How many M.2 SSDs can I install?

A: You can install up to two M.2 SSDs, both with M.2 Shield Frozr heatsinks.

Q: Does it come with a CPU cooler?

A: No, the box includes the motherboard only; you need to purchase a cooler separately.

Q: What is the maximum memory capacity?

A: The board supports up to 128 GB of DDR4 memory across four DIMM slots.

Q: Is Wi-Fi 6 included?

A: Yes, Wi-Fi is included, but confirm the specific bands (e.g., 2.4GHz/5GHz) with your network setup.

The Consultant’s Verdict & Warranty

This MSI PRO B760-P WIFI DDR4 motherboard is ideal for UK professionals building a reliable, ATX-sized workstation. It balances performance, connectivity, and thermal efficiency for productivity tasks. The integrated Wi-Fi and extensive storage options add practical value.

It suits users who need stable multitasking without overclocking complexity. However, gamers may prefer boards with more RGB headers or higher-end audio chips. Covered by the standard Manufacturer Warranty.
