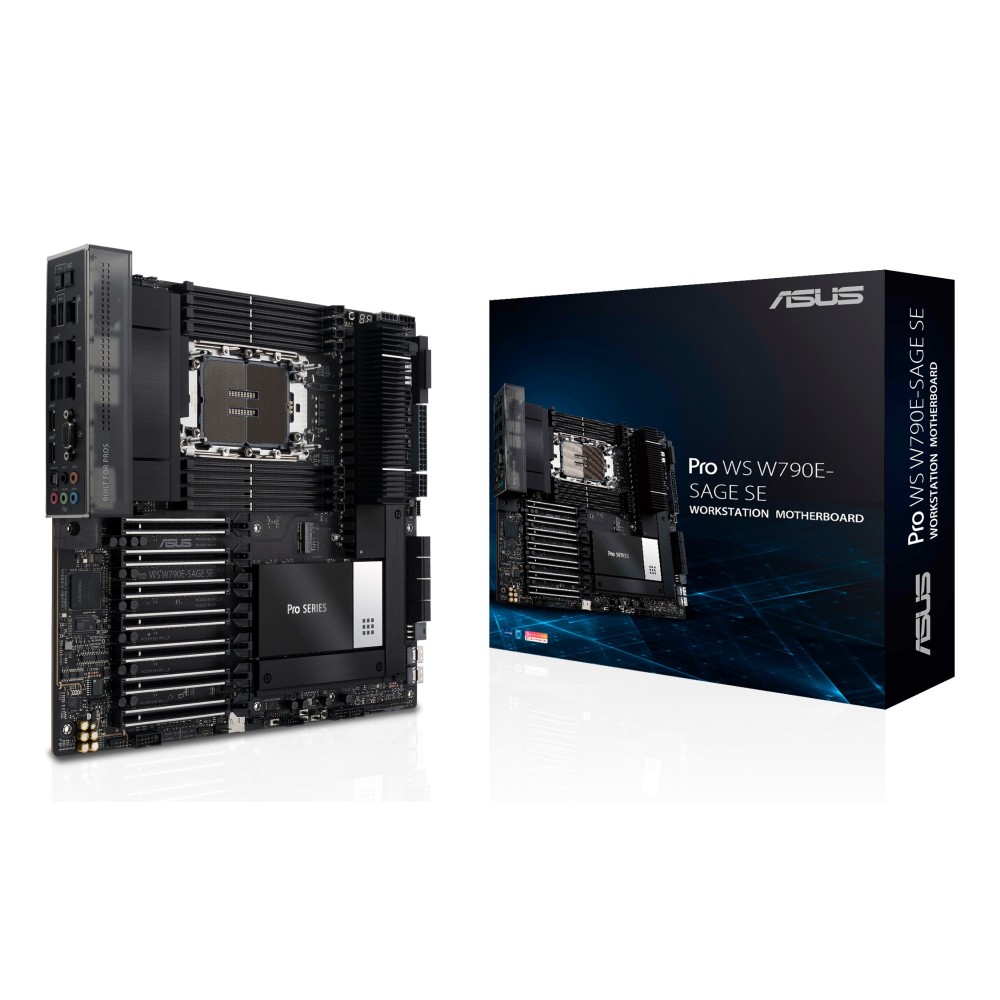

ASUS PRO WS W790E-SAGE SE EEB Workstation Motherboard – Intel W790, LGA 4677, DDR5
£1,085.36 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- EEB form factor for workstation use
- Intel W790 chipset supporting LGA 4677 sockets and Intel Xeon W-2400/W-3400 series processors
- Octa-channel DDR5 memory with 8 DIMM slots, up to 2 TB RAM and 6800 MHz speeds
- Seven PCIe 5.0 x16 slots for multi-GPU configurations
- Three M.2 slots (two PCIe 5.0, one PCIe 4.0), SlimSAS, and 8 SATA III ports for extensive storage
- Integrated BMC for server-grade remote management and Realtek S1220A 7.1 audio
- Triple Ethernet LAN (including 10 Gigabit) for robust networking
Payment Methods:
You may also like

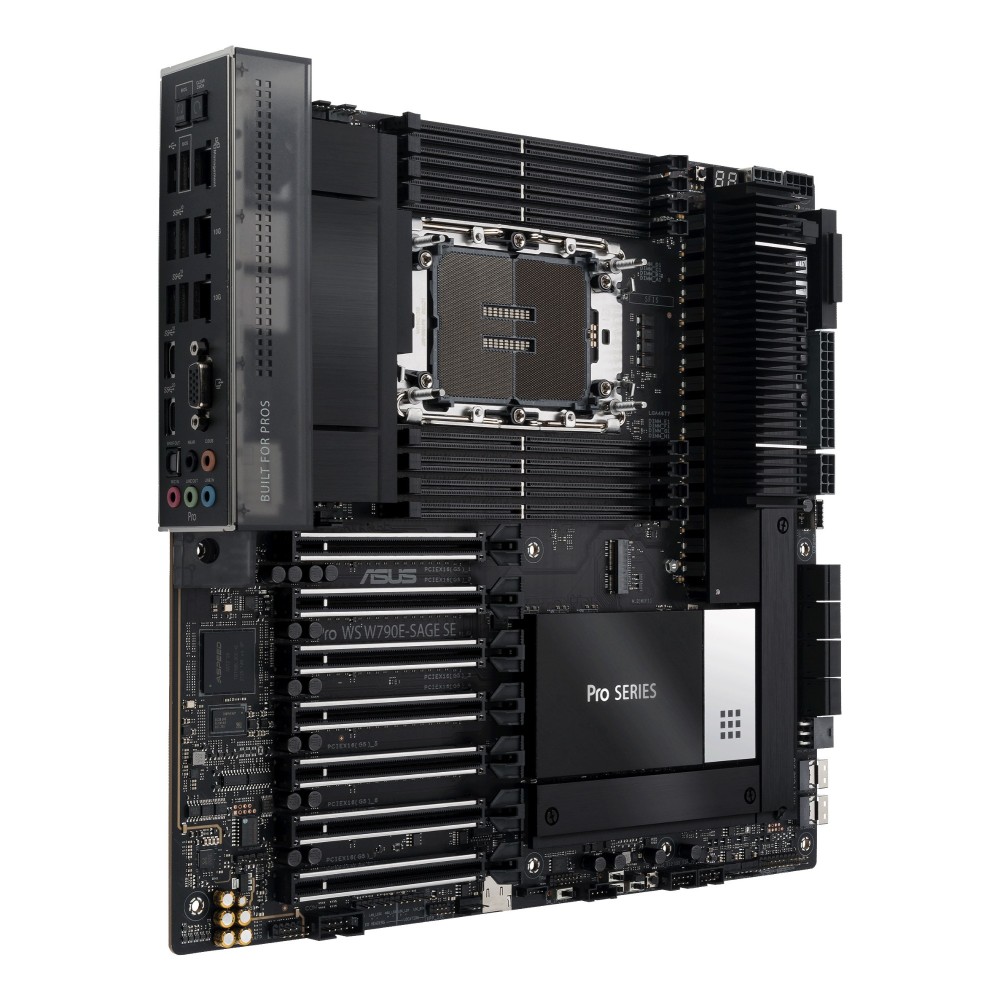

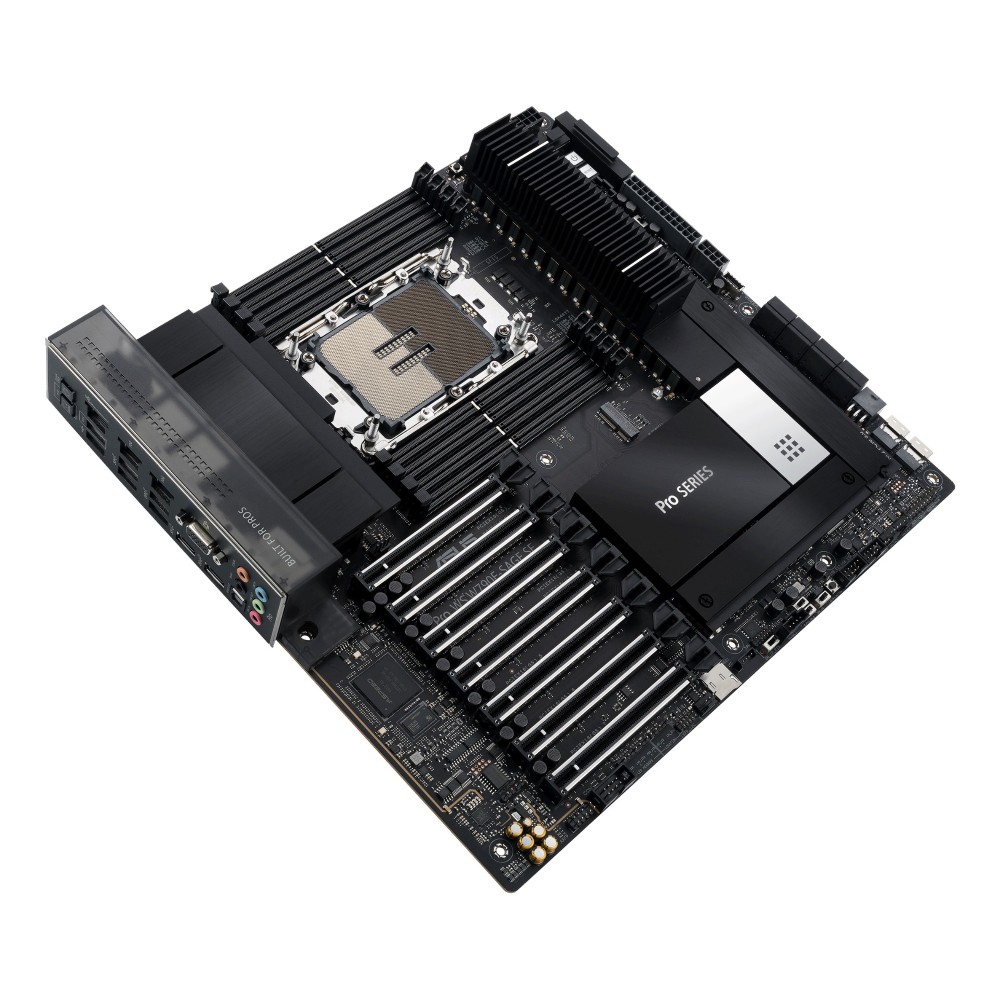

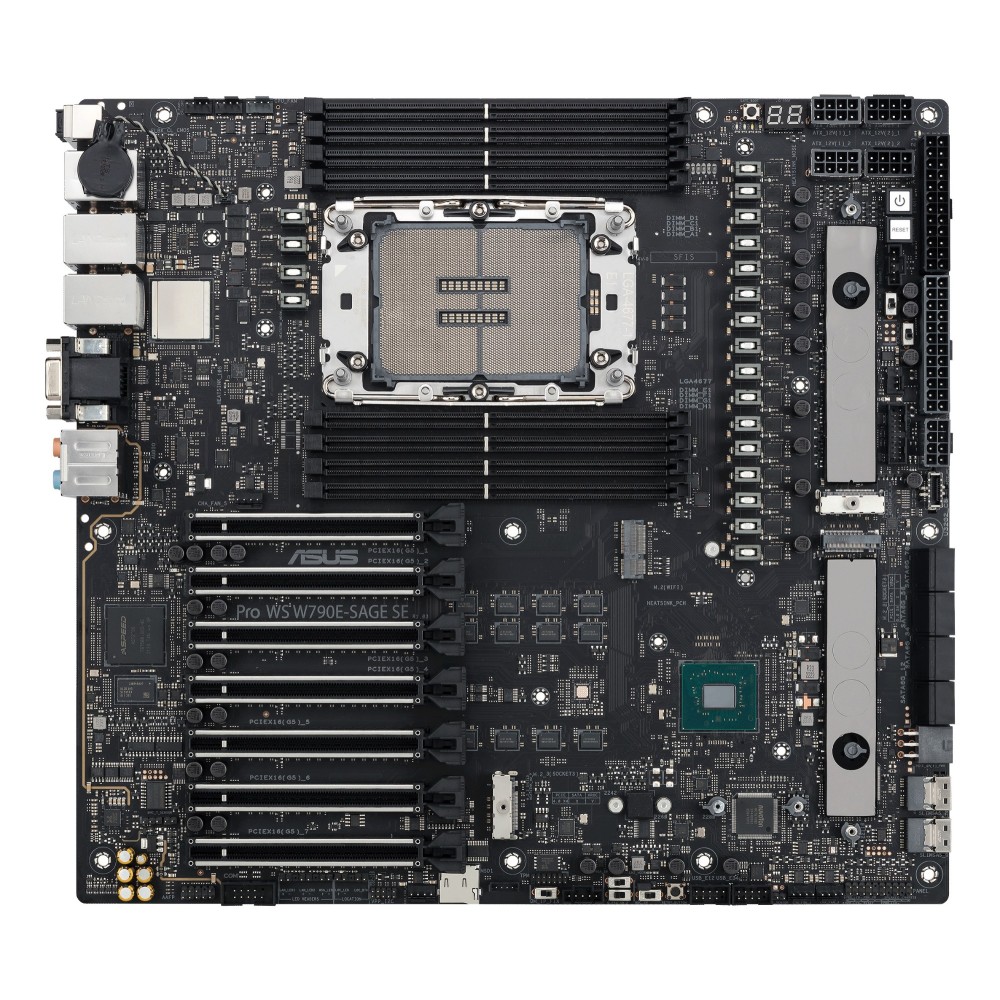

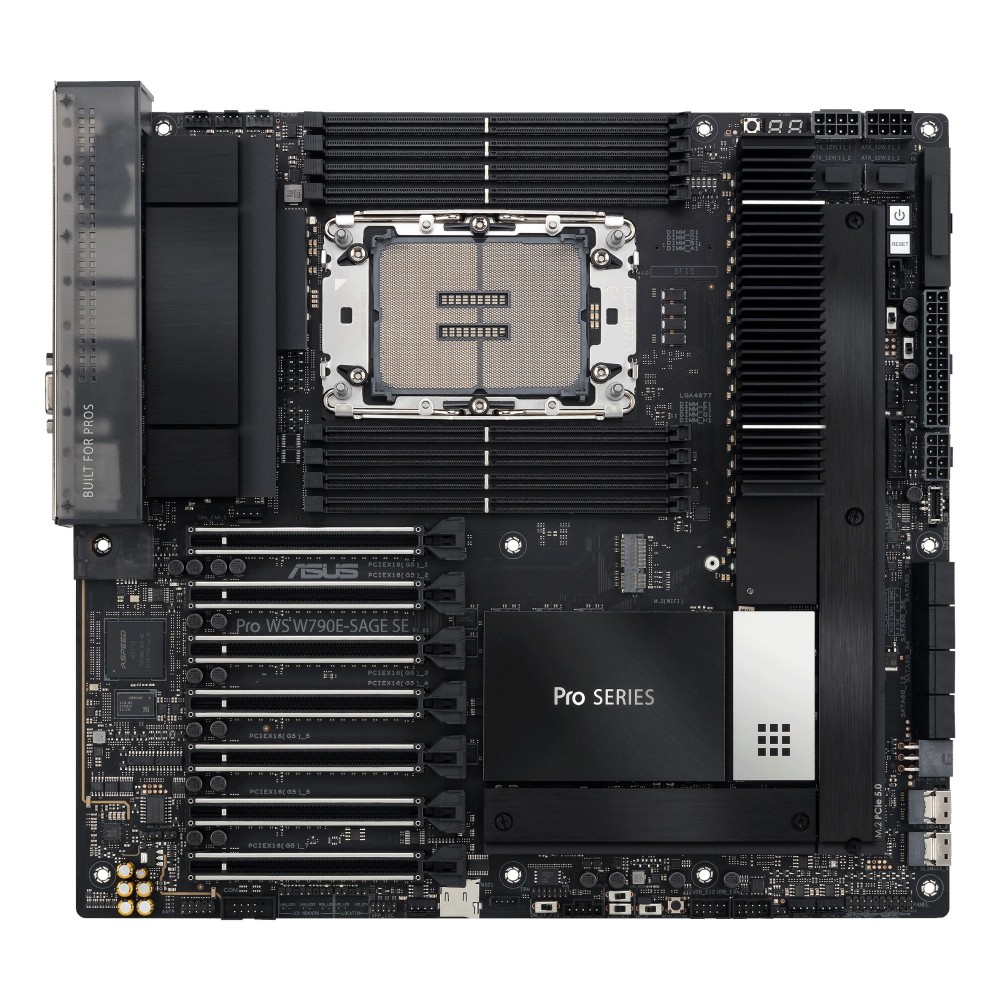

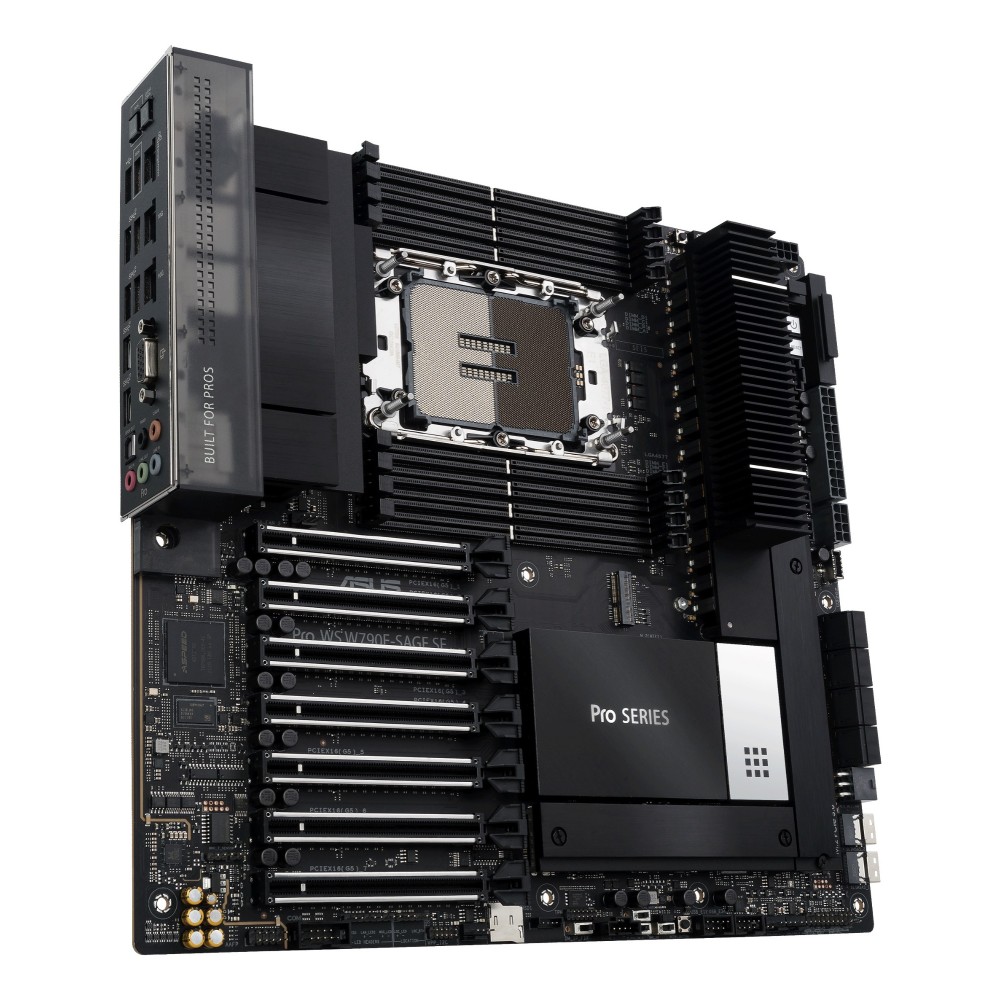

ASUS PRO WS W790E-SAGE SE – The Workstation Powerhouse
We present the ASUS PRO WS W790E-SAGE SE EEB Workstation Motherboard – Intel W790, LGA 4677, DDR5. This motherboard is engineered for creative professionals, developers, and engineers. It offers robust performance and stability for demanding applications. Its design allows for significant CPU and memory overclocking capabilities.
Essential Specifications
| Metric | Spec. |
|---|---|
| Motherboard Form Factor | EEB |
| Processor Socket | LGA 4677 (Socket E) |
| Chipset | Intel W790 |
| Memory Type | DDR5-SDRAM |
| Max. Memory Speed | 6800 MHz |
| PCIe x16 Slots | 7 (Gen 5.x) |
Powering Multi-GPU Workloads
This motherboard features seven PCIe 5.0 x16 slots. This enables powerful multi-GPU configurations. Professionals can achieve enhanced performance for design, modelling, and rendering. Additional 8-pin and 6-pin PCIe power connectors provide stability. This ensures consistent power delivery for multiple graphics cards.
Advanced Storage Options
The PRO WS W790E-SAGE SE offers three onboard M.2 22110 slots. Two are wired for PCIe 5.0, and one for PCIe 4.0. This allows for flexible high-speed storage solutions. SlimSAS slots are also integrated. These support industrial SSDs and server equipment through the PCIe 4.0 interface. All M.2 slots benefit from dedicated heatsinks to prevent throttling.
Server-Grade Remote Management
An integrated Baseboard Management Controller (BMC) is a core feature. It facilitates remote system monitoring and management. Administrators can perform actions like system resets remotely. This is crucial for maintaining system uptime and troubleshooting. The dedicated 1G Realtek controller ensures reliable IPMI architecture.

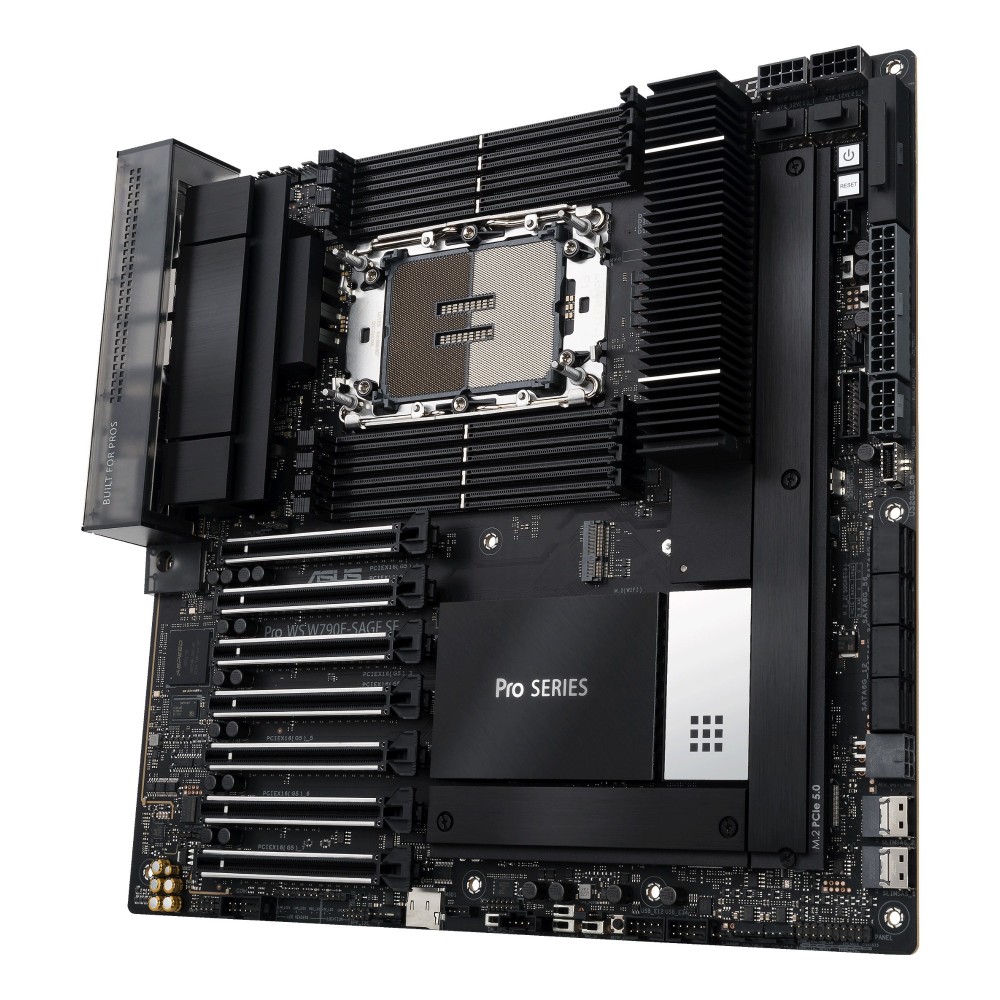

Robust Thermal Design
Effective cooling is essential for sustained performance. This motherboard includes a dedicated chipset heatsink. It helps maintain optimal operating temperatures. Each M.2 slot also has its own heatsink. This combats thermal throttling under heavy storage loads.
Before You Order
- Confirm your chosen CPU uses the LGA 4677 (Socket E) socket.
- Ensure your case supports the EEB motherboard form factor.
- Check your memory modules are DDR5 RDIMM ECC compatible.
- Verify your power supply has the necessary 24-pin ATX and 8-pin EPS connectors.
Frequently Asked Questions
Q: What types of processors does this motherboard support?
A: It supports Intel Xeon W-2400 and W-3400 series processors using the LGA 4677 socket.
Q: How many memory slots are available?
A: There are 8 DIMM slots supporting DDR5-SDRAM with octa-channel memory.
Q: Does this motherboard support RAID configurations?
A: Yes, it supports RAID levels 0, 1, 5, and 10 for enhanced data management.
Q: Is there an integrated graphics card on this motherboard?
A: No, this motherboard does not feature an onboard graphics card.
Q: What operating systems are compatible with this board?
A: It supports both Windows 10 and Windows 11 operating systems.
Our Assessment
The ASUS PRO WS W790E-SAGE SE is an exceptional foundation for high-end workstations. It is ideal for users who demand maximum performance and reliability. Its extensive connectivity and thermal management ensure smooth operation. Warranty cover varies by product, so please contact us to confirm.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Number of M.2 (E) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
| Supported storage drive interfaces | SlimSAS, M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Power fan connector | Yes |
| Number of SATA III connectors | 8 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 5 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Integrated SAS ports | 2 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel W790 |
| Supported processor sockets | LGA 4677 (Socket E) |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Cooling type | Passive |
| Back-to-BIOS button | Yes |
| Motherboard form factor | EEB |
| Component for | Workstation |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 10 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel W790 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 4677 (Socket E) |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | EEB |
| Component for | Workstation |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Xeon W |
| Supported processor sockets | LGA 4677 (Socket E) |
| Intel Xeon series | W-2400, W-3400 |
| Processor socket | LGA 4677 (Socket E) |
| Memory | |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Octa-channel |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
| Maximum internal memory | 2 TB |
| Supported memory clock speed (max) | 6800 MHz |
| ECC сompatibility | ECC |
| Storage controllers | |
| Number of HDDs supported | 10 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SlimSAS, M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 13 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |

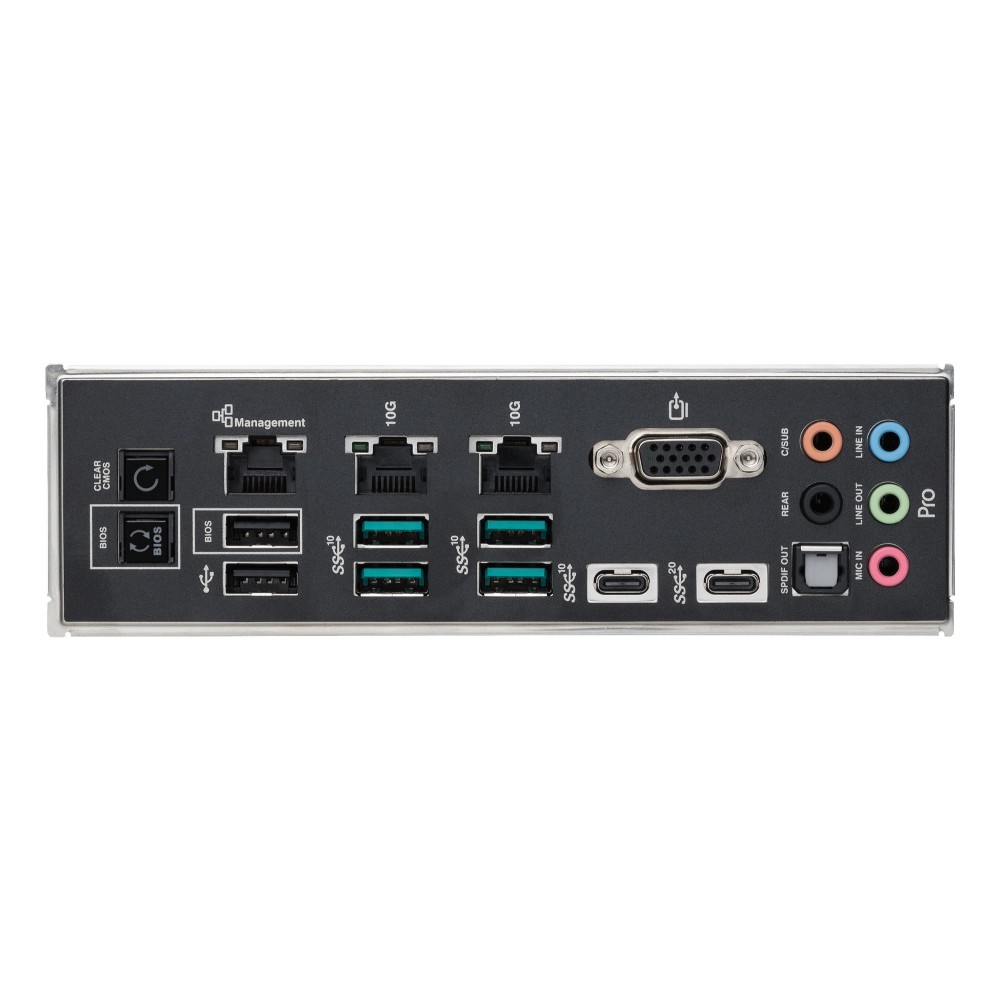

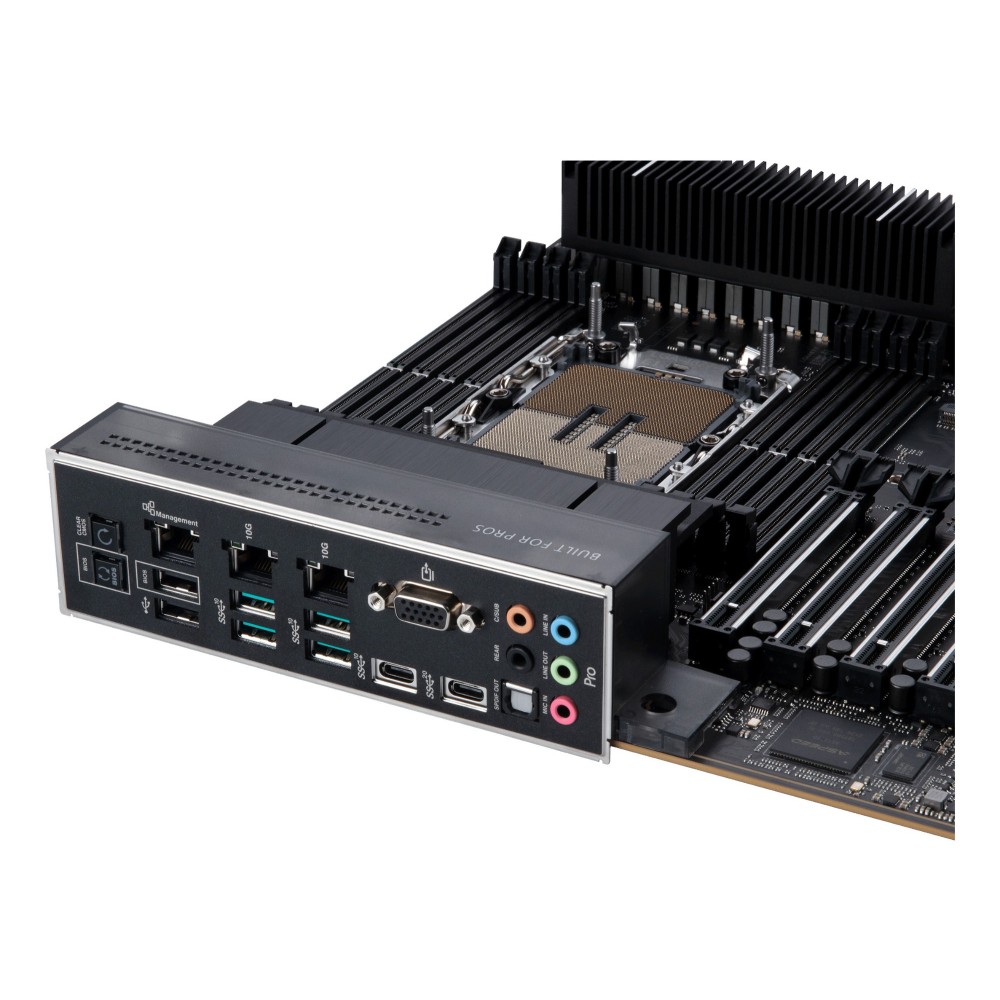

| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel W790 |
| Supported processor sockets | LGA 4677 (Socket E) |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | EEB |
| Component for | Workstation |
| Audio chip | Realtek S1220A |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| Number of M.2 (E) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 7 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Back-to-BIOS button | Yes |
| Clear CMOS button | Yes |
| Power | |
| Power source type | ATX |
| Packaging data | |
| Package width | 379 mm |
| Package depth | 362 mm |
| Package height | 81 mm |
| Package weight | 2.99 kg |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
| Package width | 379 mm |
| Package depth | 362 mm |
| Package height | 81 mm |
| Package weight | 2.99 kg |
| Width | 305 mm |
| Depth | 330 mm |

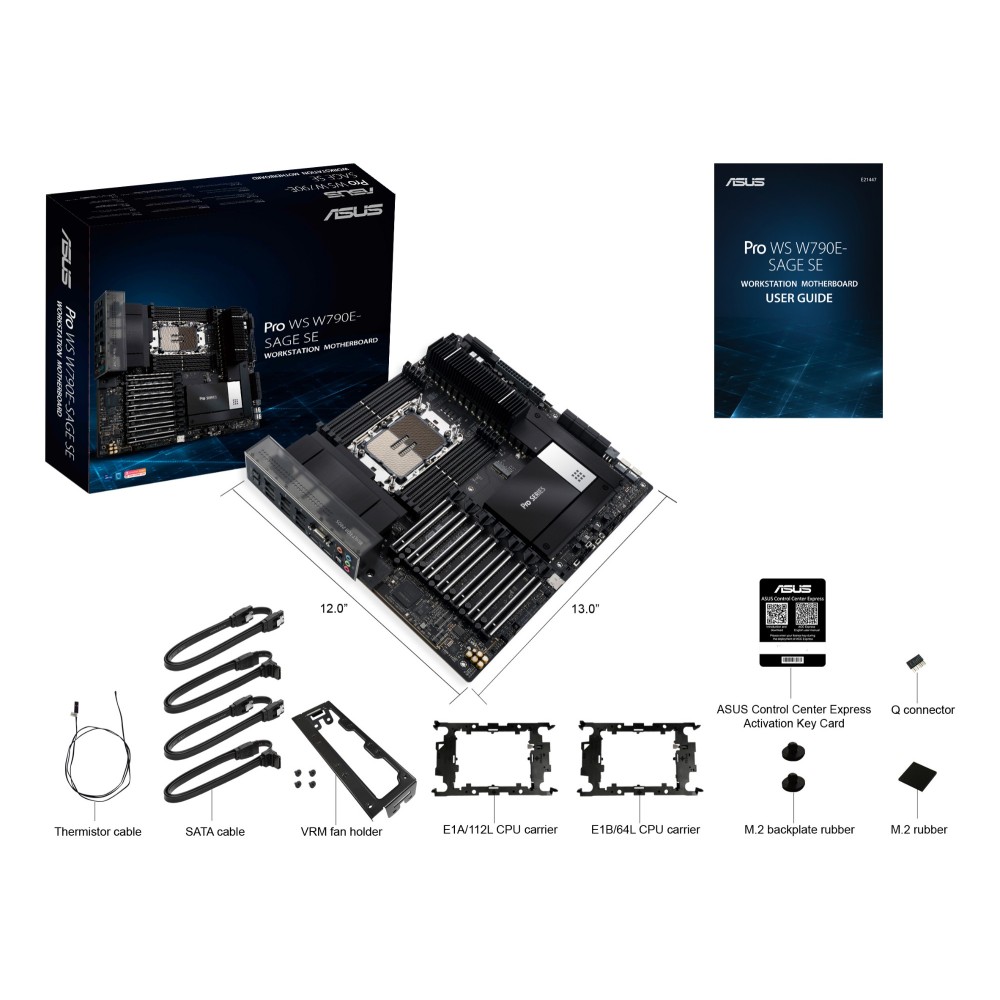

| Packaging content | |
| Cables included | SATA |
| User guide | Yes |
| Other features | |
| Number of M.2 (E) slots | 1 |
| Package width | 379 mm |
| Package depth | 362 mm |
| Package height | 81 mm |
| Package weight | 2.99 kg |
| Intel Xeon series | W-2400, W-3400 |
| Back-to-BIOS button | Yes |
| Identifiers | |
| Distributor SKUs | MB-90MB1C20-M0EAY0, 123404, PRO WS W790E-SAGE SE, 464231, STD10230027, CL90MB1C20-M0EAY0 |
| Additional EANs | 0197105123519 |
