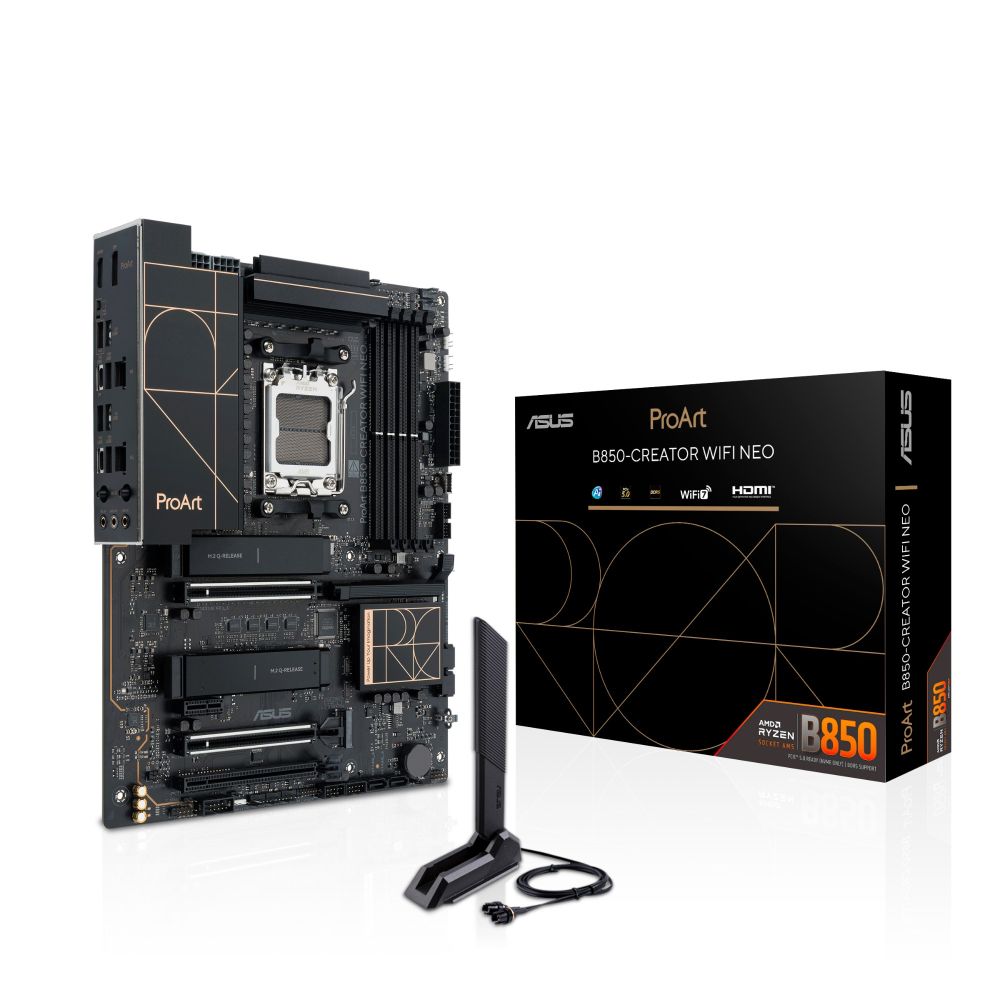

ASUS PROART B850-CREATOR WIFI AMD B850 Socket AM5 ATX Motherboard
£240.27 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- AMD B850 chipset supporting AMD Ryzen 7000/8000/9000 Series processors on Socket AM5
- 4× DDR5 DIMM slots with up to 256 GB and 9000 MHz OC, plus ECC and dual-channel support
- 3× M.2 slots (2× PCIe 5.0, 1× PCIe 4.0) and 4× SATA III connectors for flexible storage
- PCIe 5.0 x16 slots for high‑speed graphics and expansion
- Wi‑Fi 7 and dual 5Gb Ethernet for ultrafast wired/wireless networking
- ATX form factor with comprehensive cooling and creator‑focused connectivity
Payment Methods:
You may also like
GIGABYTE B650 GAMING X AX V2 Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0 M.2
In stock
ASUS PROART B850-CREATOR WIFI NEO | AMD B850 ATX

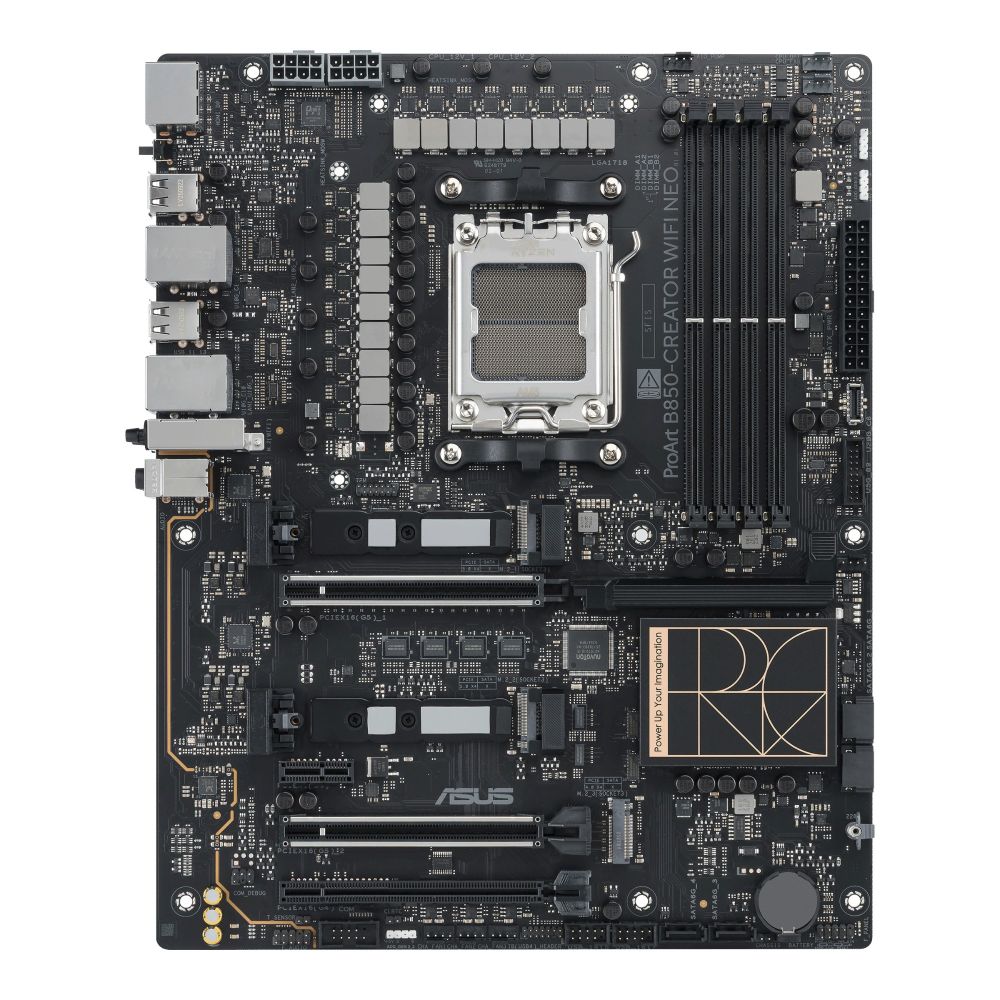

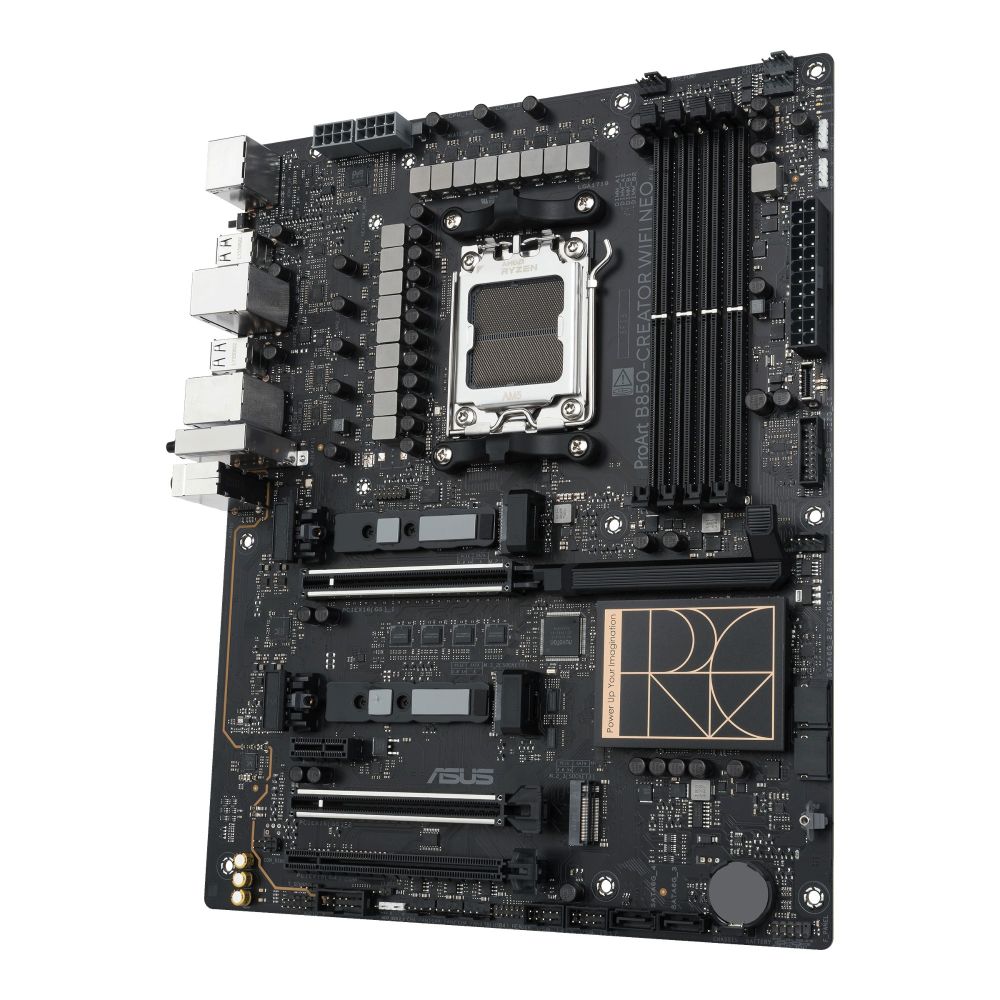

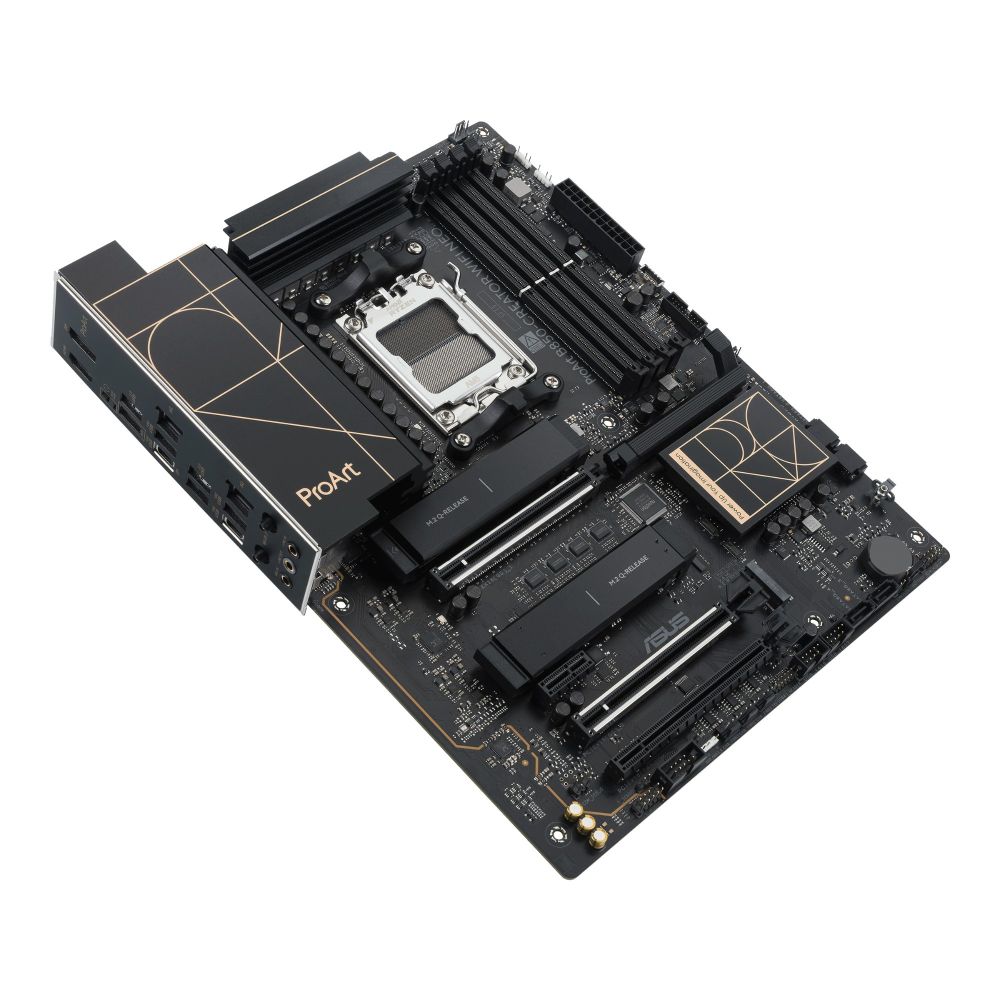

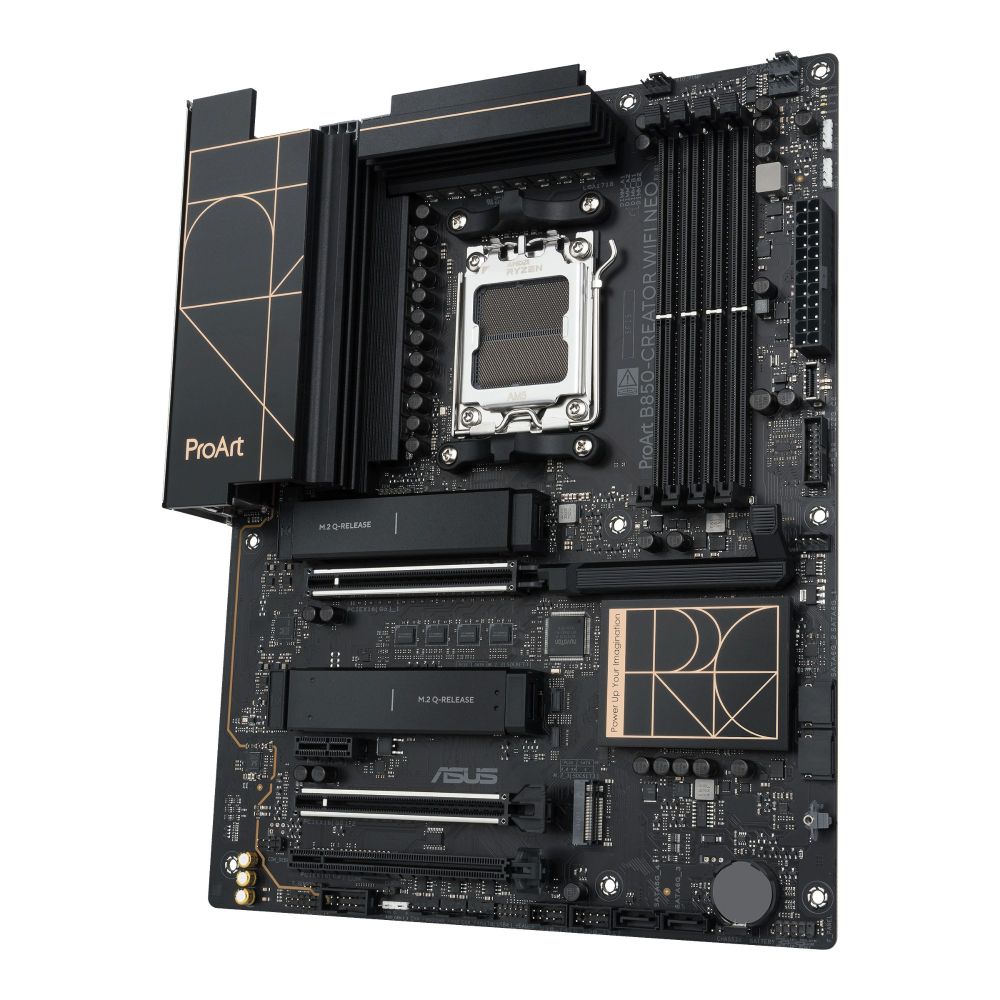

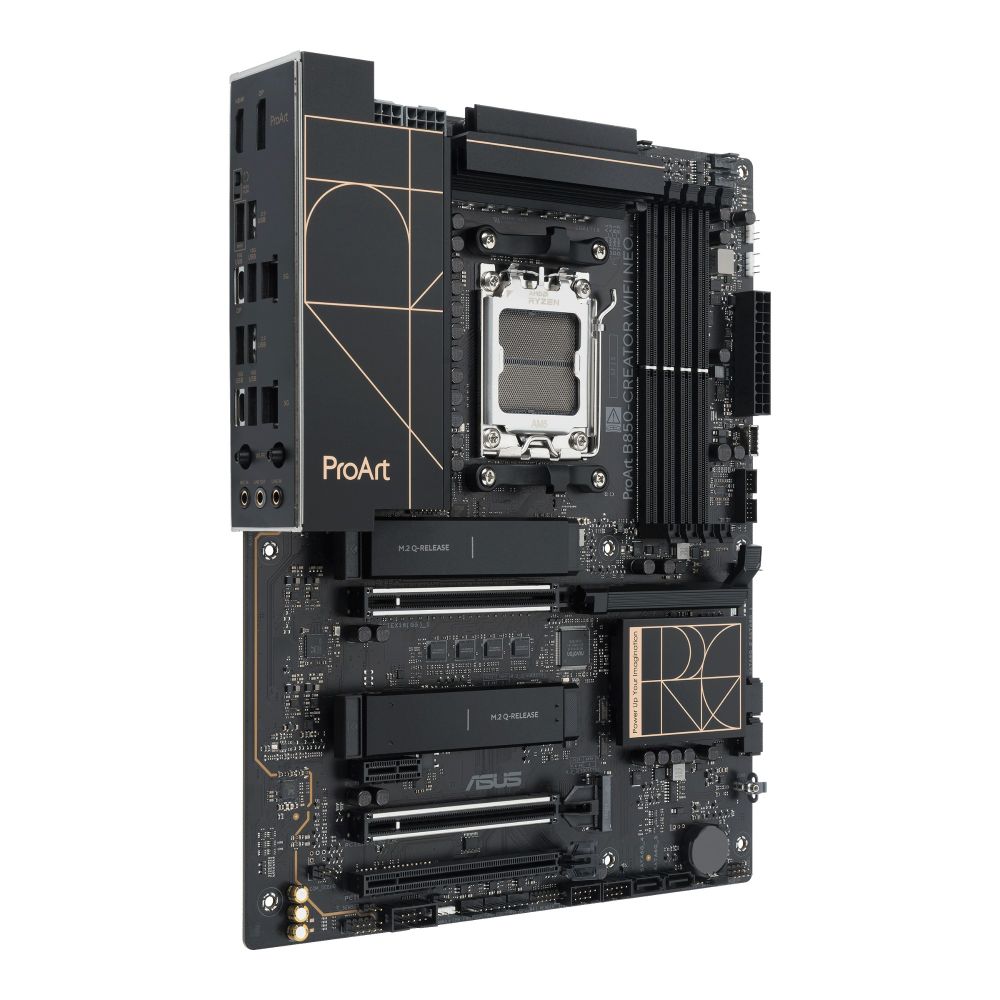

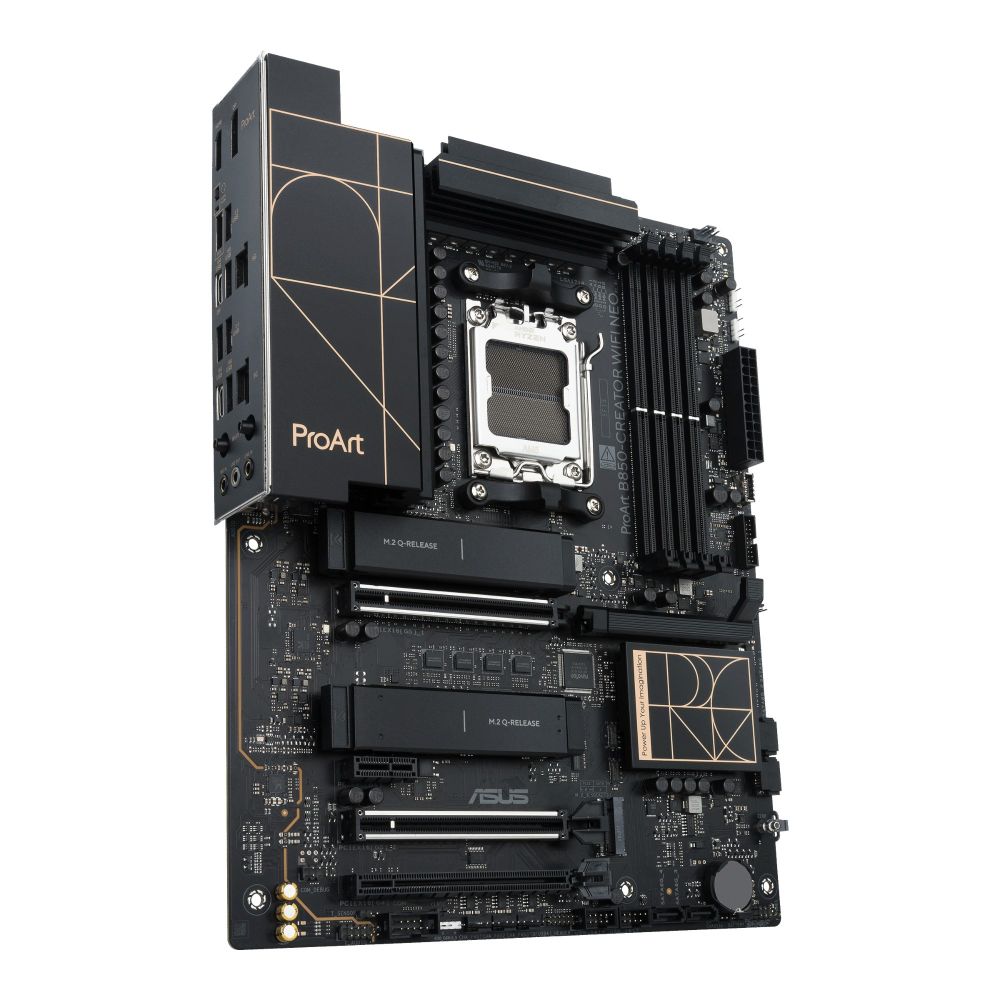

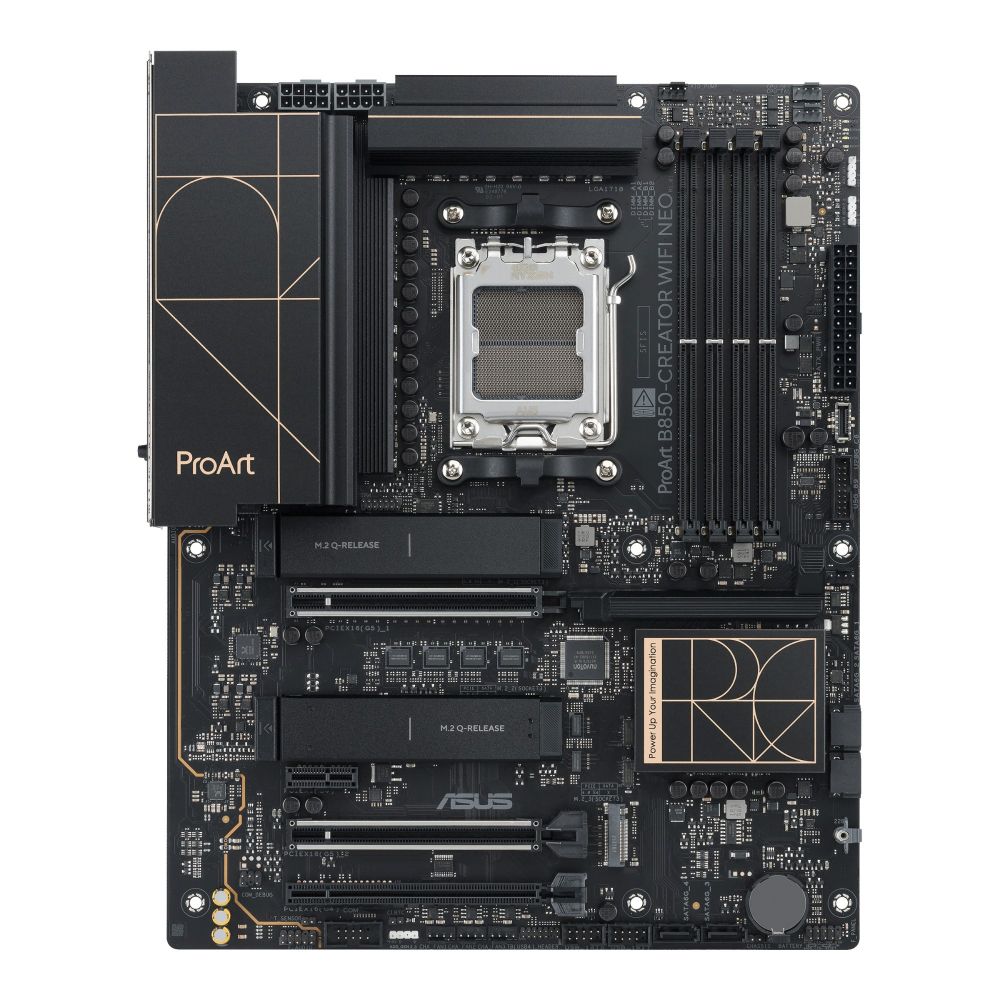

The ASUS PROART B850-CREATOR WIFI NEO AMD B850 Socket AM5 ATX motherboard is engineered for professionals. It supports AMD Ryzen 7000, 8000, and 9000 Series processors. This board offers robust power delivery and high-speed connectivity. It is ideal for content creation and AI development workloads.
Slim Specs
| Metric | Spec. |
|---|---|
| Chipset | AMD B850 |
| Socket | Socket AM5 |
| Memory | 4x DDR5 (Max 256GB) |
| PCIe Slots | 2x Gen 5 x16, 2x Gen 4 x16 |
| M.2 Slots | 3x (2x Gen 5, 1x Gen 4) |
| Networking | Dual 5GbE, Wi-Fi 7 |
Pro-Grade Power Delivery
The board features a 14+2+1 power stage design. This ensures stable power for high-core-count CPUs. It supports heavy rendering loads without voltage drops. This is crucial for long-term stability in professional environments.
Next-Gen Connectivity
You get dual 5G Ethernet ports and Wi-Fi 7. This provides massive bandwidth for file transfers and streaming. It also includes a Thunderbolt™ header for future expansion. However, the specific Thunderbolt card is not included in this box.
Expansive Storage and RAID
Support for three M.2 drives and four SATA ports is included. This allows for up to seven storage drives total. Hardware RAID 0, 1, 5, and 10 is supported natively. This protects your data and improves read/write speeds for large project files.
Professional Visuals
The board supports HDMI 2.1 and DisplayPort 1.4. It can drive resolutions up to 7680 x 4320. This is perfect for multi-monitor setups. Note that this motherboard does not have an on-board graphics card; a dedicated GPU is required.

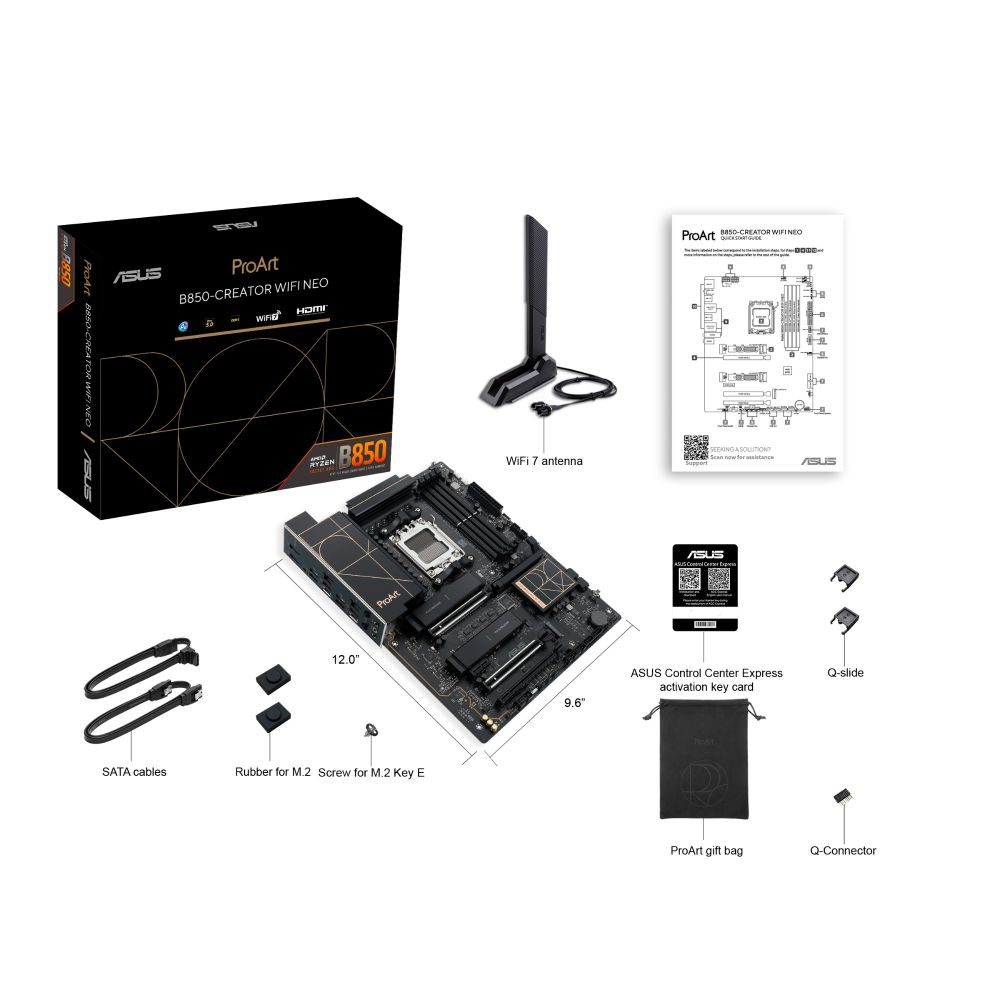

Box contents
- ASUS PROART B850-CREATOR WIFI NEO Motherboard
- 2x SATA 6Gb/s cables
- 2x Wi-Fi 7 antenna
- 1x Quick Installation Guide
- Screw package for M.2
- 1x Thermal pad for M.2
Before you order
- Confirm you have an AMD Ryzen 7000/8000/9000 Series CPU or compatible EPYC 4005 Series.
- Confirm your case supports ATX form factor (305 x 244 mm).
- Confirm your Power Supply Unit (PSU) has a 24-pin ATX and dual 8-pin EPS connector.
- Confirm your operating system is Windows 11 for full driver support.
Buyer FAQs
Does this board support ECC memory?
Is the Wi-Fi 7 compatible with older routers?
How many USB ports are on the rear I/O?
Is a BIOS update required for Ryzen 9000?
Our recommendation
This motherboard is the best choice for UK professionals building a Ryzen workstation. It balances high-speed networking with reliable storage options. It is specifically designed for creators who need stability over flashy aesthetics. Covered by the applicable manufacturer warranty.
| Number of M.2 M slots | 3 |
|---|---|
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 3.1 Gen 2 connectors | 1 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors 8-pin | 2 |
| Number of water pump connectors | 1 |
| Number of temperature sensor headers | 1 |
| Number of RGB LED pin headers | 3 |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket AM5 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Cooling type | Passive |
| Component for | PC |
| Audio output channels | 7.1 channels |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 |
| RAID levels | 1, 5, 10 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 9000 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Maximum resolution | 7680 x 4320 pixels |

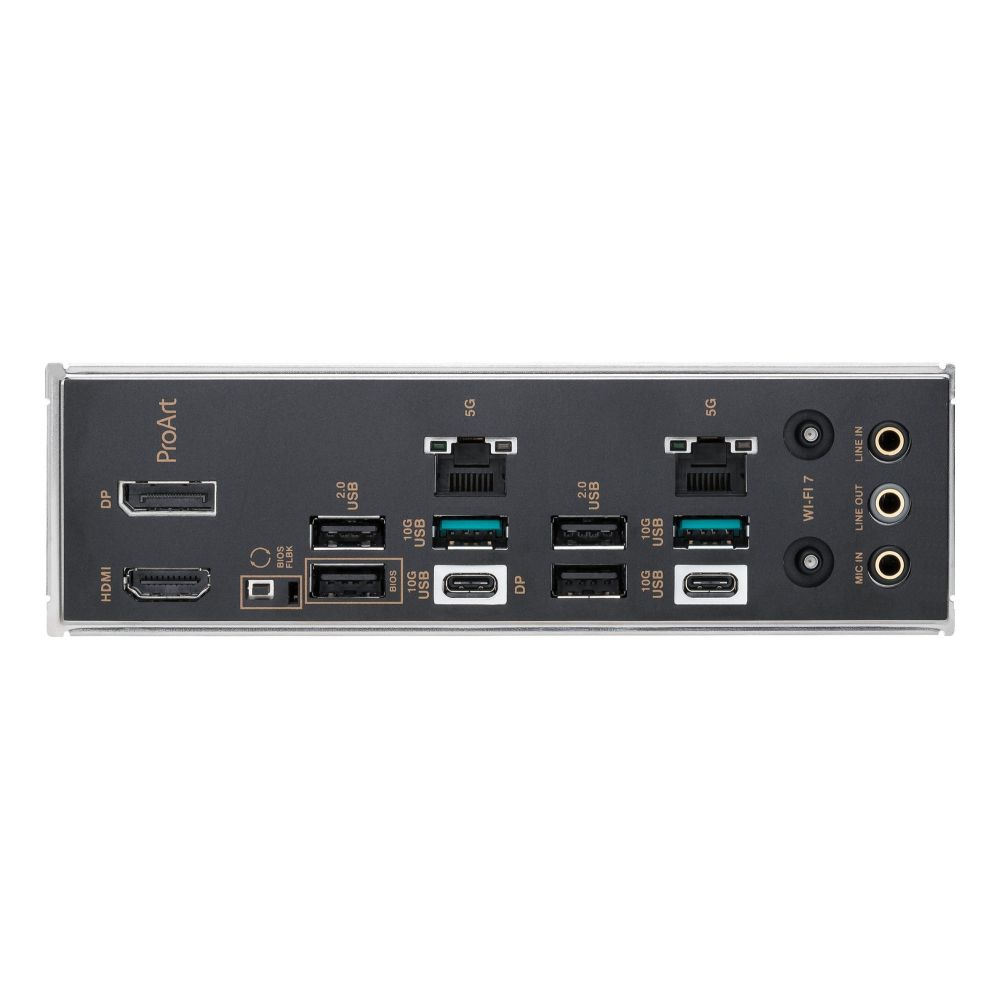

| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 2 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-C ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 2 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | Realtek RTL8922AE |
| Power source type | ATX |
| Audio chip | Realtek ALC1220P |
| Product colour | Black |
| PCI Express x4 Gen 1.x slots | 1 |
| PCI Express x16 Gen 4.x slots | 2 |
| PCI Express x16 Gen 5.x slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| BIOS flashback button | Yes |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.14 kg |
| Height | 48 mm |
| Weight | 1.33 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Quick installation guide | Yes |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
| Distributor SKUs | MBD-90MB1P60-M0EAY0, 13144176, 128036, M2MMBD-90MB1P60-M0EAY0 |
