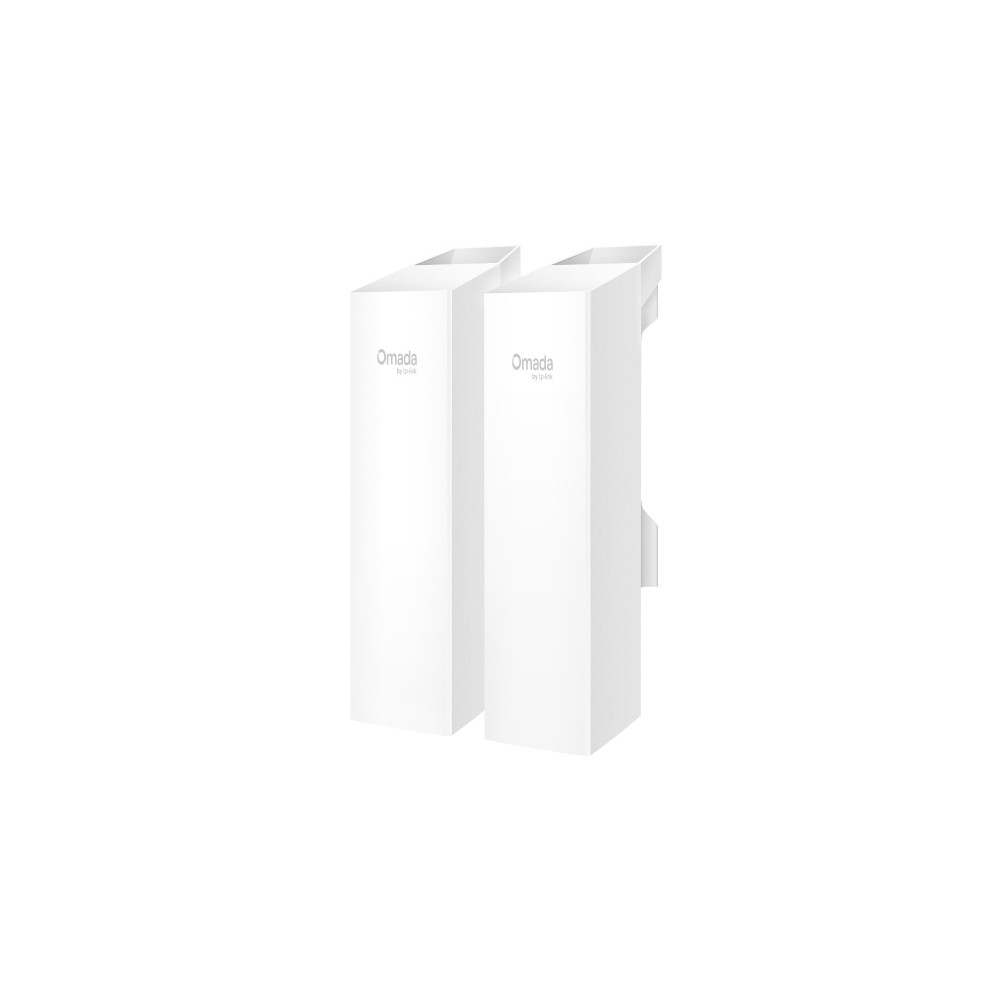

TP-Link Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge

TP-Link Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge – long-range point-to-point linking

We designed the TP-Link Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge for installers who need reliable outdoor connectivity. It suits barns, workshops, cameras, and remote network points. The strongest benefit is simple: up to 1 km links without trenching cables. With 802.11ac and 7 dBi antennas, it delivers stable backhaul for demanding sites.

Core numbers at a glance

Up to 1 km 5 GHz backhaul for remote assets

This bridge uses 802.11ac on the 5 GHz band for clean, long-range throughput. Because it reaches up to 1 km, you can connect outbuildings without digging trenches. In practice, it supports cameras, printers, and workstations over a stable wireless link.

Weatherproof build for harsh UK conditions

With an IP65 rating, the unit stands up to rain, dust, and UV. It also operates from -40 °C to +70 °C, so exposed mast mounting is straightforward. Also, the internal 2×2 antenna array is protected from the elements.

Simple setup with app-guided alignment

Auto-pairing and multi-bridge support reduce commissioning time. The Omada app guides alignment and runs speed tests to confirm the link. So installers can verify performance before leaving site.

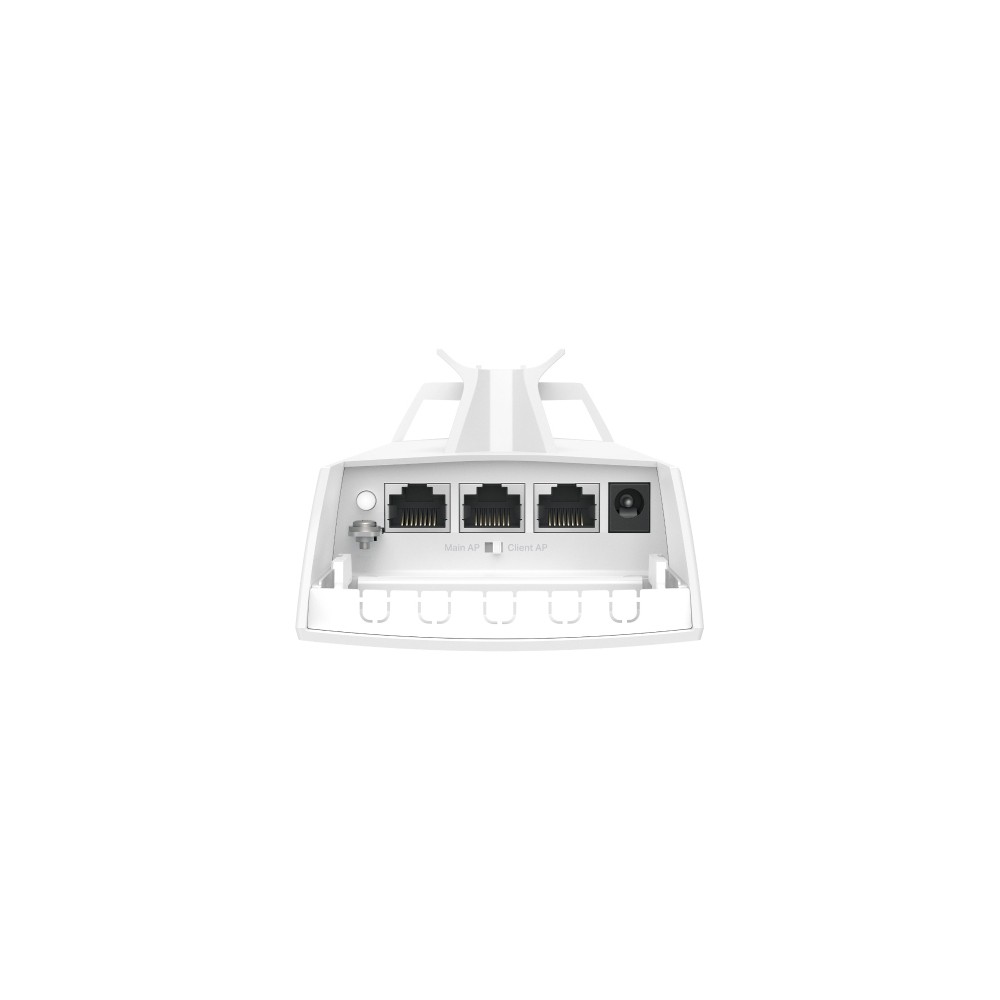

Three Gigabit Ethernet ports for local devices

Each bridge node offers 3 × 10/100/1000Base-T ports for wired endpoints. For example, connect an IP camera, a PoE switch, or a workstation locally. This removes the need for extra hardware at the remote end.

Flexible power with PoE and DC options

The kit supports 24 V passive PoE and 802.3af PoE via the injector, plus a 12 V DC input. In practice, this gives options for existing cable runs or local power supplies. However, confirm your switch or injector can deliver the required PoE standard.

Remote monitoring and management via Omada

We can monitor and manage links centrally through the Omada platform. SNMP, SSH, and web-based tools support secure, scalable deployments. Also, MAC filtering and QoS help control traffic and access.

Before you order

• Confirm your target devices operate on the 5 GHz band
• Confirm your switch or injector supports the required PoE standard
• Check line-of-sight for the intended 1 km link
• Verify mast or pole mounting availability at both ends

Frequently Asked Questions

Final thoughts

Choose this TP-Link Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge for long-range backhaul to outbuildings, cameras, or remote work areas. It suits installers who need reliable 5 GHz performance and simple central management.
