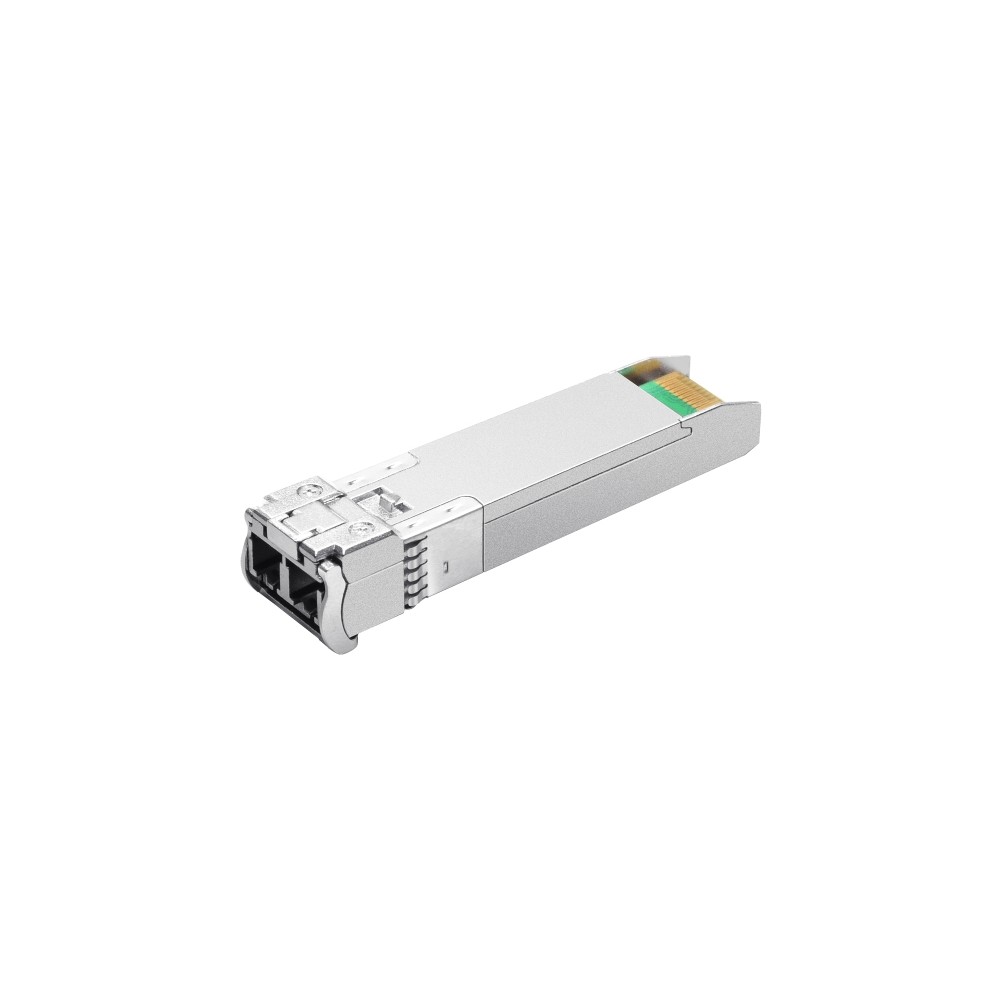

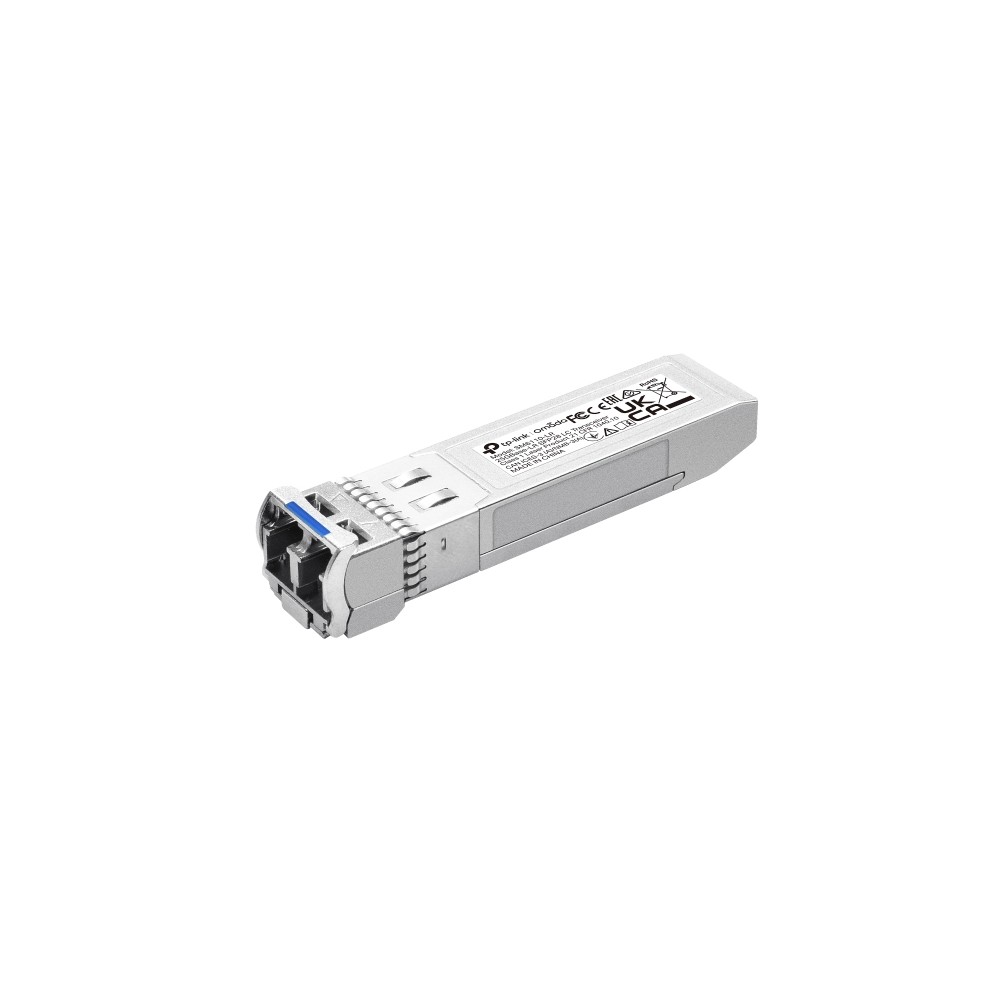

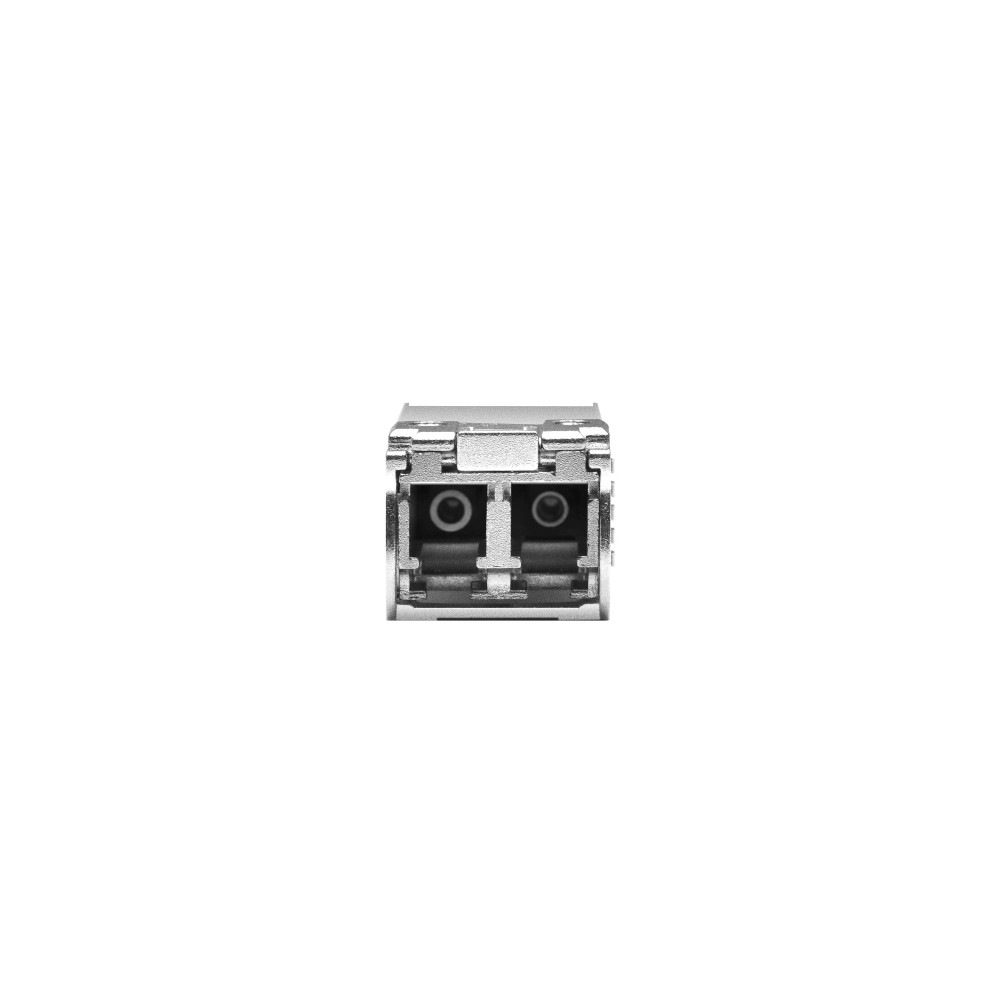

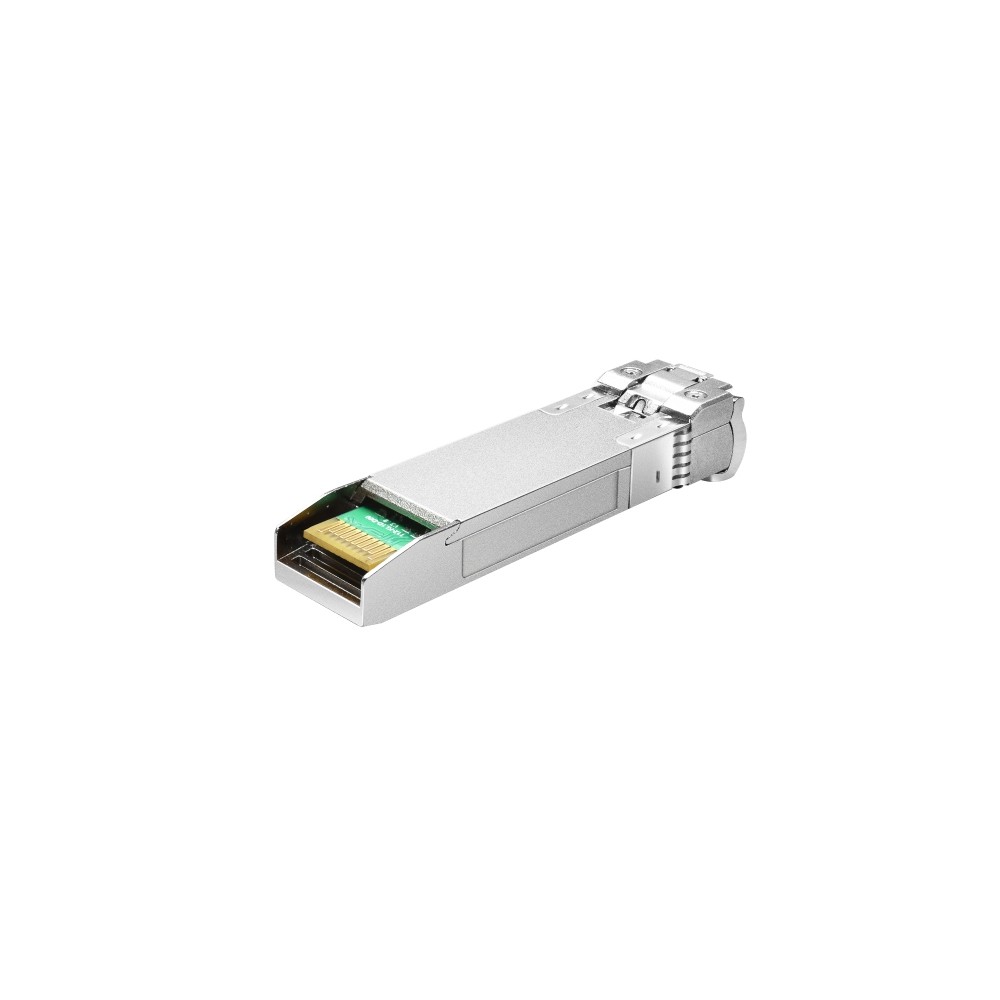

TP-Link Omada SM6110-LR Fiber Optic SFP+ Transceiver 25780 Mbit/s 10 km 1310 nm Grey
£72.38 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Fiber optic SFP+ transceiver
- 25780 Mbit/s maximum data transfer rate
- 10 km maximum transfer distance
- 1310 nm wavelength
- 9/125 µm fiber cable diameters supported
- Hot-Plug and Hot-swap support
- Compact dimensions: 57 mm width, 14 mm depth, 12 mm height
Payment Methods:
You may also like
StarTech.com HPE J8177C Compatible SFP Module – 1000BASE-T 1GbE Copper RJ45 100m
In stock
TP-Link Omada SM6110-LR – Extended Fibre Connectivity
We present the TP-Link Omada SM6110-LR Fiber Optic SFP+ Transceiver 25780 Mbit/s 10 km 1310 nm Grey. This module is ideal for IT professionals and network administrators needing to extend their 10G/25G Ethernet connections over significant distances. It provides a robust and high-speed solution for connecting network devices effectively.
Core Performance Metrics
| Metric | Spec. |
|---|---|
| Maximum Data Transfer Rate | 25780 Mbit/s |
| Maximum Transfer Distance | 10 km |
| Wavelength | 1310 nm |
| Interface Type | SFP+ |
| Supported Fiber Core/Cladding | 9/125 µm |
Long-Distance Network Expansion
This transceiver is engineered for extending network reach. It supports connections up to 10 kilometres. This makes it suitable for larger campus networks or distributed data centres.
High-Speed Data Throughput
With a maximum data transfer rate of 25780 Mbit/s, the SM6110-LR handles demanding network traffic. This ensures smooth operation for high-bandwidth applications. It is crucial for maintaining network performance.
Seamless Integration with SFP+ Ports
The SFP+ interface ensures broad compatibility with existing network equipment. This allows for straightforward installation and upgrades. Our module integrates easily into your current infrastructure.
Hot-Swap Capability
The hot-swap feature allows for installation or removal without powering down the host device. This minimises downtime during network maintenance or expansion. It ensures continuous network availability.
Before You Order
- Confirm your networking switch or device supports SFP+ transceivers.
- Ensure your fibre optic cabling is single-mode (9/125µm).
- Check that the required wavelength matches your other network components.
Frequently Asked Questions
Q: What is the maximum distance this transceiver supports?
A: It supports a maximum transfer distance of 10 kilometres.
Q: What type of fibre cable is compatible?
A: This transceiver works with 9/125µm single-mode fibre cables.
Q: Does it support hot-swapping?
A: Yes, it features hot-plug and hot-swap support.
Q: What is the data transfer rate?
A: It offers a maximum data transfer rate of 25780 Mbit/s.
Our Recommendation
This TP-Link transceiver is an excellent choice for organisations requiring reliable, high-speed, and extended fibre optic connectivity. It is particularly well-suited for 10G/25G Ethernet environments. Warranty cover varies by product, so please contact us to confirm.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum data transfer rate | 25780 Mbit/s |
| Interface type | SFP+ |
| Product colour | Grey |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Features | |
| Product colour | Grey |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Power | |
| Input voltage | 3.3 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 25780 Mbit/s |
| Interface type | SFP+ |
| Weight & dimensions | |
| Width | 57 mm |
| Depth | 14 mm |
| Height | 12 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Identifiers | |
| Distributor SKUs | 10440628, 88326, 10305315, EF005432, 3860518, CLSM6110-LR |
| Additional EANs | 8885020622355 |
