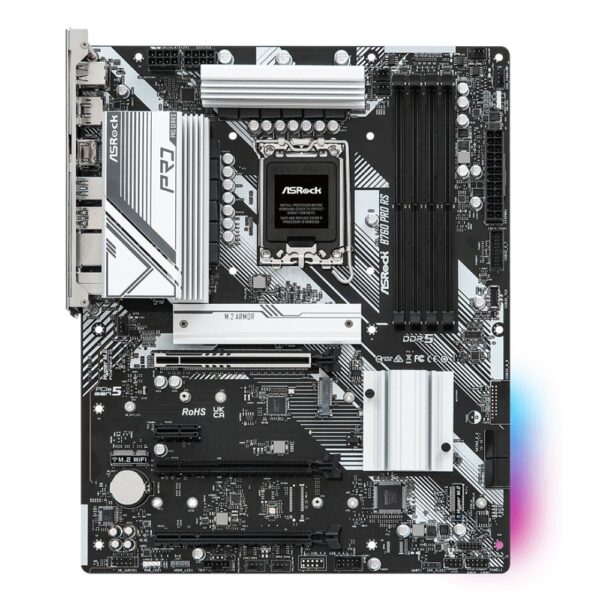

Asrock B760 PRO RS LGA1700 ATX Motherboard

Asrock B760 PRO RS | Intel B760 ATX Motherboard

The Asrock B760 PRO RS motherboard Intel B760 LGA 1700 ATX targets mainstream DIY builders seeking a reliable foundation for Intel 12th, 13th, and 14th Gen processors. This Race Sport edition balances performance and practical features. It offers robust power delivery and modern connectivity without unnecessary complexity. You get a board designed for stability and daily computing tasks.

Key Specifications

Future-Ready PCIe 5.0 Support

This motherboard includes a PCIe 5.0 x16 slot with a reinforced steel frame. It supports the latest graphics cards with a maximum bandwidth of 128GBps. The surface-mount technology improves signal stability at high speeds. This ensures your GPU runs at its full potential. You are prepared for next-generation hardware upgrades.

Efficient Power Delivery

The board uses a 10+1+1 power phase design with Dr.MOS components. This provides smooth and stable power to the CPU. It improves thermal efficiency compared to traditional MOSFETs. Consequently, the system runs cooler during demanding tasks. This design supports enhanced performance for gamers and creators.

High-Speed Connectivity

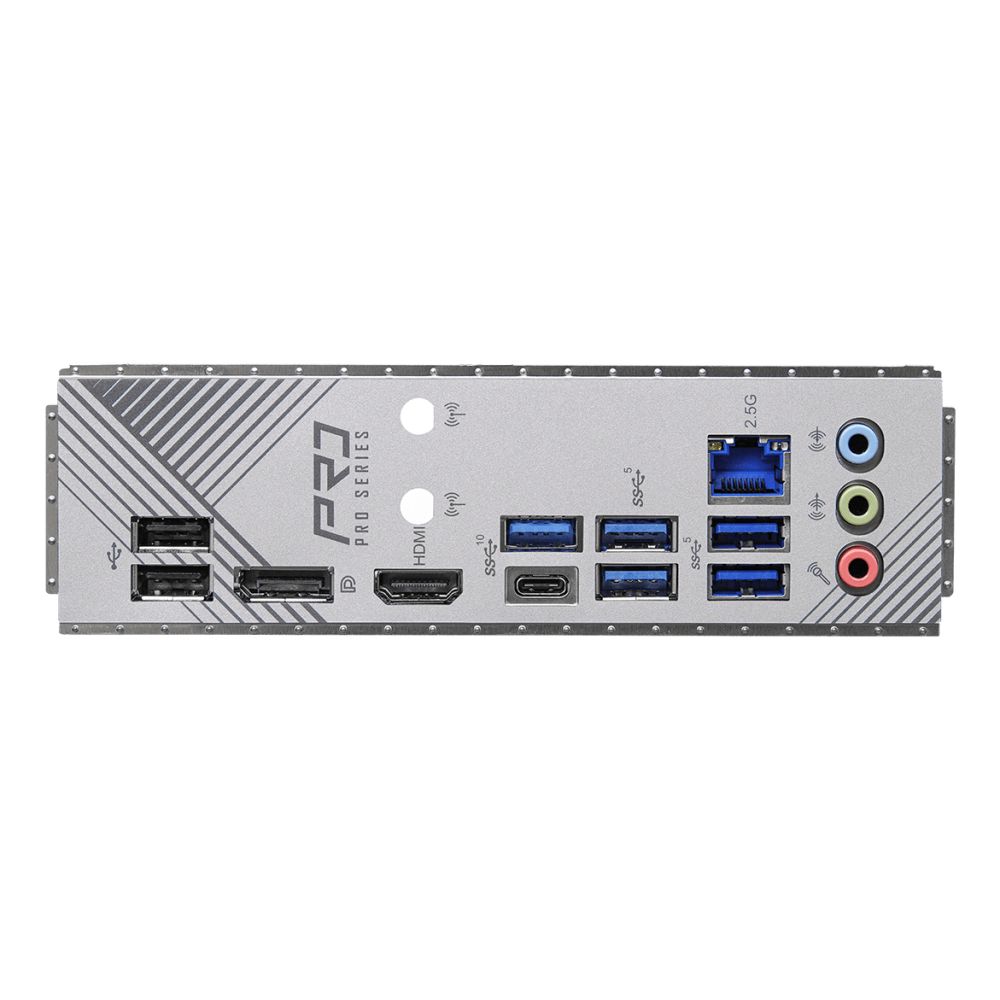

You get a Dragon 2.5Gb/s LAN port for fast networking. This is ideal for online gaming, streaming, and large file transfers. The rear I/O includes dual USB 3.2 Gen2 ports (Type-A and Type-C). A front USB 3.2 Gen2 Type-C header is also available. These ports support data transfer rates up to 10 Gbps.

Advanced DDR5 Memory Support

The board supports DDR5 memory with XMP and EXPO profiles. It features a dedicated protection circuit to prevent damage during installation. The 6-layer PCB provides stable signal traces for better overclocking headroom. This ensures reliable performance from high-speed memory modules.

Immersive Audio Experience

It features the Realtek ALC897 audio chip with Nahimic software. This provides 7.1-channel surround sound for headphones and speakers. The audio engine includes noise suppression and echo cancellation. You get clear communication for gaming and calls. The Sound Tracker feature offers visual cues for in-game sounds.

Customisable RGB Lighting

Polychrome RGB sync allows for custom lighting effects. The board has onboard RGB headers and an addressable RGB header. You can connect LED strips, fans, and coolers. The lighting can be synchronised across compatible accessories. This helps build a personalised system look.

Box contents

• Asrock B760 PRO RS motherboard
• 2 x SATA data cables
• 1 x I/O shield
• User manual

Check before you buy

• Confirm your CPU is an Intel Core i5, i7, or i9 (LGA 1700 socket).
• Verify your PC case supports ATX form factor dimensions (305 mm x 244 mm).
• Check your memory is DDR5-SDRAM for compatibility.
• Confirm you have a suitable power supply with a 24-pin ATX connector.

Frequently Asked Questions

Q: Does this motherboard support Wi-Fi?

A: No, the Asrock B760 PRO RS does not have built-in Wi-Fi. You will need a separate Wi-Fi adapter.

Q: How many M.2 SSDs can I install?

A: This board has one M.2 slot for PCIe Gen4 NVMe SSDs. For more storage, use the four SATA III ports.

Q: Is a CPU cooler included?

A: No, the motherboard does not include a CPU cooler. You must purchase one compatible with the LGA 1700 socket.

Q: Does it support ECC memory?

A: No, this motherboard supports non-ECC unbuffered memory only.

Q: What is the maximum memory capacity?

A: It supports up to 128 GB of DDR5 memory across four DIMM slots.

The Consultant’s Verdict & Warranty

This motherboard is suitable for UK builders assembling a mid-range to high-end Intel PC for gaming, content creation, and general use. It offers essential modern features like PCIe 5.0 and DDR5 support without excessive cost. The robust power design ensures longevity for your components. It is a solid choice for those who need reliability and future-proofing. Covered by the standard Manufacturer Warranty.
