GIGABYTE B850M AORUS ELITE Motherboard
£171.96 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- AMD B850 chipset for Ryzen 9000 series processors
- 12+2+1 phase digital VRM for stable power delivery
- Up to 8200MHz DDR5 memory support for high performance
- Micro ATX form factor with PCIe 5.0 and 4.0 M.2 slots
- 2.5G LAN and Wi-Fi 7 for fast connectivity
Payment Methods:
You may also like
GIGABYTE B650 GAMING X AX V2 Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0 M.2
In stock
GIGABYTE A620M S2H Motherboard – AMD Ryzen 8000, DDR5, PCIe 4.0 M.2, GbE LAN
In stock
GIGABYTE B850M AORUS ELITE WIFI6E ICE | AMD Ryzen 9000 Series Ready Motherboard
The GIGABYTE B850M AORUS ELITE WIFI6E ICE Motherboard delivers robust performance for AMD Ryzen 9000 Series CPUs, featuring a 12+2+1 phase digital VRM for stable power delivery and support for DDR5 memory up to 8200MHz (OC). This micro ATX board combines cutting-edge connectivity with a sleek white aesthetic, making it ideal for compact yet powerful PC builds.
Product Specifications
| Metric | Spec |
|---|---|
| Socket | AM5 |
| Memory Support | DDR5, up to 8200MHz (OC) |
| Storage | 2x M.2 PCIe 5.0/4.0, 4x SATA III |
| Networking | 2.5Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3 |
| Form Factor | Micro ATX |
12+2+1 Phase Digital VRM for Stable Power Delivery
The B850M AORUS ELITE WIFI6E ICE features a sophisticated 12+2+1 phase digital VRM design, ensuring clean and consistent power delivery to your AMD Ryzen 9000 Series processor. This robust power solution maintains stability during heavy workloads and overclocking, protecting your investment while maximising performance potential.
Dual M.2 Slots with PCIe 5.0 and 4.0 Support
With one M.2 slot supporting PCIe 5.0 and another offering PCIe 4.0, this motherboard provides exceptional storage flexibility. The PCIe 5.0 slot delivers blistering NVMe SSD speeds for your primary drive, while the PCIe 4.0 slot accommodates additional high-speed storage or expansion cards, future-proofing your system for evolving storage technologies.
Comprehensive Connectivity Suite

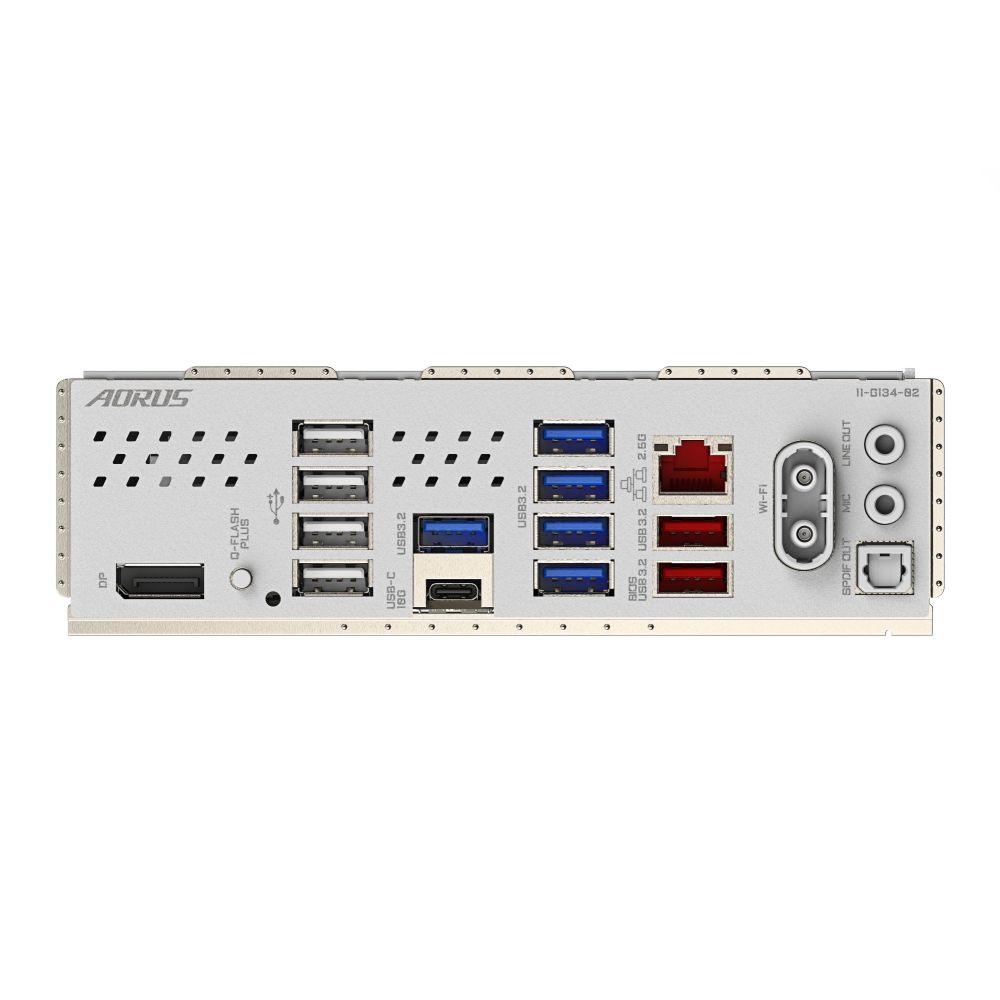

Connectivity options abound with this board, featuring 2.5Gb Ethernet for lag-free online gaming and streaming, Wi-Fi 6E for the latest wireless standards, and Bluetooth 5.3 for peripheral connections. The rear I/O includes multiple USB ports including USB 3.2 Gen 2×2 Type-C, ensuring compatibility with modern devices and accessories.
Enhanced Cooling and System Monitoring
Built-in PC health monitoring tracks fan speeds, temperatures, and voltages, while dedicated CPU and water pump fan headers provide precise thermal control. The motherboard’s thermal design includes multiple fan headers and heat sinks on critical components, maintaining optimal operating temperatures during intense gaming sessions or content creation workloads.

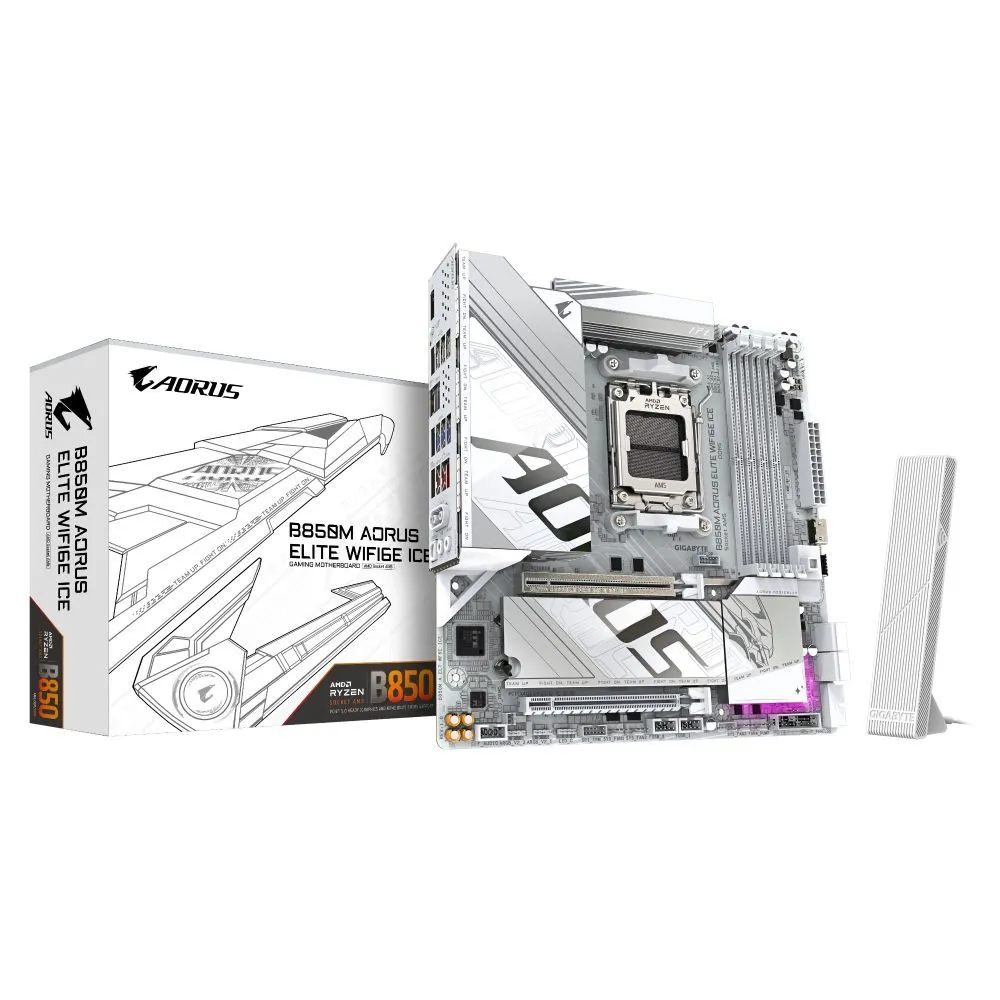

Box contents
- GIGABYTE B850M AORUS ELITE WIFI6E ICE Motherboard
- I/O shield
- SATA cables (quantity not specified)
- User manual and driver DVD
- Warranty documentation
- Wi-Fi antennas (2)
- Screws and standoffs
Key points to check
- Confirm your AMD Ryzen processor is AM5 socket compatible
- Verify your case supports micro ATX form factor (244mm x 244mm)
- Check if your power supply has the required 8-pin EPS connector
- Confirm your DDR5 memory is on the motherboard’s supported speed list
Common questions
Is this motherboard compatible with AMD Ryzen 7000 Series CPUs?
What is the maximum RAM capacity?
Does it have built-in Wi-Fi?
Can I install a dedicated graphics card?
What warranty comes with this motherboard?
Is it worth it?
The GIGABYTE B850M AORUS ELITE WIFI6E ICE stands out as an excellent choice for users building compact AMD Ryzen systems who don’t want to compromise on performance or connectivity. Its combination of PCIe 5.0 storage, robust power delivery, and comprehensive wireless options makes it particularly suitable for gamers, content creators, and professionals working in limited space. Covered by the applicable manufacturer warranty, this motherboard offers exceptional value for those seeking a reliable foundation for their next PC build.
| Weight | 1.75 kg |
|---|---|
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Front panel connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| TPM connector | Yes |
| Peripheral Molex power connectors 4-pin | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors 8-pin | 1 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Serial port headers | 1 |
| Warranty period | 3 year(s) |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5200,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 8200 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 5 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 2 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Realtek RTL8852CE |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | White |
| Number of M.2 M slots | 2 |
| PCI Express x16 Gen 3.x slots | 1 |
| PCI Express x16 Gen 5.x slots | 1 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS SMBIOS version | 2.7 |
| Desktop Management Interface DMI version | 2.7 |
| Power source type | ATX |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Products per shipping inner case | 1 pc(s) |
| Country of origin | China |
| Width | 244 mm |
| Depth | 244 mm |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Height | 35 mm |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.97 kg |
| Weight | 1.77 kg |
