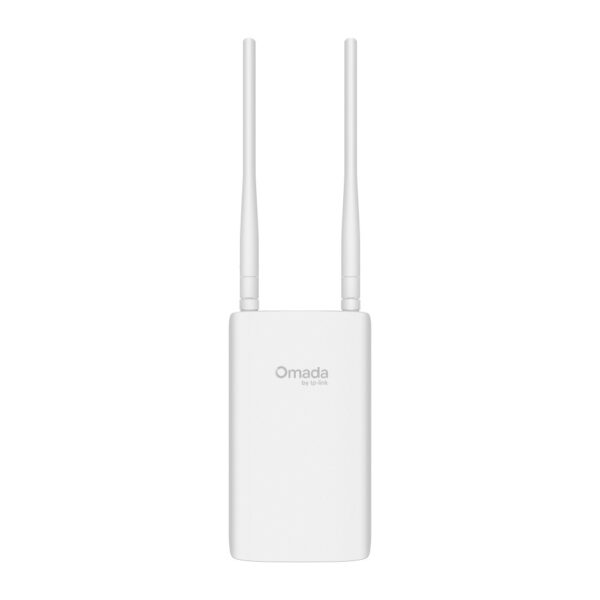

TP-Link Omada EAP603-Outdoor Wi-Fi 6 Access Point AX1800 Power over Ethernet White
£133.84
Out of stock
Out of stock
- Free Premium delivery on UK mainland orders
Order today, get it by Fri 20 Nov
-
DPD tracked delivery
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 instalments with PayPal at checkout
About this item
- AX1800 dual-band Wi-Fi 6 speeds up to 1800 Mbit/s
- Gigabit Ethernet LAN data rates with Power over Ethernet support
- IP65 and IP66 weatherproof enclosure for outdoor pole or wall placement
- Comprehensive security featuring WPA3 encryption and RADIUS authentication
- Cloud-managed administration with web-based management and multiple SSIDs
- Omni-directional internal and external antenna configuration with 5 dBi gain
Available alternatives
TP-Link Omada EAP650-DESKTOP 2976 Mbps PoE Access Point
In stock
TP-Link Omada EAP653 UR 2976 Mbit/s PoE Wireless Access Point
In stock
TP-Link Omada EAP610 WiFi 6 Access Point
In stock
You may also like
TP-Link Omada AX3000 WiFi 6 Access Point
In stock
TP-Link Omada EAP725-WALL Wi-Fi 7 Access Point
In stock
Ubiquiti airCube 867 Mbps PoE Black
In stock
Ubiquiti NanoStation 5AC Loco 1000 Mbps White
In stock
TP-Link Omada AX3000 WiFi 6 Access Point
In stock
TP-Link Omada EAP603-Outdoor: Enterprise Wi-Fi 6 for Challenging Environments
When you need robust wireless coverage across open spaces, we recommend deploying the TP-Link Omada EAP603-Outdoor Wi-Fi 6 Access Point AX1800 Power over Ethernet White. This hardware delivers reliable dual-band connectivity to exterior zones, car parks, and campus grounds. Because it integrates with the Omada Software Defined Networking platform, administrators gain centralised cloud management for streamlined site deployments.
Core hardware specifications
| Metric | Specification |
|---|---|
| Maximum Data Rate | 1800 Mbit/s |
| Frequency Bands | 2.4 GHz and 5 GHz |
| Ingress Protection | IP65, IP66 |
| Power Delivery | PoE+ (802.3at) and Passive PoE |
| Maximum Outdoor Range | Up to 300 metres |
Dual-band throughput and efficiency
Modern outdoor networks demand high data rates to handle heavy client loads. This access point achieves up to 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band. Because it supports Wi-Fi 6 standards, your network manages high-density environments much more efficiently. Multiple devices stream data simultaneously without noticeable latency spikes.
Weatherproof construction for harsh climates
Exterior hardware must withstand severe weather elements year-round. This chassis features an IP65 and IP66 rating to block dust and heavy rainfall. Also, it operates reliably within extreme temperatures ranging from minus 30 to plus 70 degrees Celsius. Built-in lightning protection safeguards your investment against electrical surges during storms.
Flexible deployment and power options
Network installations often lack nearby mains power outlets. Fortunately, Power over Ethernet support allows you to transmit data and electrical current down a single cable. You can use standard 802.3at PoE switches or the included passive PoE adapter. Furthermore, the versatile mounting kit lets you secure the unit easily to walls or poles.
Centralised management and seamless roaming
Managing multiple access points requires robust software tools. With Omada SDN integration, you can provision and monitor your entire network from a single cloud interface. Features like seamless roaming ensure clients maintain stable connections while moving across large exterior zones. Also, multiple SSIDs and advanced wireless security protocols protect your network perimeter.
What is included in the package
- TP-Link Omada EAP603-Outdoor Access Point
- Passive PoE adapter
- Mounting kit
- Quick start guide
Before you order
- Confirm your network switch or injector supplies 802.3at PoE or compatible passive power.
- Confirm your mounting location offers a clear line of sight to maximise the 300-metre range.
- Confirm your infrastructure uses the Omada SDN platform for centralised management features.
Frequently Asked Questions
Q: What is the maximum outdoor range?
A: It delivers long-range coverage up to 300 metres under optimal conditions.
Q: Does it require an external power supply?
A: No, it is powered via Ethernet using the included PoE adapter or a compatible PoE switch.
Q: Can I mount this device on a pole?
A: Yes, the included mounting kit supports both wall and pole installations.
Q: Is this model cloud-managed?
A: Yes, it integrates fully with the Omada centralised cloud management platform.
The bottom line for your network
We find this hardware ideal for businesses, schools, and hospitality venues requiring dependable exterior wireless coverage. Its weather-resistant build and high-speed Wi-Fi 6 capabilities ensure stable performance in demanding outdoor locations.
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1800 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Web-based management | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3at |
| Maximum outdoor range | 300 m |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1800 Mbit/s |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Wireless LAN features | |
| Maximum outdoor range | 300 m |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3at |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3at |
| Maximum outdoor range | 300 m |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1800 Mbit/s |
| Bluetooth | Yes |
| Maximum data transfer rate (2.4 GHz) | 573 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Security | |
| Number of SSID supported | 16 |
| IP address filtering | Yes |
| Security algorithms | EAP, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, PPSK, SNMP, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Guest access | Yes |
| Management features | |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Backup function | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 4.8 W |
| Power over Ethernet (PoE) | Yes |
| Input current | 0.36 A |
| Power over Ethernet (PoE) type supported | Passive PoE |
| DC voltage range | 42.5 - 57 V |
| Design | |
| International Protection (IP) code | IP65, IP66 |
| Placement | Pole, Wall |
| Product colour | White |
| Antenna | |
| Antenna type | Internal & external |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
| Antenna direction type | Omni-directional |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Software | |
| Access Control List (ACL) | Yes |
| Weight & dimensions | |
| Width | 230 mm |
| Depth | 207.5 mm |
| Height | 69.7 mm |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Operational conditions | |
| Operating relative humidity | 10 - 90% |
| Operating temperature | -30 - 70 °C |
| Storage temperature | -40 - 70 °C |
| Storage relative humidity | 5 - 90% |
| Identifiers | |
| Additional EANs | 1210002605731 |
