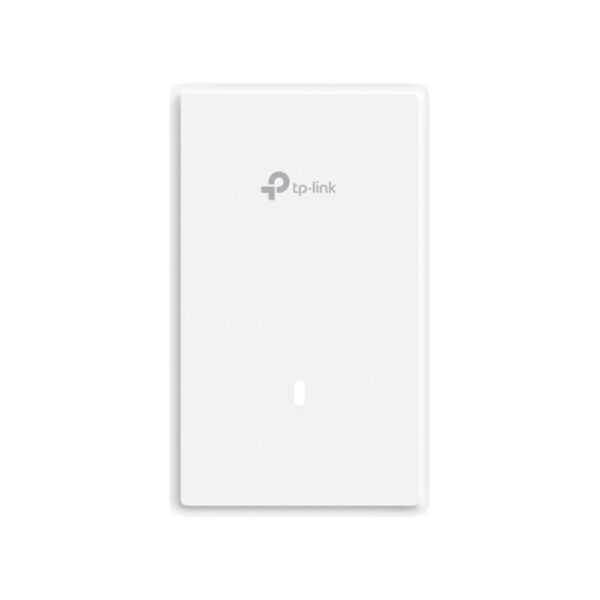

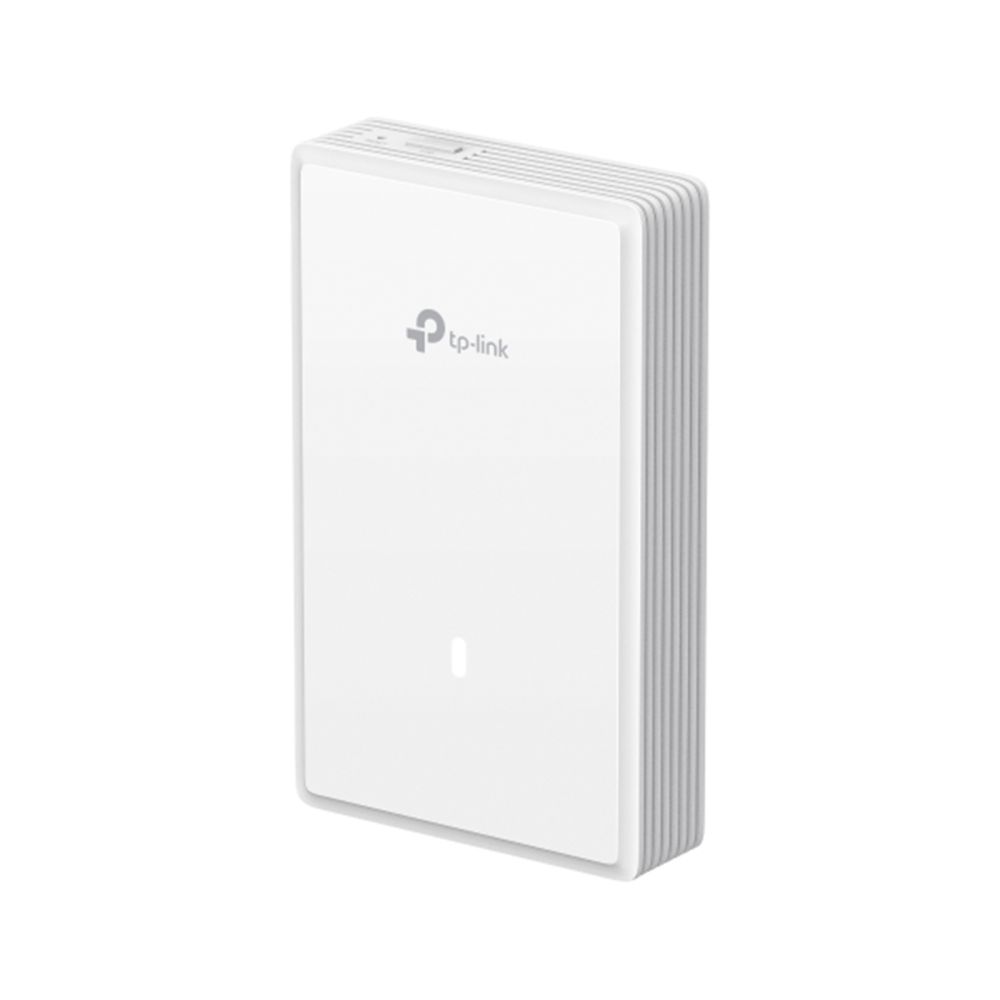

TP-Link Omada EAP725-WALL Wi-Fi 7 Access Point

TP-Link Omada EAP725-WALL | Wall-Mounted Wi-Fi 7 Access Point

The TP-Link Omada EAP725-WALL BE3600 Wall Plate Wi-Fi 7 Access Point delivers high-speed wireless connectivity in a discreet wall-mounted form. Built for professional environments, it supports Wi-Fi 7 with combined speeds up to 3,570 Mbps, advanced PoE pass-through, and centralised management via the Omada ecosystem.

Key Specifications

High-Performance Wi-Fi 7 in a Low-Profile Design

The EAP725-WALL leverages Wi-Fi 7’s Multi-RU and 160 MHz bandwidth to handle many simultaneous connections without congestion. With speeds up to 2,882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, it suits high-density environments like offices, classrooms, or retail spaces where reliable throughput is critical.

Power and Flexibility with PoE Pass-Through

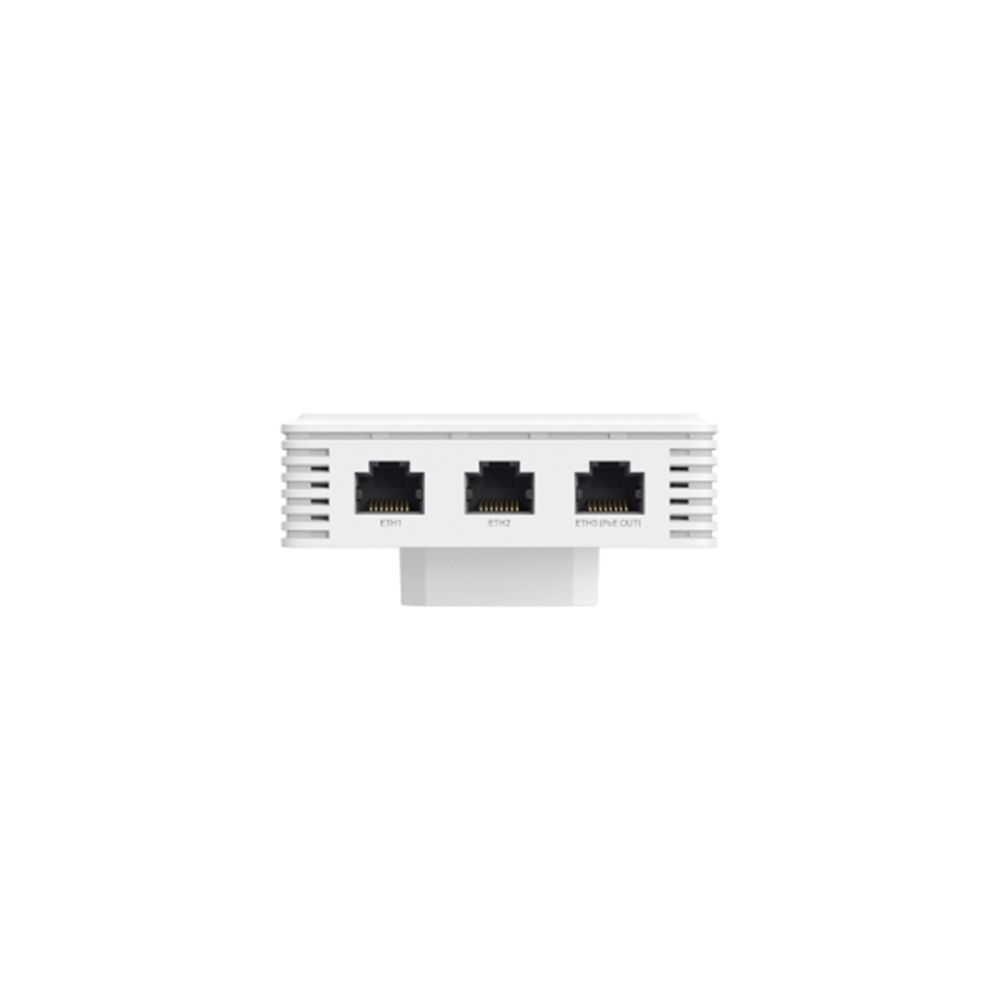

Equipped with a 2.5G PoE input port, the EAP725-WALL can power itself and pass power downstream to another device. This feature requires 802.3at/bt input, and if the downstream device needs more than 7W, an 802.3bt input is necessary. The unit also includes two Gigabit RJ45 downlink ports for wired device connectivity.

Advanced Wireless Management and Security

Centralised management via Omada’s SDN platform enables seamless roaming, mesh networking, and automatic channel assignment. Security features include WPA3 support, rogue AP detection, VLAN tagging, and MAC address filtering. Band steering and airtime fairness optimise performance for mixed client environments.

Box Contents

• TP-Link Omada EAP725-WALL BE3600 Wall Plate Wi-Fi 7 Access Point
• Mounting screws for wall installation

Check Before You Buy

• Confirm your PoE switch or injector supports 802.3at/bt for full functionality.
• Verify wall space and mounting suitability for the 143 x 86 x 40 mm unit.
• Check that your network infrastructure supports Wi-Fi 7 client devices to utilise maximum speeds.
• Ensure Omada Controller software or hardware is available for centralised management.

Frequently Asked Questions

Q: Does the EAP725-WALL support Wi-Fi 6 devices?

A: Yes, it is backward compatible with Wi-Fi 6, Wi-Fi 5, and earlier standards.

Q: Can I use this access point without Omada Controller?

A: Yes, basic standalone operation is possible, but centralised features require Omada Controller.

Q: What is the maximum power budget for PoE pass-through?

A: Up to 15.4W when powered by 802.3bt, or up to 7W with 802.3at input.

Q: Is the EAP725-WALL suitable for outdoor use?

A: No, it is designed for indoor wall mounting only.

Q: How many SSIDs can be configured?

A: Up to 16 SSIDs, with a maximum of 8 per band.

Q: Does it support mesh networking?

A: Yes, mesh functionality is available when managed via Omada Controller.

The Consultant’s Verdict & Warranty

The TP-Link Omada EAP725-WALL BE3600 Wall Plate Wi-Fi 7 Access Point is ideal for professional installations requiring discreet, high-performance wireless coverage with advanced management features. Its Wi-Fi 7 capability, PoE pass-through, and Omada integration make it a strong choice for offices, schools, and retail environments. Covered by the standard Manufacturer Warranty.
