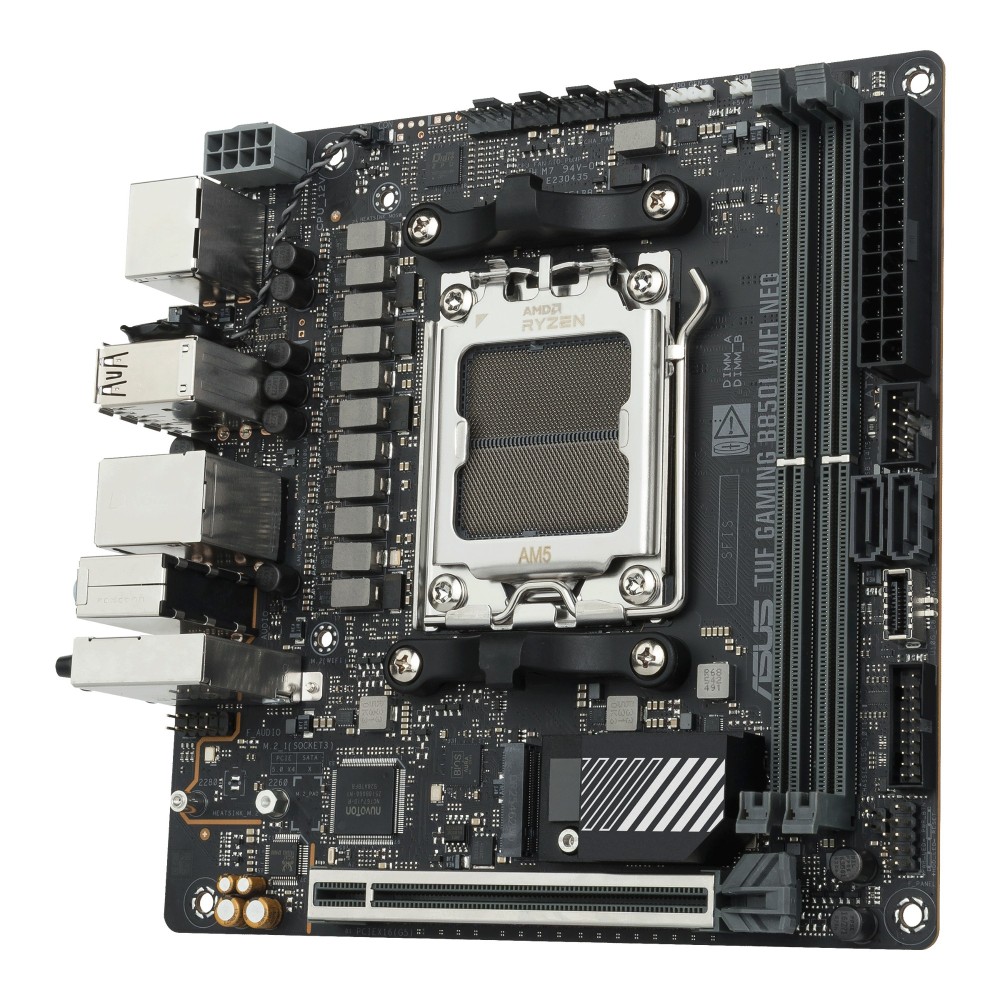

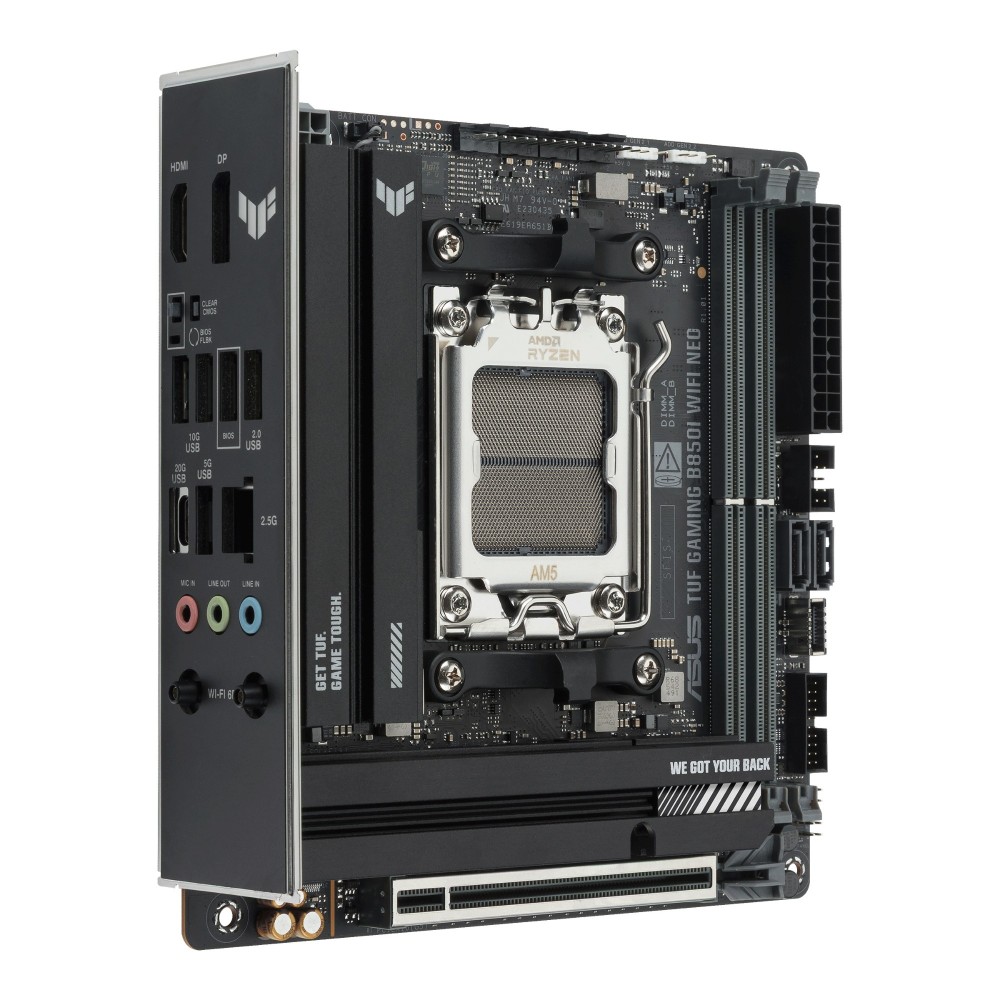

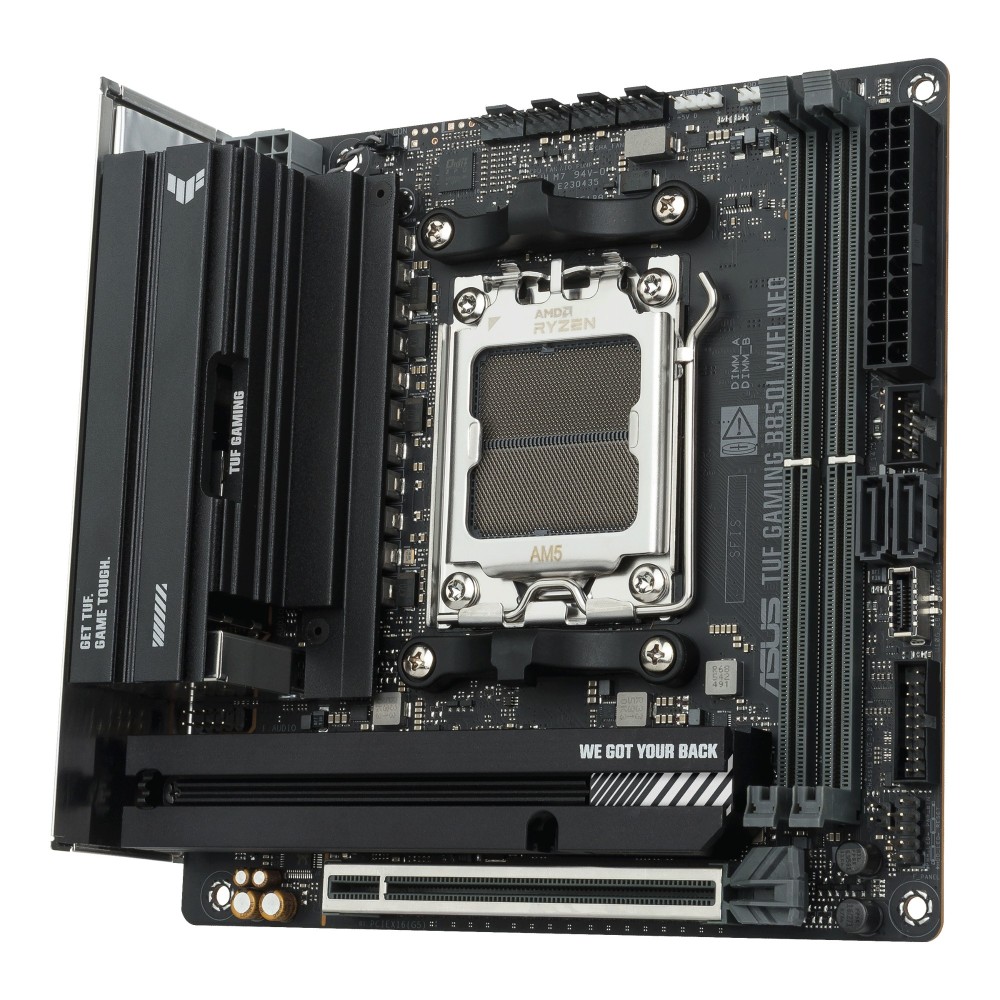

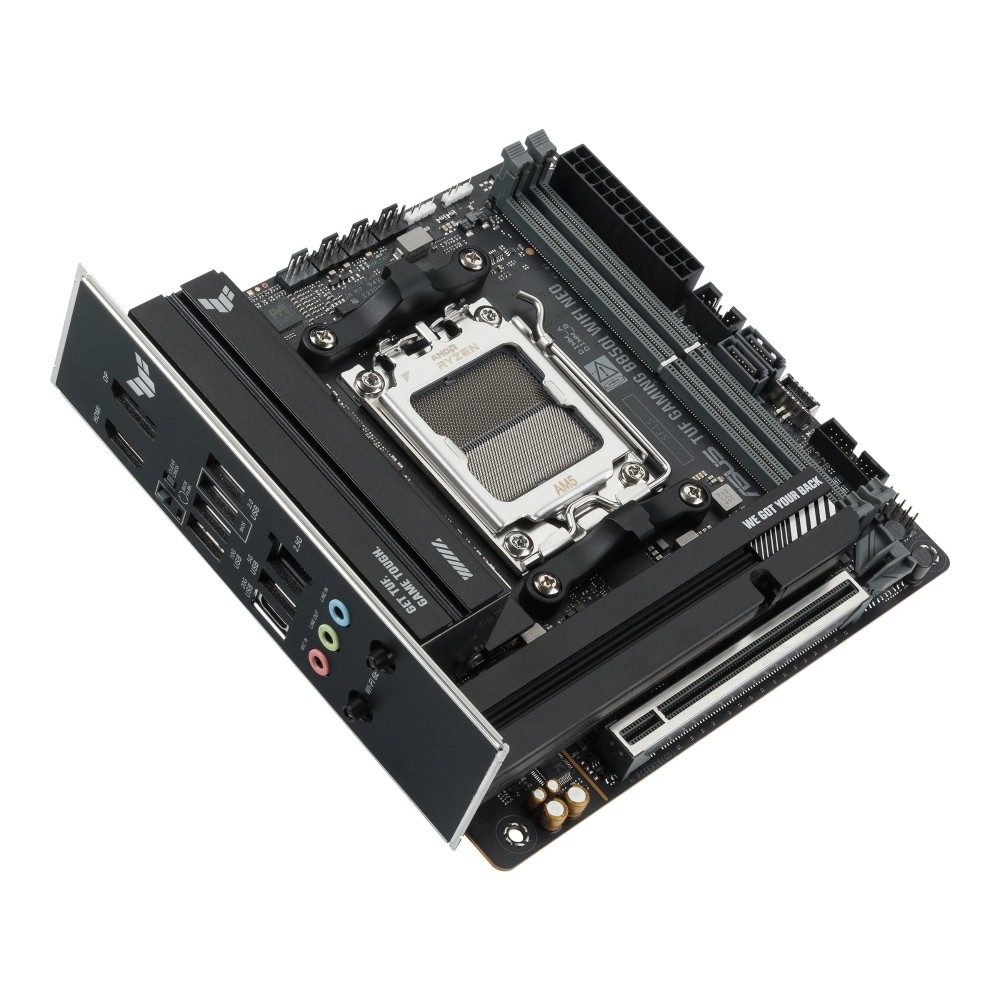

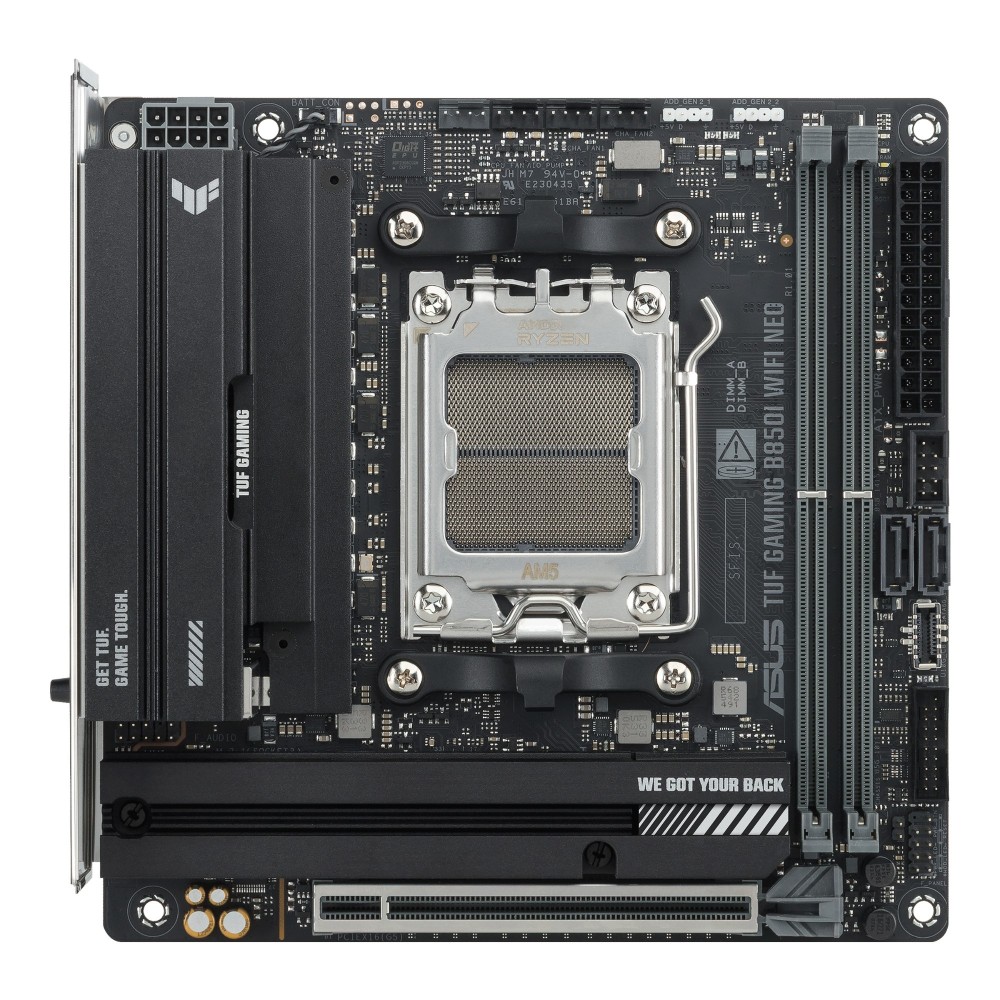

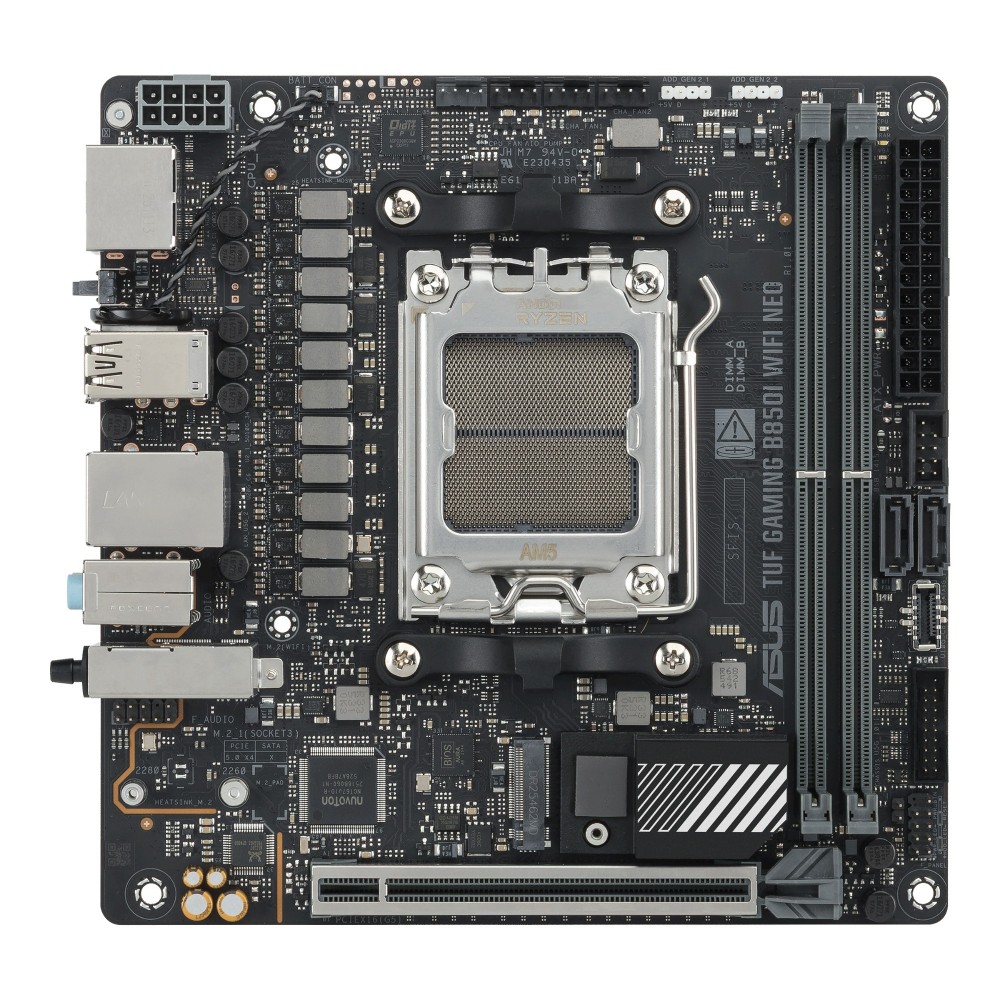

ASUS TUF GAMING B850I WIFI NEO AM5 mini-ITX Motherboard
£178.19 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- AMD B850 chipset with Socket AM5 for AMD Ryzen 7000/8000/9000 Series processors
- mini ITX form factor, ideal for compact PC builds
- DDR5-SDRAM support up to 128 GB (9600 MHz max) with dual-channel memory
- Integrated Wi-Fi 6E (802.11ax) and 2.5 Gigabit Ethernet
- Two M.2 slots (PCIe 5.0 and PCIe 4.0), plus two SATA III connectors with RAID support
- 7.1 channel audio output and passive cooling
- Multiple USB ports including USB 3.2 Gen 2×2 Type-C
Payment Methods:
You may also like
GIGABYTE B650M D3HP Motherboard – Ryzen 9000, DDR5, PCIe 4.0 M.2, 2.5GbE LAN
In stock
ASUS TUF GAMING B850I WIFI NEO – Compact Powerhouse
We are pleased to offer the ASUS TUF GAMING B850I WIFI NEO AMD B850 Socket AM5 mini ITX, an ideal choice for PC builders seeking a robust and compact foundation. This motherboard brings the renowned TUF GAMING performance to the mini-ITX form factor. It delivers reliable power and connectivity for demanding gaming and AI applications. This board is perfect for small form factor builds without compromising on features.
Core Component Overview
| Metric | Spec. |
|---|---|
| Motherboard Form Factor | mini ITX |
| Processor Socket | Socket AM5 |
| Memory Type | DDR5-SDRAM |
| Maximum Internal Memory | 128 GB |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| PCIe x16 Gen 5.x Slots | 1 |
Advanced Storage Options
This motherboard supports a wide range of storage configurations. It includes two M.2 M slots, with one supporting PCI Express 5.0 for ultra-fast SSDs. The second M.2 slot offers PCI Express 4.0 connectivity. We also find two SATA III connectors. This provides flexibility for both high-speed and traditional storage. RAID levels 0, 1, 5, and 10 are supported for enhanced data protection and performance.
Next-Generation Connectivity
Connectivity is a key strength of this mini-ITX board. It features Wi-Fi 6E (802.11ax) for blazing-fast wireless speeds. A 2.5 Gigabit Ethernet port ensures stable wired network access. We also find Bluetooth support for peripheral connections. USB 3.2 Gen 2×2 Type-C ports provide rapid data transfer.
Robust Power Delivery
The ASUS TUF GAMING B850I WIFI NEO AMD B850 Socket AM5 mini ITX is built with a premium 10-layer server-grade circuit board. This includes 2-ounce low-loss copper power planes. This design ensures enhanced signal integrity and stable power delivery. It supports AMD Ryzen 7000, 8000, and 9000 Series processors. This robust power solution is crucial for consistent performance.
Integrated Audio Experience
Enjoy immersive sound with integrated 7.1 channel audio output. This provides a rich audio experience for gaming and multimedia. The motherboard includes front panel audio connectors. It also features microphone in and headphone outputs on the rear.

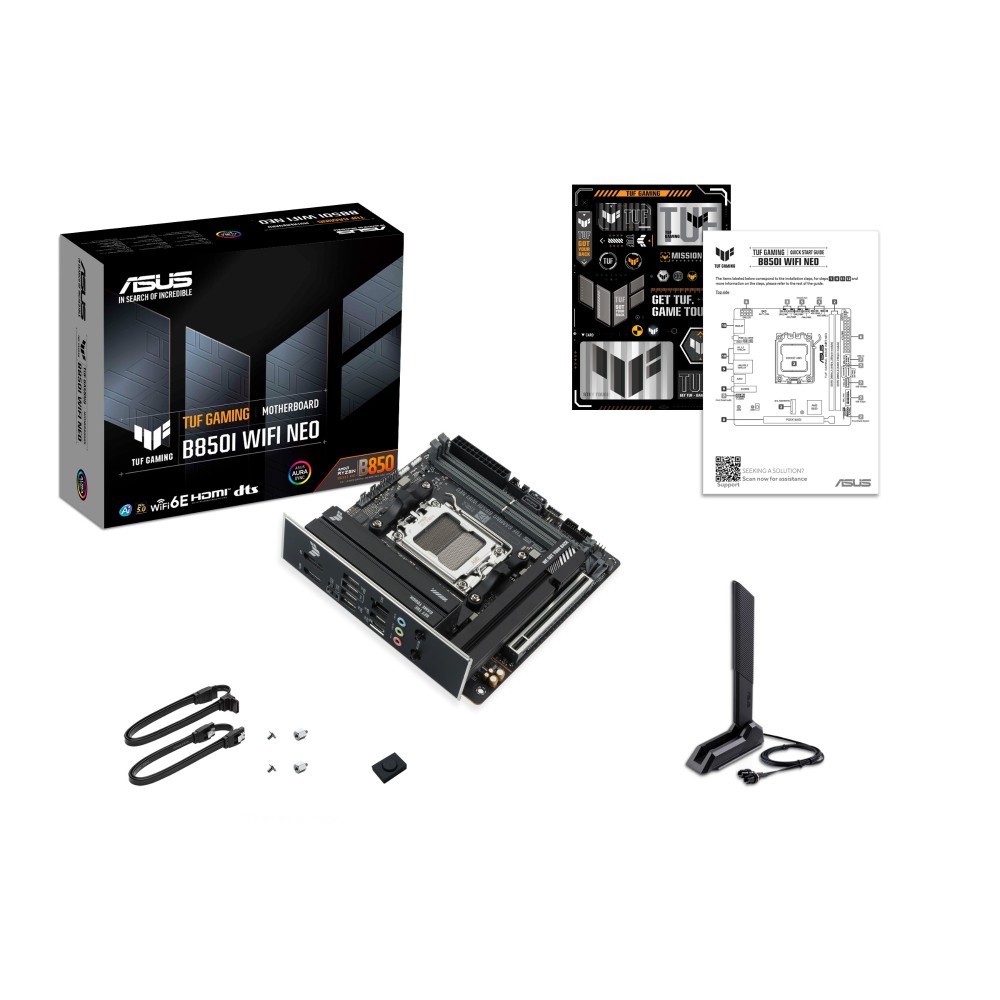

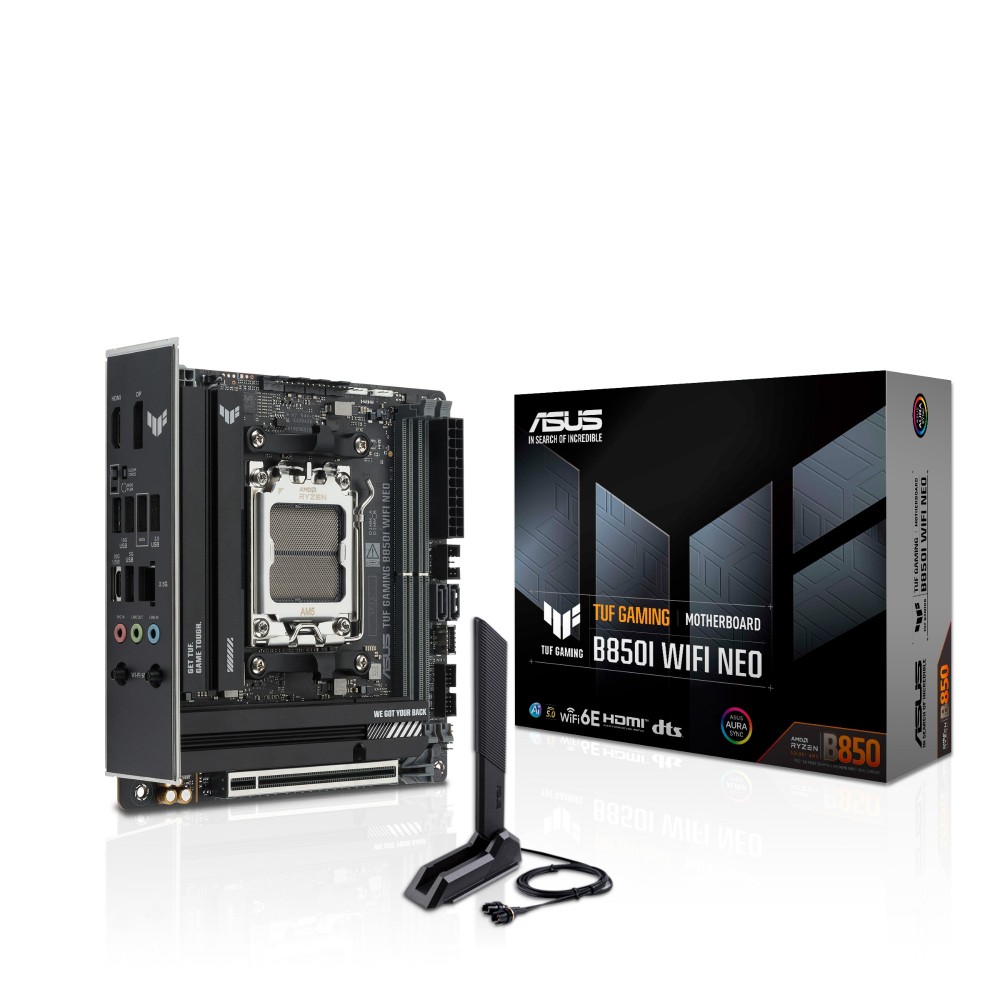

Included Accessories
We include essential components to get you started. You will find SATA cables for storage devices. Screws are provided for easy installation. An antenna is also included for the Wi-Fi functionality. A quick installation guide helps with setup.
Before You Finalise Your Build
- Confirm your chosen CPU uses the AMD Socket AM5.
- Ensure your preferred memory is DDR5-SDRAM type.
- Check your PC case is compatible with a mini ITX motherboard.
- Verify your power supply includes a 24-pin ATX connector.
Frequently Asked Questions
Q: Which AMD Ryzen processor series are compatible?
A: It supports AMD Ryzen 7000, 8000, and 9000 Series processors.
Q: What is the maximum memory capacity?
A: The motherboard supports a maximum internal memory of 128 GB.
Q: Does this motherboard have Wi-Fi?
A: Yes, it features Wi-Fi 6E (802.11ax) for wireless connectivity.
Q: How many M.2 slots are available?
A: There are two M.2 M slots, one supporting PCIe 5.0 and one PCIe 4.0.
Q: Is this board suitable for small PC cases?
A: Yes, its mini ITX form factor is ideal for compact builds.
Our Hardware Recommendation
This motherboard is an excellent choice for anyone building a high-performance mini-ITX system. Its blend of robust power delivery, advanced connectivity, and support for the latest AMD Ryzen processors makes it a compelling option. It’s particularly well-suited for gaming rigs and powerful compact workstations. Warranty cover varies by product, so please contact us to confirm.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 2 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | Socket AM5 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 9600 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 4 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 7680 x 4320 pixels |

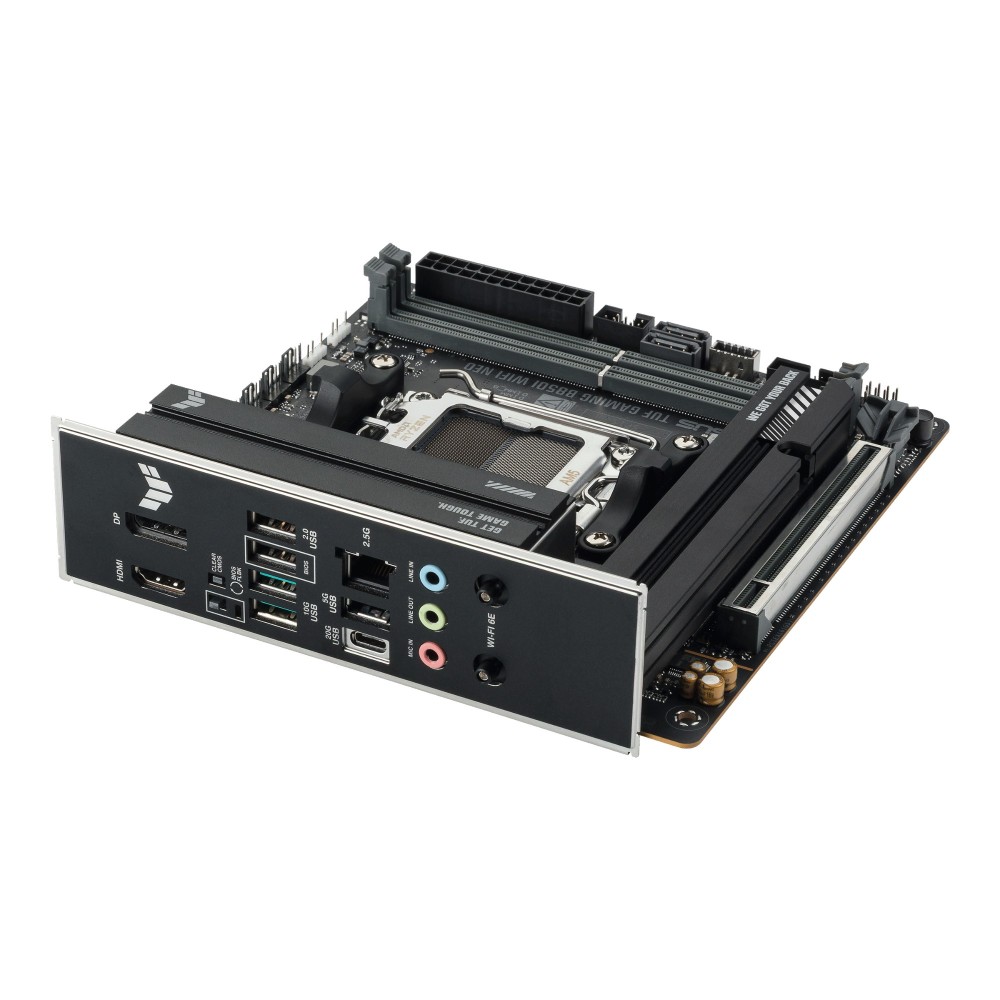

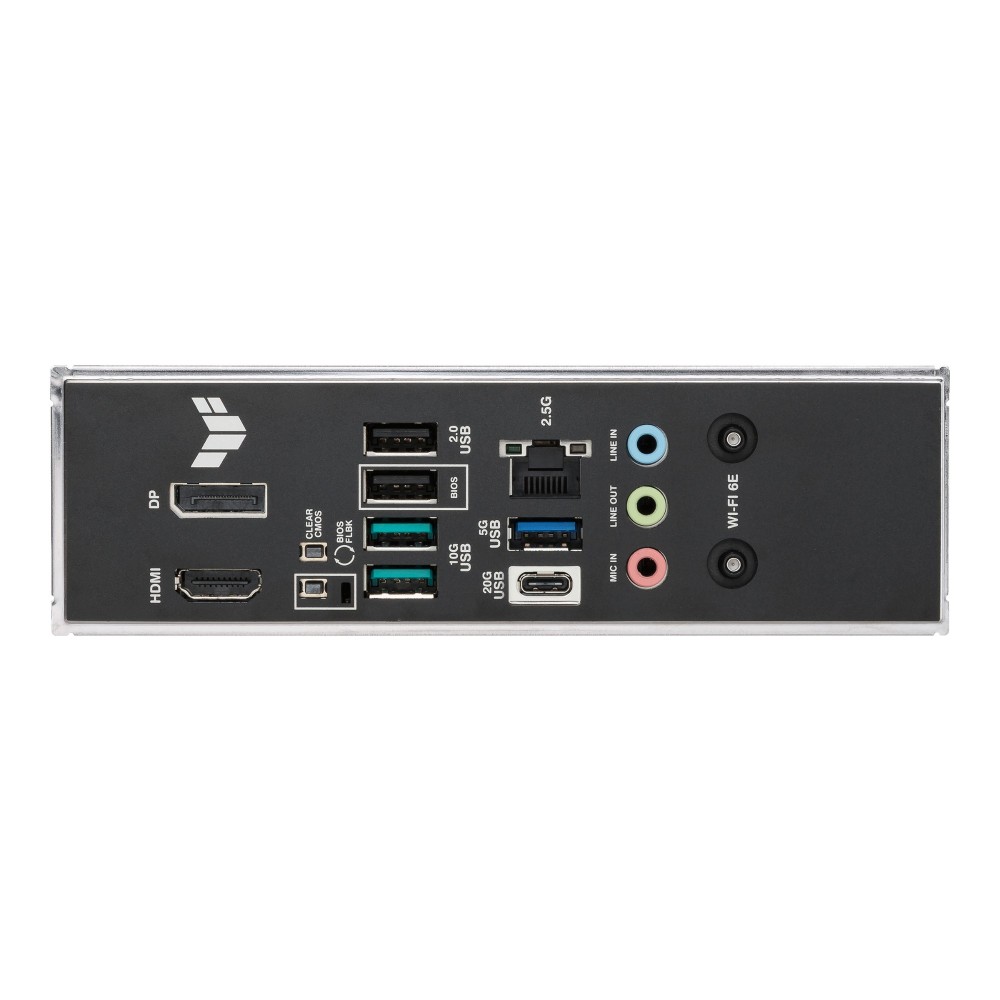

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| BIOS flashback button | Yes |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 7680 x 4320 pixels |
| Packaging data | |
| Package width | 219 mm |
| Package depth | 277 mm |
| Package height | 107 mm |
| Package weight | 1.32 kg |
| Software | |
| Windows operating systems supported | Windows 11 |
| Weight & dimensions | |
| Height | 44 mm |
| Package width | 219 mm |
| Package depth | 277 mm |
| Package height | 107 mm |
| Package weight | 1.32 kg |
| Weight | 720 g |
| Width | 170 mm |
| Depth | 170 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 44 mm |
| Package width | 219 mm |
| Package depth | 277 mm |
| Package height | 107 mm |
| Package weight | 1.32 kg |
| Weight | 720 g |
| Quick installation guide | Yes |
| Identifiers | |
| Distributor SKUs | MBD-90MB1PI0-M0EAY0, 13199600, CL90MB1PI0-M0EAY0 |
