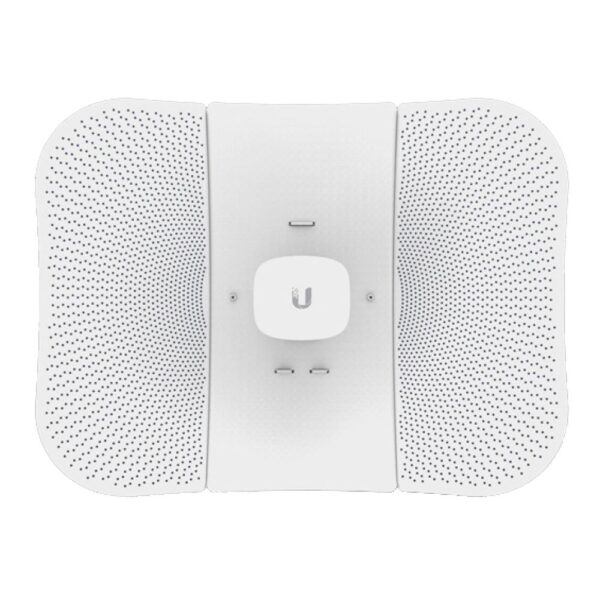

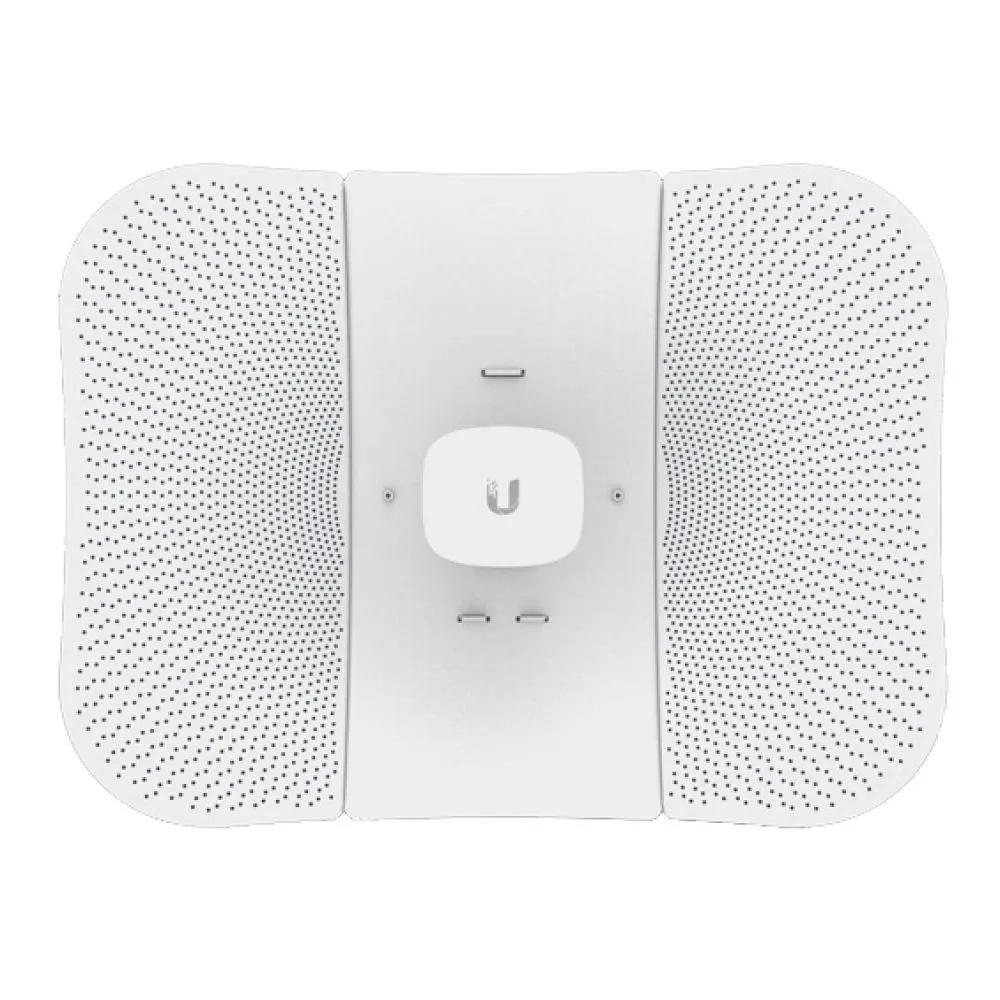

Ubiquiti LiteBeam AC Bridge 450 Mbps White
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 450 Mbit/s maximum data transfer rate
- 23 dBi antenna gain for long-distance connectivity
- 2.412 – 2.462, 5.15 – 5.875 GHz frequency band support
- 1 RJ-45 Ethernet port with Power over Ethernet (PoE)
- Compact plastic design in white, 980 g weight
- -40 – 70 °C operating temperature range
- Web-based management with WPA2 security
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
Ubiquiti LiteBeam AC | Long-Range CPE Bridge
The Ubiquiti LiteBeam AC Network bridge 450 Mbit/s White delivers high-performance wireless connectivity for long-distance point-to-point links. With 23 dBi gain and airMAX ac technology, it provides reliable, directional networking in a compact, lightweight form factor.
Key Specifications
| Metric | Spec |
|---|---|
| Maximum Data Rate | 450 Mbit/s |
| Antenna Gain | 23 dBi |
| Frequency Bands | 2.4 GHz & 5 GHz |
| PoE Support | Yes (Passive 24V) |
| Management | airOS®8 with airView® |
Directional Performance for Extended Range
The 23 dBi high-gain directional antenna focuses signal transmission and reception, minimising interference from other networks. This design makes the LiteBeam AC ideal for connecting remote buildings or bridging networks across several kilometres where line-of-sight is available.
Dual-Band Frequency Flexibility
Operating across both 2.4 GHz and 5 GHz bands with multiple channel options, this bridge adapts to various RF environments. The 2×2 MIMO configuration enhances throughput and reliability, while the wide frequency range helps avoid congested channels in busy wireless areas.
Rapid Deployment with Integrated Wi-Fi Setup
The integrated Wi-Fi radio enables quick configuration using a smartphone or tablet, eliminating the need for wired connections during initial setup. Combined with the three-axis alignment system, the LiteBeam AC can be mounted and aligned in seconds without specialised tools.
Robust Environmental Protection
Built to operate in temperatures from -40 °C to 70 °C and humidity levels up to 95%, this bridge suits demanding outdoor installations. Enhanced ESD protection and weather-resistant construction ensure reliable performance in challenging UK weather conditions.
Box contents
- LiteBeam AC CPE unit
- Mounting hardware kit
- PoE adapter
- Power adapter
- Quick start guide
Check before you buy
- Confirm your network devices support 450 Mbit/s throughput
- Verify line-of-sight path for directional link
- Check availability of passive 24V PoE injector
- Ensure mounting location can support the 980 g weight
Frequently Asked Questions
Q: What is the maximum distance achievable?
A: Range depends on environmental conditions and line-of-sight, but the 23 dBi gain supports several kilometres in optimal conditions.
Q: Does it include a PoE injector?
A: Yes, the package includes a passive 24V PoE adapter for powering the device.
Q: Can I manage it remotely?
A: Yes, airOS®8 provides web-based management with remote access capabilities.
Q: What security protocols are supported?
A: The device supports WPA2 security algorithms for encrypted connections.
Q: Is it suitable for UK weather?
A: Yes, it operates in temperatures from -40 °C to 70 °C and humidity up to 95%, making it suitable for UK conditions.
The Consultant’s verdict & warranty
The Ubiquiti LiteBeam AC Network bridge offers exceptional value for long-range wireless links requiring directional performance and dual-band flexibility. Its rapid deployment features and robust environmental protection make it ideal for outdoor point-to-point connections. Covered by the standard Manufacturer Warranty.
| Weight | 0.98 kg |
|---|---|
| Maximum data transfer rate | 450 Mbit/s |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Antenna gain level max | 23 dBi |
| Frequency band | 2.412 – 2.462, 5.15 – 5.875, 5.15 – 5.25, 5.25 – 5.35, 5.47 – 5.725, 5.725 – 5.85 GHz |
| Ethernet LAN | Yes |
| Ethernet LAN RJ-45 ports | 1 |
| Security algorithms | WPA2 |
| Web-based management | Yes |
| Product type | Network bridge |
| LED indicators | LAN, Power |
| Power over Ethernet PoE | Yes |
| Operating relative humidity H-H | 5 – 95% |
| Certification | CE, FCC, IC |
| Material | Plastic |
| Product colour | White |
| Operating temperature T-T | -40 – 158 °F |
| Internal memory | 64 MB |
| Weight | 980 g |
| Dimensions WxDxH | 358 x 271.95 x 272.5 mm |
| Harmonized System HS code | 85176990 |
