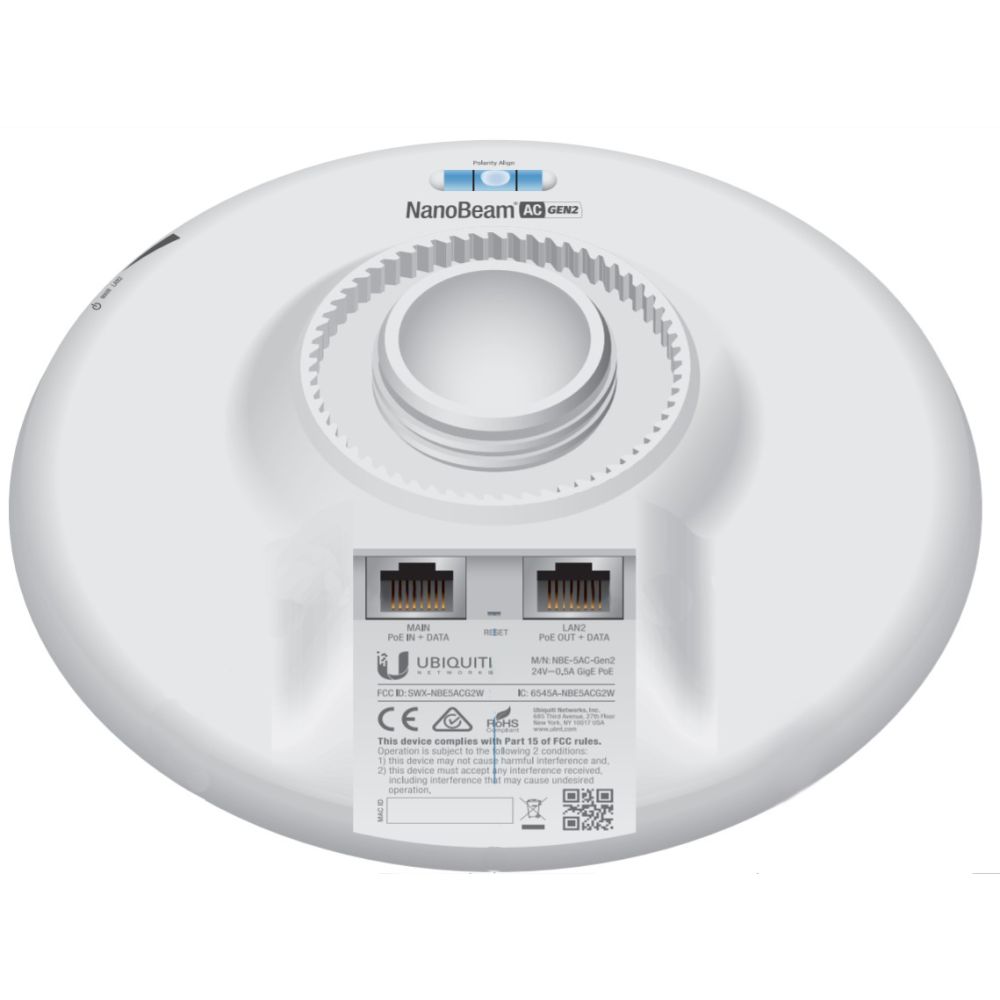

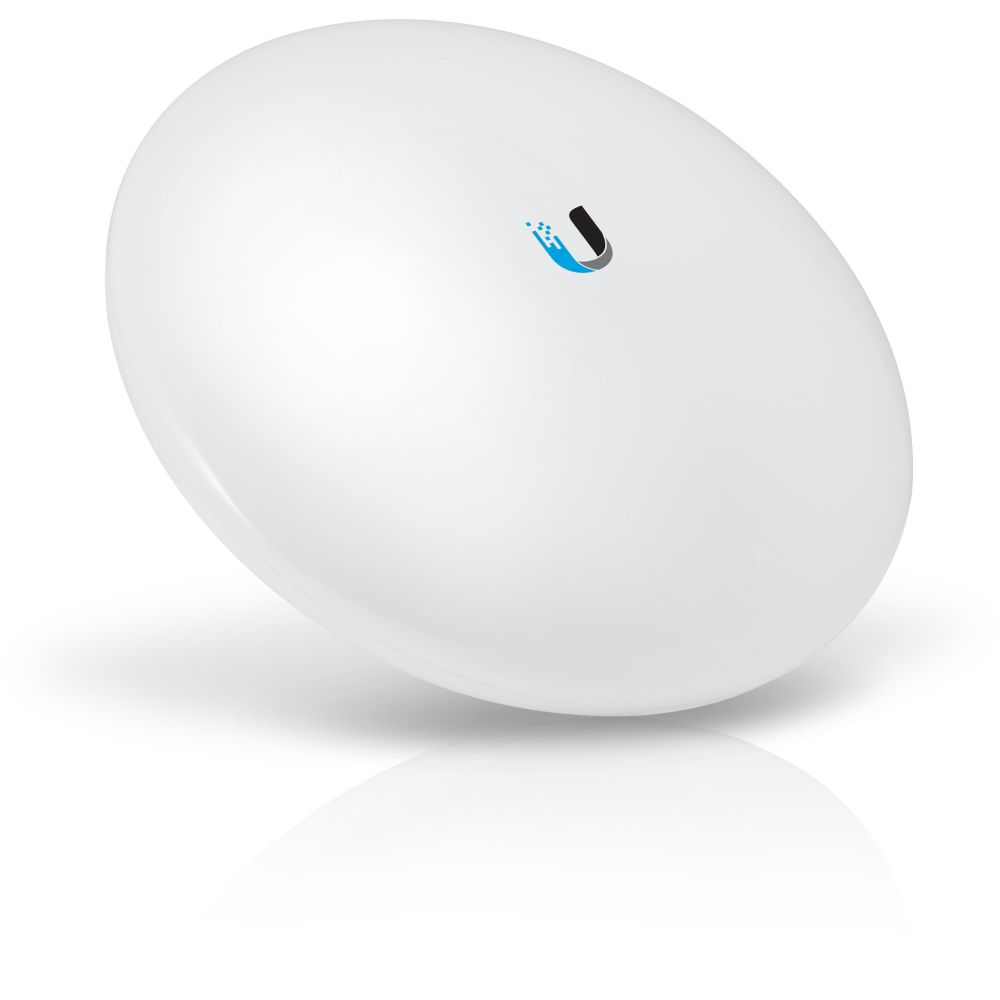

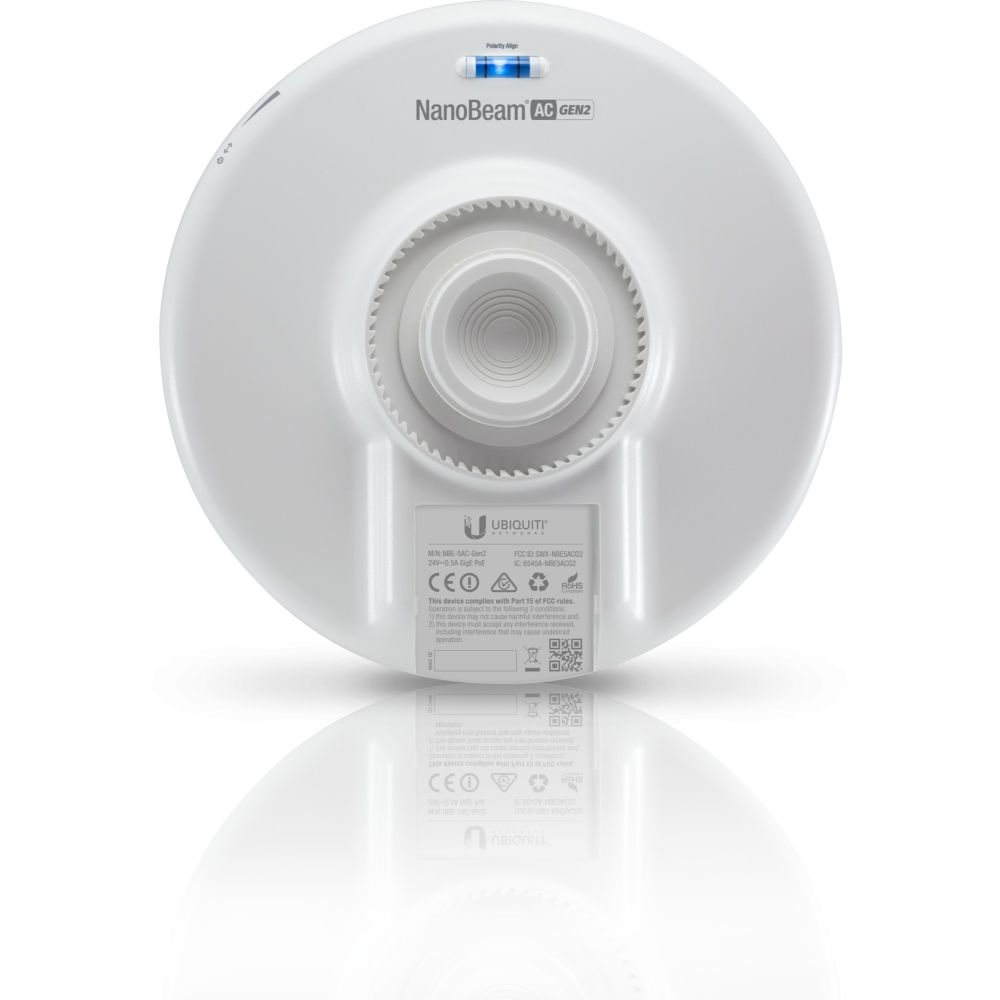

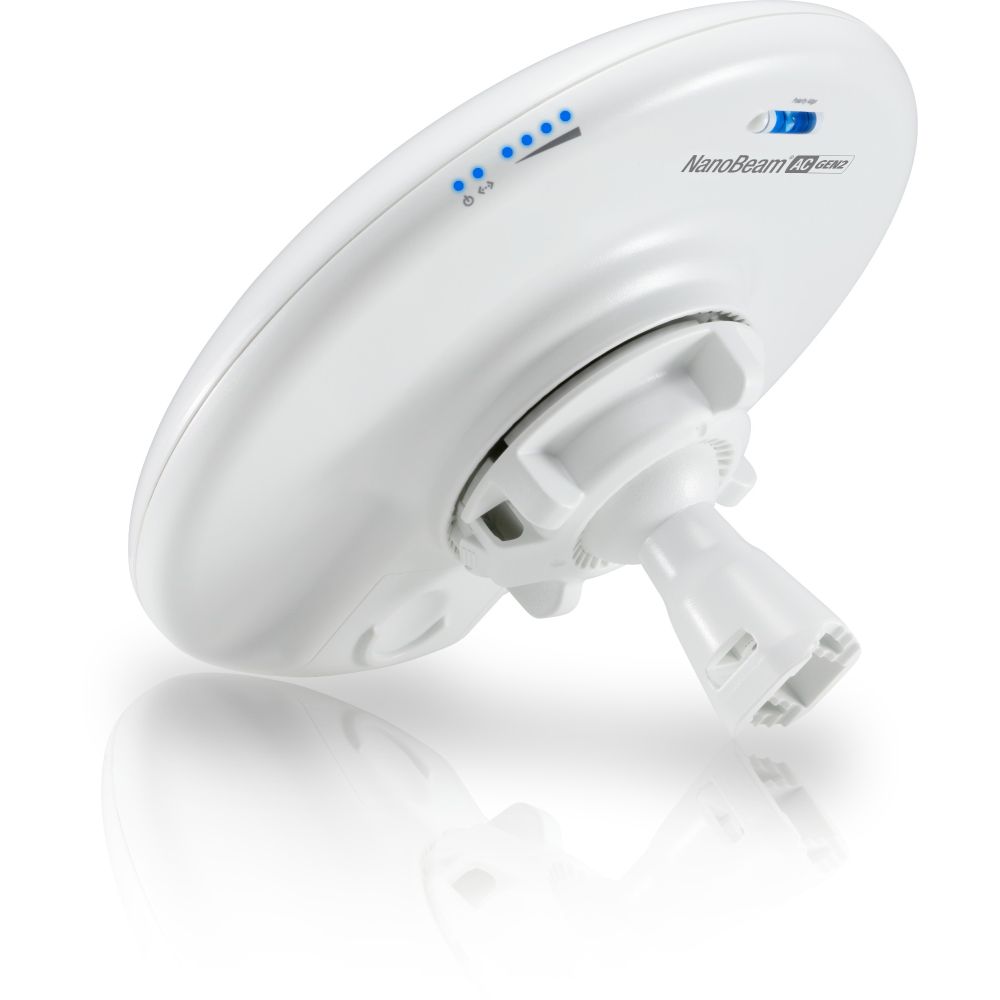

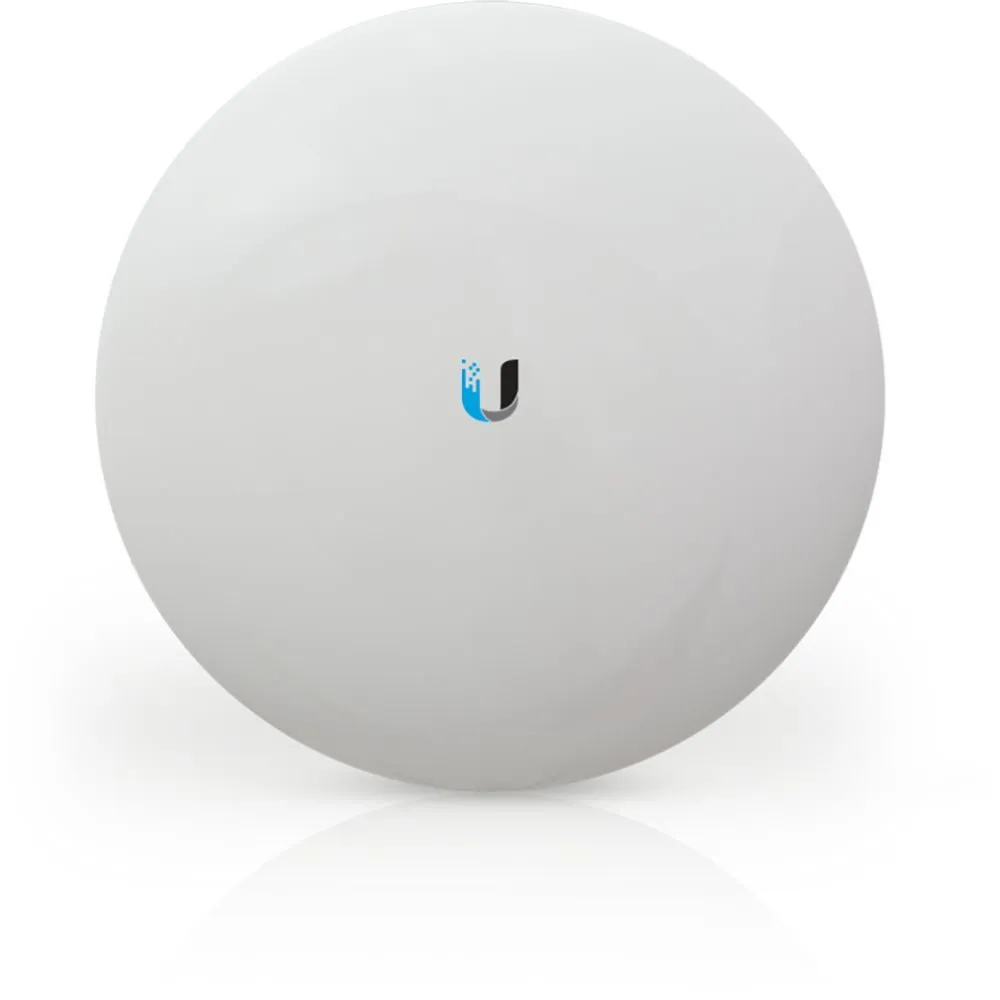

Ubiquiti NanoBeam 5AC Gen 2 Network Bridge
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 450 Mbit/s maximum data transfer rate
- 15 km maximum transfer distance
- 19 dBi antenna gain for superior performance
- 5 GHz frequency band with multiple channels
- Two Gigabit Ethernet RJ-45 ports
- Wall/pole mounting with three-axis alignment
- Integrated Wi-Fi radio for mobile device setup
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
Ubiquiti NanoBeam 5AC Gen 2 | High-Performance Wireless Bridge
The Ubiquiti NanoBeam 5AC Gen 2 delivers 450 Mbit/s throughput over distances up to 15 km, making it a robust solution for long-range wireless network bridging in challenging outdoor environments.
Key Specifications
| Metric | Spec |
|---|---|
| Max Data Rate | 450 Mbit/s |
| Max Range | 15 km |
| Antenna Gain | 19 dBi |
| Frequency Bands | 5.15-5.875 GHz (5 bands) |
| Power Input | PoE 24V |
Exceptional Long-Range Performance
With a 19 dBi antenna gain and airMAX ac technology, the NanoBeam 5AC Gen 2 maintains stable connections across 15 km distances. The directional antenna design focuses signal strength where needed, reducing interference and improving reliability in noisy RF environments.
Advanced AirMAX Technology
The proprietary airMAX ac protocol with custom Atheros MIPS 74Kc processor delivers superior TDMA latency and network scalability. Hardware acceleration capabilities support dense modulation schemes including 256-QAM, enabling maximum throughput even in demanding deployments.
Rapid Deployment & Management

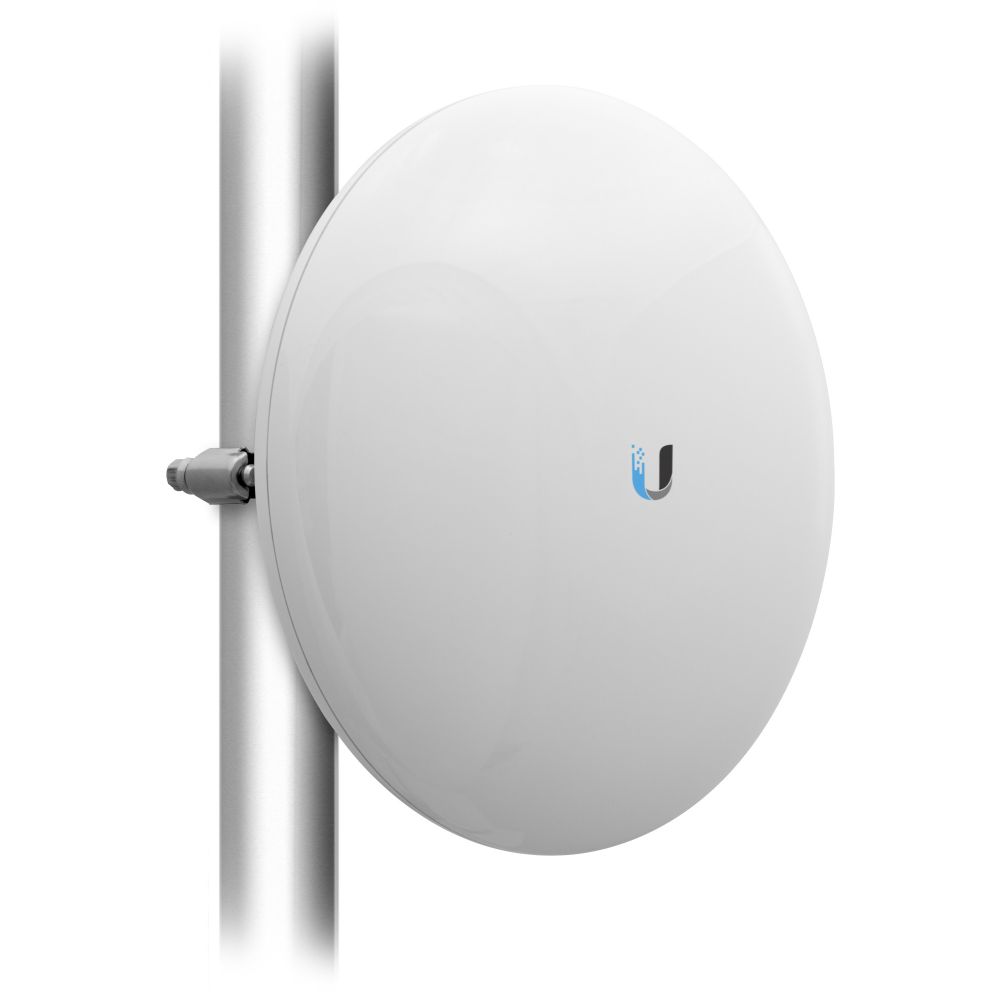

Three-axis alignment allows precise positioning on poles or walls without requiring screws for pole mounting. The integrated Wi-Fi radio enables quick setup using mobile devices, while airOS 8 provides real-time RF analytics and enhanced usability through an intuitive interface.
Built for Harsh Conditions
Operating from -40°C to +80°C with 5-95% humidity tolerance, this unit withstands extreme weather. Enhanced surge protection guards against ESD events, while the compact 189×189×125 mm plastic housing maintains durability without excessive weight (530 g).
Box contents
- NanoBeam 5AC Gen 2 unit
- PoE injector
- Mounting brackets
- AC power cable
Check before you buy
- Confirm your network requires 5 GHz frequency support
- Verify you have PoE capability or plan to use the included injector
- Check mounting location allows for directional antenna alignment
- Confirm airOS 8 compatibility with your management systems
Frequently Asked Questions
Q: What is the maximum data rate of this device?
A: The NanoBeam 5AC Gen 2 supports up to 450 Mbit/s throughput.
Q: Can this unit operate in extreme temperatures?
A: Yes, it functions reliably from -40°C to +80°C.
Q: Does it include mounting hardware?
A: Yes, mounting brackets are included for pole or wall installation.
Q: What power source does it require?
A: It uses Power over Ethernet with a 24V injector included.
Q: How many Ethernet ports are available?
A: There are 2 Gigabit Ethernet RJ-45 ports.
The Consultant’s verdict & warranty
The Ubiquiti NanoBeam 5AC Gen 2 excels in point-to-point wireless bridging where range and reliability are critical. Its combination of high-gain antenna, airMAX ac technology, and robust environmental protection makes it ideal for outdoor deployments requiring stable 450 Mbit/s connections over extended distances. Covered by the standard Manufacturer Warranty.
| Weight | 1.15 kg |
|---|---|
| Maximum data transfer rate | 450 Mbit/s |
| Maximum transfer distance | 15000 m |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Antenna gain level max | 19 dBi |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Frequency band | 5.15 – 5.875, 5.15 – 5.25, 5.25 – 5.35, 5.47 – 5.725, 5.725 – 5.85 GHz |
| Ethernet LAN | Yes |
| Ethernet LAN RJ-45 ports | 2 |
| Security algorithms | WPA2 |
| Web-based management | Yes |
| Product type | Network bridge |
| Reset button | Yes |
| Surge protection | Yes |
| LED indicators | LAN, Power, Signal strength |
| Mounting type | Wall/Pole |
| Power consumption max | 8.5 W |
| Power source type | PoE |
| Power over Ethernet PoE | Yes |
| DC output voltage | 24 V |
| DC output current | 0.5 A |
| Operating relative humidity H-H | 5 – 95% |
| Certification | CE, FCC, IC, RoHS |
| Material | Plastic |
| Product colour | White |
| Operating temperature T-T | -40 – 176 °F |
| Internal memory | 128 MB |
| Compliance certificates | CE, RoHS |
| Weight | 530 g |
| Width | 189 mm |
| Depth | 189 mm |
| Height | 125 mm |
| Processor family | Atheros |
| Processor model | MIPS 74Kc |
| Processor frequency | 720 MHz |
| Flash memory | 8 MB |
| RAM type | DDR2 |
| Cables included | AC |
| PoE+ Injectors | Yes |
| Mounting brackets included | Yes |
| Quantity per pack | 1 pc(s) |
| Harmonized System HS code | 85176990 |
