Ubiquiti U7 Pro XG PoE Router
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 6-stream WiFi 7 access point with 10/5/2.5/1 GbE support
- Supports 2.4, 5, and 6 GHz frequency bands with 300 user capacity
- Maximum data transfer rate of 5800 Mbit/s with Multi User MIMO technology
- Power over Ethernet Plus (PoE+) with 22W maximum power consumption
- Ceiling or wall mountable with internal antennas and 6 dBi gain
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
Description

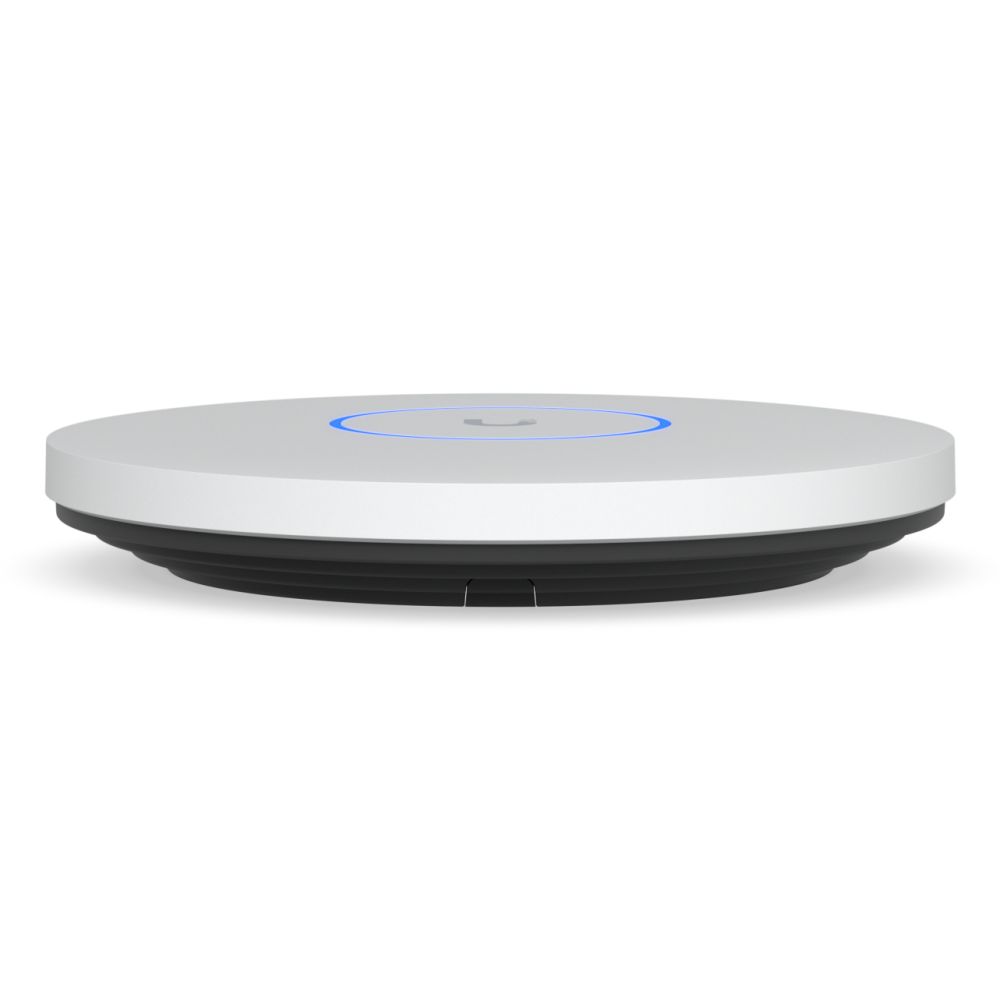

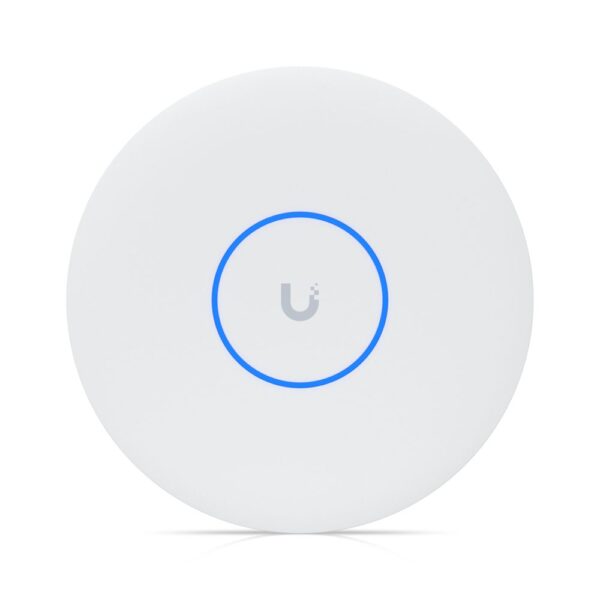

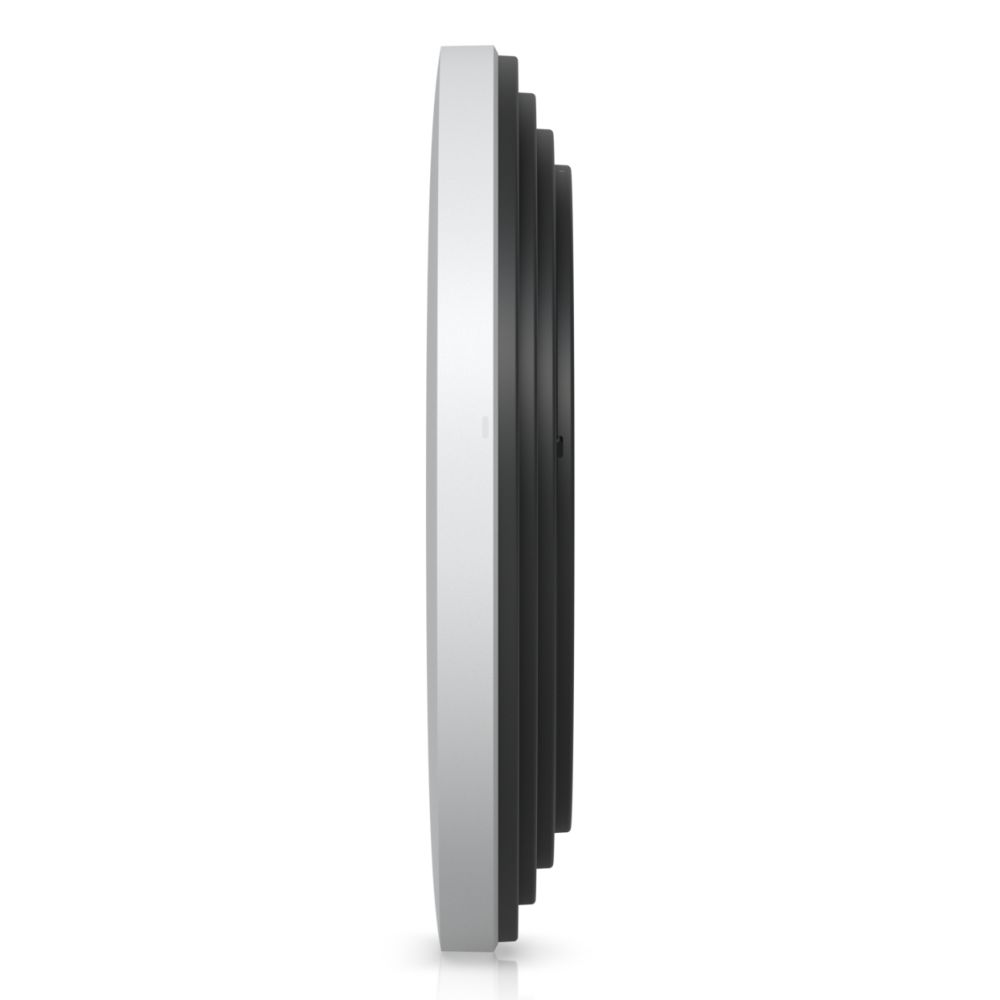

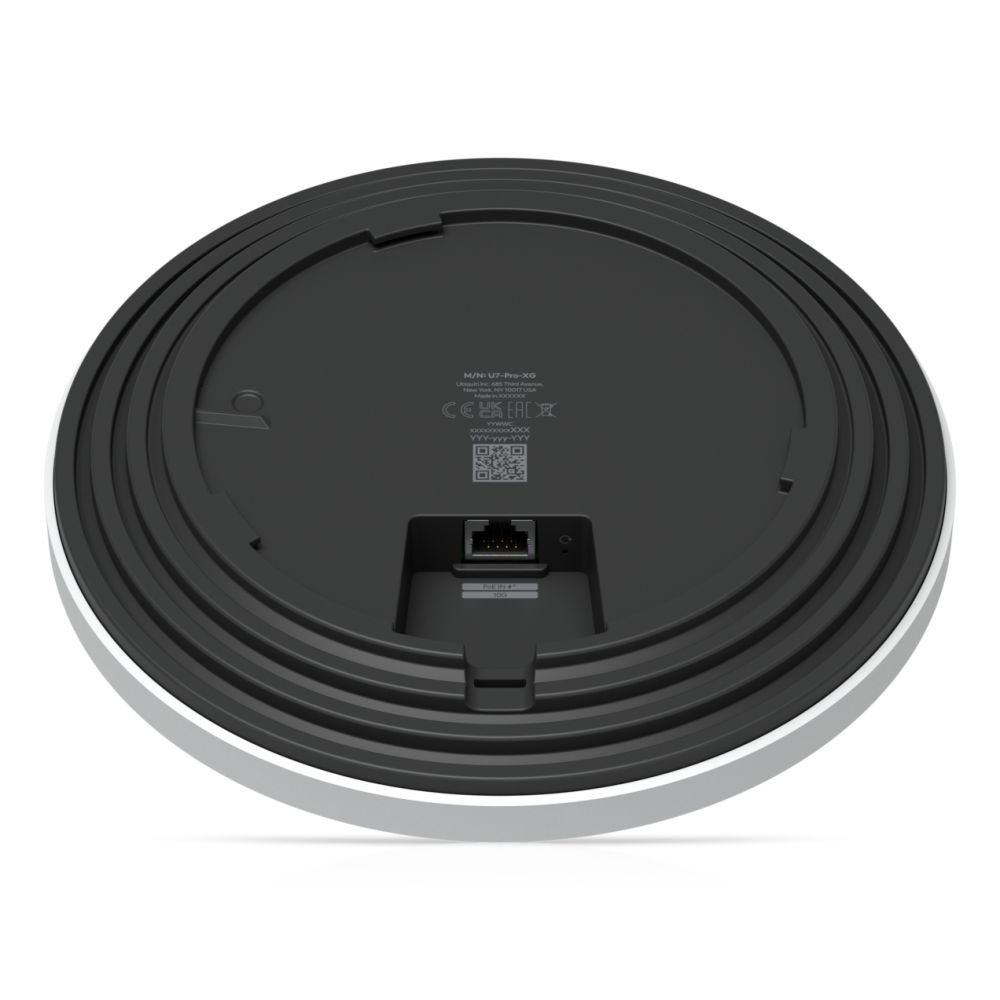

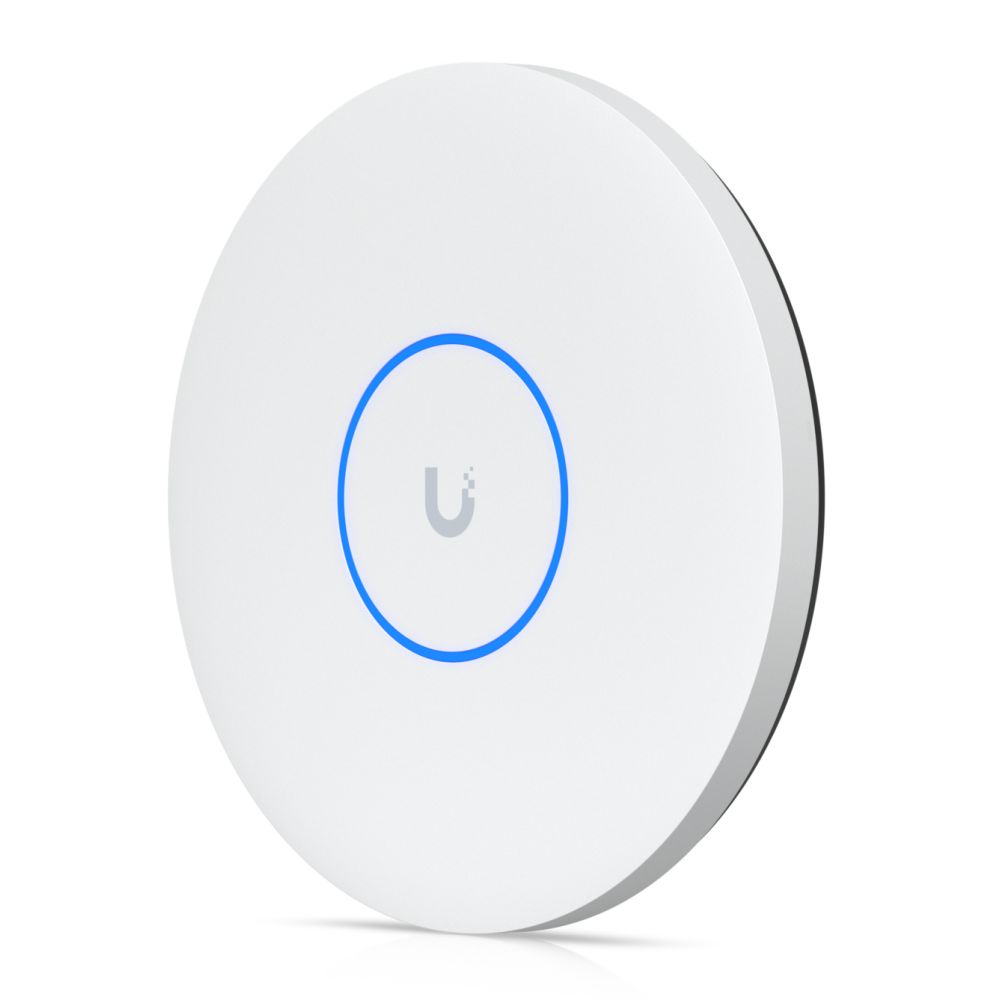

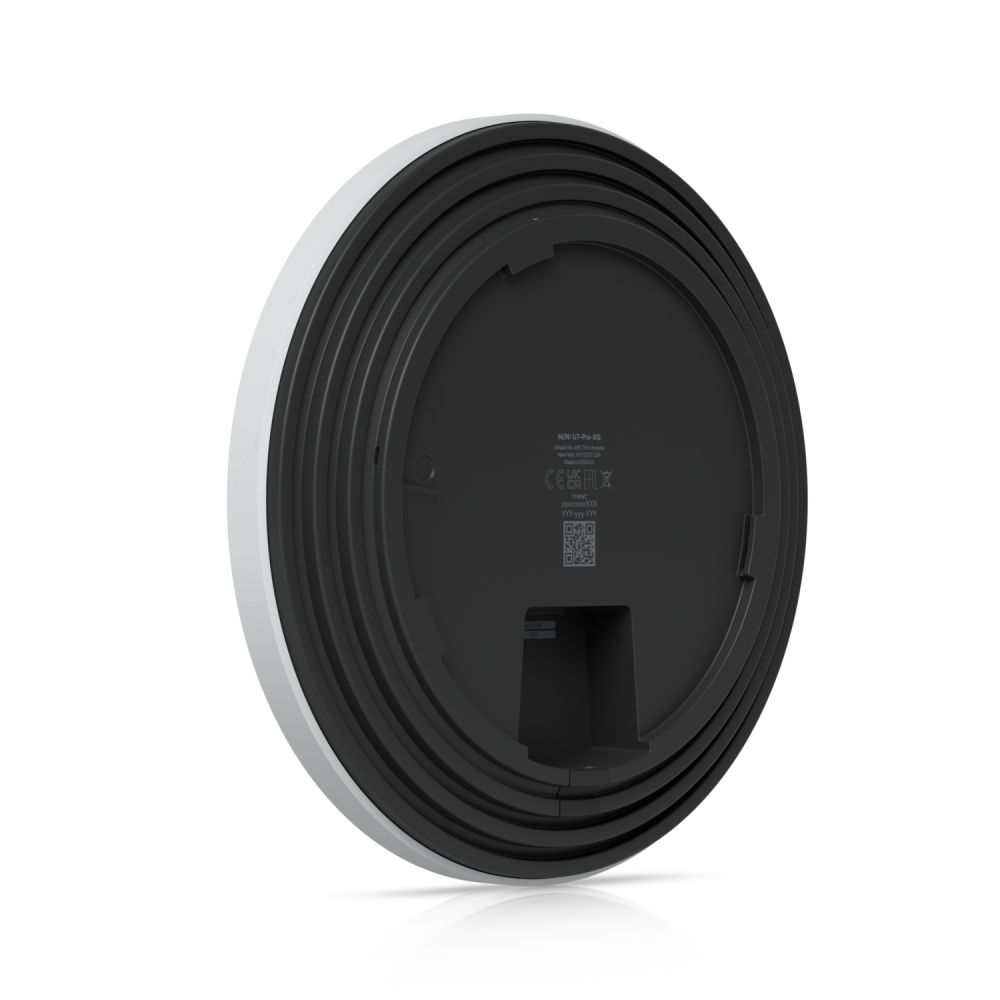

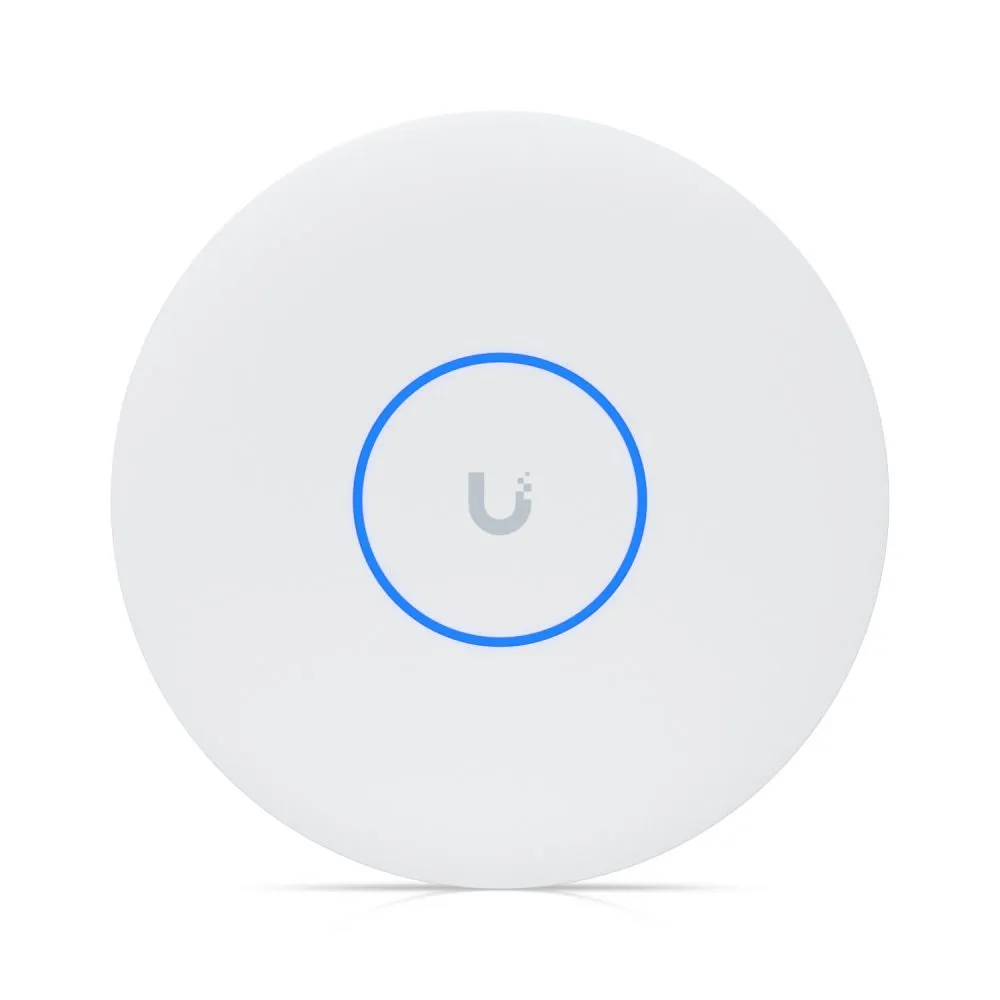

Ubiquiti U7 Pro XG | Ceiling-Mounted Wi-Fi 7 Access Point
The Ubiquiti U7 Pro XG 5800 Mbit/s White Power over Ethernet (PoE) delivers high-density wireless performance for demanding environments. This ceiling-mounted access point supports Wi-Fi 7 across three bands, making it ideal for enterprise deployments requiring reliable connectivity for up to 300 concurrent users.
Key Specifications
| Metric | Spec. |
|---|---|
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Maximum Data Rate | 5800 Mbit/s |
| Ethernet Ports | 1 x 10G/5G/2.5G/1G |
| Spatial Streams | 6 |
| Coverage Area | 140 m² |
Additional information
| Weight | 1.25 kg |
|---|---|
| Access point management | Wi-Fi schedule |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.4, 5, 6 GHz |
| Number of users | 300 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 5800 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate 2.4 GHz | 688 Mbit/s |
| Maximum data transfer rate 5 GHz | 4300 Mbit/s |
| Fit AP mode features | Hotspot 2.0 |
| Maximum data transfer rate 6 GHz | 5800 Mbit/s |
| Spatial streams | 6 |
| Coverage area | 140 m² |
| Wireless meshing | Yes |
| Maximum Tx power 2.4 GHz | 23 dBmW |
| Maximum Tx power 5 GHz | 26 dBmW |
| Maximum Tx power 6 GHz | 24 dBmW |
| Security algorithms | PPSK |
| Ethernet LAN RJ-45 ports | 1 |
| Power consumption max | 22 W |
| Power over Ethernet PoE | Yes |
| Power over Ethernet PoE type supported | PoE+ |
| Housing material | Metal, Polycarbonate (PC) |
| Placement | Ceiling, Wall |
| Product colour | White |
| Antenna type | Internal |
| Antenna gain level max | 6 dBi |
| Reset button | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| LED indicators | Status |
| Fast roaming | Yes |
| Width | 206 mm |
| Depth | 32.5 mm |
| Weight | 750 g |
| Height | 206 mm |
| Mounting kit | Yes |
| Operating relative humidity H-H | 5 – 95% |
| Operating temperature T-T | -30 – 40 °C |
| Quantity per pack | 1 pc(s) |
