TP-Link Omada EAP225-Outdoor 1200 Mbps PoE White
£68.80 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 1200 Mbit/s wireless speed with 2.4 GHz and 5 GHz bands
- Detachable external antennas for customised coverage
- IP65 weatherproof enclosure for outdoor installation
- Passive PoE support with 24 V output
- Centralised management via Omada Controller software
Payment Methods:
You may also like
TP-Link Omada EAP225-Outdoor | Outdoor Wi-Fi Access Point

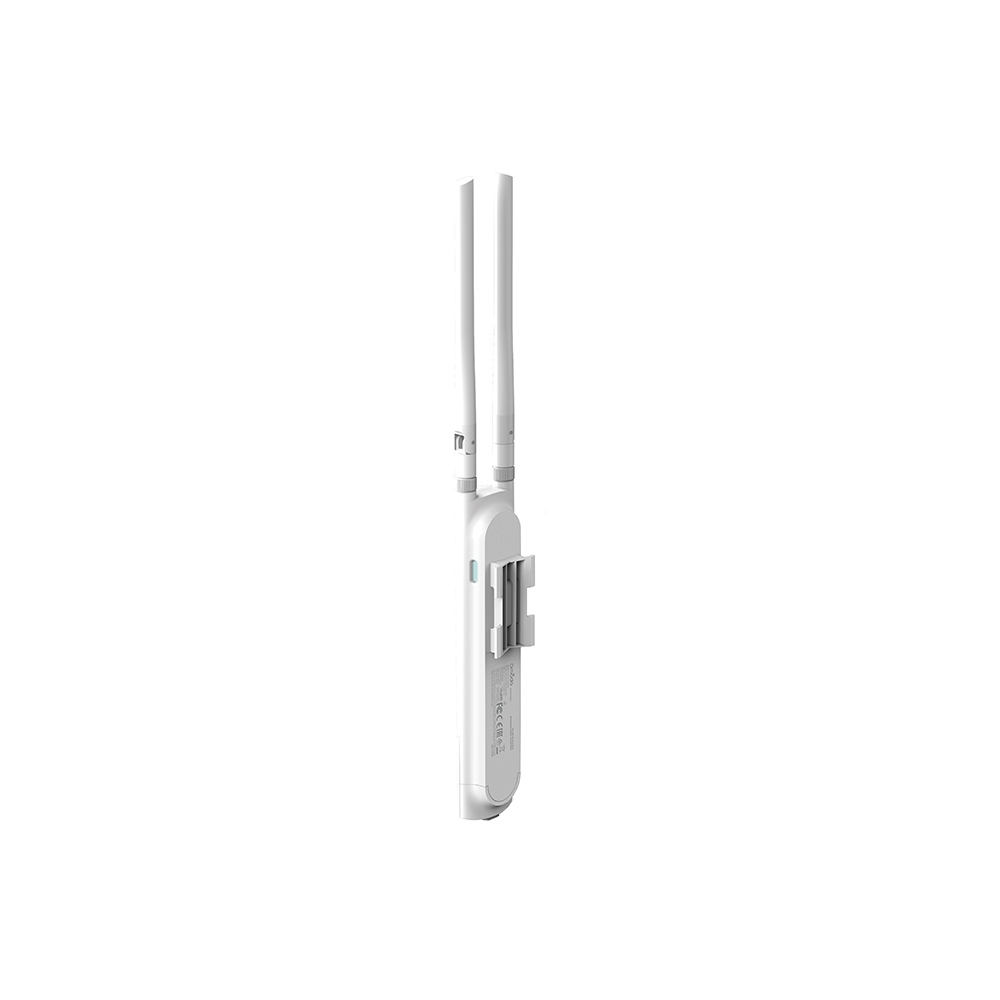

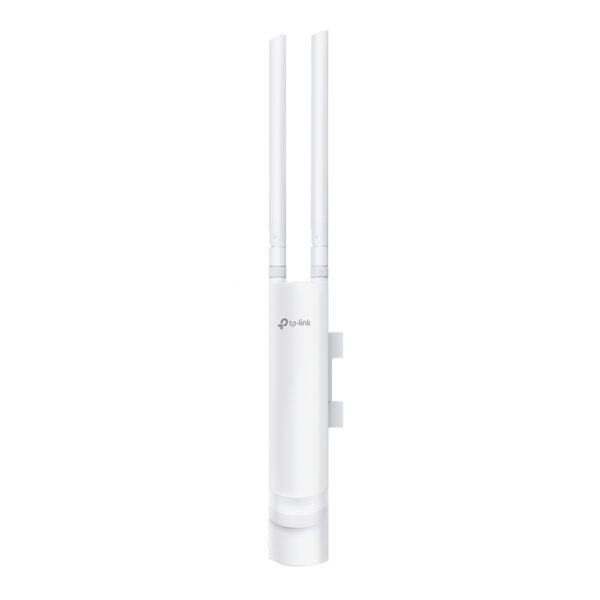

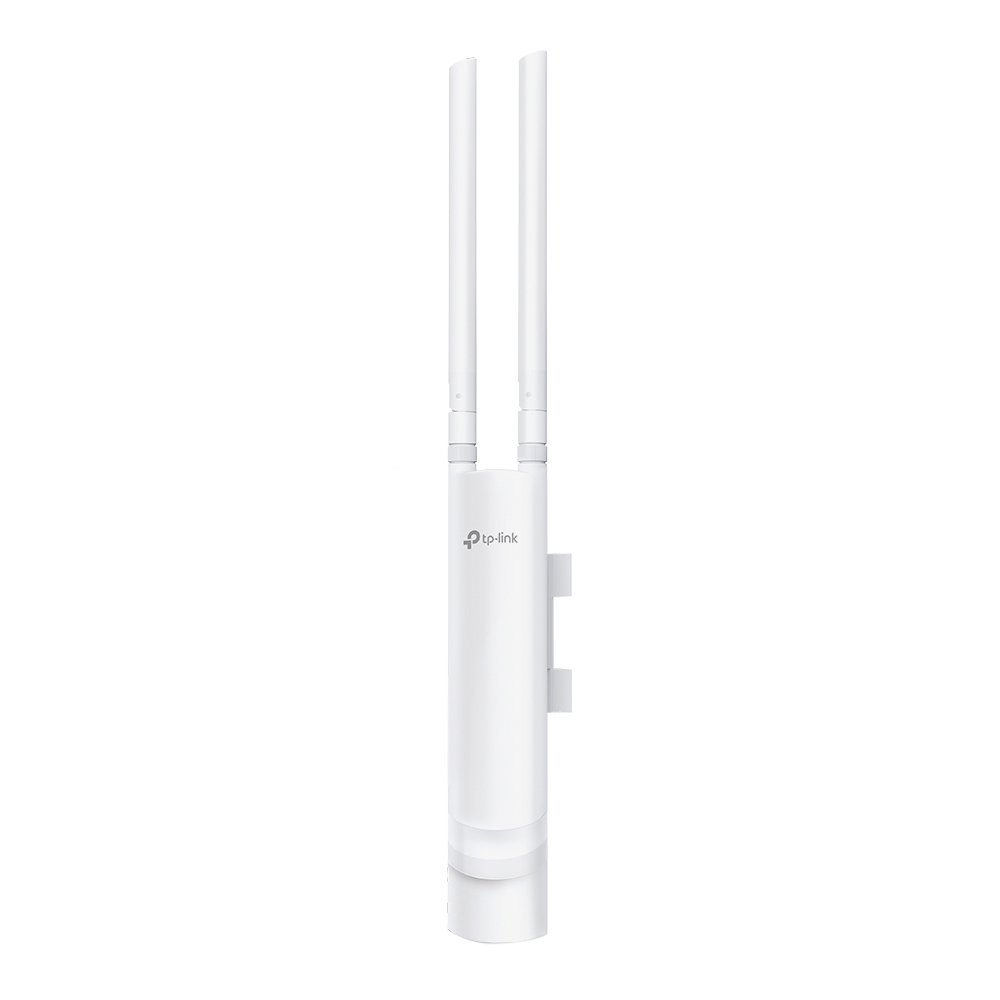

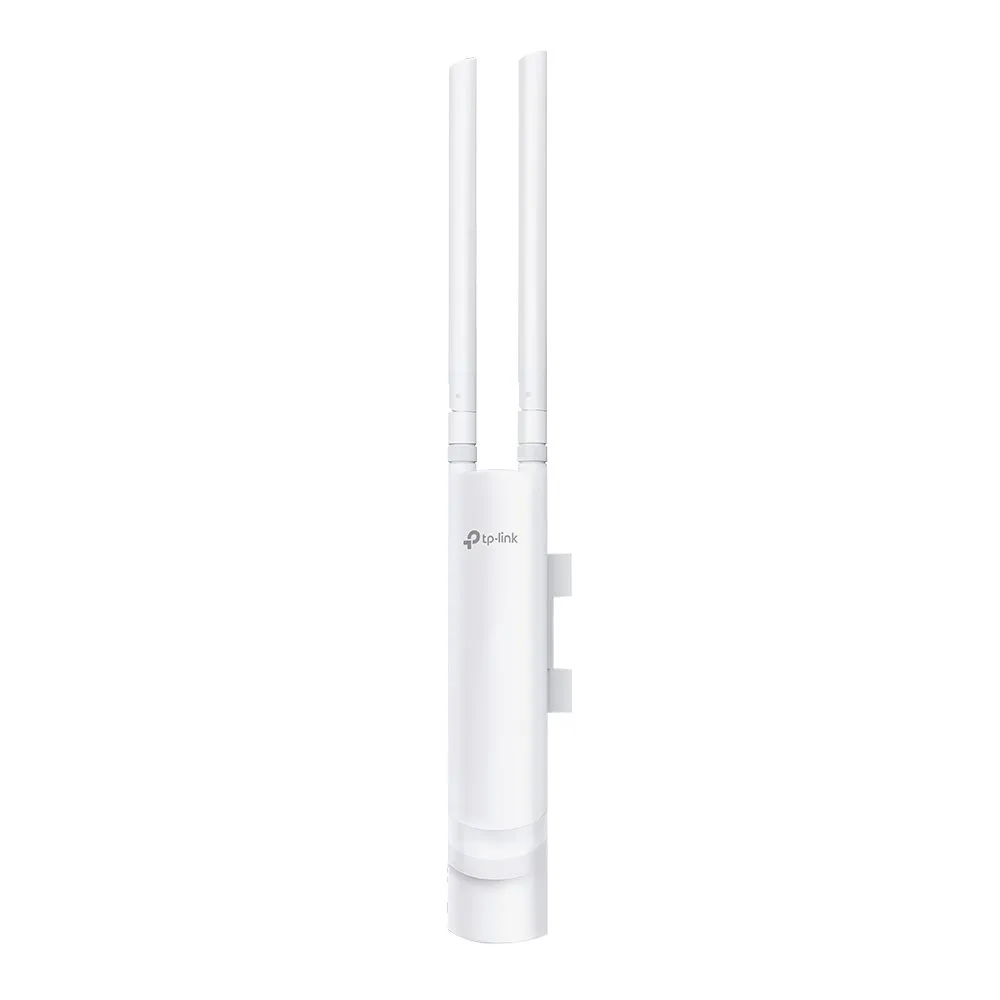

The TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE) delivers reliable, long-range Wi-Fi coverage for outdoor environments. Designed for businesses and large properties, this weatherproof access point combines high performance with centralized management through Omada Controller software, making it ideal for extending network coverage where standard routers cannot reach.
Key Specifications
| Metric | Spec |
|---|---|
| Wi-Fi Speed | 1200 Mbit/s (300 + 867 Mbit/s) |
| Frequency Bands | Dual-band 2.4 GHz + 5 GHz |
| Power Supply | PoE (Passive) + 24V DC adapter |
| Weather Rating | IP65 |
| Antenna | 2 x Detachable Omni-directional (4 dBi) |
Detachable Antennas for Custom Coverage
The EAP225-Outdoor features two detachable omni-directional antennas, allowing you to swap them for directional or higher-gain alternatives based on your specific deployment needs. This flexibility ensures optimal signal strength whether you’re covering a parking lot, campus, or warehouse exterior.
Weatherproof Design for Harsh Conditions
Built with an IP65-rated enclosure, this access point withstands rain, dust, and temperature extremes from -30°C to 70°C. The rugged construction protects internal components while maintaining consistent performance in challenging outdoor environments where standard indoor equipment would fail.
Extended Range Wireless Coverage
High transmission power combined with 4 dBi antennas delivers stable wireless coverage up to 200+ meters at 2.4 GHz and 300+ meters at 5 GHz. This extended range eliminates dead zones across large outdoor areas without requiring additional access points, reducing infrastructure costs.
Centralized Network Management
Omada Controller software enables management of hundreds of access points from a single interface. Configure settings, monitor performance, and push updates across your entire network remotely. This centralized approach simplifies administration for growing businesses with multiple locations or expanding coverage areas.

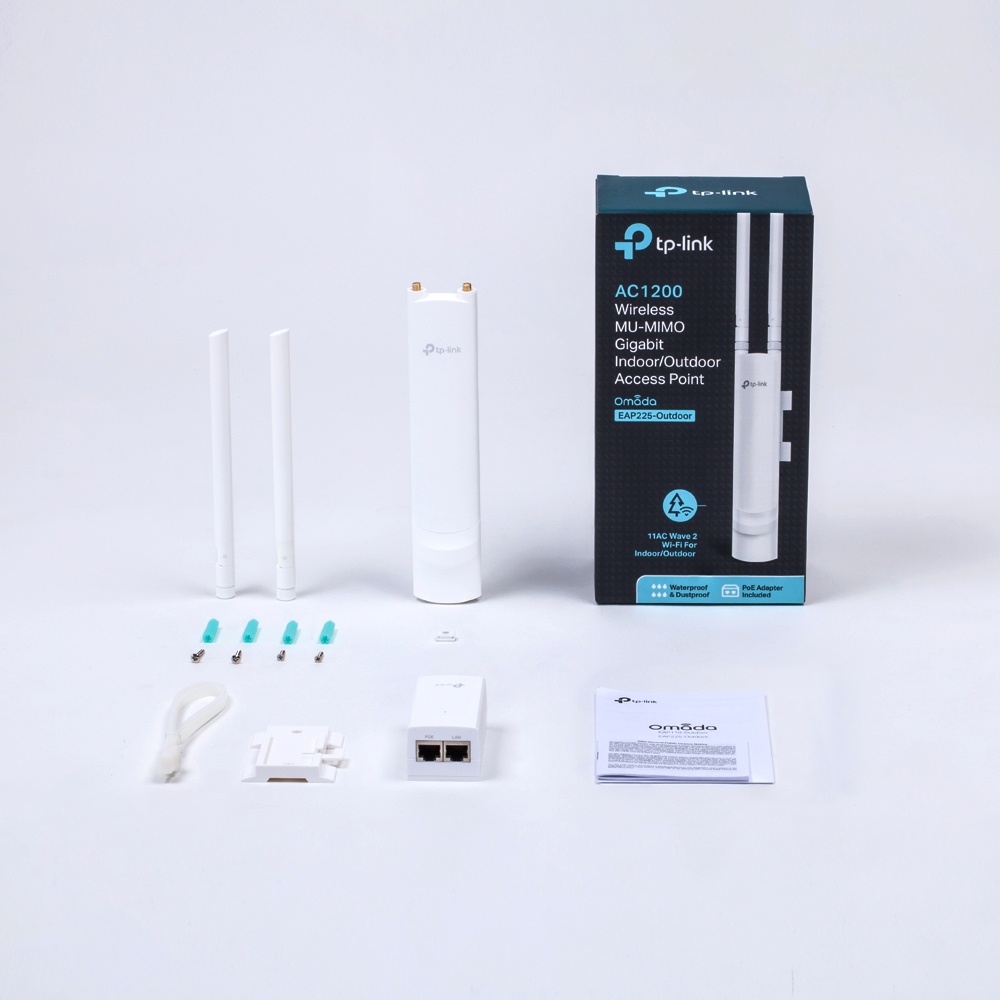

Package contents
- TP-Link Omada EAP225-Outdoor access point
- Mounting kit (pole/wall brackets)
- 24V DC power adapter
- Quick start guide
Things to check first
- Confirm your network switch supports Passive PoE if not using the included adapter
- Verify mounting location has adequate clearance for optimal signal propagation
- Check compatibility with your existing Omada Controller software version
- Ensure the 2.4 GHz band meets your device requirements
Frequently Asked Questions
Can I use this indoors as well?
What type of PoE does this support?
How many devices can connect simultaneously?
Is the mounting hardware included?
Is it worth it?
The TP-Link Omada EAP225-Outdoor 1200 Mbit/s is an excellent choice for businesses needing reliable outdoor Wi-Fi coverage with centralized management capabilities. Its weatherproof design, extended range, and Omada Controller compatibility make it ideal for campuses, retail parks, and industrial sites. Covered by the applicable manufacturer warranty.
| Weight | 0.65 kg |
|---|---|
| Syslog | Yes |
| Web-based management | Yes |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia WMM/WME | Yes |
| Frequency band | 2.4 – 5 GHz |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service QoS support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1200 Mbit/s |
| Transmitting power FCC | 22 dBm |
| Transmitting power CE | 27 dBm |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness ATF | Yes |
| Maximum data transfer rate 2.4 GHz | 300 Mbit/s |
| Maximum data transfer rate 5 GHz | 867 Mbit/s |
| Virtual LAN features | VLAN mapping |
| BeamForming | Yes |
| Number of SSID supported | 16 |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| Service Set Identifier SSID features | Multiple SSIDs |
| Ethernet LAN RJ-45 ports | 1 |
| Output voltage | 24 V |
| Power consumption typical | 10.5 W |
| Power over Ethernet PoE type supported | Passive PoE |
| International Protection IP code | IP65 |
| Placement | Pole, Wall |
| Product colour | White |
| Antenna type | External |
| Antennas quantity | 2 |
| Antenna gain level max | 4 dBi |
| Antenna direction type | Omni-directional |
| Antenna features | Detachable antenna |
| Reset button | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Access Control List ACL | Yes |
| Width | 215 mm |
| Depth | 46 mm |
| Height | 27 mm |
| Package width | 140 mm |
| Package depth | 270 mm |
| Package height | 100 mm |
| Package weight | 640 g |
| Quick start guide | Yes |
| Mounting kit | Yes |
| AC adapter included | Yes |
| Operating relative humidity H-H | 10 – 90% |
| Operating temperature T-T | -30 – 70 °C |
| Storage temperature T-T | -40 – 70 °C |
| Storage relative humidity H-H | 5 – 90% |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Sustainability compliance | Yes |
| Quantity per pack | 1 pc(s) |
| Harmonized System HS code | 85176990 |
| Distributor SKUs | 64218, 4666969, EF003096, 3290-176, 332792, 17038, TPEAP225OUTDOOR, STD10015225, NPTPL-EAP225OUTD, 1279932 |
