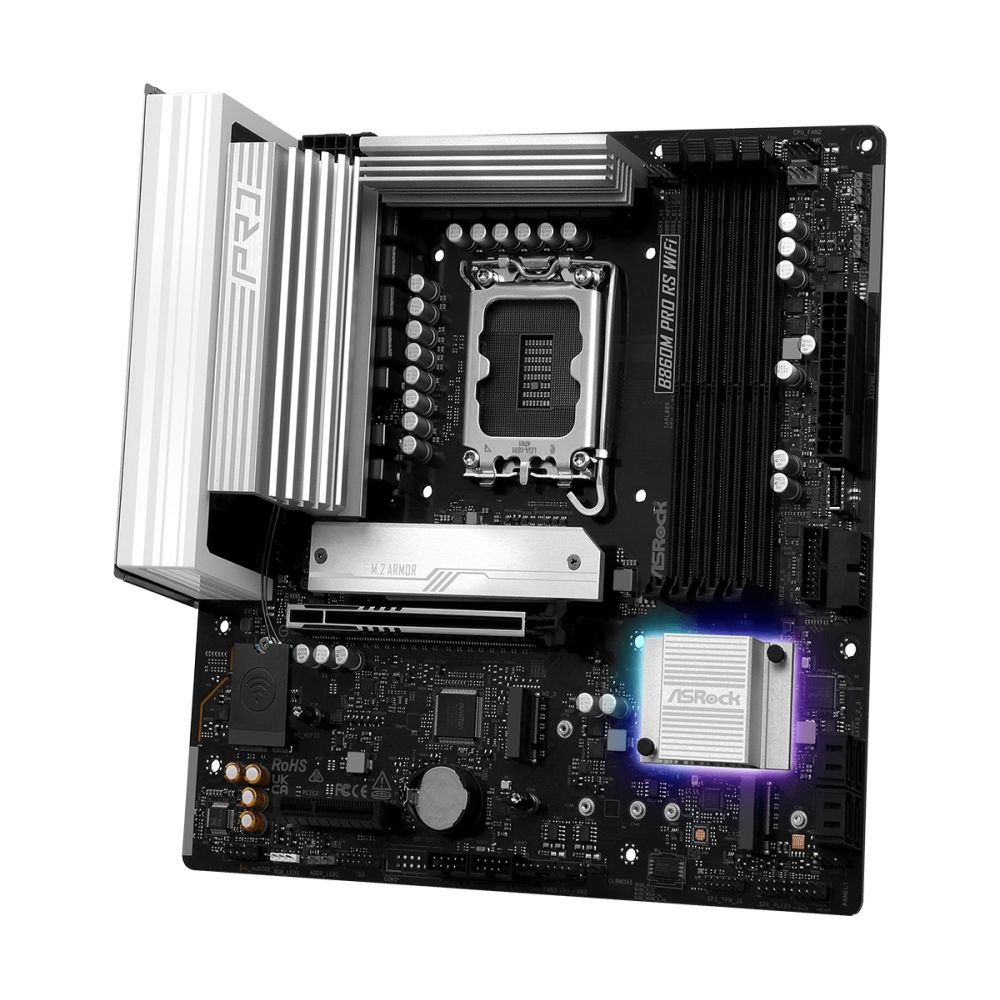

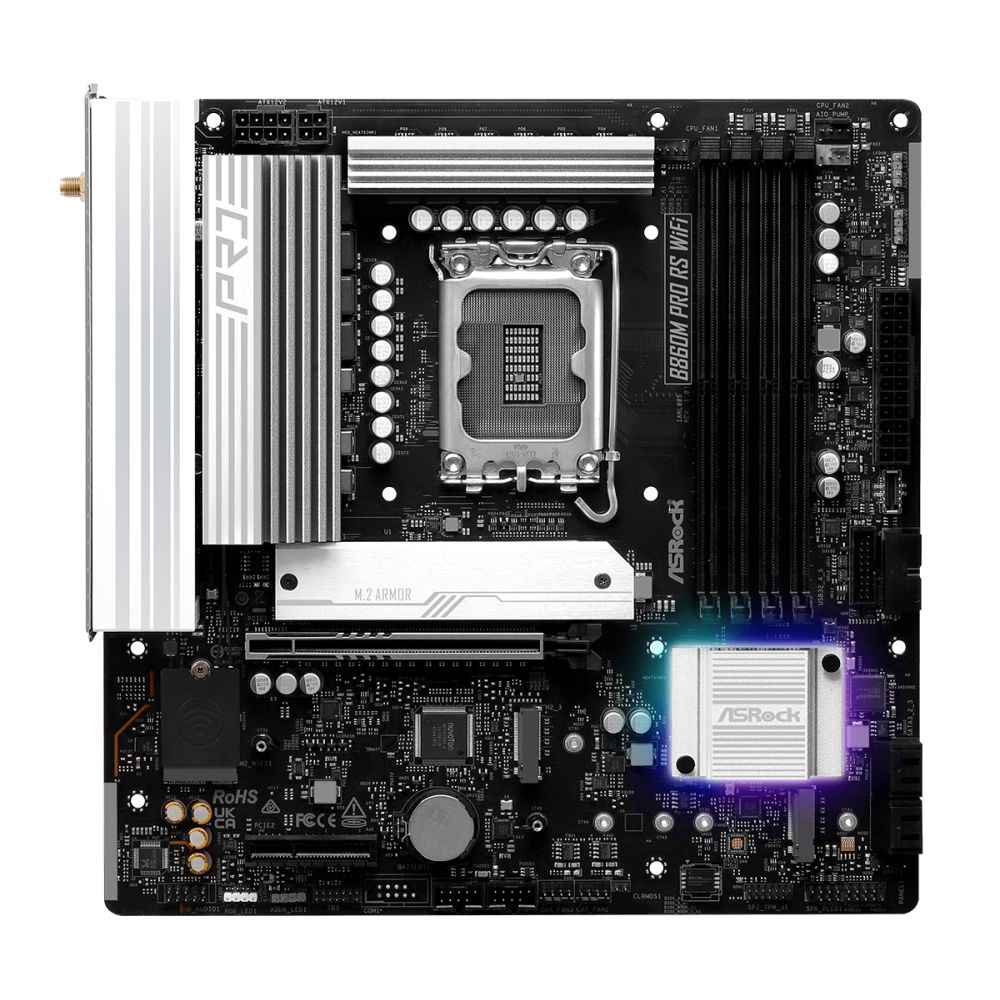

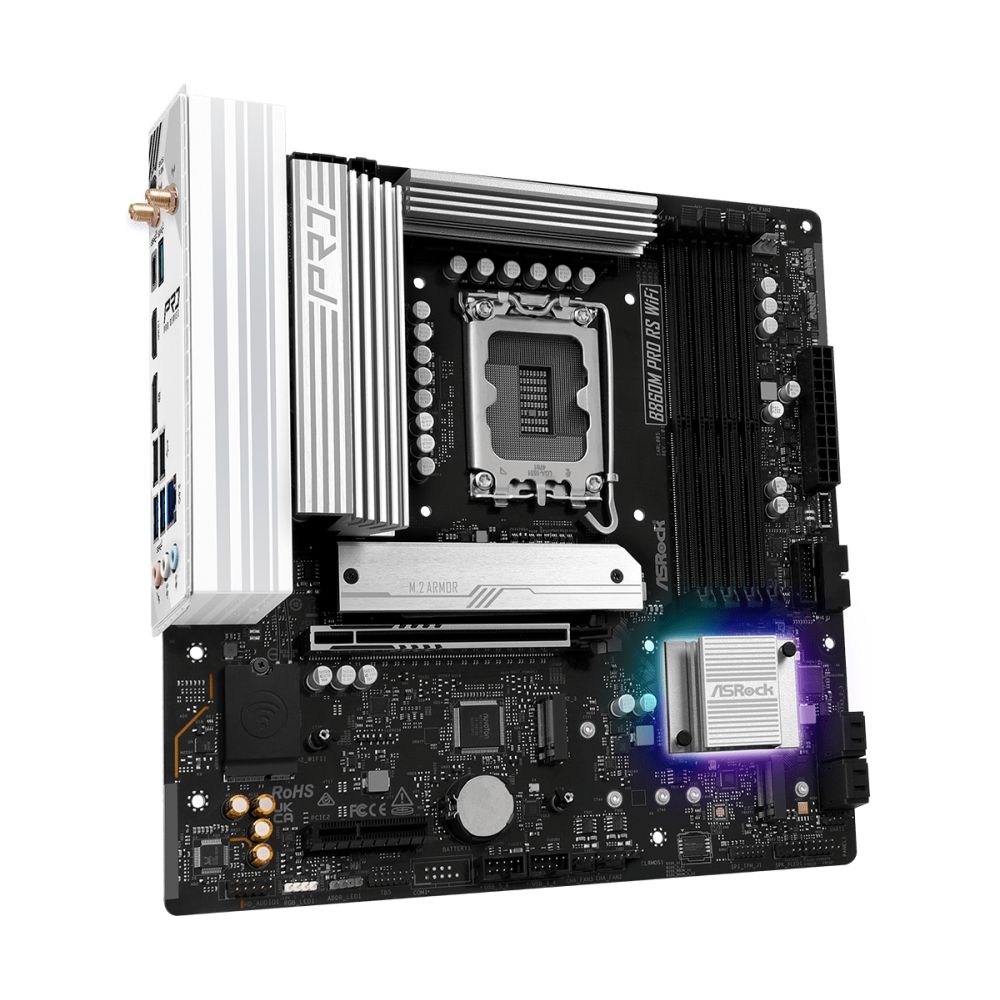

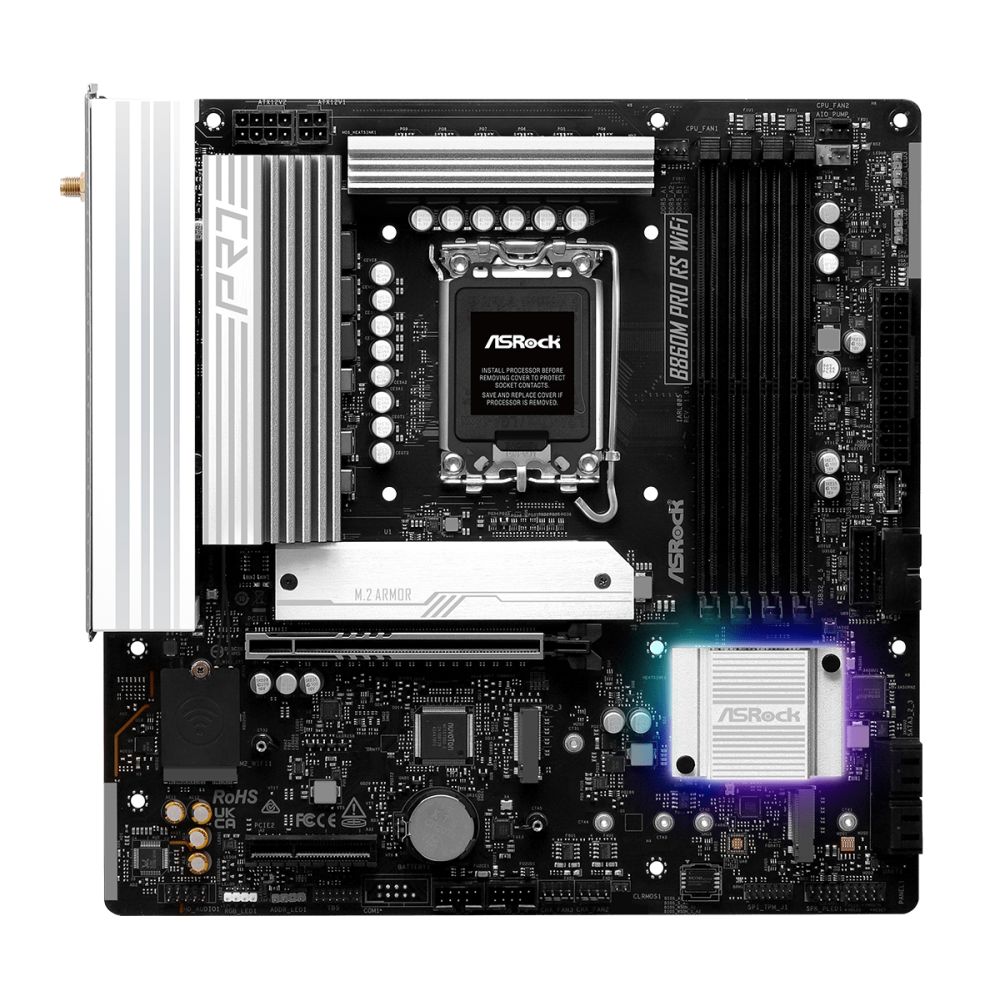

ASRock B860M Pro RS WiFi Motherboard Intel B860 LGA 1851 micro ATX DDR5 Wi-Fi 6E
£161.94
Out of stock
Out of stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Intel B860 chipset supporting Core Ultra Series 2 processors
- micro ATX form factor with 4 DDR5 memory slots up to 256 GB
- 3 M.2 slots including PCIe Gen5 for ultrafast SSD transfer speeds
- Wi-Fi 6E and Bluetooth 5.3 with 2.5 Gigabit Ethernet
- USB 3.2 Gen2x2 Type-C port delivering up to 20 Gbps data transfer
- 7.1 channel audio with Nahimic enhancement and RGB headers
- 10+1+1 power phase design for stable overclocking and thermal efficiency
Available alternatives
ASRock B860M-H2 Motherboard LGA 1851 Intel B860 micro ATX DDR5 Black
In stock
ASRock B860 Pro RS ATX Motherboard, LGA 1851, Intel B860, DDR5
In stock
Asrock B860I WiFi mini ITX Motherboard
In stock
You may also like
Asrock B850 Steel Legend WiFi ATX
In stock
ASRock A520M-HVS Micro-ATX AMD AM4 Motherboard
In stock
Asrock B850M-X R2.0 AMD B850 micro ATX motherboard
In stock
Asrock B650M-H/M.2+ AMD B650 AM5 micro ATX
In stock
Asrock B550 Phantom Gaming 4 ATX Motherboard
In stock
Asrock B760M-H2/M.2 Intel Motherboard
In stock
Asrock A620AM-HVS AM5 Micro ATX Motherboard
In stock
Asrock B650M-HDV AMD B650 AM5 micro ATX
In stock
Asrock B760M-X Gen5 Intel 1700 Motherboard
In stock
Asrock B850M Pro RS micro ATX motherboard
In stock
Asrock B550M Pro4 micro ATX motherboard
In stock
Asrock A620AM PRO-A micro ATX motherboard
In stock
Asrock A520M-ITX/ac AM4 micro ATX
In stock
ASRock B860M Pro RS WiFi – Stable micro ATX Platform
We sell the ASRock B860M Pro RS WiFi Motherboard Intel B860 LGA 1851 micro ATX DDR5 Wi-Fi 6E. This hardware supports Intel Core Ultra Series 2 processors efficiently. You receive excellent thermal performance and robust power delivery. It suits users requiring modern networking and quick data access.
Review of the ASRock B860M Pro RS WiFi Motherboard Intel B860 LGA 1851 micro ATX DDR5 Wi-Fi 6E
This platform delivers consistent results during heavy processing tasks. We prioritise stable operation for all connected components. The design ensures longevity under sustained system loads.
Core technical metrics
| Metric | Spec. |
|---|---|
| Socket | LGA 1851 |
| Chipset | Intel B860 |
| Form Factor | micro ATX |
| Memory Slots | 4x DIMM |
| LAN | 2.5 Gigabit Ethernet |
| M.2 Slots | 3 |
Power stability for demanding workloads
Our design uses a 10+1+1 power phase configuration. Dr. MOS components improve thermal performance significantly. Hi-Density power connectors reduce fire risks during overclocking. You gain confidence when pushing system limits.
Fast networking and wireless options
Integrated Wi-Fi 6E supports the 6GHz spectrum. This connection offers lower latency for online activities. The 2.5GbE LAN controller accelerates file transfers. You stay connected without wireless interference.
High-speed memory and storage support
DDR5 modules run at speeds up to 8666 MHz. Three PCIe Gen5 M.2 slots allow massive storage expansion. Four SATA III ports support additional traditional drives. Your data moves faster with improved bandwidth.

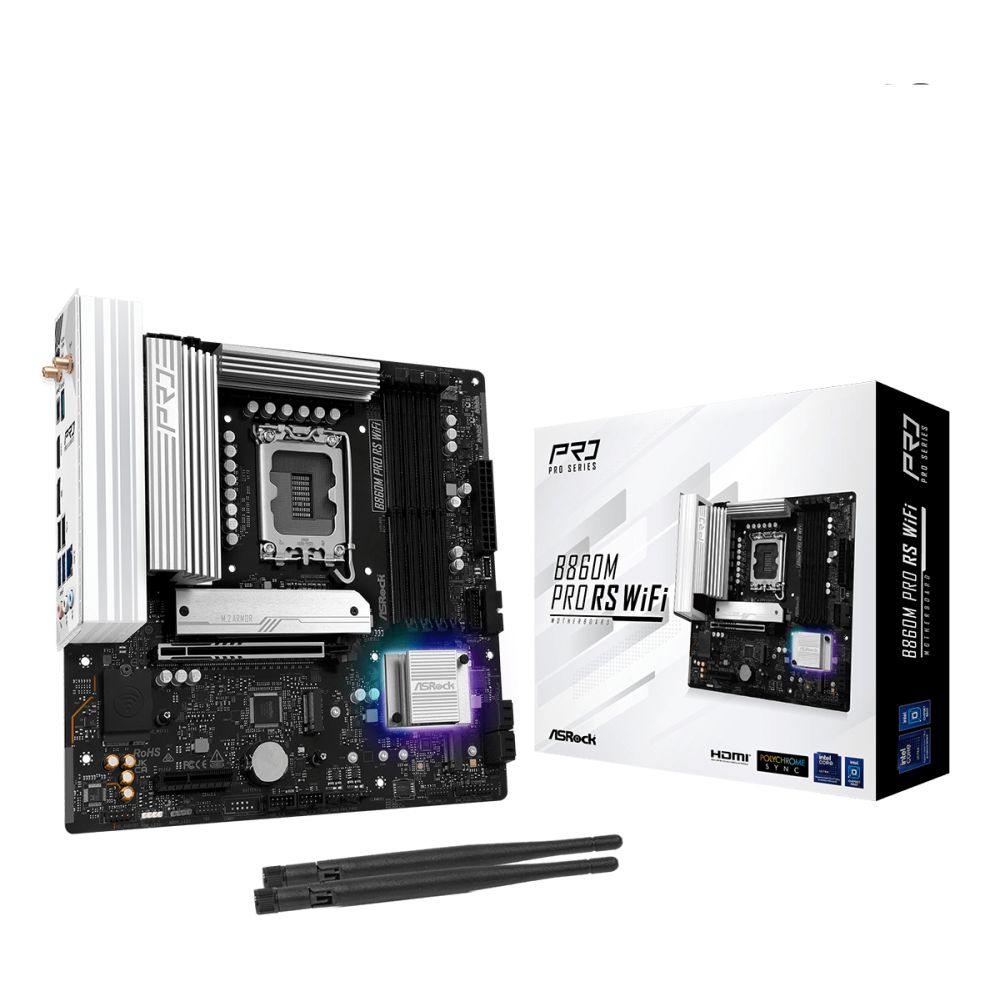

What comes in the box
- SATA cables
- Wi-Fi antenna
Before you order
- Confirm your processor uses the LGA 1851 socket.
- Verify your case accepts micro ATX boards.
- Check your power supply has enough wattage.
Frequently Asked Questions
Q: Is this board compatible with Intel Core Ultra 100 Series?
A: No, it supports Intel Core Ultra Series 2 processors only.
Q: Does it support DDR4 memory modules?
A: No, this motherboard only supports DDR5-SDRAM types.
Q: Are there multiple video output ports?
A: Yes, it includes one HDMI and one DisplayPort 1.4.
Q: Can I use multiple graphics cards?
A: It has one PCIe x16 slot, limiting multi-GPU setups.
Our final assessment
This motherboard fits builders needing modern connectivity and robust power. It supports the latest Intel processors effectively.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| TPM connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| RAID levels | 0, 1, 5, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8666 MHz |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics | |
| HDCP | Yes |

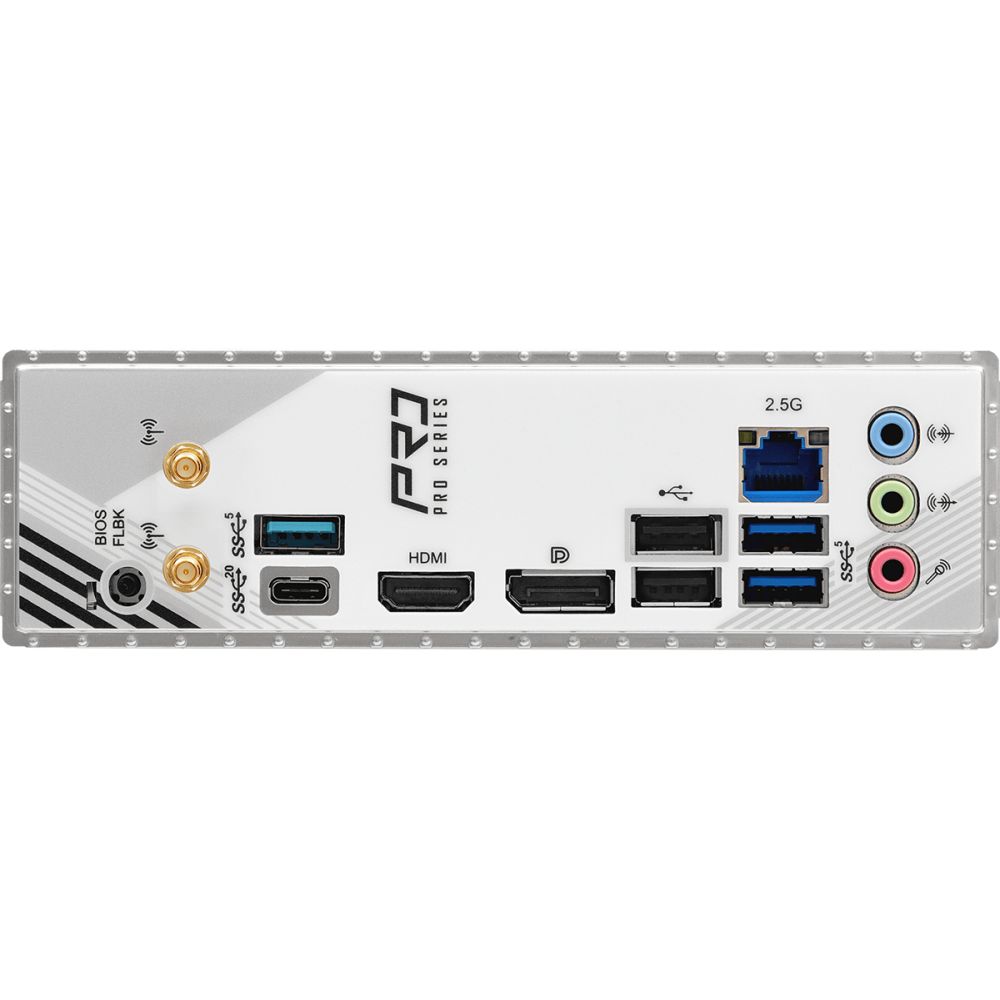

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Features | |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x4 (Gen 1.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Video | |
| HDCP | Yes |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Antenna included | Yes |
