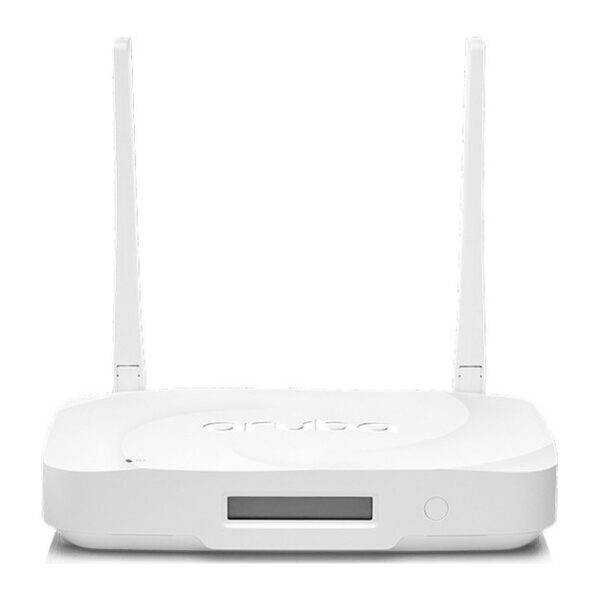

HPE Aruba Networking AP-605R12-EU Wi-Fi 6E CAT12 LTE Remote Access Point White
Original price was: £1,802.39.£1,694.39Current price is: £1,694.39.
Out of stock
Out of stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Wi-Fi 6E tri-band connectivity supporting 2.4 GHz, 5 GHz, and 6 GHz frequency bands with a maximum peak data rate of 3600 Mbit/s
- Ethernet LAN interface featuring five RJ-45 ports supporting 1000, 2500, and 5000 Mbit/s data rates
- Cellular radio module interface supporting optional CAT 12 LTE connectivity for backup or primary operations
- Bluetooth 5.0 and Bluetooth Low Energy (BLE) integration for alternative connection options
- Cloud-native and on-premises access point management compatible with HPE Aruba Networking Wireless Operating System OS-10
- Power over Ethernet (PoE) functionality alongside a maximum power consumption of 40 W
- Desktop-oriented white housing design with integrated omni-directional antennas and a Kensington security slot
Available alternatives

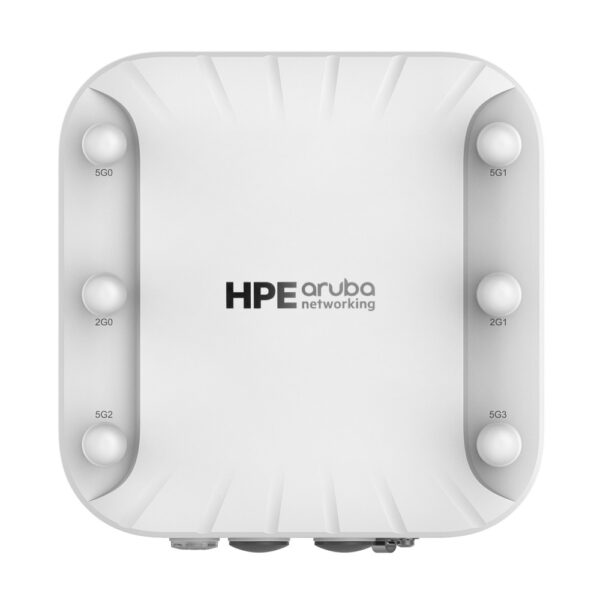

HPE Aruba Networking AP-518 (RW) Wi-Fi 6 Hardened Dual Radio Wireless Access Point, 5GbE PoE, 6x RP-SMA, IP55 – White
In stock
HPE Aruba Networking AP-734 Tri-Radio Wi-Fi 7 Campus Access Point White
In stock
HPE Aruba AP-765 (RW) Wi-Fi 7 Outdoor AP
In stock

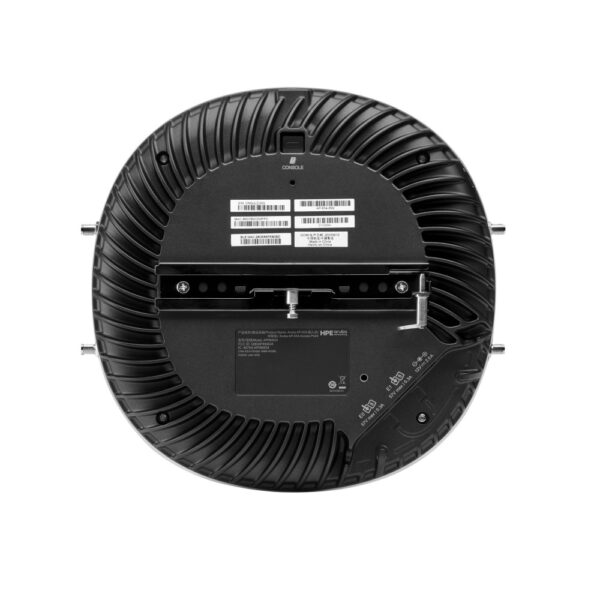

HPE Aruba AP-634 Tri-radio Wi-Fi 6E External Antennas Campus AP
In stock
You may also like
Ubiquiti U7 Pro XGS 8600 White PoE
In stock
Ubiquiti airCube PoE Black 300 Mbit/s
In stock
TP-Link Omada EAP225 1350Mbps PoE Access Point
In stock
Ubiquiti ETH-SP-G2 Access Point Accessory
In stock
TP-Link Omada EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point
In stock
TP-Link Omada AX3000 WiFi 6 Access Point
In stock
TP-Link Omada EAP610 WiFi 6 Access Point
In stock
Ubiquiti U6-PRO 4800 Mbit/s White PoE Access Point
In stock
TP-Link Omada BE9300 Tri-Band Wi-Fi 7 AP
In stock
Ubiquiti airCube 867 Mbps PoE Black
In stock
Ubiquiti U7 Pro XG PoE Router
In stock
Ubiquiti U7 Lite 4300 Mbps PoE White
In stock
TP-Link EAP668 Outdoor 3500 Mbps PoE White
In stock
TP-Link AX5400 Ceiling WiFi 6 AP
In stock
TP-Link TL-WA1201 867 Mbps Wireless AP
In stock
Ubiquiti U6 Mesh Pro PoE White
In stock
TP-Link Omada EAP225-Outdoor 1200 Mbps PoE White
In stock
HPE Aruba Networking AP-605R12-EU – Advanced Enterprise Remote Connectivity
When deploying secure networks to remote power users or small branch locations, we recommend the HPE Aruba Networking AP-605R12-EU Wi-Fi 6E CAT12 LTE Remote Access Point White. This hardware allows IT teams to extend corporate network standards directly to home offices without friction. By taking advantage of the modern 6 GHz band, it bypasses legacy interference.
Wi-Fi 6E architecture more than doubles available wireless capacity. Because of this, video communications remain stable even during peak network hours.
Key specs at a glance
| Metric | Spec. |
|---|---|
| Max Data Transfer Rate | 3600 Mbit/s |
| Ethernet Ports | 5 x RJ-45 |
| Wi-Fi Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Power Consumption | 5 W typical (40 W max) |
| Dimensions | 225 x 150 x 40 mm |
Uncompromising Wireless Capacity
Modern workloads demand reliable channels that avoid legacy congestion. This access point operates across three distinct frequency bands to balance network traffic efficiently.
Because it supports Wi-Fi 6E, users experience minimal latency during data-heavy tasks. We find this helps remote teams maintain productivity without unexpected dropouts.
Integrated Cellular Backup
Network uptime remains critical for mission-critical operations. The built-in CAT12 LTE cellular module provides primary or backup connectivity when broadband fails.
Antennas are integrated to ensure strong signal reception. For remote branches, this redundancy keeps business operations running smoothly.
Flexible Wired Connections
Wireless coverage is only part of the setup. You also gain multiple wired Ethernet ports to connect desk peripherals directly.
The primary uplink supports multi-gigabit speeds for rapid data transfers. Also, Power over Ethernet capability simplifies cabling requirements at the desktop.
Simplified Remote Provisioning
Deploying hardware across distant locations often requires complex on-site configuration. Zero touch provisioning removes this barrier entirely.
IT administrators can manage devices centrally through cloud platforms. Consequently, new hardware arrives ready for immediate deployment.
Before you order
- Confirm your network environment supports Power over Ethernet or compatible power supplies.
- Confirm your management platform integrates with HPE Aruba Networking Central.
- Confirm your deployment location has adequate cellular signal if using the LTE backup module.
Frequently Asked Questions
Q: What is the maximum aggregate data rate?
A: It delivers up to 3.6 Gbps combined using the 5 GHz and 6 GHz bands.
Q: Does this unit include cellular connectivity?
A: Yes, it features an integrated CAT12 LTE cellular module for primary or backup connections.
Q: How many Ethernet ports are available?
A: You get five RJ-45 Ethernet ports supporting various speeds.
Q: Can IT teams manage this hardware remotely?
A: Yes, management is handled seamlessly through HPE Aruba Networking Central.
Q: What power source is required?
A: It supports Power over Ethernet alongside standard DC options.
The bottom line
We recommend this access point for organisations needing secure enterprise extension into remote offices.
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 1000,2500,5000 Mbit/s |
| Maximum data transfer rate | 3600 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.6 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ethernet LAN data rates | 1000,2500,5000 Mbit/s |
| Certification | Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3- Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PSE device, class 3) IEC 61373, JIS E 4031 |
| Maximum data transfer rate | 3600 Mbit/s |
| MIMO type | Single User MIMO |
| MIMO | Yes |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System OS-10 |
| Wireless LAN features | |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.6 Gbps |
| Network | |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ports & interfaces | |
| I/O ports | Uplink (E0): Ethernet wired network port (RJ-45) Up/downlink (E1): Ethernet wired network port (RJ-45) Downlink (E2-E4): Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Cellular radio module interface (accessible after removing the back cover) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| Security | |
| Cable lock slot | Yes |
| Security algorithms | WPA3 |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.6 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ethernet LAN data rates | 1000,2500,5000 Mbit/s |
| Maximum data transfer rate | 3600 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Maximal-Ratio Combining (MRC) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| MIMO type | Single User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 287 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Maximum data transfer rate (6 GHz) | 2400 Mbit/s |
| Bluetooth Low Energy (BLE) | Yes |
| Trusted Platform Module (TPM) | Yes |
| MACsec support | No |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System OS-10 |
| Management features | |
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Power | |
| Power consumption (max) | 40 W |
| Power consumption (typical) | 5 W |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 48 V |
| Design | |
| Placement | Table |
| Product colour | White |
| Certification | Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3- Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PSE device, class 3) IEC 61373, JIS E 4031 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Recommended usage | Indoor |
| Antenna | |
| Antenna type | External |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5.5 dBi |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD) |
| Certificates | |
| Certification | Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3- Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PSE device, class 3) IEC 61373, JIS E 4031 |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD) |
| Software | |
| Maximal-Ratio Combining (MRC) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| Weight & dimensions | |
| Width | 225 mm |
| Depth | 150 mm |
| Weight | 900 g |
| Height | 40 mm |
| Package width | 373 mm |
| Package depth | 309 mm |
| Package height | 107 mm |
| Package weight | 1.94 kg |
| Packaging data | |
| Package width | 373 mm |
| Package depth | 309 mm |
| Package height | 107 mm |
| Package weight | 1.94 kg |
| Other features | |
| I/O ports | Uplink (E0): Ethernet wired network port (RJ-45) Up/downlink (E1): Ethernet wired network port (RJ-45) Downlink (E2-E4): Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Cellular radio module interface (accessible after removing the back cover) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Storage relative humidity (H-H) | 10 - 100% |
| System requirements | |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System OS-10 |
| Identifiers | |
| Distributor SKUs | CLR8N19A |
