HPE Aruba AP-755 (RW) Wi-Fi 7 Tri Radio 4×4 Campus Access Point

HPE Aruba Networking AP-755 (RW) – Tri-band Wi-Fi 7 for high-density campuses

We supply the HPE Aruba Networking AP-755 (RW) Tri Radio 4×4 Wi-Fi 7 Internal Antennas Campus Access Point for organisations needing robust, future-proof wireless. It suits enterprises, campuses, and healthcare sites that require dense device support and strong security. The standout benefit is its tri-band Wi-Fi 7 performance, delivering high aggregate throughput for mission-critical applications.

Core numbers at a glance

Tri-band Wi-Fi 7 with 4×4 MU-MIMO

The HPE Aruba Networking AP-755 (RW) Tri Radio 4×4 Wi-Fi 7 Internal Antennas Campus Access Point uses three 4×4 MIMO radios to cover 2.4 GHz, 5 GHz, and 6 GHz. This design increases capacity in crowded areas and reduces airtime contention. In practice, users experience lower latency and more consistent performance during peak times.

Dual 10 Gbps Ethernet for resilience

Two 10 Gbps RJ-45 ports provide wired redundancy and flexible power options. You can combine power from both ports or use one for data and one as a backup link. Because the AP supports PoE Class 6, we recommend confirming your switch budget and cabling to deliver the required power.

Integrated IoT and location services

Built-in GNSS, a barometric pressure sensor, and dual IoT radios (Bluetooth 5.4 and 802.15.4) enable accurate indoor positioning and support Zigbee devices. This removes the need for separate location beacons and simplifies IoT onboarding. For example, retail and healthcare sites can deploy asset tracking without extra hardware.

Patented ultra tri-band filtering

The AP features patented ultra tri-band (UTB) filtering to improve coexistence between the 5 GHz and 6 GHz bands. This helps mitigate interference in dense multi-AP environments and supports cleaner channel reuse. So, networks can scale more reliably as device counts rise.

Centralised management and security

We manage these APs with HPE Aruba Networking Central for AI-driven insights and automation. Security includes WPA2/WPA3 Enterprise, Enhanced Open (OWE), and MACsec support. The AP also carries UL2043 plenum rating and key compliance certificates for UK and international deployments.

In the box

• HPE Aruba Networking AP-755 (RW) access point

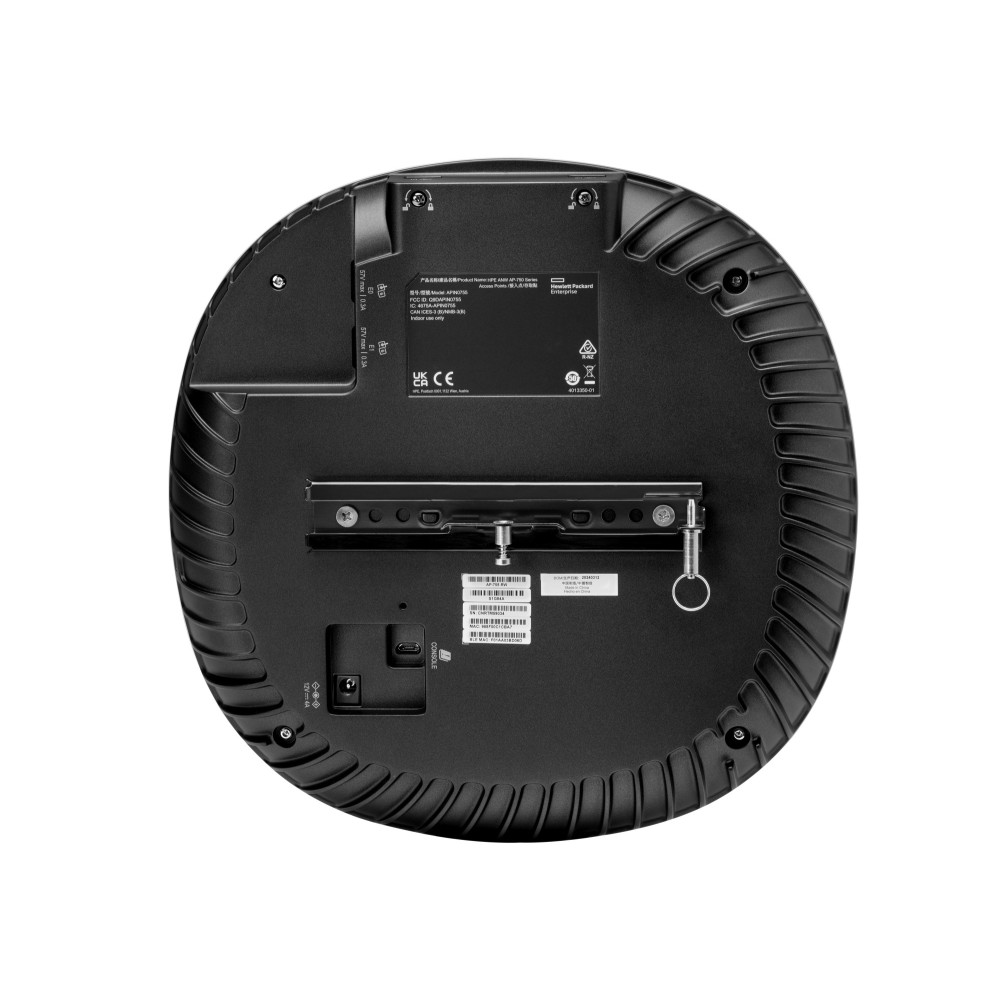

• Mounting kit for wall placement
• Quick start guide

Before you order

• Confirm your network switches deliver PoE Class 6 and 10 Gbps connectivity
• Verify your management platform supports HPE Aruba Networking Wireless OS 10.7.0.0 or later
• Check ceiling or wall mounting points align with the 260 x 260 mm footprint
• Ensure indoor environmental conditions meet 0–50 °C operating temperature

Frequently Asked Questions

Q: Does this AP support Wi-Fi 7 client devices?

A: Yes, it is Wi-Fi CERTIFIED 7 and works with Wi-Fi 7, 6E, 6, and earlier clients.

Q: Can I power the AP-755 with standard PoE?

A: It requires PoE Class 6; confirm your switch or injector supports this class and budget.

Q: How does the AP handle indoor location?

A: Built-in GNSS, a barometric sensor, and software enable self-location and reference-point services.

Q: What management options are available?

A: You can use on-premises, public cloud, virtual private cloud, or as-a-service with HPE Aruba Networking Central.

Q: Are the antennas external?

A: No, the AP uses internal omnidirectional antennas for a clean, low-profile installation.

Who should choose this access point

We recommend the HPE Aruba Networking AP-755 (RW) for enterprises, campuses, healthcare, education, and retail sites that need high-density Wi-Fi 7 and integrated IoT and location services. It offers strong security, centralised automation, and resilient wired connectivity. Warranty cover varies by product, so please contact us to confirm.
