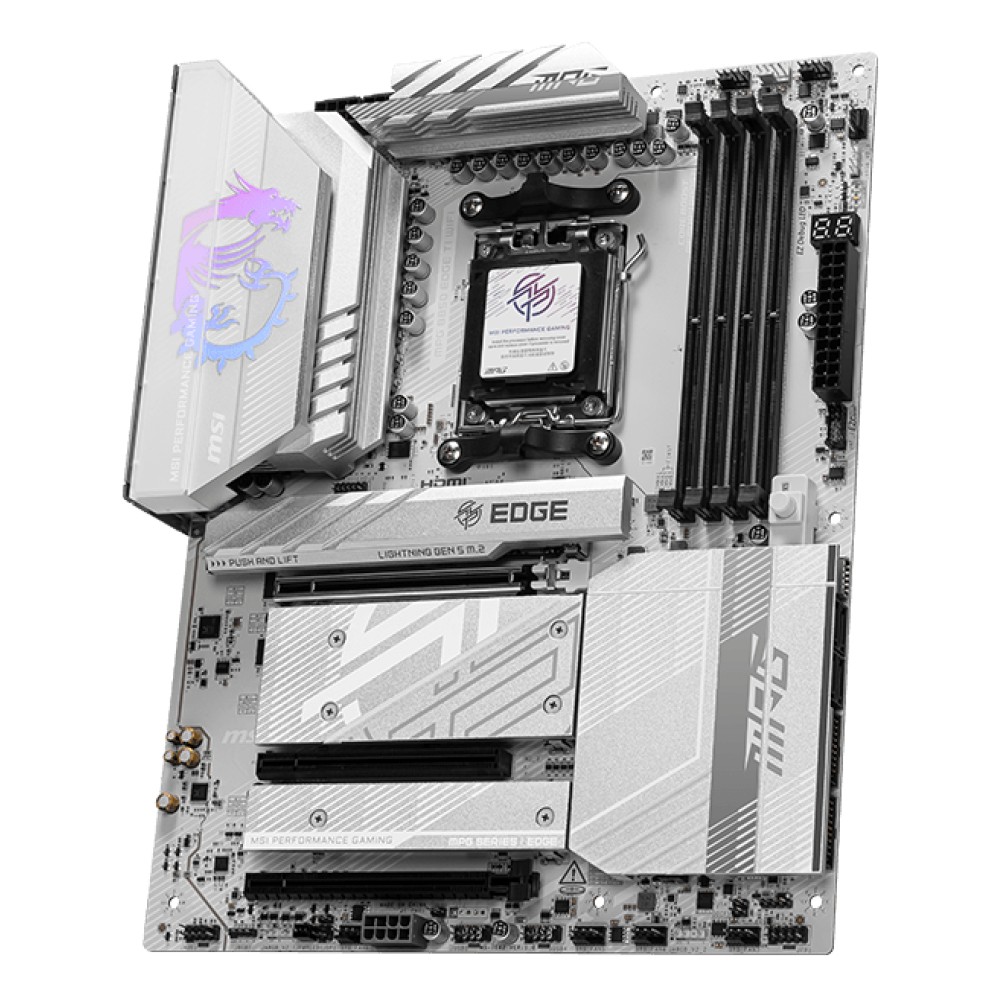

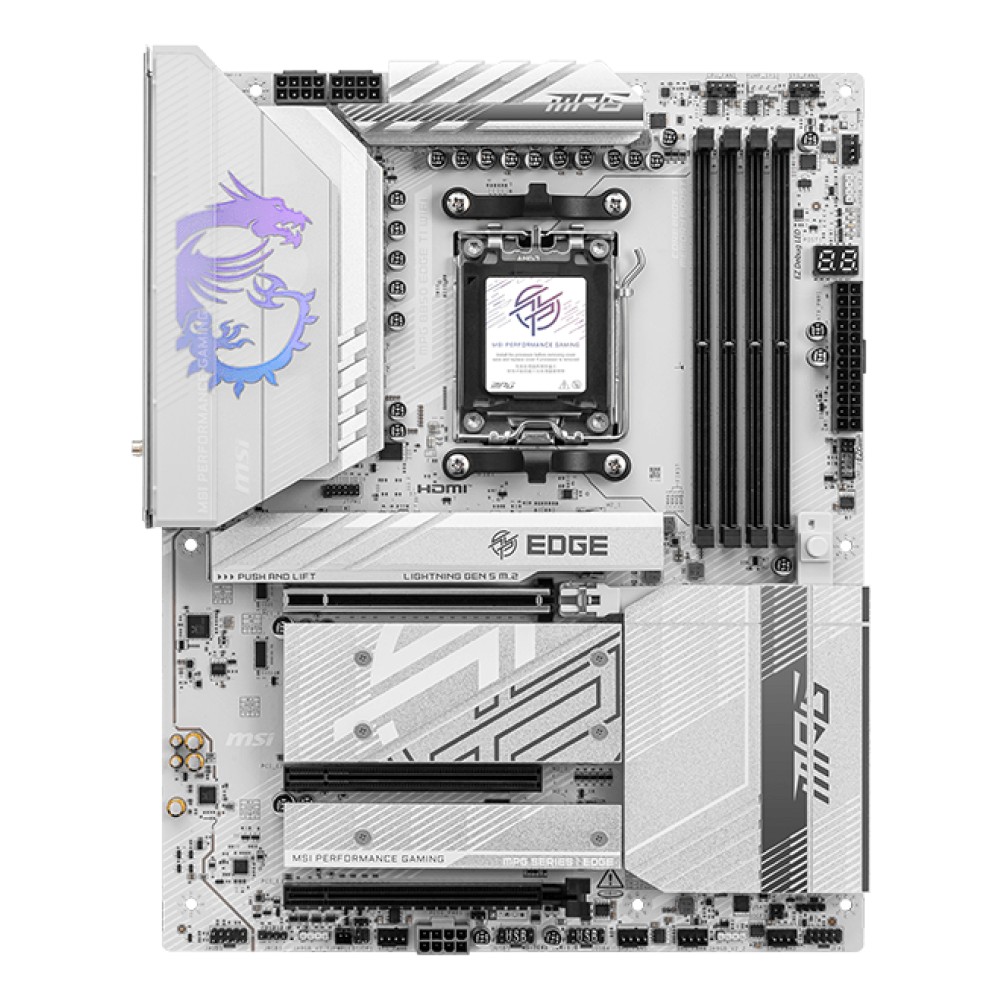

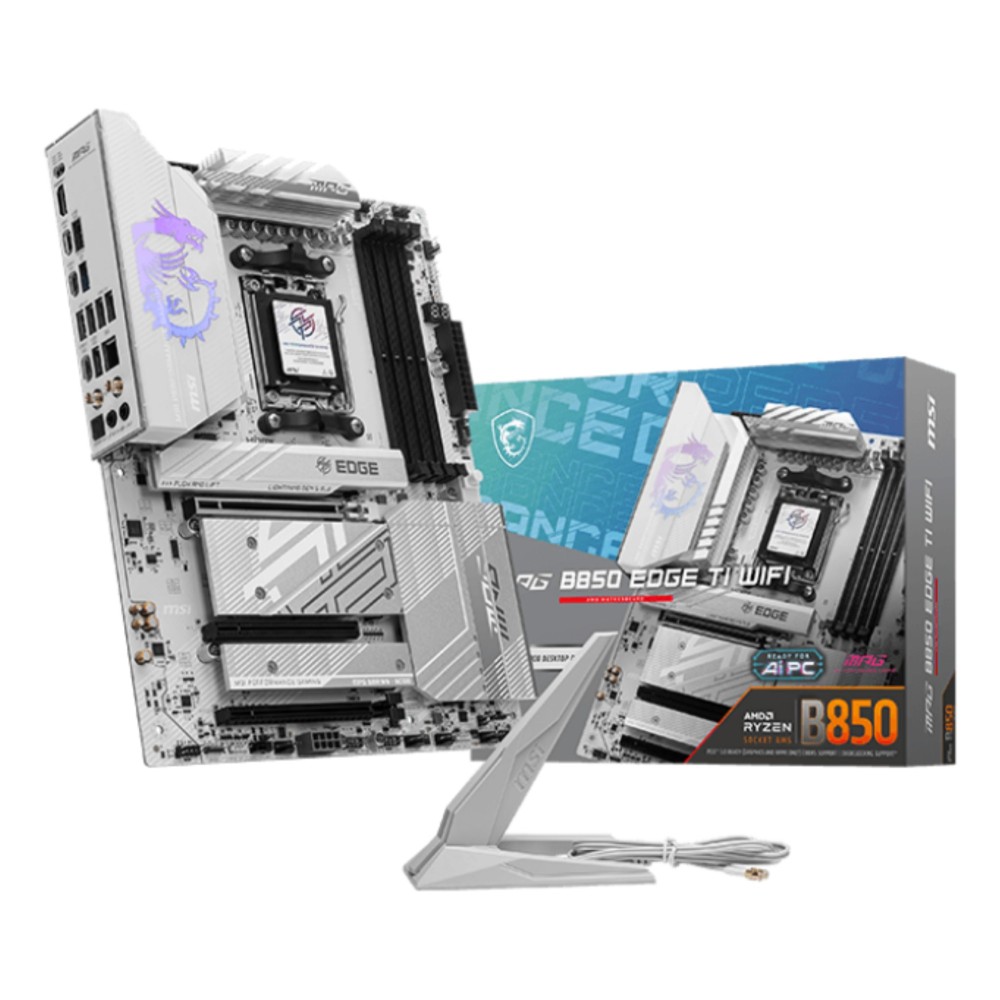

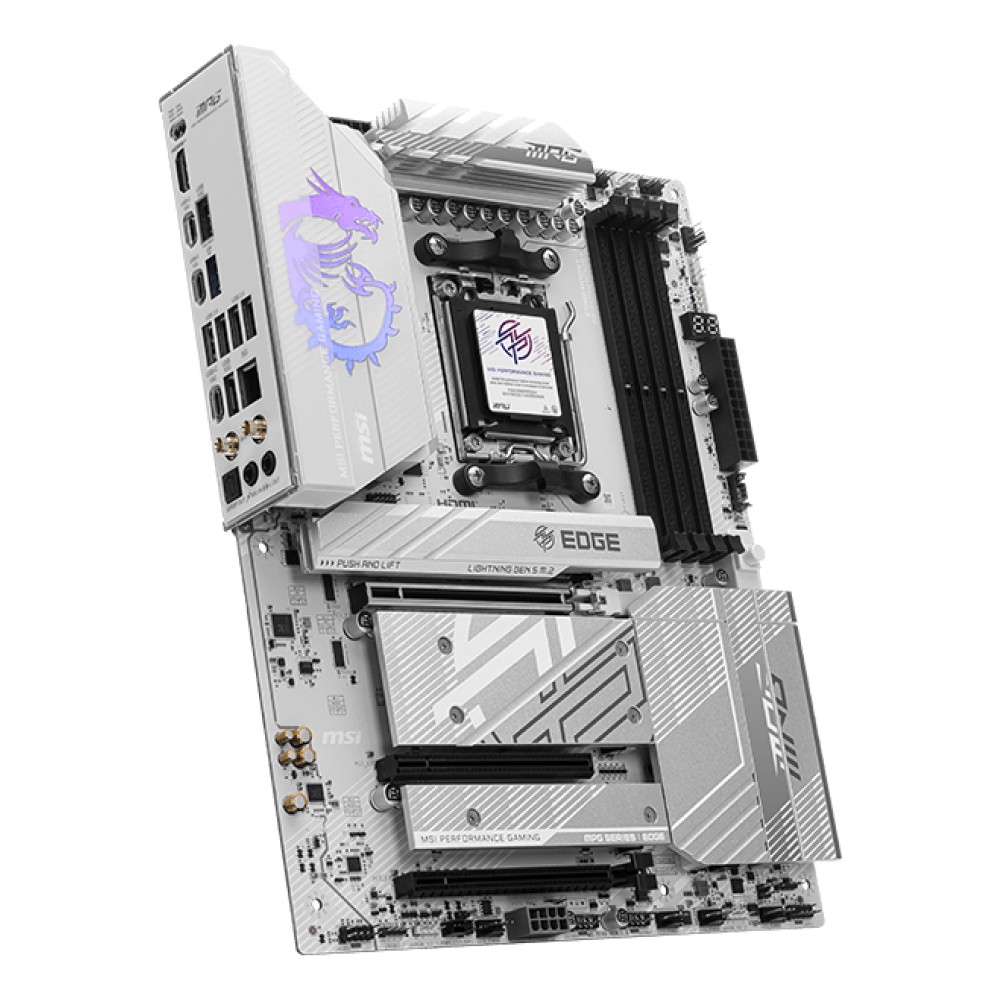

MSI MPG B850 EDGE TI WIFI ATX Motherboard for AMD Socket AM5, B850, DDR5, Wi-Fi 7 – White
£211.31 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- AMD B850 chipset with Socket AM5 for Ryzen 7000/8000/9000 Series processors
- DDR5 memory support up to 256 GB, with speeds up to 8400 MHz
- Integrated Wi-Fi 7, 2.5 Gigabit Ethernet, and Bluetooth 5.4 for high-speed connectivity
- Four M.2 slots (two PCIe 5.0, two PCIe 4.0) and four SATA III connectors for diverse storage
- ATX form factor with 7.1 channel audio and HDMI 2.1 output
- 14+2+1 Duet Rail Power System with extended heatsinks for stable performance
- White aesthetic with EZ PCIe Release and M.2 Shield Frozr for enhanced usability
Payment Methods:
You may also like
GIGABYTE B650M AORUS ELITE Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0 M.2
In stock
MSI MPG B850 EDGE TI WIFI – The White Build Foundation
For PC builders crafting a striking white system, the MSI MPG B850 EDGE TI WIFI ATX Motherboard for AMD Socket AM5, B850, DDR5, Wi-Fi 7 – White offers an exceptional foundation. This ATX motherboard provides robust support for AMD Ryzen 7000, 8000, and 9000 Series processors. We designed it for gamers and enthusiasts who demand high performance and a clean aesthetic. Its advanced connectivity ensures a smooth, responsive computing experience.
Core System Specifications
| Metric | Spec. |
|---|---|
| Processor Socket | Socket AM5 |
| Memory Type | DDR5-SDRAM |
| Max. Memory Speed | 8400 MHz |
| M.2 Slots | 4 |
| Form Factor | ATX |
| Wi-Fi Standard | Wi-Fi 7 |
Unrivaled Power Delivery
We have equipped this motherboard with a 14+2+1 Duet Rail Power System. This robust design includes dual power connectors and 80A Smart Power Stages. It reliably powers even the most demanding high-end processors, ensuring stable performance. You can push your system without compromise.
Next-Generation Connectivity
Experience superior network speeds with our integrated Wi-Fi 7 solution and 2.5 Gigabit Ethernet. These features provide extremely low latency and high bandwidth for online gaming and data transfer. Bluetooth 5.4 is also included for seamless peripheral connections.
Efficient Thermal Management
Our extensive cooling solutions keep your components running optimally. The Extended Heatsink and Enlarged Chipset Heatsink effectively dissipate heat from critical areas. M.2 Shield Frozr prevents thermal throttling for your M.2 SSDs, maintaining their speed. High-quality 7W/mK thermal pads further enhance heat transfer.
Simplified Upgrades
The EZ PCIe Release button makes removing your graphics card or other PCIe devices straightforward. A single tap safely disengages the card, simplifying upgrades and maintenance. This thoughtful design improves your overall user experience.
Before You Order
- Confirm your chosen processor uses the AMD Socket AM5.
- Ensure your PC case supports the ATX motherboard form factor.
- Check your preferred memory is DDR5-SDRAM compatible.
- Verify your power supply has sufficient connectors for a 14+2+1 power system.
Frequently Asked Questions
Q: Which AMD Ryzen processors are compatible with this motherboard?
A: This motherboard supports AMD Ryzen 7000 Series, 8000 Series, and 9000 Series processors.
Q: Does this motherboard support Wi-Fi 6E or Wi-Fi 7?
A: Yes, it fully supports the latest Wi-Fi 7 (802.11be) standard, alongside older Wi-Fi standards.
Q: How many M.2 SSD slots are available?
A: There are four M.2 M slots for high-speed storage, with varied PCIe generations.
Q: Can I connect multiple CPU fans to this motherboard?
A: Yes, it includes six CPU fan connectors for comprehensive cooling setups.
Q: What operating systems are supported?
A: We confirm support for Windows 11 x64 operating systems.
The Final Word
The MSI MPG B850 EDGE TI WIFI ATX Motherboard for AMD Socket AM5, B850, DDR5, Wi-Fi 7 – White is ideal for anyone building a high-performance AMD system with a white aesthetic. Its powerful VRM design, cutting-edge connectivity, and effective cooling solutions make it a top choice for serious PC enthusiasts. Warranty cover varies by product, so please contact us to confirm.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Total number of SATA connectors | 4 |
| Supported storage drive interfaces | M.2, Micro SATA III |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| Number of SATA III connectors | 4 |
| CPU fan connector | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 6 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 3 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Total number of SATA connectors | 4 |
| Maximum internal memory supported by processor | 256 GB |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Maximum internal memory supported by processor | 256 GB |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5600,8400 MHz |
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 8400 MHz |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, Micro SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card | No |

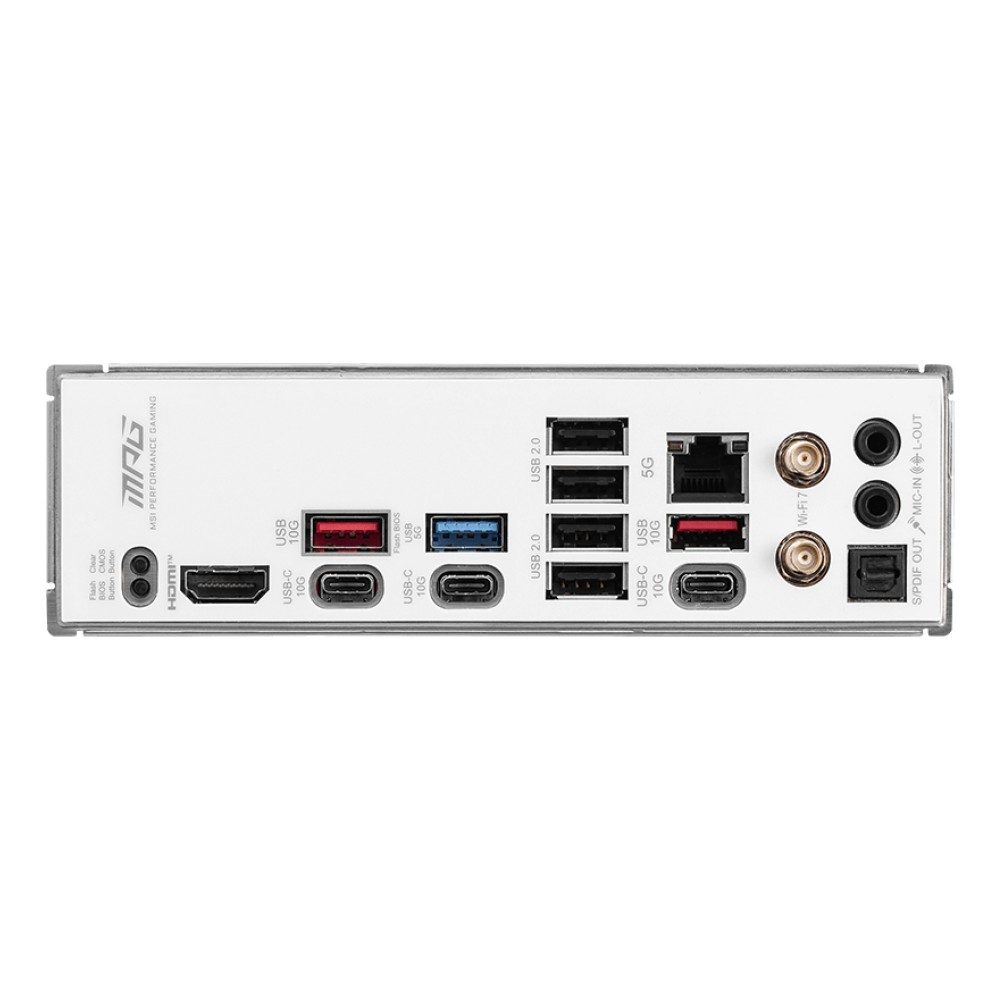

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| USB 2.0 ports quantity | 4 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC4080 |
| Product colour | White |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Weight & dimensions | |
| Width | 304.8 mm |
| Depth | 243.8 mm |
| Identifiers | |
| Distributor SKUs | 126155, 4711377290616, 7E62-001R, MPGB850EDGETI WIFI, 546882, STD10218020 |
| Additional EANs | 4711377286060 |
