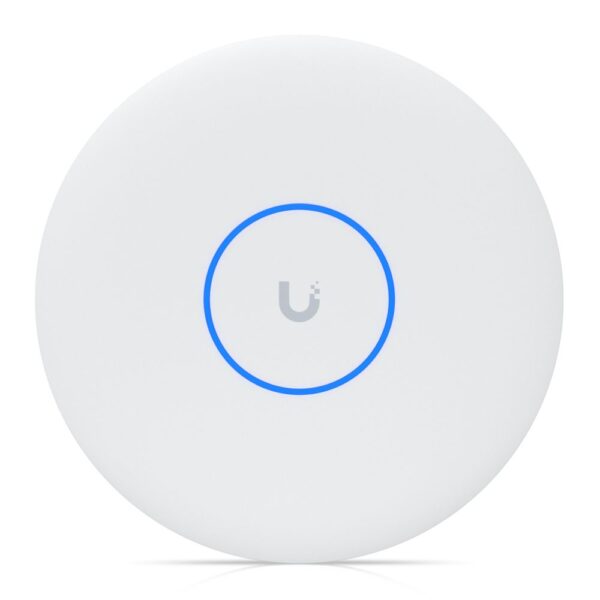

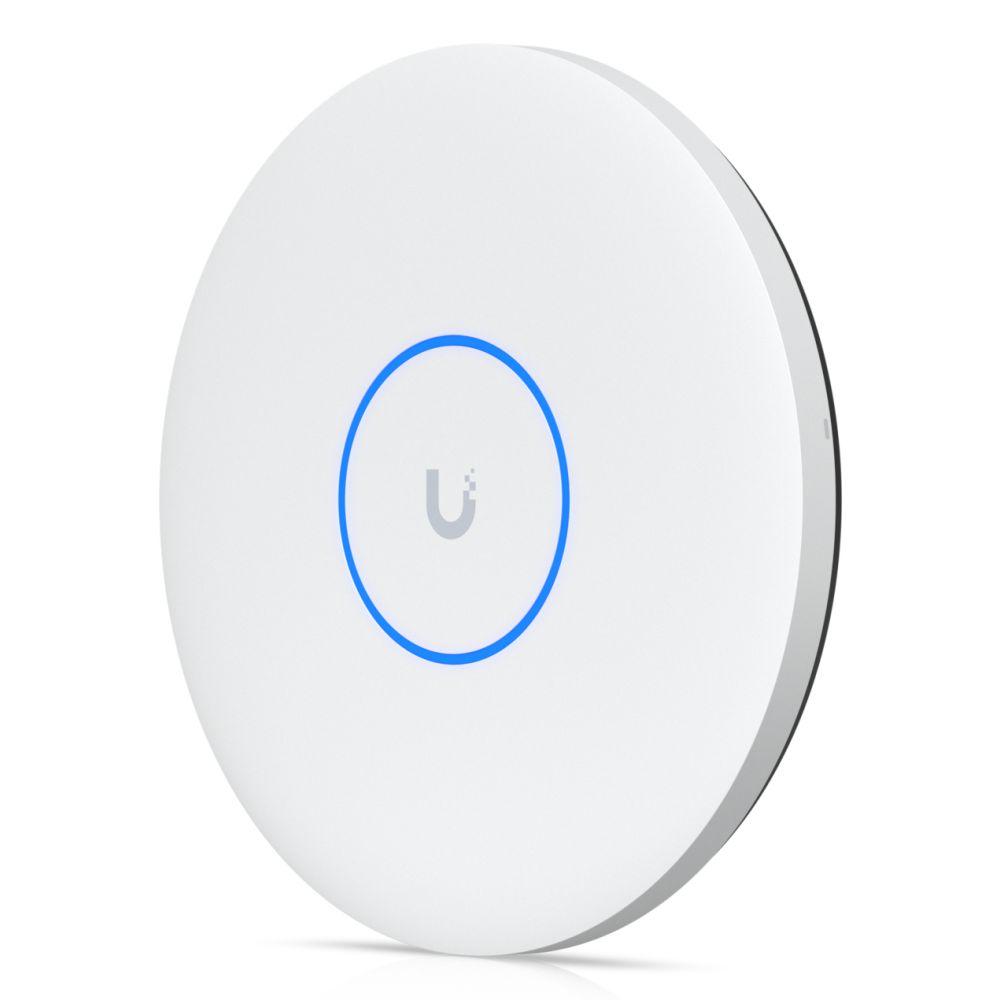

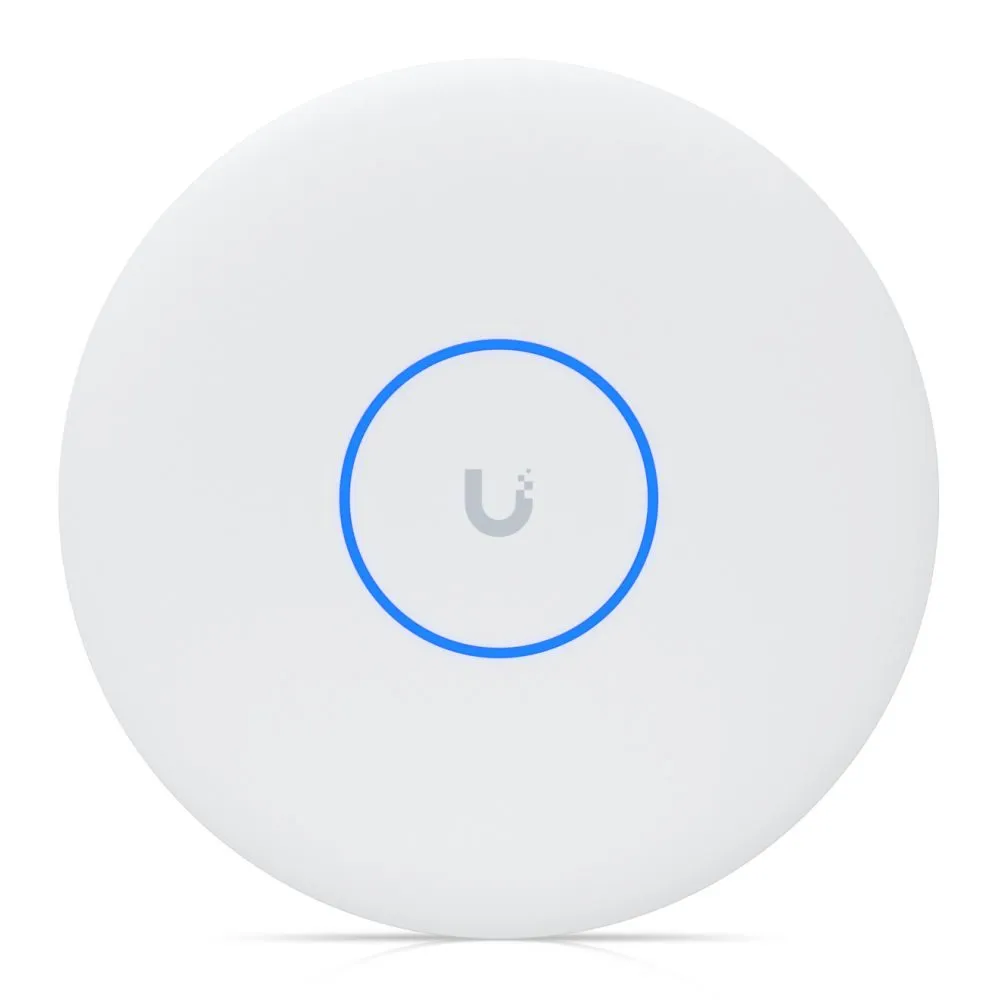

Ubiquiti U7 Pro XGS 8600 White PoE
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 8-stream WiFi 7 access point with 8600 Mbit/s maximum data transfer rate
- Supports 2.4 GHz, 5 GHz, and 6 GHz bands with 500 user capacity
- Multi-User MIMO technology with band steering for optimal performance
- Power over Ethernet Plus (PoE++) with 29 W maximum power consumption
- Internal antennas with 6 dBi gain and 160 m² coverage area
- Ethernet LAN RJ-45 port supporting 1000/2500/5000/10000 Mbit/s
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
Ubiquiti U7 Pro XGS | Ceiling-Mounted WiFi 7 Access Point
The Ubiquiti U7 Pro XGS delivers enterprise-grade wireless performance with 8-stream WiFi 7 support and 8600 Mbit/s maximum throughput, designed for high-density environments requiring reliable, scalable connectivity.
Key Specifications
| Metric | Spec |
|---|---|
| WiFi Standard | WiFi 7 (802.11be) |
| Maximum Throughput | 8600 Mbit/s |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Spatial Streams | 8 |
| Coverage Area | 160 m² |
| Power | PoE++ (4PPoE) |
Tri-Band WiFi 7 Performance
The U7 Pro XGS operates across three frequency bands simultaneously, delivering dedicated 2.4 GHz, 5 GHz, and 6 GHz channels. This tri-band architecture eliminates congestion in busy environments, ensuring consistent speeds for up to 500 concurrent users. The dedicated spectral scanning radio continuously monitors channel conditions, automatically optimising performance without manual intervention.
Enterprise-Grade Connectivity
With support for 10/5/2.5/1 GbE Ethernet and eight spatial streams, this access point handles demanding applications like 4K video streaming, large file transfers, and real-time collaboration. The Multi-User MIMO technology serves multiple devices simultaneously, while band steering intelligently distributes clients across available bands for optimal performance. VLAN support and rate limiting provide granular network control for managed deployments.
Flexible Installation Options

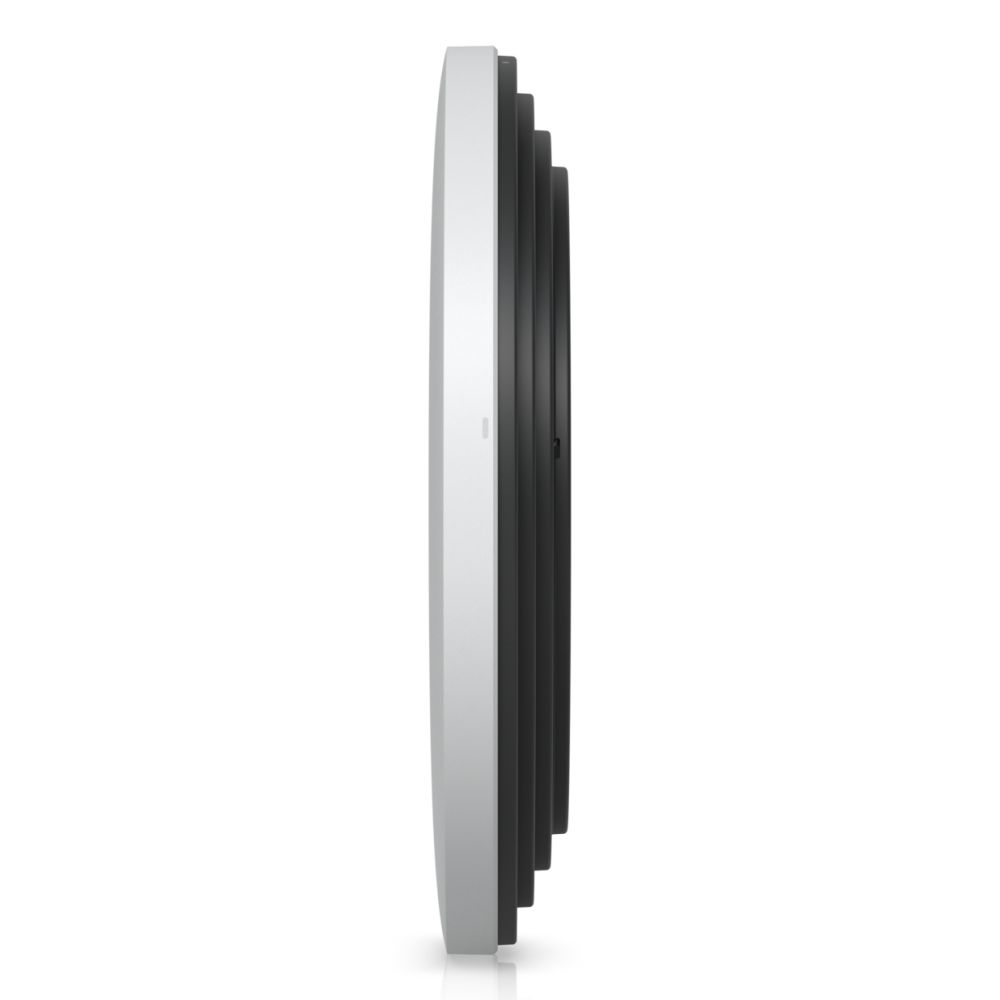

The U7 Pro XGS offers versatile mounting options with included hardware for both ceiling and wall installation. Its compact 215 mm x 215 mm x 32.5 mm metal and polycarbonate housing integrates seamlessly into professional environments. The internal antennas with 6 dBi gain provide consistent coverage without external protrusions, while LED status indicators offer clear operational feedback.
Box contents
- Ubiquiti U7 Pro XGS access point
- Mounting kit (ceiling and wall)
- Quick start guide
Check before you buy
- Confirm your network switch supports PoE++ (4PPoE) for power delivery
- Verify ceiling or wall mounting locations have adequate structural support for 800 g weight
- Check that your network infrastructure supports WiFi 7 devices
- Confirm CE/FCC compliance meets your local requirements
Frequently Asked Questions
Q: What WiFi standards does the U7 Pro XGS support?
A: It supports WiFi 7 (802.11be) plus backward compatibility with 802.11ac, 802.11ax, 802.11k, 802.11n, 802.11r, and 802.11v.
Q: How many devices can connect simultaneously?
A: The access point supports up to 500 concurrent users across all frequency bands.
Q: Does it support mesh networking?
A: Yes, the U7 Pro XGS includes wireless meshing capabilities for extended coverage.
Q: What power options are available?
A: It supports PoE++ (4PPoE) with a maximum power consumption of 29 W.
The Consultant’s verdict & warranty
The Ubiquiti U7 Pro XGS represents a future-proof investment for businesses requiring high-density wireless coverage with cutting-edge WiFi 7 performance. Its combination of tri-band operation, eight spatial streams, and enterprise management features makes it ideal for offices, educational institutions, and hospitality environments. Covered by the standard Manufacturer Warranty.
| Weight | 1.4 kg |
|---|---|
| Access point management | Wi-Fi schedule |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.4, 5, 6 GHz |
| Number of users | 500 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 8600 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate 2.4 GHz | 688 Mbit/s |
| Maximum data transfer rate 5 GHz | 8600 Mbit/s |
| Fit AP mode features | Hotspot 2.0 |
| Maximum data transfer rate 6 GHz | 5800 Mbit/s |
| Spatial streams | 8 |
| Coverage area | 160 m² |
| Wireless meshing | Yes |
| Maximum Tx power 2.4 GHz | 23 dBmW |
| Maximum Tx power 5 GHz | 29 dBmW |
| Maximum Tx power 6 GHz | 24 dBmW |
| Security algorithms | PPSK |
| Ethernet LAN RJ-45 ports | 1 |
| Power consumption max | 29 W |
| Power over Ethernet PoE | Yes |
| Power over Ethernet PoE type supported | PoE++ (4PPoE) |
| Housing material | Metal, Polycarbonate (PC) |
| Placement | Ceiling, Wall |
| Product colour | White |
| Antenna type | Internal |
| Antenna gain level max | 6 dBi |
| Reset button | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| LED indicators | Status |
| Fast roaming | Yes |
| Width | 215 mm |
| Depth | 32.5 mm |
| Weight | 800 g |
| Height | 215 mm |
| Mounting kit | Yes |
| Operating relative humidity H-H | 5 – 95% |
| Operating temperature T-T | -30 – 40 °C |
| Quantity per pack | 1 pc(s) |
