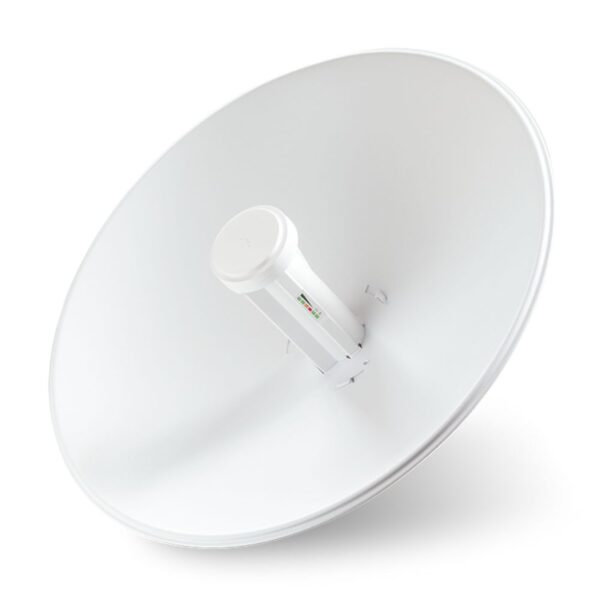

Ubiquiti PBE-M5-400 Network Bridge 1000 Mbps White
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 1000 Mbit/s maximum data transfer rate
- 25 dBi antenna gain with 5 GHz frequency band
- Gigabit Ethernet interface with PoE+ support
- Weather-resistant plastic housing for outdoor use
- Compact 42 cm dish reflector design
- -40 to 70 °C operating temperature range
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
Ubiquiti PBE-M5-400 | 5 GHz AirMAX Bridge
The Ubiquiti PBE-M5-400 is a 5 GHz PowerBeam airMAX bridge designed for long-range wireless point-to-point links. With a 25 dBi dish antenna and 1000 Mbit/s throughput, it delivers stable, high-bandwidth connectivity for remote sites, backhaul links, and rural broadband installations.
Quick Specs
| Metric | Spec. |
|---|---|
| Frequency band | 5 GHz |
| Antenna gain | 25 dBi |
| Max data rate | 1000 Mbit/s |
| Ethernet ports | 1 x Gigabit (PoE in) |
| Power over Ethernet | 24 V, 500 mA typical |
High-Gain 5 GHz Performance for Long-Range Links
The 25 dBi dish reflector focuses the signal into a narrow beam, reducing interference and increasing range. This makes the PBE-M5-400 ideal for clear-line-of-sight links where you need maximum reach without sacrificing throughput.
Weatherproof Design for Outdoor Deployment
Built with UV-resistant plastic and rated for -40 °C to +70 °C operation, this unit is suited to UK conditions year-round. The included pole mounting bracket allows secure installation on masts or walls, while the sealed electronics protect against dust and moisture.
Gigabit Ethernet with PoE Power
A single Gigabit Ethernet port supports Power over Ethernet, so both data and power run over one cable. This simplifies installation and reduces cabling costs for remote setups where mains power is not nearby.
Box contents
- Ubiquiti PBE-M5-400 PowerBeam unit
- Pole mounting brackets
- PoE injector (24 V)
- Power adapter (UK plug not confirmed)
Check before you buy
- Confirm the PoE voltage matches your network switch or injector.
- Verify the 5 GHz frequency band is permitted for your intended use in the UK.
- Check that the dish size (42 cm) fits your mounting location.
- Confirm the UK plug or adapter is supplied if required.
Frequently Asked Questions
Q: What is the maximum range of the PBE-M5-400?
A: Range depends on line of sight and interference, but the 25 dBi gain supports several kilometres in clear conditions.
Q: Does it include a PoE injector?
A: Yes, a 24 V PoE injector is included in the box.
Q: Can I use it with other Ubiquiti airMAX devices?
A: Yes, it is compatible with other airMAX CPE and base station products on the same 5 GHz band.
Q: Is it suitable for UK outdoor use?
A: Yes, it is rated for -40 to +70 °C and carries CE/FCC certification for UK/EU markets.
The Consultant’s verdict & warranty
The PBE-M5-400 is a robust, high-gain 5 GHz bridge for professionals needing long-range wireless links with minimal cabling. Its weatherproof build and PoE support make it well-suited to UK outdoor deployments. Covered by the standard Manufacturer Warranty.
| Weight | 1.75 kg |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Antenna gain level max | 25 dBi |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Frequency band | 5 GHz |
| Ethernet LAN | Yes |
| Connectivity technology | Wired |
| Ethernet LAN RJ-45 ports | 1 |
| Power over Ethernet plus PoE+ ports quantity | 1 |
| Product type | Network bridge |
| Mounting type | Pole |
| Power source type | PoE |
| Power consumption 24V | 500 mA |
| Power over Ethernet PoE | Yes |
| Power consumption typical | 8 W |
| Power over Ethernet PoE voltage | 24 V |
| Operating temperature T-T | -40 – 70 °C |
| Operating relative humidity H-H | 5 – 95% |
| LED indicators | LAN, Power, WLAN |
| Certification | FCC, IC, CE, RoHS |
| Material | Plastic |
| Product colour | White |
| Internal memory | 64 MB |
| Weight | 1.75 kg |
| Depth | 275 mm |
| Antenna diameter | 42 cm |
| Processor family | Atheros |
| Processor model | MIPS 74Kc |
| Processor frequency | 560 MHz |
| Flash memory | 8 MB |
| RAM type | DDR2 |
| Mounting brackets included | Yes |
| Harmonized System HS code | 85176990 |
