Ubiquiti Dream Machine SE 1Gbps Gateway/Controller
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Enterprise-grade UniFi OS Console with integrated PoE switch and network video recorder
- High-speed dual-WAN connectivity with 10G SFP+ and 2.5GbE RJ45 ports
- 128 GB internal storage for network video recording
- Rack-mountable 1U design with stainless steel enclosure
- 1700 MHz processor with 4096 MB DDR4 memory and 16384 MB flash storage
- 8-port Gigabit Ethernet switch with IEEE 802.3af/at PoE support
- 3.3 cm touchscreen control display with Bluetooth connectivity
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
Ubiquiti UDM SE | Enterprise-Grade UniFi OS Console

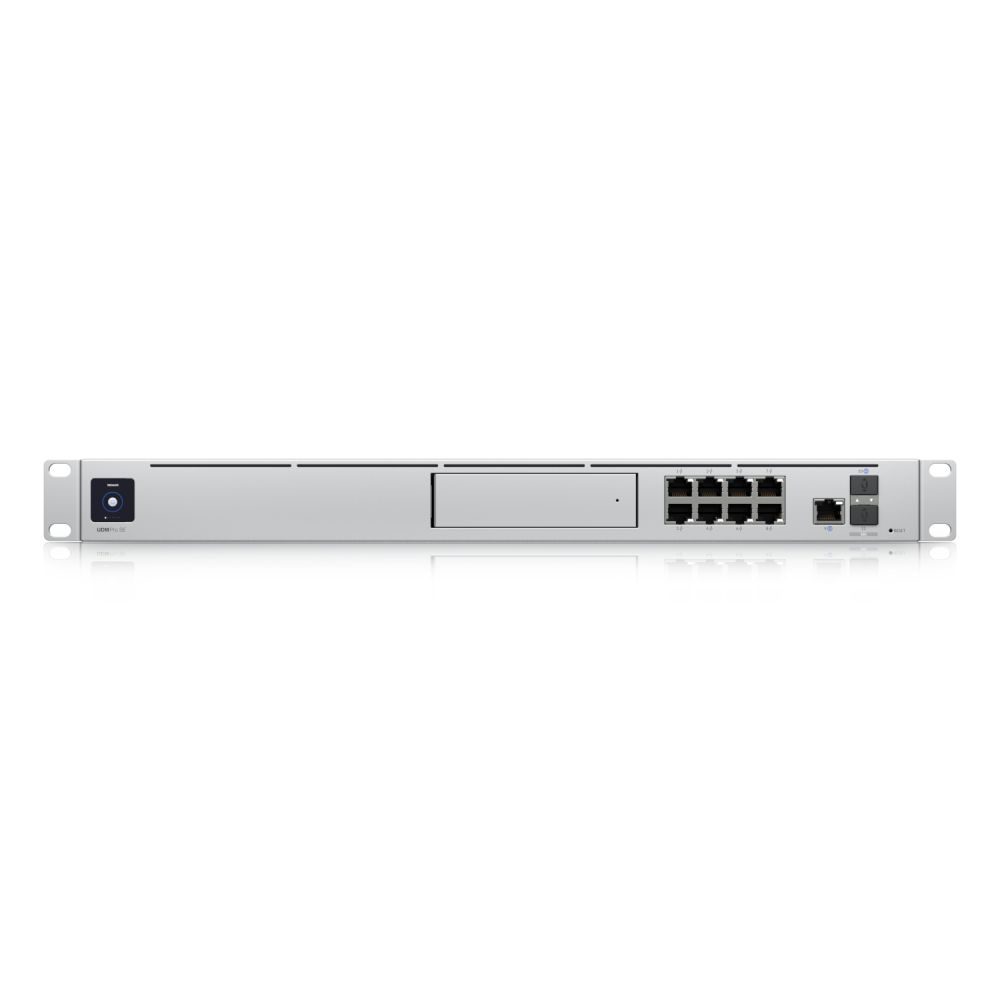

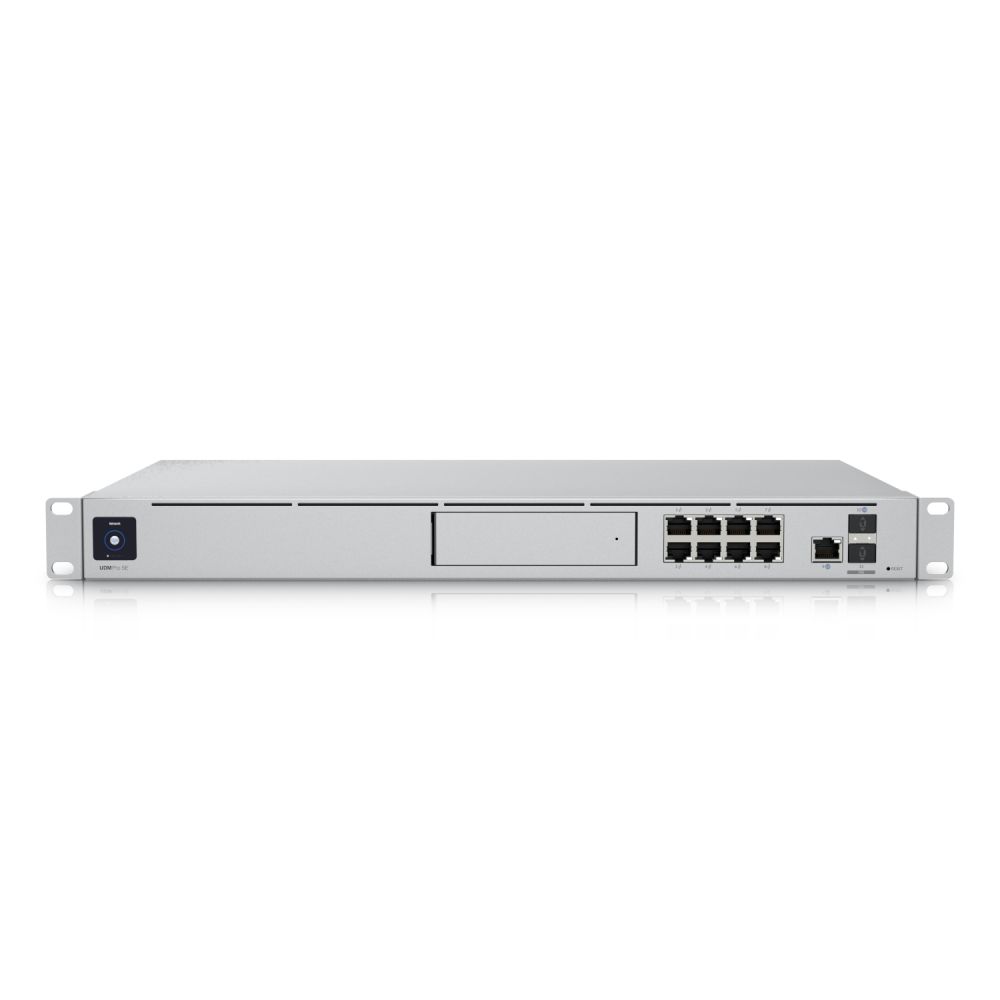

The Ubiquiti Dream Machine Special Edition gateway/controller 1000 Mbit/s delivers enterprise-grade network management in a compact rack-mount form. Built for home and business users who need centralised control, it combines a UniFi OS console, Gigabit PoE switch, and NVR with 128 GB storage in one unit.
Key Specs
| Metric | Spec |
|---|---|
| Processor | 1.7 GHz quad-core |
| RAM | 4 GB DDR4 |
| Storage | 16 GB flash + 128 GB NVR |
| Ethernet ports | 8 x Gigabit PoE |
| WAN ports | 10G SFP+ + 2.5GbE RJ45 |
| Power | 240 W PoE+ |
Dual-WAN Connectivity for Future-Proof Networks
The UDM SE supports both 10G SFP+ and 2.5GbE RJ45 WAN connections, giving you flexibility to scale bandwidth as your network grows. This dual-WAN capability means you can combine connections for redundancy or higher throughput without replacing the gateway. The built-in UniFi OS console manages all traffic through an intuitive interface.
Integrated PoE Switch and NVR
Eight Gigabit PoE ports eliminate the need for separate power injectors when connecting UniFi access points, cameras, or phones. The integrated 128 GB NVR records footage from compatible Protect cameras directly on the device, reducing external storage costs. This all-in-one approach simplifies rack space and power requirements.
Touchscreen Control and Bluetooth Setup
A 3.3 cm touchscreen displays system status at a glance, while the integrated Bluetooth radio enables quick mobile setup through the UniFi Network app. You can configure the entire system in minutes without a computer, making initial installation straightforward even for non-technical users.
Box Contents
- Ubiquiti Dream Machine Special Edition (UDM SE)
- Power adapter (240 W)
- Rack mounting brackets
- Quick start guide
Check Before You Buy
- Confirm your network devices are UniFi-compatible for full management features
- Verify your rack has 1U space available (442.4 x 43.7 x 285.6 mm)
- Check your PoE device requirements match the 15.4W per port budget
- Confirm your WAN service supports 10G SFP+ or 2.5GbE connections
Frequently Asked Questions
Q: Can I use this with non-UniFi devices?
A: Yes, it functions as a standard router and switch, but advanced features require UniFi devices.
Q: Does it support Wi-Fi?
A: No, the UDM SE is a gateway/controller only. You’ll need separate UniFi access points.
Q: How many cameras can the NVR support?
A: Storage capacity depends on camera resolution and recording settings, but 128 GB provides several days of continuous recording.
Q: Is the touchscreen always on?
A: Yes, the display shows real-time system status and can be configured for brightness levels.
Q: What’s the maximum PoE budget?
A: The switch provides up to 150W total PoE power across all ports.
The Consultant’s Verdict & Warranty
The Ubiquiti Dream Machine Special Edition gateway/controller 1000 Mbit/s suits users who want centralised network management without separate security appliances. Its UniFi OS integration, dual-WAN support, and built-in NVR make it ideal for growing networks where simplicity and scalability matter. Covered by the standard Manufacturer Warranty.
| Weight | 5.7 kg |
|---|---|
| Mounting type | Rack mounting |
| Rack capacity | 1U |
| Product colour | Stainless steel |
| Enclosure material | Aluminum |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 1000 Mbit/s |
| Bluetooth | Yes |
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN RJ-45 ports | 8 |
| Reset button | Yes |
| Power consumption typical | 50 W |
| Power supply | 240 W |
| Power over Ethernet PoE | Yes |
| Input voltage | 100 – 240 V |
| Input frequency | 50 – 60 Hz |
| Input current | 4.4 A |
| Weight | 4.95 kg |
| Width | 442.4 mm |
| Height | 43.7 mm |
| Depth | 285.6 mm |
| Operating temperature T-T | -10 – 40 °C |
| Operating relative humidity H-H | 5 – 95% |
| LED indicators | Activity, Link, Ready |
| Internal memory type | DDR4 |
| Internal memory | 4096 MB |
| Flash memory | 16384 MB |
| Touchscreen | Yes |
| Display diagonal | 3.3 cm (1.3″) |
| Control display unit | Yes |
| Built-in processor | Yes |
| Processor frequency | 1700 MHz |
| Number of processors installed | 1 |
| Harmonized System HS code | 85176990 |
