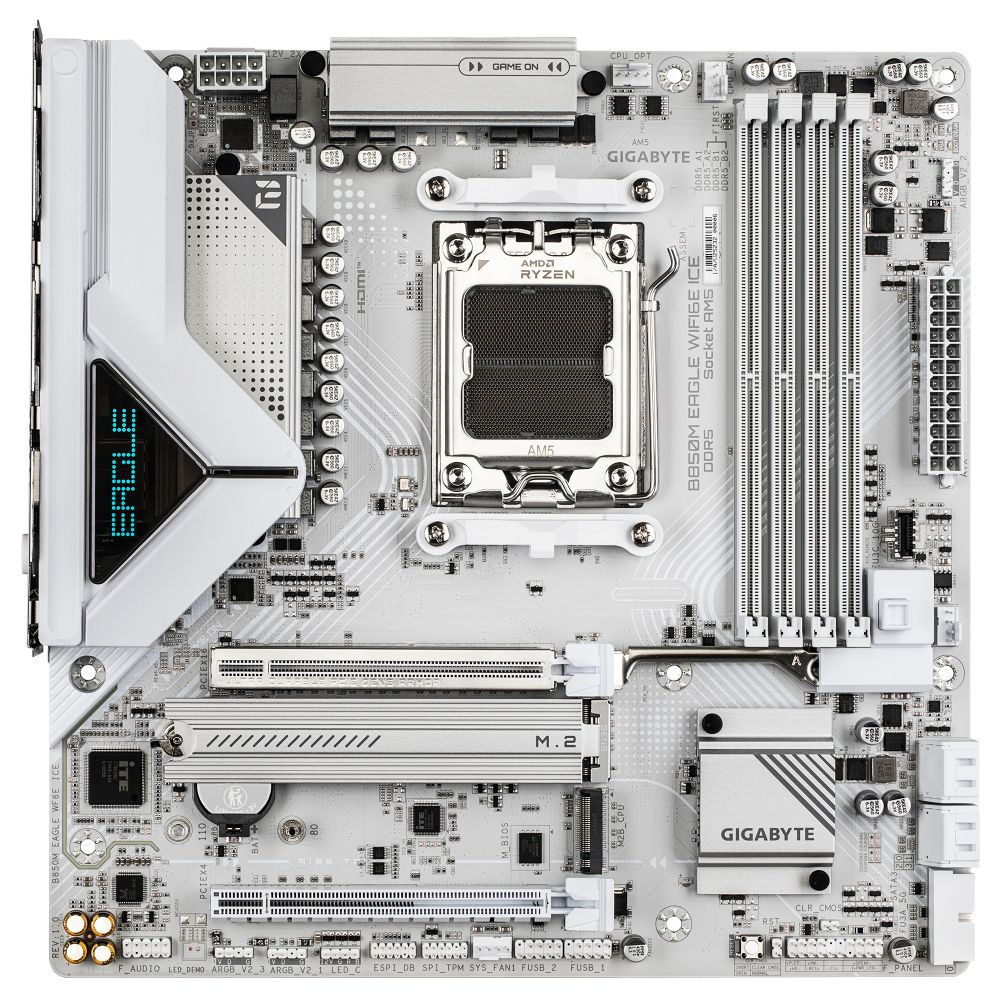

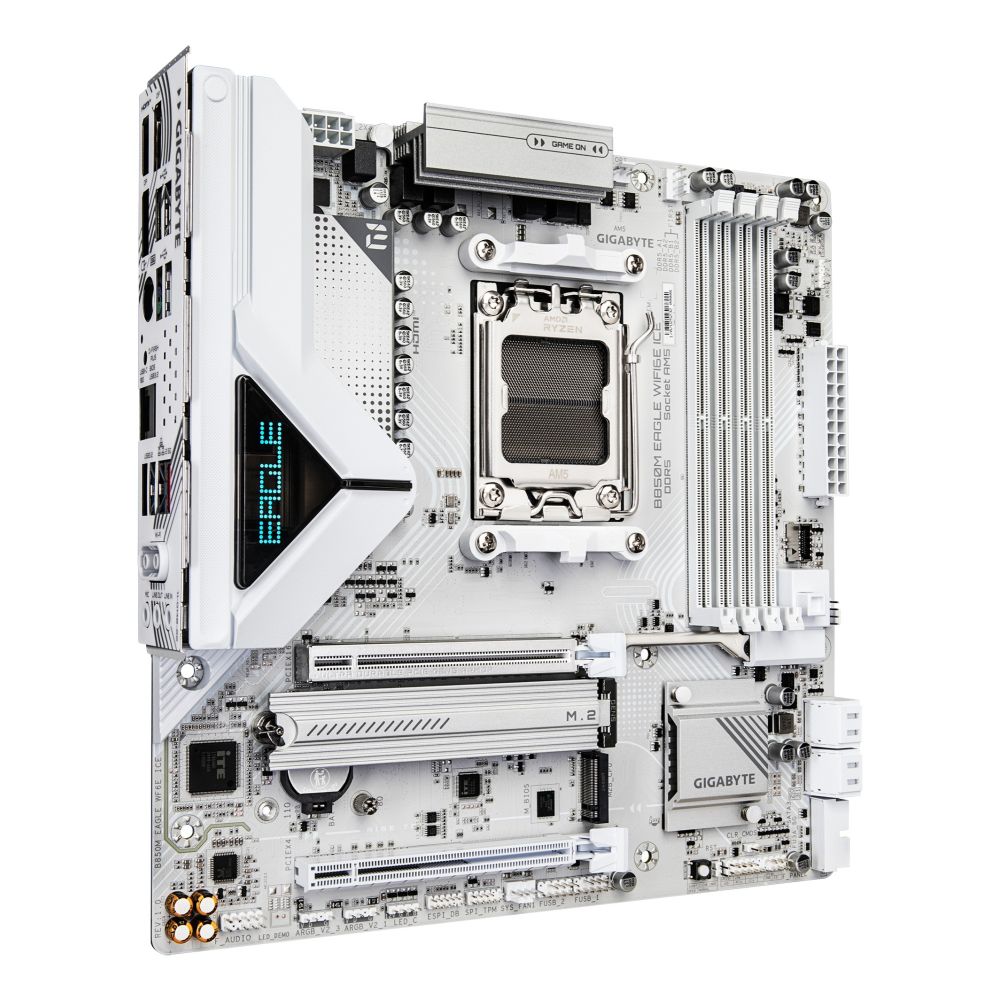

Gigabyte B850M Eagle WIFI6E ICE Micro-ATX (AM5, DDR5)
£159.83 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- MPN B850M EAGLE WF6E ICE and SKU BG-MOT-GIG-06614
- AMD B850 chipset with AM5 socket for Ryzen 9000/8000/7000 Series CPUs
- Micro-ATX form factor in primary white colour with RGB lighting
- 4x DDR5 DIMM slots supporting up to 256 GB with EXPO and XMP profiles
- 1x 2.5 Gbit/s LAN port and Wi‑Fi 6E plus Bluetooth 5.3
- PCIe 5.0 x16 slot and dual M.2 storage including one PCIe 5.0
- 4x 4‑pin fan connectors and 1x 8‑pin CPU power supply
Payment Methods:
You may also like
Gigabyte B850M Eagle WIFI6E Ice | B-Grade Micro-ATX AMD Motherboard
The B Grade Gigabyte B850M Eagle WIFI6E Ice (Socket AM5) DDR5 Micro-ATX Motherboard is a solid foundation for a compact AMD build. It supports Ryzen 9000, 8000, and 7000 series processors. This board is ideal for UK system builders seeking a balance of modern features and a space-saving form factor. It delivers core performance with Wi-Fi 6E and 2.5GbE LAN as standard.
Key Specifications at a Glance
| Metric | Spec. |
|---|---|
| Form Factor | Micro-ATX |
| CPU Socket | AMD AM5 |
| Chipset | AMD B850 |
| Memory | 4x DDR5 DIMM (Max 256 GB) |
| Wi-Fi / Bluetooth | Wi-Fi 6E / Bluetooth 5.3 |
| LAN Port | 1x 2.5 Gbit/s |
Modern Connectivity and Networking
This motherboard provides a comprehensive selection of modern ports. You get a rear USB 3.2 Gen 2 Type-C and a high-speed red Type-A port. The integrated Realtek Wi-Fi 6E supports 2.4, 5, and 6 GHz bands for low-latency wireless. Bluetooth 5.3 is also included for peripherals. For wired connections, the 2.5GbE LAN offers a significant upgrade over standard gigabit speeds.
Expansion and Storage Flexibility
The board features two M.2 slots for fast NVMe storage. The primary M.2 slot connects via PCIe 5.0 from the CPU for maximum throughput. A second M.2 slot runs at PCIe 4.0 speeds. You also get four SATA connectors for additional drives. The primary PCIe x16 slot supports PCIe 5.0, ensuring compatibility with next-generation graphics cards when paired with a Ryzen 9000 series CPU.
Integrated Visuals and Audio
The integrated AMD Radeon Graphics provides a convenient troubleshooting option. It supports HDMI 2.1 and DisplayPort 1.4 for triple-display setups. Audio is handled by a Realtek High Definition Audio CODEC. It supports 2/4/5.1/7.1-channel configurations, ensuring clear sound for gaming and media without a dedicated sound card.
Internal Connectivity and Lighting

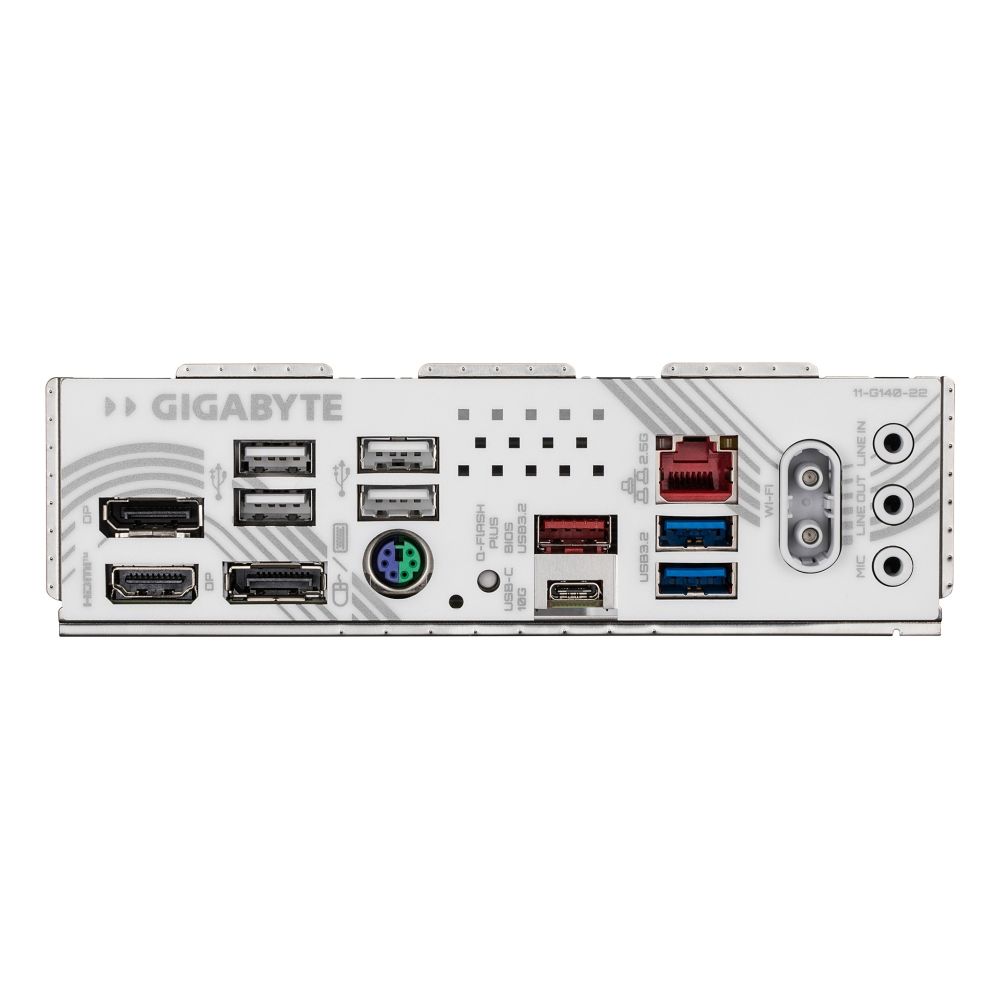

For internal builds, the board includes 2 CPU fan headers and 2 water cooling pump headers. It also offers 3 ARGB Gen2 headers and 1 standard RGB header for lighting control. The rear I/O panel includes a Q-Flash Plus button for easy BIOS updates without a CPU. Note that this B-Grade board may be missing its I/O shield.
Box contents

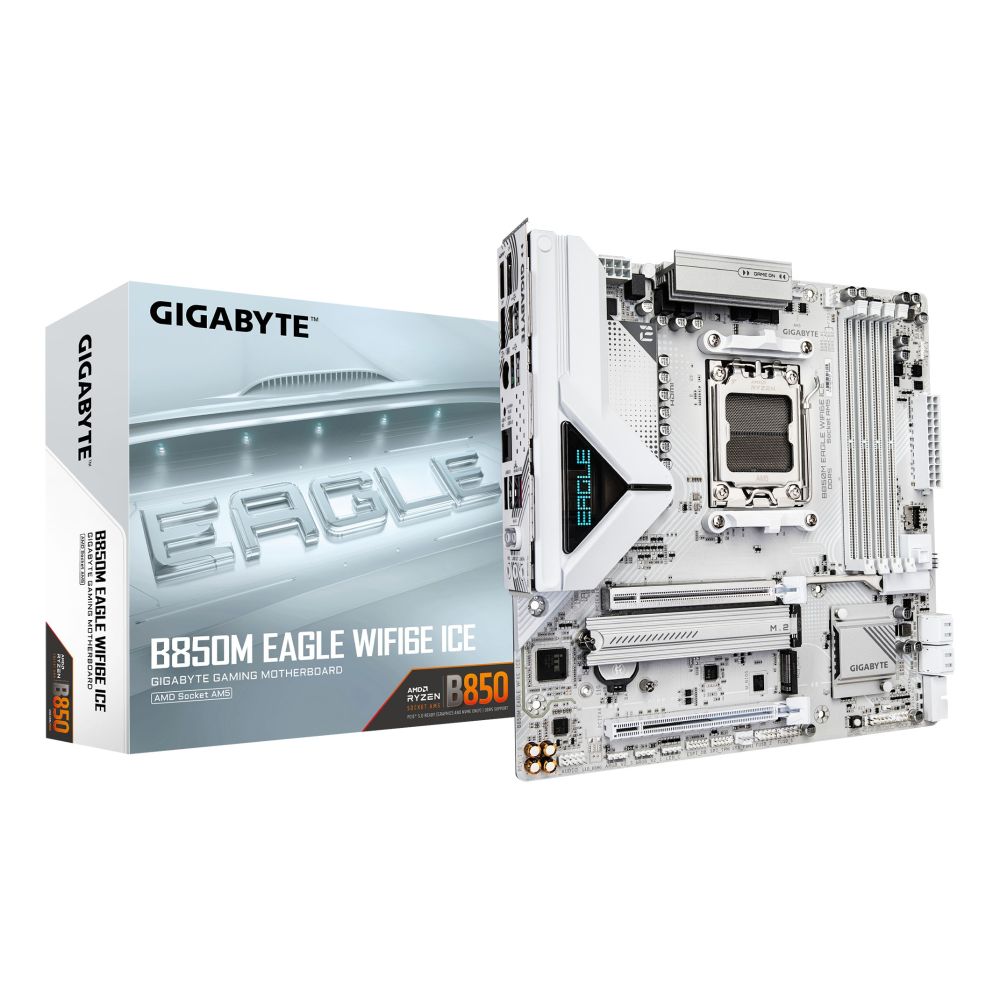

- Gigabyte B850M Eagle WIFI6E Ice Motherboard
- 2 x Wi-Fi Antennas
- 2 x SATA Cables
- 1 x M.2 Screw Package
- 1 x User Manual
Things to check first
- Confirm the CPU is a supported AMD Ryzen 9000, 8000, or 7000 series processor.
- Verify your PC case supports the Micro-ATX form factor (24.4cm x 24.4cm).
- Confirm your power supply has a single 8-pin EPS connector for the CPU.
- Remember this is a B-Grade item; check the product condition notes for details.
Frequently Asked Questions
Is this motherboard new?
Does it come with an I/O shield?
What is the warranty on this board?
Does this board support DDR5 memory overclocking?
Can I use a PCIe 5.0 graphics card?
Gigabyte B850M Eagle WIFI6E Ice | B-Grade Micro-ATX AMD Motherboard
This board is a practical choice for a compact, high-performance AMD build. It offers a strong feature set including Wi-Fi 6E and a PCIe 5.0 M.2 slot. The B-Grade status makes it a cost-effective option for builders who understand the cosmetic trade-offs. It is suited for gamers, creators, and home office users who need modern connectivity in a small form factor.
Covered by the applicable manufacturer warranty.
| Weight | 1.25 kg |
|---|---|
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| USB 3.2 Gen 2 3.1 Gen 2 connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors 8-pin | 1 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Warranty period | 3 year(s) |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 8200 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 1, 5, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 2 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 1 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 2 |
| Line-in | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Realtek RTL8852CE |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Product colour | White |
| Number of M.2 M slots | 2 |
| PCI Express x16 Gen 3.x slots | 1 |
| PCI Express x16 Gen 5.x slots | 1 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS SMBIOS version | 2.7 |
| Desktop Management Interface DMI version | 2.7 |
| Power source type | ATX |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Products per shipping inner case | 1 pc(s) |
| Country of origin | China |
| Width | 244 mm |
| Depth | 244 mm |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Height | 35 mm |
| Package weight | 1.9 kg |
| Weight | 1.7 kg |
