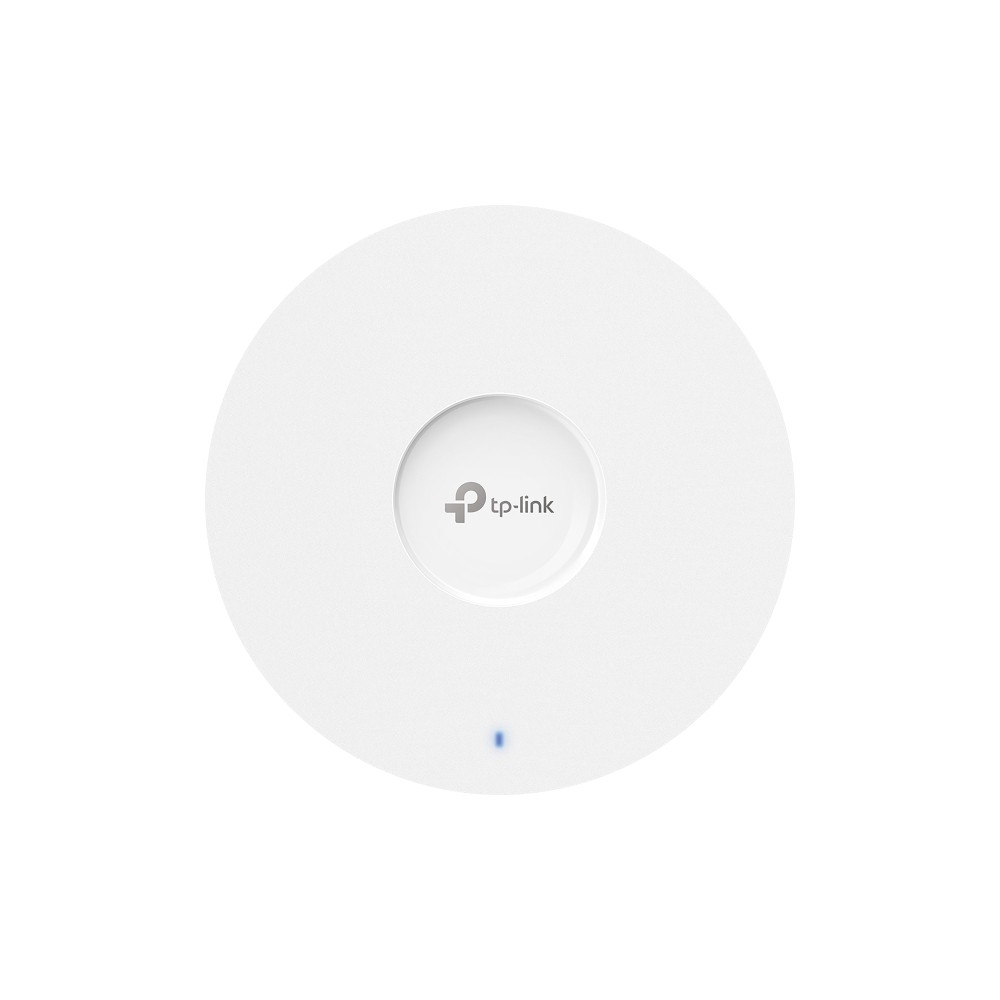

TP-Link Omada AX6000 Ceiling Mount WiFi 6 Access Point
£167.74 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- WiFi 6 (802.11ax) for high-speed wireless connectivity
- Maximum data transfer rate of 6000 Mbit/s across 2.4 GHz (1148 Mbit/s) and 5 GHz (4804 Mbit/s) bands
- Multi-User MIMO and BeamForming for enhanced performance and coverage
- Supports up to 510 users with advanced features like VLAN support, rate limiting, and QoS
- Power over Ethernet (PoE) with a single Ethernet LAN RJ-45 port for flexible ceiling or wall placement
- Robust security with HTTPS, SNMP, SSH, MAC address filtering, and ACL
- Compact design (220 x 220 x 32.5 mm) with internal omni-directional antennas (max 5 dBi)
Payment Methods:
You may also like
TP-Link Omada EAP683UR – Next-Gen WiFi Performance
For businesses and demanding home users, the TP-Link Omada AX6000 Ceiling Mount WiFi 6 Access Point delivers exceptional wireless connectivity. We offer this advanced access point to provide robust, high-speed WiFi 6 across your premises. It is ideal for environments needing to support many users and devices simultaneously without compromising speed.
Core Performance Metrics
| Metric | Spec. |
|---|---|
| Max. Data Transfer Rate | 6000 Mbit/s |
| 2.4 GHz Max. Speed | 1148 Mbit/s |
| 5 GHz Max. Speed | 4804 Mbit/s |
| Ethernet LAN Speeds | 10,100,1000,2500 Mbit/s |
| Max. Connected Users | 510 |
| Antenna Type | Internal Omni-directional |
Seamless Network Management
The Omada platform allows for centralised cloud management. This simplifies configuration and monitoring of your entire network infrastructure. Remote access and management are straightforward, ensuring efficient operation.
Optimised Bandwidth Distribution
Multi-User MIMO technology enhances network efficiency. It allows the access point to communicate with multiple devices concurrently. This reduces congestion and improves overall throughput for busy networks. Band steering further guides devices to the less crowded 5 GHz band.
Flexible Power and Placement Options

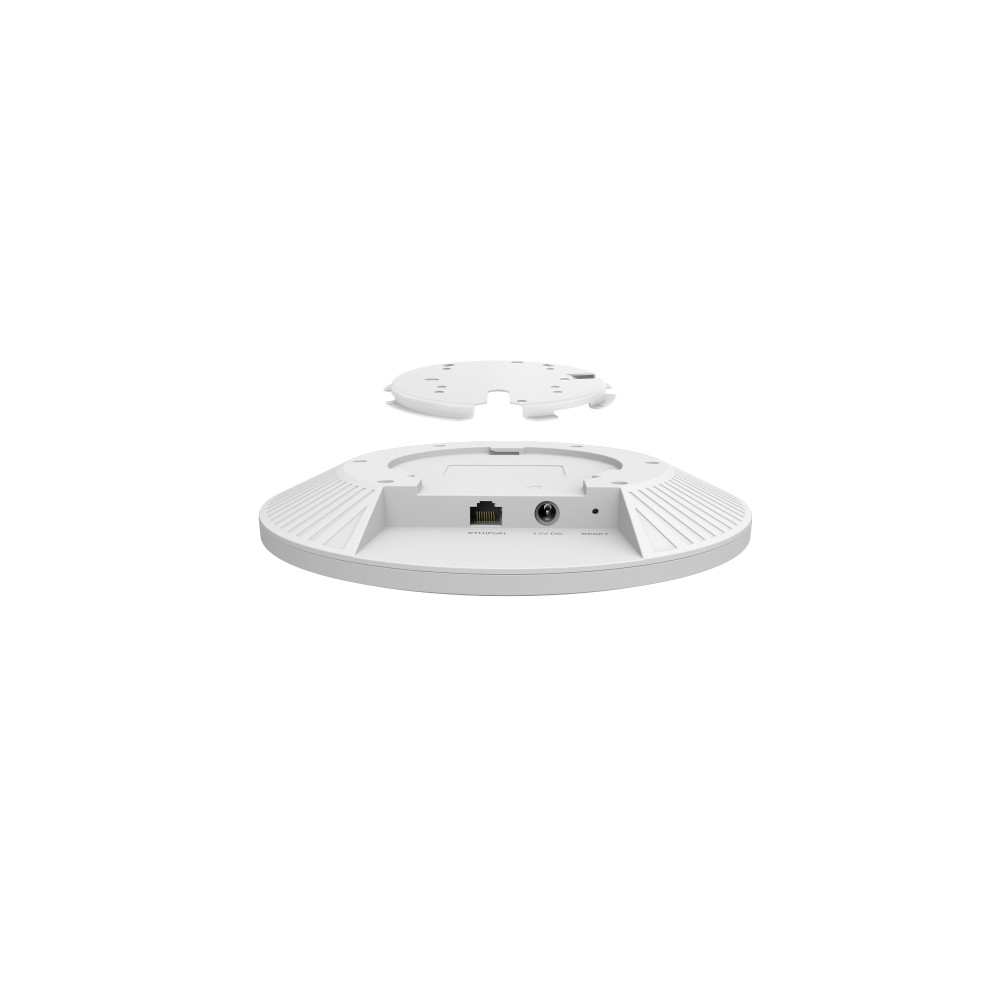

Power over Ethernet (PoE) support simplifies installation. You can power the unit and transmit data over a single Ethernet cable. Its compact design allows for discreet ceiling or wall mounting. This ensures optimal signal coverage without visual intrusion.
Enhanced Network Security
We understand network security is paramount. This access point features robust security algorithms including HTTPS and SNMPv3. MAC address filtering and VLAN support further segment your network. This protects critical data and manages access effectively.
What you receive
- TP-Link Omada AX6000 Ceiling Mount WiFi 6 Access Point
- Quick start guide
- Mounting kit
Worth checking first
- Confirm your existing network infrastructure supports PoE for simplified power.
- Verify ceiling or wall mounting locations are suitable for optimal signal spread.
- Ensure your devices are WiFi 6 compatible to fully leverage AX6000 speeds.
Frequently Asked Questions
Q: Does this access point support the 6 GHz band?
A: No, this model operates on the 2.4 GHz and 5 GHz bands only.
Q: Can I manage multiple access points from one interface?
A: Yes, the Omada platform provides centralised cloud management for multiple devices.
Q: Is this device suitable for outdoor use?
A: No, it is designed for indoor use within specified operating temperature and humidity ranges.
Q: How many Ethernet ports does this access point have?
A: It features one Ethernet LAN RJ-45 port.
Q: Does it include a power adapter?
A: It supports Power over Ethernet (PoE), so a separate power adapter may not be required if using a PoE switch or injector.
The bottom line
The TP-Link Omada AX6000 Ceiling Mount WiFi 6 Access Point is an excellent choice for businesses or large homes requiring high-performance, reliable WiFi. Its advanced features and Omada integration make it a scalable solution for modern network demands. Warranty cover varies by product, so please contact us to confirm.
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 6000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Automatic channel selection | Yes |
| Syslog | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Frequency band | 2.4 - 6 GHz |
| Number of users | 510 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 6000 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Wireless LAN features | |
| Frequency band | 2.4 - 6 GHz |
| Network | |
| Number of users | 510 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Management features | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Firmware upgradeable | Yes |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Automatic channel selection | Yes |
| Frequency band | 2.4 - 6 GHz |
| Number of users | 510 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 6000 Mbit/s |
| Fast roaming | Yes |
| Automatic channel scanning | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4804 Mbit/s |
| BeamForming | Yes |
| Security | |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 5 dBi |
| Antenna direction type | Omni-directional |
| Technical details | |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Indication | |
| LED indicators | Yes |
| Software | |
| Automatic channel scanning | Yes |
| Access Control List (ACL) | Yes |
| Fast roaming | Yes |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 220 mm |
| Height | 32.5 mm |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Package type | Box |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Identifiers | |
| Distributor SKUs | 10449750, 88890, 9910224, 3860570, EAP683UR, CLEAP683UR, OSEAP683 UR, 18343953000 |
| Additional EANs | 8885020621938 |
