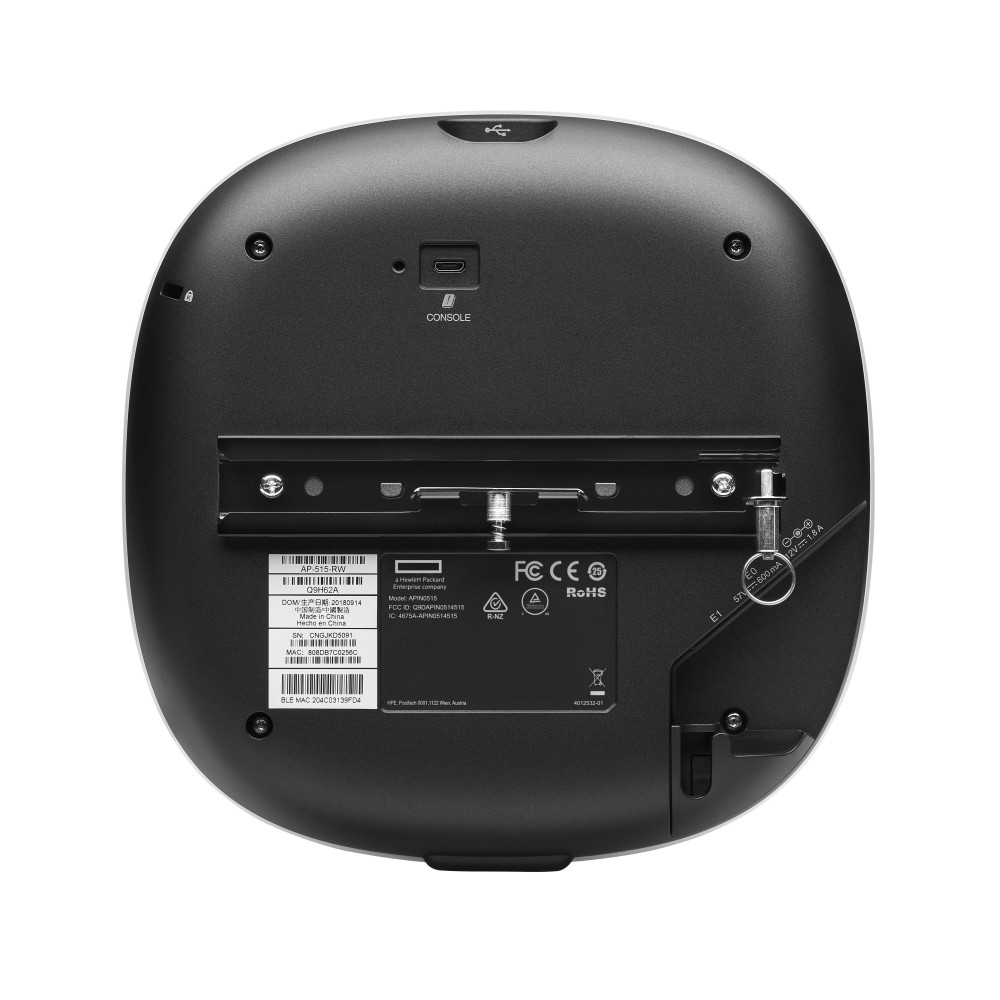

HPE Aruba AP-515 (RW) 802.11ax Unified Campus AP

HPE Aruba Networking AP-515 – Wi‑Fi 6 for dense campus spaces

We supply the HPE Aruba Networking AP-515 (RW) Dual Radio 4×4/2×2 802.11ax Internal Antennas Unified Campus AP for offices, training rooms and healthcare environments. It suits medium-density sites needing reliable Wi‑Fi 6 performance and strong security. The key benefit is up to 2.69 Gbps combined data rate for faster user experiences.

Core numbers at a glance

Efficient multi-user performance with Wi‑Fi 6

The AP supports OFDMA to serve multiple clients at once, cutting airtime contention in busy areas. This keeps video calls and clinical devices smooth during peak hours. Because it uses target wake time, compatible IoT endpoints can extend battery life. In practice, you get steadier performance across your floorplate.

Robust, modern wireless security

We see stronger posture with WPA3 and Enhanced Open for guest and password protection. Dynamic segmentation and policy enforcement help keep wired and wireless rules consistent automatically. The radio is Wi‑Fi CERTIFIED for a, b, g, n, ac and ax standards. So your mixed client base stays secure without complex tuning.

Fast, flexible wired connectivity

E0 is an HPE Smart Rate RJ‑45 port negotiating up to 2.5 Gbps for backhaul. E1 provides 1 Gbps BASE‑T for legacy links or daisy‑chains. Auto MDI/MDI‑X removes cable type worries during installs. This design suits sites moving to multi‑gigabit switching.

IoT‑ready with internal antennas

Internal omni‑directional antennas offer up to 7.5 dBi gain for clean coverage. A built‑in secondary radio supports Bluetooth 5 and Zigbee for sensors and beacons. The ceiling‑mount form factor blends into interiors. Mounting hardware and Kensington security slot add physical control.

Central management and zero‑touch setup

We support on‑premises, public cloud, VPC or as‑a‑service management models. Zero touch provisioning (ZTP) helps roll out units at remote sites with minimal onsite effort. For best results, run Instant OS 8.6.0.0 or later. This ensures unrestricted operation and feature access.

In the box

• HPE Aruba Networking AP‑515 (RW) access point
• Mounting kit for ceiling placement
• Quick installation guide

Before you order

• Confirm your switching supports PoE for 16 W typical draw
• Verify you have a 2.5 Gbps port ready for E0 Smart Rate uplink
• Check your management platform version supports Instant OS 8.6.0.0 or later
• Ensure ceiling mounting points suit the 200 × 200 × 46 mm unit

Frequently Asked Questions

Q: Does the AP-515 support WPA3?

A: Yes, it supports WPA3, WPA2 and Enhanced Open for stronger security.

Q: Can I power it with PoE?

A: Yes, it supports PoE and typically draws around 16 W.

Q: Is there a multi‑gigabit port?

A: Yes, E0 is an HPE Smart Rate port negotiating up to 2.5 Gbps.

Q: What management options are available?

A: You can manage it on‑premises, in public cloud, VPC or as‑a‑service.

Our verdict

We recommend this AP for medium‑density campus environments such as offices, training rooms and healthcare sites. It suits IT teams wanting Wi‑Fi 6 efficiency, IoT readiness and simple central management. Warranty cover varies by product, so please contact us to confirm.
