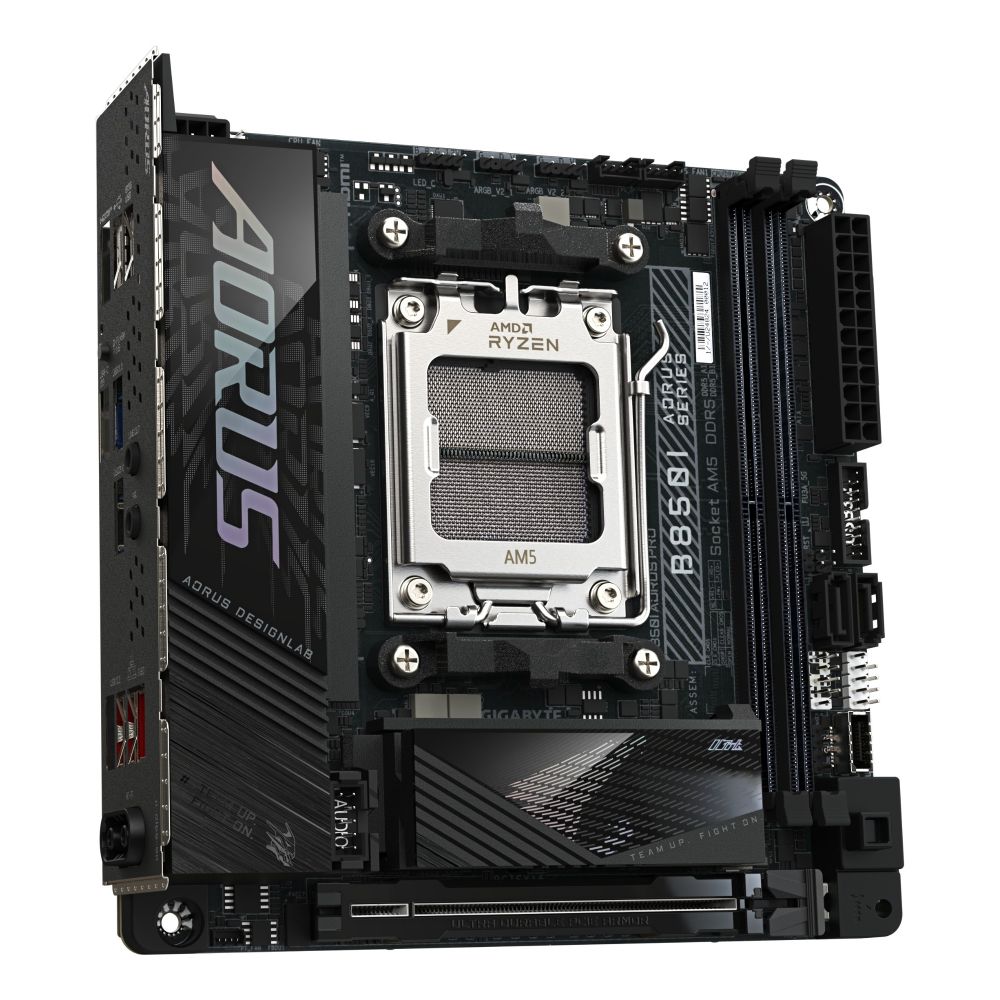

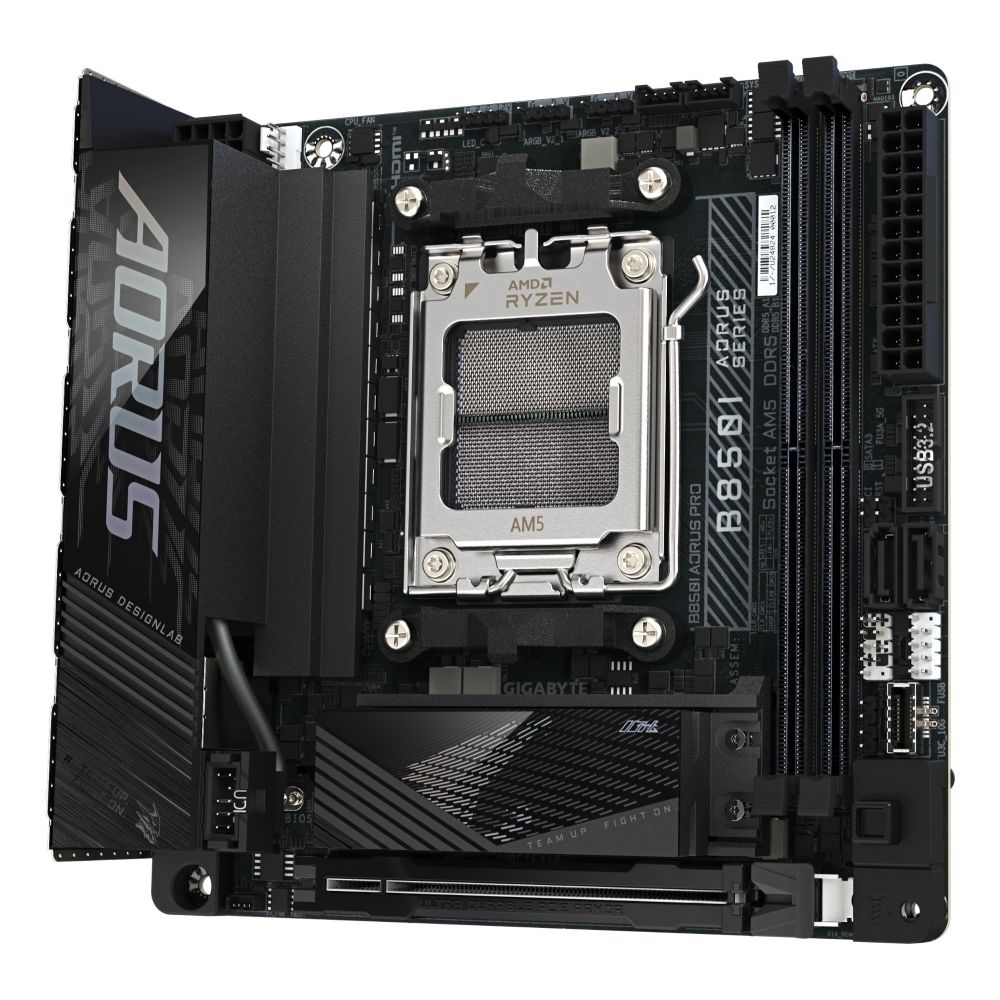

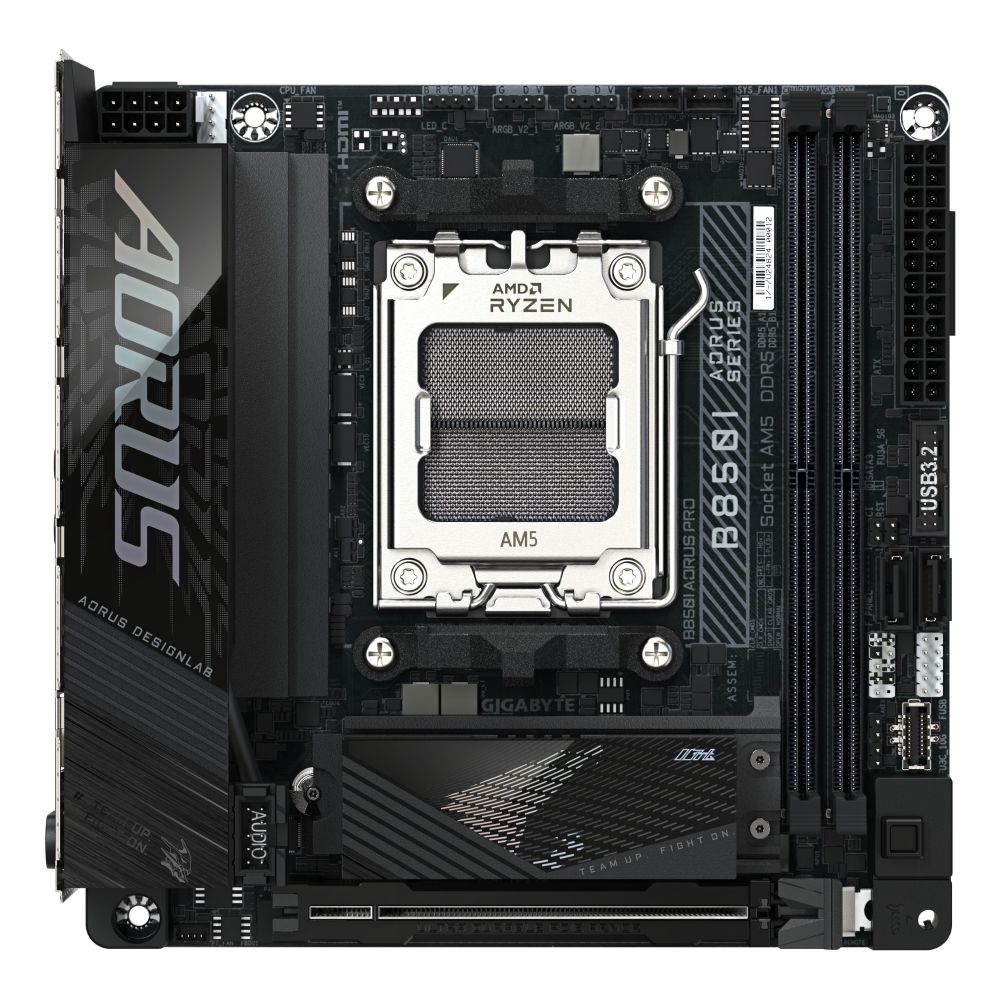

GIGABYTE B850I AORUS Pro Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0 M.2
£233.95 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- AMD Ryzen 9000 series CPU support
- DDR5 memory up to 8400MHz (OC)
- Mini ITX form factor with PCIe 5.0 M.2 slots
- Wi-Fi 7 and 2.5Gb Ethernet connectivity
- 7.1 channel audio with 128GB max memory
Payment Methods:
You may also like
GIGABYTE B650 GAMING X AX V2 Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0 M.2
In stock
GIGABYTE B850I AORUS PRO | Mini-ITX Powerhouse for Ryzen 9000
The GIGABYTE B850I AORUS PRO Motherboard delivers exceptional performance for AMD Ryzen 9000 Series CPUs in a compact mini-ITX form factor. With 8+2+1 phases digital VRM, support for up to 8400MHz DDR5 memory, and advanced connectivity including PCIe 5.0 and WiFi 7, this board offers premium features for high-performance compact builds.
Technical Specifications
| Metric | Spec |
|---|---|
| Form Factor | Mini-ITX |
| Memory Support | DDR5 up to 8400MHz (OC) |
| M.2 Slots | 1x PCIe 5.0, 1x PCIe 4.0 |
| VRM Design | 8+2+1 Phases Digital |

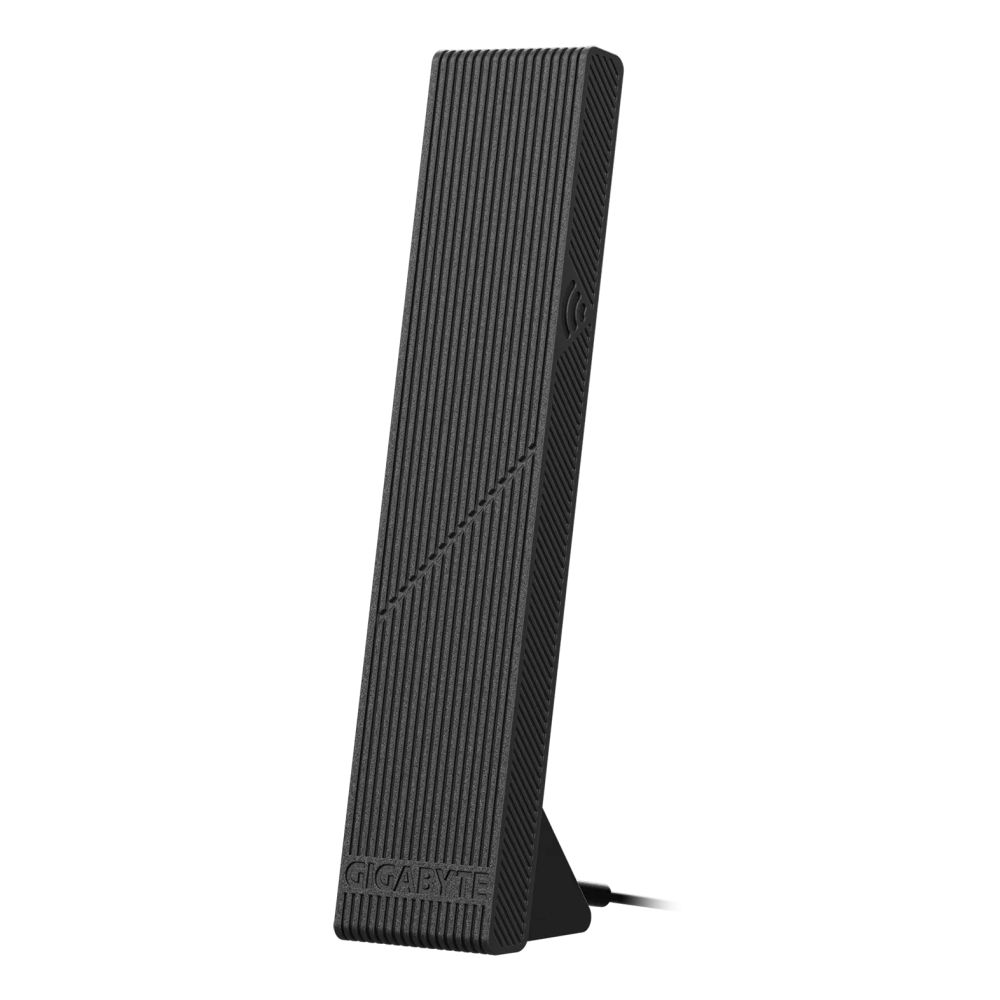

| WiFi | WiFi 7 + Bluetooth 5.4 |
Unmatched Performance in Compact Form
The B850I AORUS PRO packs impressive power delivery into its mini-ITX footprint. The 8+2+1 phases digital VRM design ensures stable power delivery to AMD Ryzen 9000 Series processors, even under heavy workloads. This robust power architecture enables sustained performance during demanding gaming sessions or content creation tasks, making it ideal for compact systems that don’t compromise on capability.
Blazing-Fast Memory and Storage
With support for DDR5 memory up to 8400MHz (when overclocked), this motherboard delivers exceptional memory bandwidth for demanding applications. The dual-channel memory architecture supports up to 128GB total capacity, providing ample headroom for future upgrades. Storage performance is equally impressive with one PCIe 5.0 M.2 slot offering the latest in NVMe SSD speeds, complemented by a PCIe 4.0 M.2 slot for additional storage options.
Next-Generation Connectivity

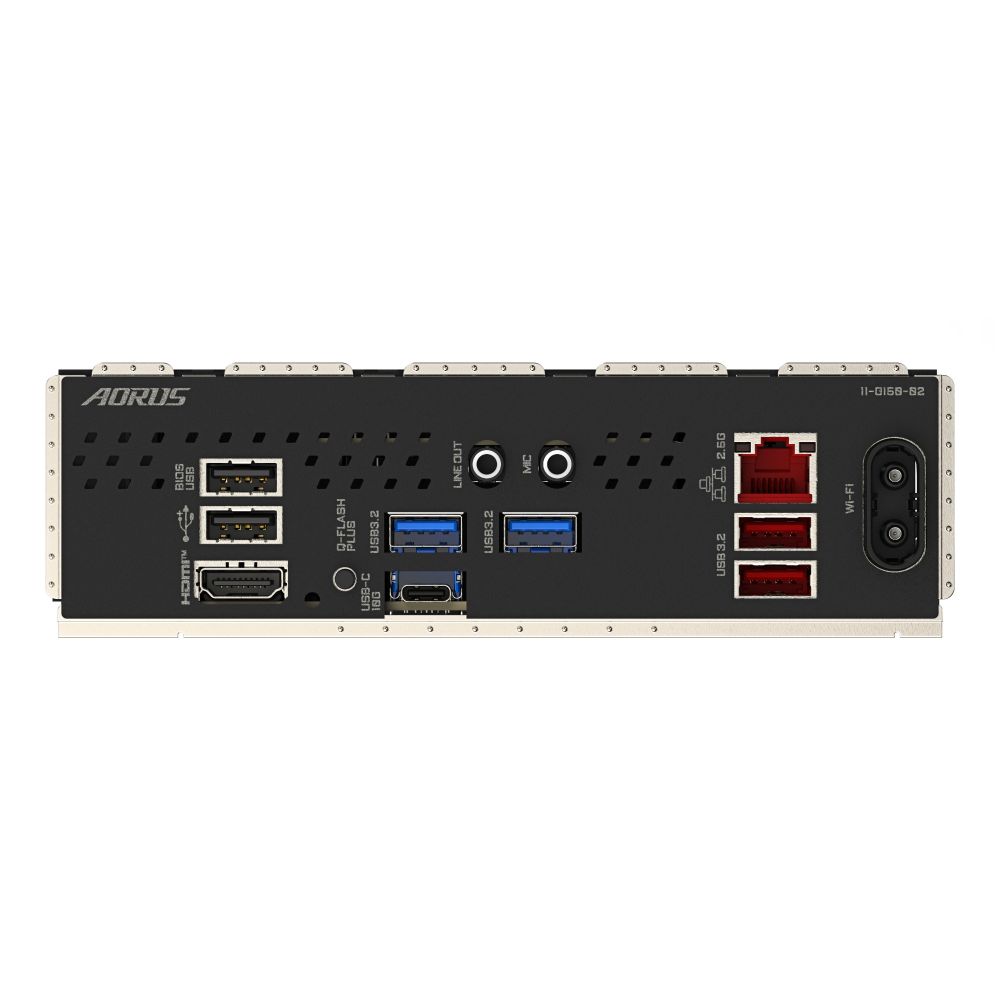

Stay connected with the latest wireless standards including WiFi 7 and Bluetooth 5.4, ensuring future-proof networking capabilities. The board features comprehensive rear I/O with USB 3.2 Gen 2 Type-C and Type-A ports, HDMI 2.1 for high-resolution displays, and a 2.5G LAN port for wired connectivity. Multiple RGB headers allow for extensive customisation of your build’s lighting scheme.
Advanced Thermal Design
Effective cooling is crucial in compact builds, and the B850I AORUS PRO delivers with its comprehensive thermal solution. The extended heatsink design covers critical components, while multiple fan headers (including CPU, system, and water pump) provide flexible cooling options. PC health monitoring tracks temperature, voltage, and fan speeds to maintain optimal operating conditions.

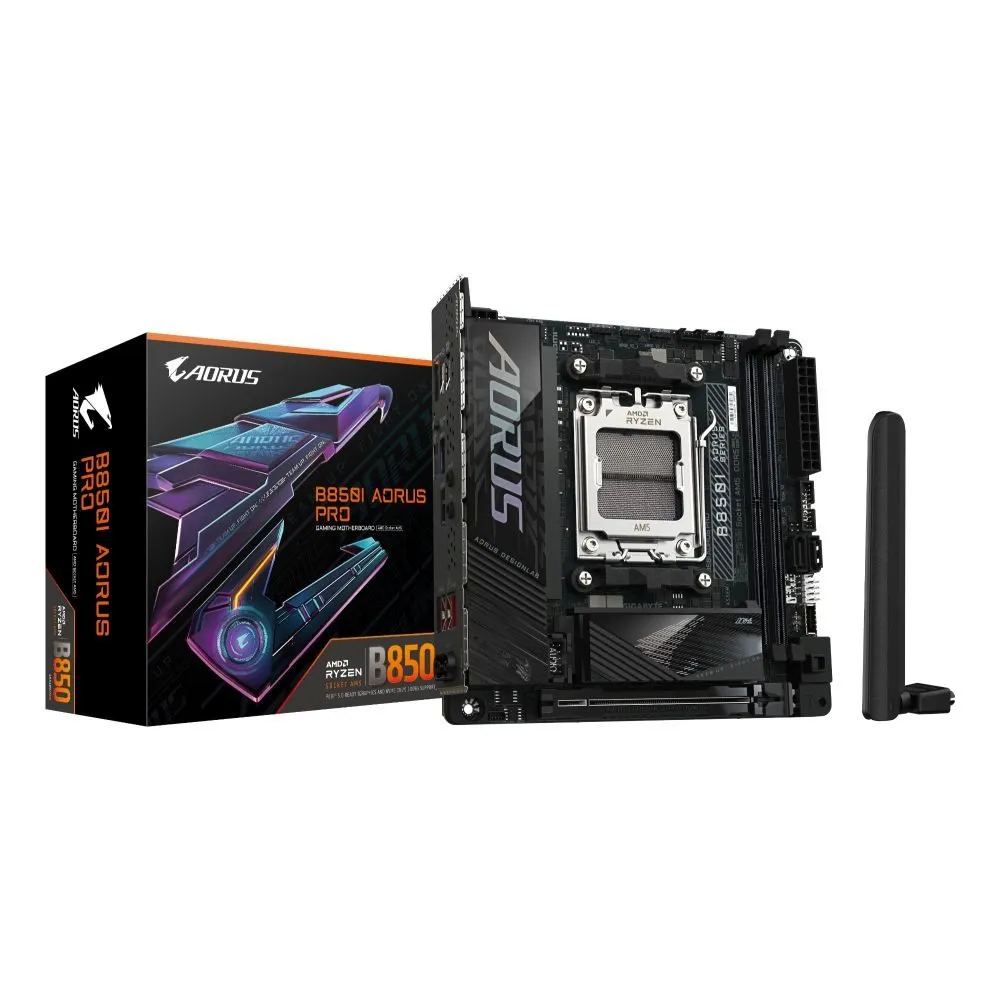

What Is in the Box
- GIGABYTE B850I AORUS PRO Motherboard
- I/O Shield
- M.2 Thermal Guard
- SATA Cables
- User Manual
- Warranty Registration Card
- Screws and Standoffs
Before you order
- Confirm your CPU is compatible with Socket AM5 and supports B850 chipset features
- Verify your case supports mini-ITX motherboard dimensions (170mm x 170mm)
- Check that your power supply has the required 24-pin ATX and 8-pin EPS connectors
- Ensure your DDR5 memory is on the motherboard’s QVL list for optimal stability
Buyer FAQs
Does this motherboard support Ryzen 9000 Series out of the box?
What’s the maximum memory speed supported?
How many M.2 slots are available?
Does it have built-in WiFi?
What form factor is this motherboard?
Summary & warranty
The GIGABYTE B850I AORUS PRO represents an excellent choice for enthusiasts building compact, high-performance systems with AMD Ryzen 9000 Series processors. Its combination of robust power delivery, fast memory support, and comprehensive connectivity makes it particularly suited for gaming and content creation in space-constrained environments. Covered by the applicable manufacturer warranty.
| Weight | 1.25 kg |
|---|---|
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| USB 3.2 Gen 2 3.1 Gen 2 connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| Number of SATA III connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors 8-pin | 1 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 4 |
| Total number of SATA connectors | 2 |
| Warranty period | 3 year(s) |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200,8400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 8400 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 10 |
| Number of storage drives supported | 4 |
| RAID support | Yes |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 2 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 2 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-C ports quantity | 1 |
| DisplayPort version | 2.1 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | Realtek RTL8922AE |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Product colour | Black, Brown |
| Number of M.2 M slots | 2 |
| PCI Express x16 Gen 5.x slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS SMBIOS version | 2.7 |
| Desktop Management Interface DMI version | 2.7 |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Windows operating systems supported | Windows 11 x64 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Products per shipping inner case | 1 pc(s) |
| Country of origin | China |
| Width | 170 mm |
| Depth | 170 mm |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Height | 35 mm |
| Weight | 1.3 kg |
