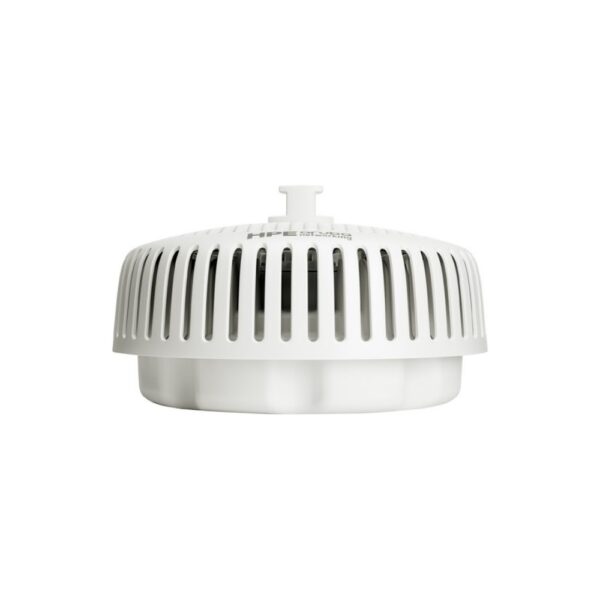

HPE Aruba AP-677 (RW) Wi-Fi 6E Tri-Radio Outdoor AP
£2,363.80 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Tri-radio Wi-Fi 6E outdoor access point with 2.4 GHz, 5 GHz and 6 GHz bands
- Up to 3.9 Gbps peak aggregate data rate and 160 MHz channels in 6 GHz
- Multi User MIMO and BeamForming support
- 2 x 2.5GbE RJ-45 ports, 1GbE SFP port and USB 2.0 interfaces
- PoE powered with max 45.5 W consumption and IP66/IP67 weatherproofing
- Internal omni-directional antennas for pole or wall placement
Payment Methods:
You may also like
HPE Aruba Networking AP-677 – Tri-Radio Wi-Fi 6E for Harsh Outdoor Use
We supply the HPE Aruba Networking AP-677 (RW) Tri Radio 2×2 Wi-Fi 6E Internal Directional Outdoor AP for robust wireless coverage in exposed UK sites. This unit suits campuses, transport hubs, and industrial estates needing reliable outdoor connectivity. Its main advantage is delivering up to 3.9 Gbps aggregate data rates using the 6 GHz band for low-latency, high-bandwidth applications.
The essentials
| Metric | Spec |
|---|---|
| Max data rate | 3,900 Mbit/s |
| Frequency bands | 2.4 GHz, 5 GHz, 6 GHz |
| Ethernet ports | 2 x RJ-45 (2.5GbE) |
| PoE support | Yes, Class 6 PD |
| Operating temperature | -40 °C to 70 °C |
| IP rating | IP66, IP67 |
Harnessing 6 GHz for outdoor capacity
The HPE Aruba Networking AP-677 (RW) Tri Radio 2×2 Wi-Fi 6E Internal Directional Outdoor AP supports 160 MHz channels in the 6 GHz band. This provides more than double the wireless capacity for HD video and AR/VR tasks. Because the 6 GHz band is less congested, you get cleaner links in busy outdoor areas.
Rugged design for challenging locations
We rate this AP for extreme conditions. It operates from -40 °C to 70 °C and carries IP66 and IP67 weatherproof ratings. The internal directional antenna suits pole or wall mounting, and the enclosure resists dust, rain, and temperature swings common across the UK.
Flexible wired connectivity
You get two Ethernet RJ-45 ports and an SFP fibre port for fast, reliable uplinks. The 2.5GbE port matches modern switches, while the SFP option supports longer runs. In practice, this helps backhaul high client loads without bottlenecks.
Integrated IoT and location features
High-power Bluetooth 5.0 and Zigbee radios are built in for industrial IoT sensors and beacons. An embedded GPS receiver supports self-locating, and the unit operates as a standard power (SP) device. So, you can deploy at scale with accurate site mapping.
Simplified management options
We support on-premises, public cloud, and virtual private cloud management. The AP runs HPE Aruba Networking Wireless Operating System, with specific versions for the 670 series. This lets you choose the control model that fits your network strategy.
Power and mounting details
Power over Ethernet (PoE) Class 6 PD keeps cabling simple and reduces local power points. The unit weighs 3.6 kg and has a white, low-profile housing for discreet placement. Confirm your PoE switch or injector meets the 45.5 W maximum consumption.
Before you order
- Confirm your PoE infrastructure supplies Class 6 PD power.
- Verify mounting surface suits pole or wall placement.
- Check switch SFP port type matches your fibre needs.
- Review site conditions for the -40 °C to 70 °C range.
Frequently Asked Questions
Q: Does this AP support 6 GHz in Instant OS?
A: No, Instant OS 8.12.0.0 does not support 6 GHz on the AP-677.
Q: Can I mount it on a street lighting column?
A: Yes, the unit is designed for pole or wall mounting with IP66/67 protection.
Q: What wired uplink speeds are available?
A: You get 2.5GbE and 1GbE SFP ports for flexible, fast connectivity.
Q: Is this suitable for industrial sites?
A: Yes, it is weatherproof, temperature hardened, and includes Bluetooth and Zigbee for IoT.
Who this AP is for
We recommend this AP for UK organisations needing durable outdoor Wi-Fi 6E with high capacity. It suits campuses, transport nodes, and industrial estates with IoT demands. Warranty cover varies by product, so please contact us to confirm.
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 2500,5000 Mbit/s |
| Maximum data transfer rate | 3900 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Reset button | Yes |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), peak and maximum peak data rate 3.9 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ethernet LAN data rates | 2500,5000 Mbit/s |
| Certification | Wi‑Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6) Class 1 Div 2 (EX models only) ATEX Zone 2 (EX models only) IECEx (EX models only) |
| Maximum data transfer rate | 3900 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10.7.0.0 (AP-675, AP-677) HPE Aruba Networking Wireless Operating System 10.7.1.0 (AP-674, AP-679) HPE Aruba Networking Wireless Operating System 8.12.0.0 (Only AP-675, AP-677, and AP-679) HPE Aruba Networking Instant OS 8.12.0.0 (Only AP-675, AP-677, and AP-679, no 6 GHz support with Instant OS) |
| Wireless LAN features | |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), peak and maximum peak data rate 3.9 Gbps |
| Network | |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ports & interfaces | |
| I/O ports | Ethernet wired network port (RJ-45) SFP Fiber port USB 2.0 host interface (Type C connector) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, USB-C physical jack) |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), peak and maximum peak data rate 3.9 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ethernet LAN data rates | 2500,5000 Mbit/s |
| Maximum data transfer rate | 3900 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 287 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Maximum data transfer rate (6 GHz) | 2400 Mbit/s |
| BeamForming | Yes |
| MACsec support | No |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10.7.0.0 (AP-675, AP-677) HPE Aruba Networking Wireless Operating System 10.7.1.0 (AP-674, AP-679) HPE Aruba Networking Wireless Operating System 8.12.0.0 (Only AP-675, AP-677, and AP-679) HPE Aruba Networking Instant OS 8.12.0.0 (Only AP-675, AP-677, and AP-679, no 6 GHz support with Instant OS) |
| Management features | |
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Power | |
| Power consumption (max) | 45.5 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| International Protection (IP) code | IP66, IP67 |
| Placement | Pole, Wall |
| Product colour | White |
| Reset button | Yes |
| Certification | Wi‑Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6) Class 1 Div 2 (EX models only) ATEX Zone 2 (EX models only) IECEx (EX models only) |
| Recommended usage | Outdoor |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Technical details | |
| Reset button | Yes |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Certificates | |
| Certification | Wi‑Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6) Class 1 Div 2 (EX models only) ATEX Zone 2 (EX models only) IECEx (EX models only) |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Weight & dimensions | |
| Width | 290 mm |
| Depth | 288 mm |
| Weight | 3.6 kg |
| Height | 171 mm |
| Other features | |
| I/O ports | Ethernet wired network port (RJ-45) SFP Fiber port USB 2.0 host interface (Type C connector) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, USB-C physical jack) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 100% |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 100% |
| Operating altitude | 0 - 3000 m |
| System requirements | |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10.7.0.0 (AP-675, AP-677) HPE Aruba Networking Wireless Operating System 10.7.1.0 (AP-674, AP-679) HPE Aruba Networking Wireless Operating System 8.12.0.0 (Only AP-675, AP-677, and AP-679) HPE Aruba Networking Instant OS 8.12.0.0 (Only AP-675, AP-677, and AP-679, no 6 GHz support with Instant OS) |
| Identifiers | |
| Distributor SKUs | CK22406, CLS0P56A |
