GIGABYTE X870 EAGLE WIFI7 Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0, Wi-Fi 7, 2.5GbE LAN

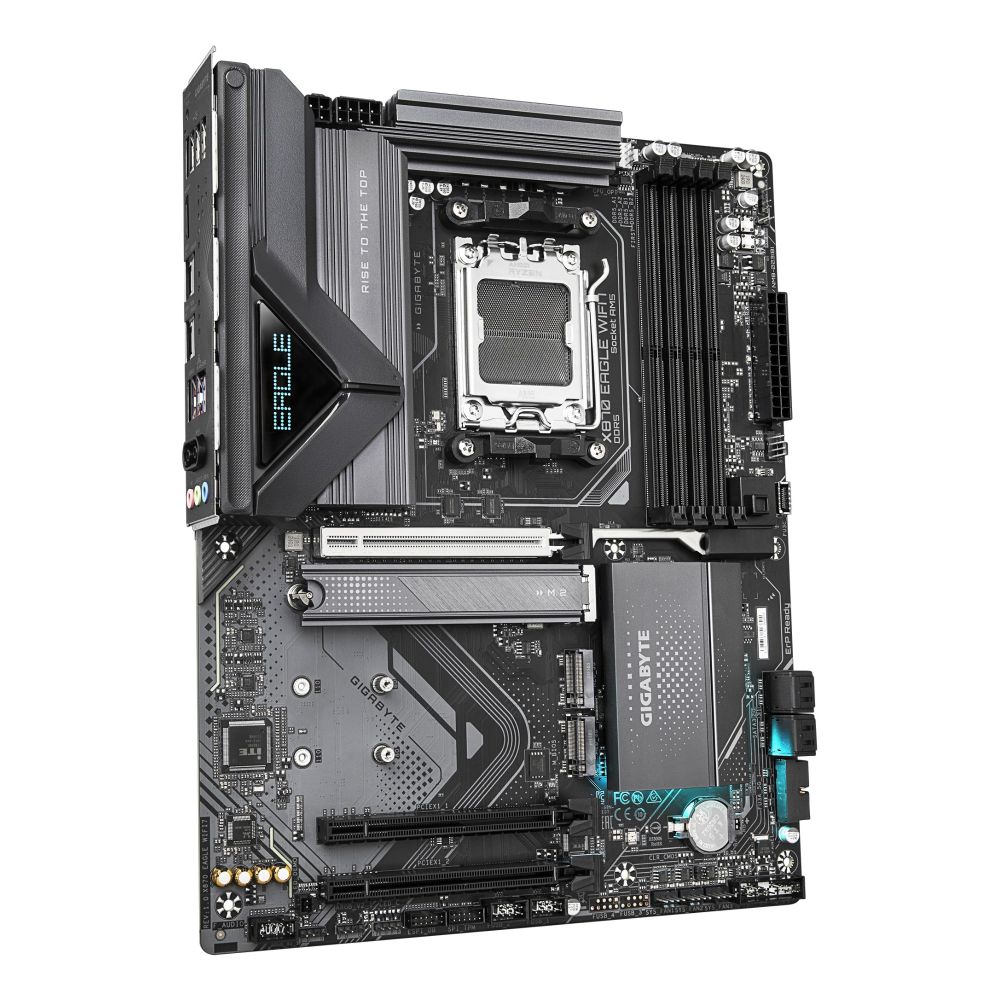

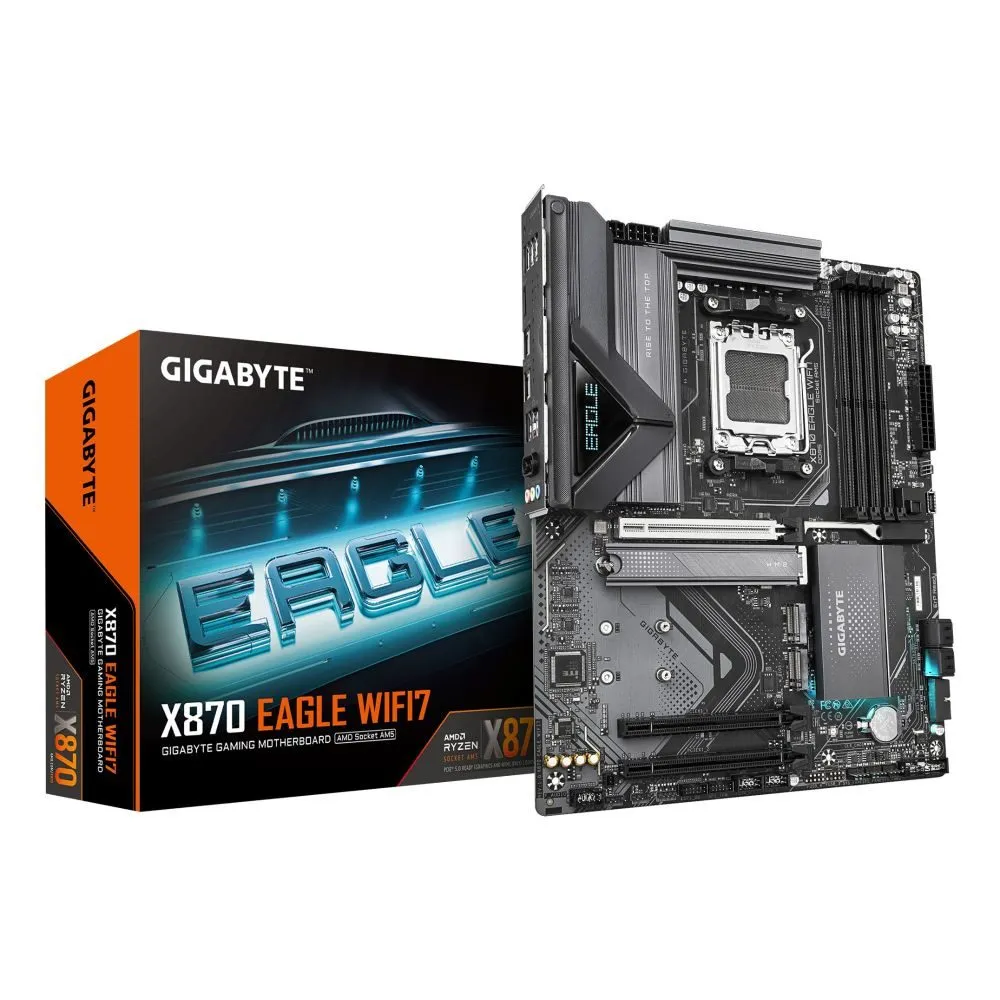

GIGABYTE X870 EAGLE WIFI7 | AMD Ryzen 9000 Ready Performance

The GIGABYTE X870 EAGLE WIFI7 Motherboard delivers cutting-edge performance for AMD Ryzen 9000 CPUs with 14+2+2 phases VRM, DDR5 memory support up to 8000MHz (OC), and next-gen connectivity including Wi-Fi 7 and PCIe 5.0. This ATX motherboard combines robust power delivery with comprehensive cooling and future-ready expansion options for serious PC builders.

Key Specifications

Next-Gen Performance for AMD Ryzen 9000

Built specifically for AMD’s Ryzen 9000 Series processors, this X870 motherboard features a robust 14+2+2 phase VRM design that ensures stable power delivery even under heavy workloads. The advanced power architecture maintains optimal CPU performance during intensive tasks, making it ideal for gaming, content creation, and professional applications.

Ultra-Fast DDR5 Memory Support

With support for DDR5 memory up to 8200MHz (OC), this motherboard enables blazing-fast system responsiveness. The quad-channel DDR5 architecture provides ample bandwidth for demanding applications, while the dual-channel configuration optimizes performance for mainstream use. Whether you’re running memory-intensive software or pushing frame rates in games, the high-speed memory support delivers exceptional results.

Comprehensive Storage and Expansion

The X870 EAGLE WIFI7 offers extensive storage options with three M.2 slots supporting PCIe 5.0 and 4.0, plus four SATA III ports. This configuration supports up to seven storage drives total, giving you flexibility for high-speed NVMe SSDs and traditional HDDs. The PCIe 5.0 slot provides future-proof graphics card support, while the additional PCIe 4.0 slots accommodate expansion cards for enhanced functionality.

Advanced Connectivity Features

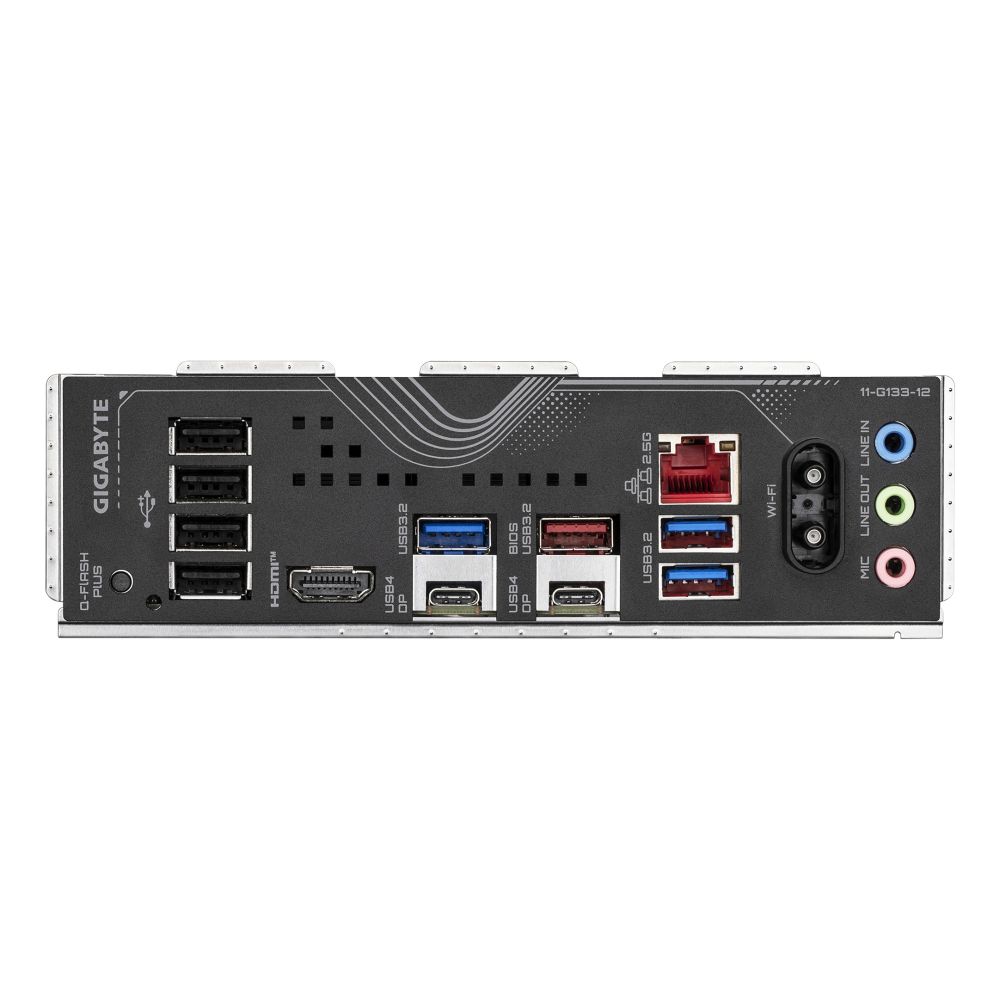

Stay connected with Wi-Fi 7 (802.11be) technology offering faster speeds and lower latency than previous generations. The 2.5GbE LAN port ensures reliable wired connections for online gaming and large file transfers. USB 4 ports provide versatile connectivity for high-speed peripherals, while the comprehensive rear I/O panel includes multiple USB ports, HDMI 2.1, and DisplayPort 1.4 for all your connectivity needs.

Superior Audio and Cooling Solutions

Experience immersive 7.1 channel audio through the Realtek ALC897 codec, perfect for gaming and multimedia. The motherboard includes four chassis fan headers, two CPU fan headers, and a dedicated water pump connector for comprehensive cooling management. RGB LED headers allow for customizable lighting effects to match your build aesthetics.

Box contents

• GIGABYTE X870 EAGLE WIFI7 Motherboard
• I/O Shield
• M.2 Thermal Guard
• SATA Cables
• User Manual
• Driver Disk
• Warranty Card
• Screws
• Antennas

Check before you buy

• Confirm your CPU is compatible with Socket AM5 (AMD Ryzen 7000/8000/9000 Series)
• Verify your case supports ATX motherboard dimensions (305mm x 244mm)
• Check that your power supply has the required 24-pin ATX and 8-pin EPS connectors
• Confirm your DDR5 memory is on the motherboard’s qualified vendor list for optimal stability

Frequently Asked Questions

Q: What processors are supported by this motherboard?

A: This motherboard supports AMD Ryzen 7000, 8000, and 9000 Series processors using the Socket AM5 platform.

Q: How many M.2 slots does this motherboard have?

A: The motherboard features three M.2 slots – one PCIe 5.0 and two PCIe 4.0 slots for high-speed storage.

Q: Does this motherboard support Wi-Fi 7?

A: Yes, it includes built-in Wi-Fi 7 (802.11be) with dual antennas for the latest wireless connectivity standards.

Q: What is the maximum memory speed supported?

A: The motherboard supports DDR5 memory up to 8200MHz (OC) with a maximum capacity of 256GB across four DIMM slots.

Q: Is this motherboard suitable for overclocking?

A: Yes, with its robust VRM design and comprehensive cooling options, this motherboard is well-suited for overclocking both CPU and memory.

The Consultant’s verdict & warranty

The GIGABYTE X870 EAGLE WIFI7 represents a solid foundation for AMD Ryzen 9000 builds, offering excellent power delivery, extensive connectivity options, and future-proof expansion capabilities. Its combination of PCIe 5.0 support, Wi-Fi 7, and robust VRM design makes it particularly suitable for enthusiasts and professionals seeking reliable performance. Covered by the standard Manufacturer Warranty.
