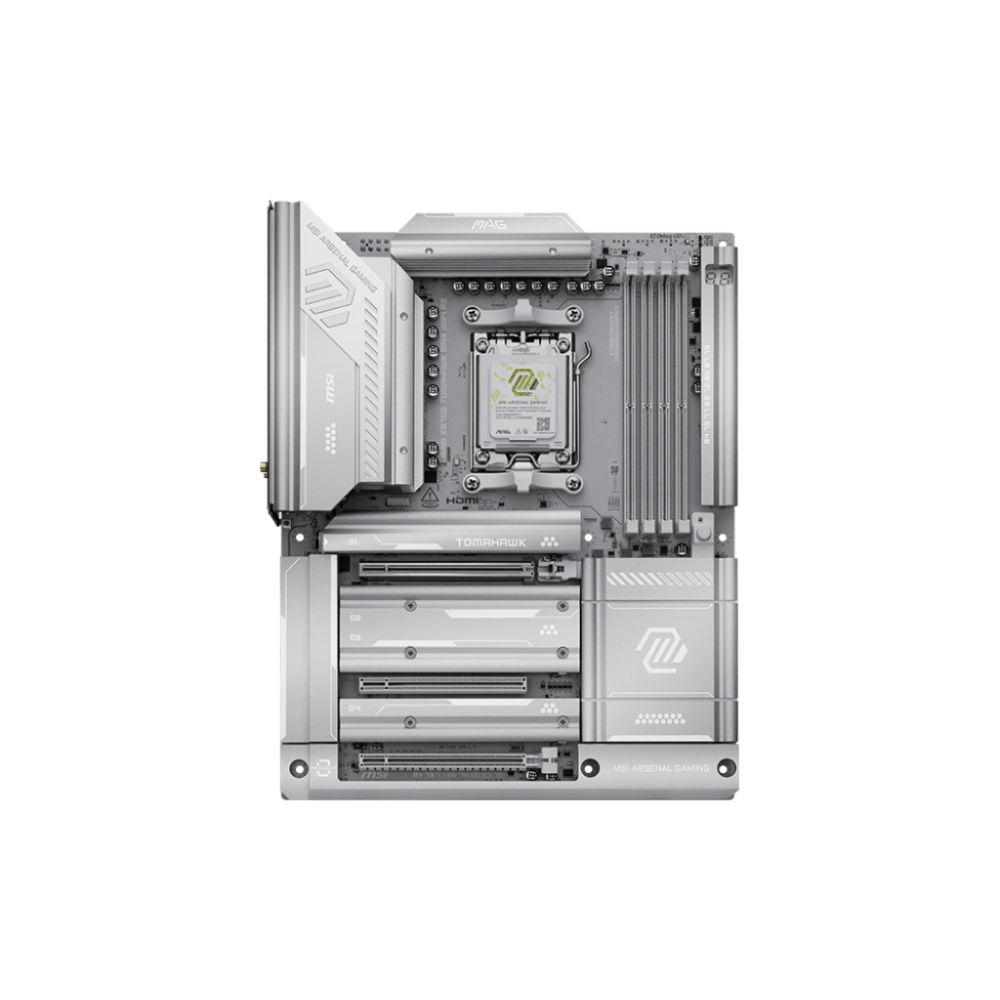

MSI MAG X870E TOMAHAWK MAX WIFI PZ ATX AM5 Motherboard

MSI MAG X870E TOMAHAWK MAX WIFI PZ | ATX Back-Connect Motherboard

The MSI MAG X870E TOMAHAWK MAX WIFI PZ motherboard AMD X870E Socket AM5 ATX is built for UK gamers and creators using AMD Ryzen 9000, 8000, or 7000 Series processors. It offers a back-connect design for cleaner builds, Wi-Fi 7, and 5G LAN. This board focuses on stability and DIY-friendly features for high-performance systems.

Slim Technical Overview

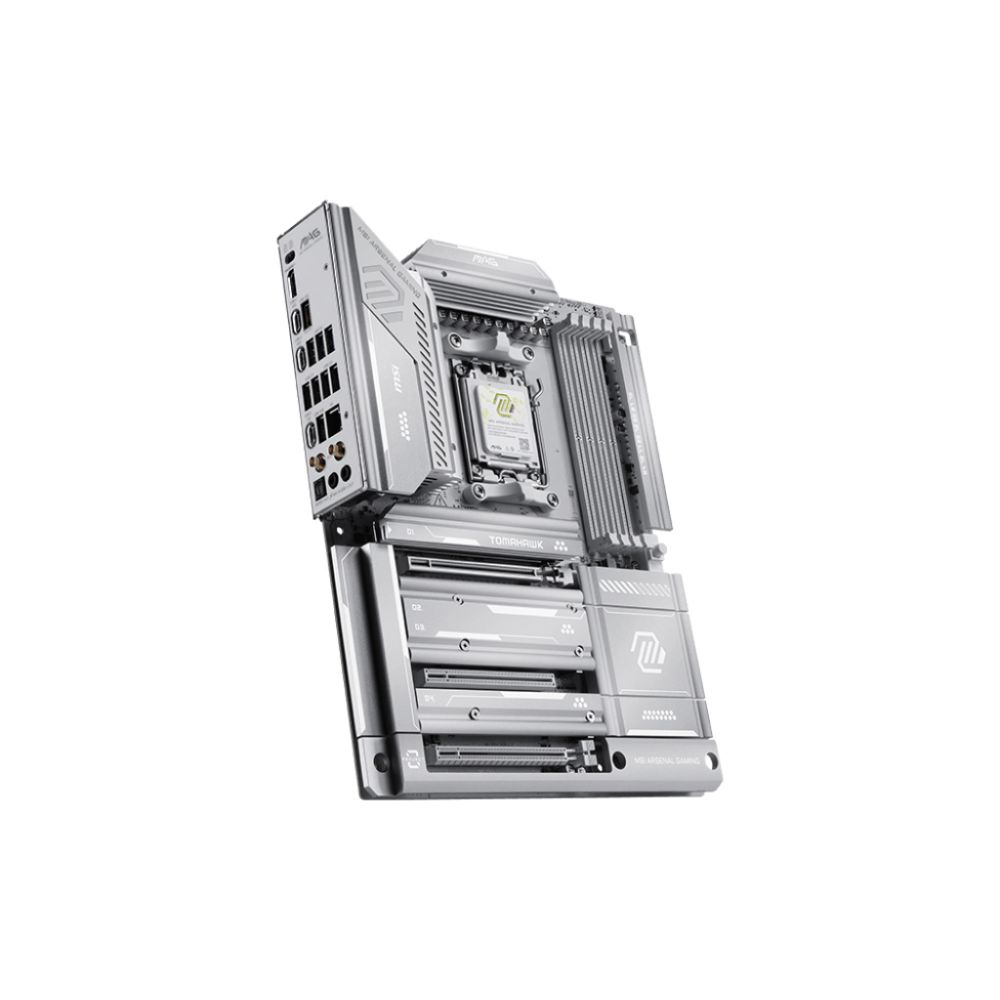

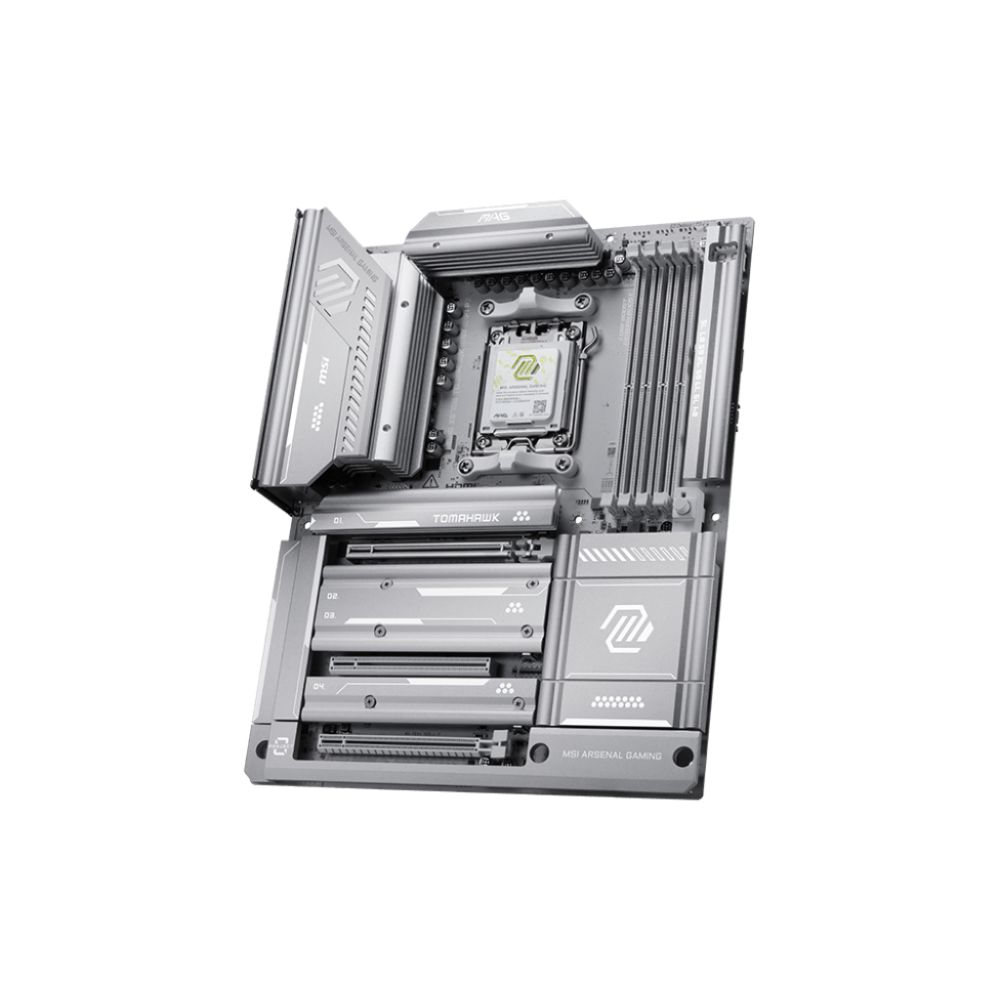

Back-Connect Design for Clean Builds

The MAG X870E TOMAHAWK MAX WIFI PZ relocates major connectors to the rear. This includes power, fan headers, and SATA ports. Consequently, cable management is simpler. Your system interior looks tidier and airflow improves.

Future-Ready Connectivity

This board features USB4 (40Gbps), 5G LAN, and Wi-Fi 7. You get fast wired and wireless options. However, always confirm your router supports Wi-Fi 7 to use the top speed. Also, verify your UK network infrastructure handles 5G Ethernet.

High-Speed Storage and RAID

You receive four M.2 slots, with two supporting PCIe 5.0 speeds. Four SATA ports allow for HDDs or SSDs. RAID 0, 1, and 10 are supported for data redundancy or performance. Check your specific drive compatibility before purchase.

Robust Power and Cooling

The board uses an aggressive VRM design with 8+8 pin CPU power connectors. Core Boost technology helps sustain heavy loads. PC health monitoring covers CPU, fan, temperature, and voltage. Ensure your case has adequate cooling for the VRM area.

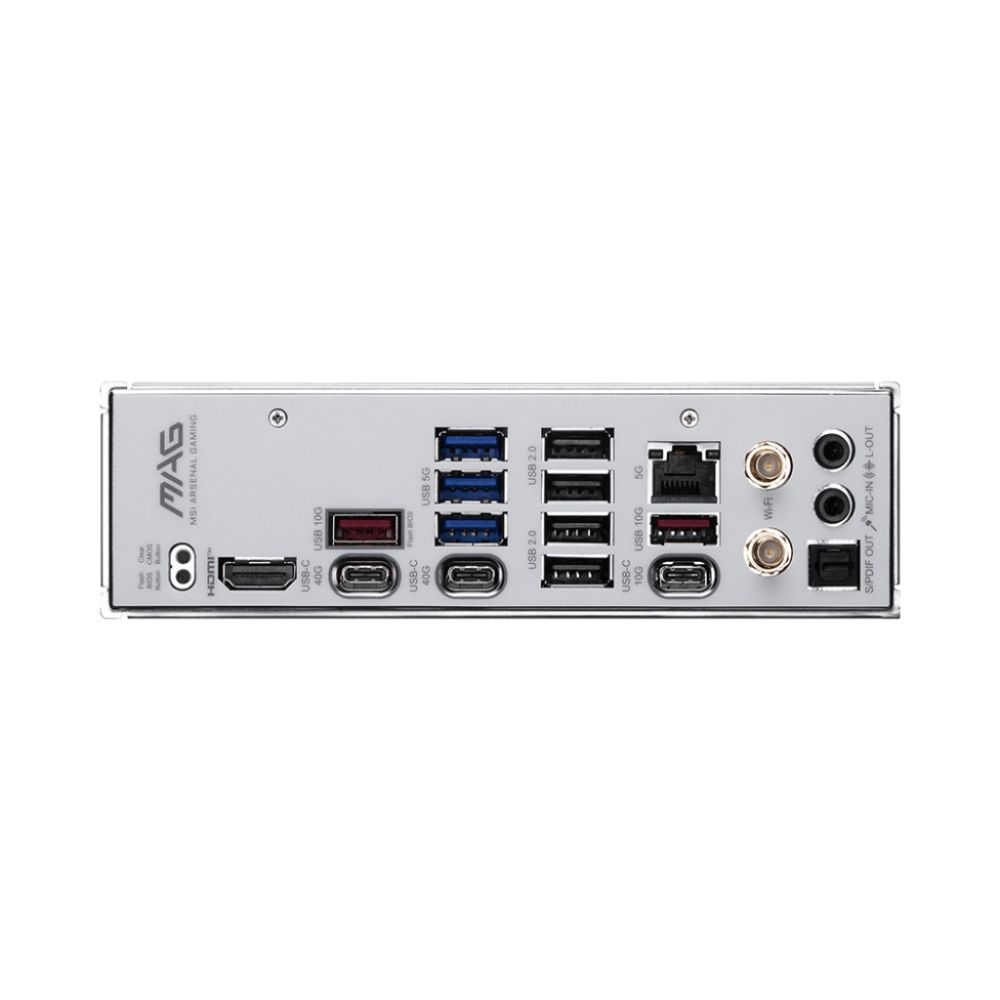

Audio and Visual Outputs

It supports 7.1-channel audio via S/PDIF and analogue jacks. For integrated graphics, you get one HDMI 2.1 port and two DisplayPort 1.4 outputs. Note that the board has no onboard graphics; a dedicated GPU is required for gaming.

DIY-Friendly Features

MSI includes EZ DIY features for easier assembly. The back-connect design reduces front-side cable clutter. However, your PC case must support this motherboard layout. Confirm case compatibility before buying.

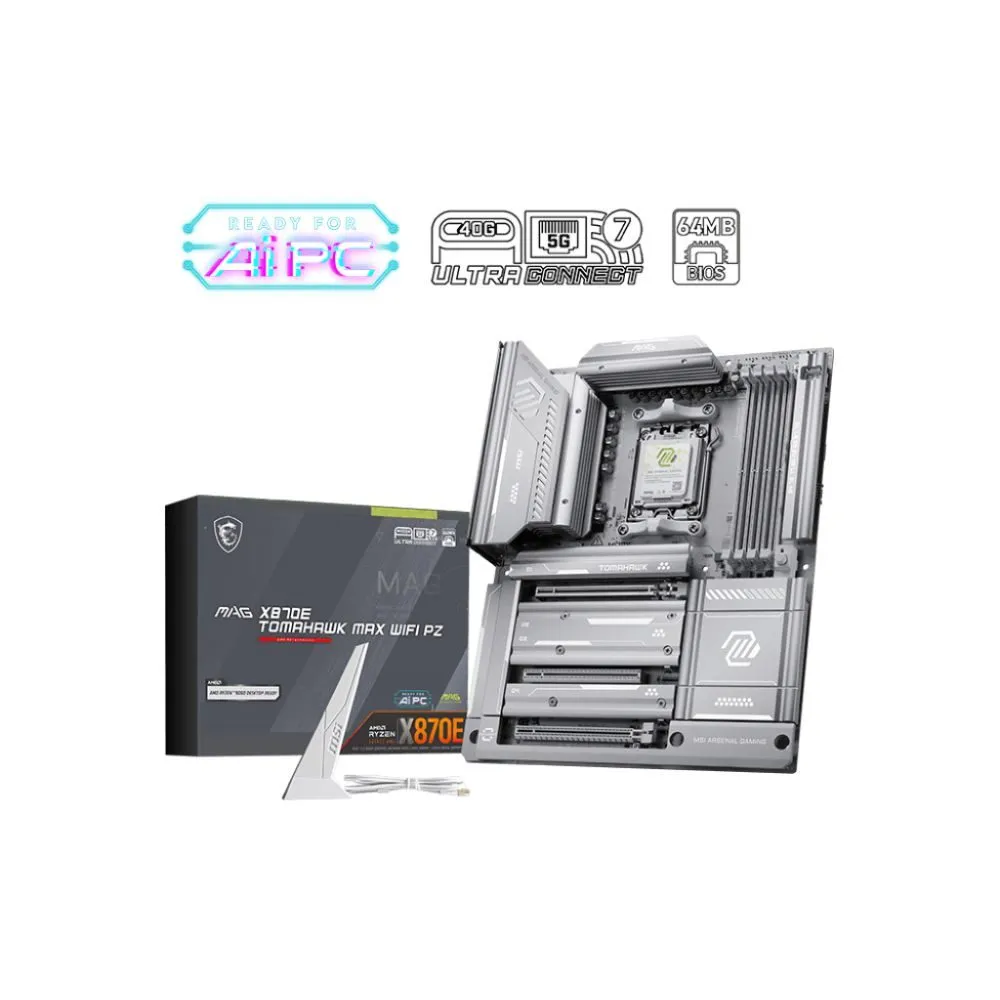

What is in the box

• 1 x MSI MAG X870E TOMAHAWK MAX WIFI PZ motherboard
• 2 x SATA cables
• 1 x Wi-Fi 7 antenna
• 1 x I/O shield
• 1 x M.2 screw package
• 1 x Quick start guide
• 1 x Driver USB

Check before you buy

• Confirm your PC case supports ATX back-connect motherboard layouts.
• Verify your power supply has a 24-pin ATX and 8+8 pin EPS connector.
• Ensure your CPU is an AMD Ryzen 7000, 8000, or 9000 Series for compatibility.
• Check that your Wi-Fi router supports Wi-Fi 7 to use the top wireless speed.

Questions and answers

Is it worth it?

The MSI MAG X870E TOMAHAWK MAX WIFI PZ is ideal for UK gamers and creators building a high-end AMD system with clean aesthetics and future-proof connectivity. It suits users who value back-connect cable management, Wi-Fi 7, and PCIe 5.0 support. Covered by the applicable manufacturer warranty.
