Ubiquiti UISP WAVE-AP-MICRO 5000 Mbit/s White Bridge/Repeater

Ubiquiti UISP WAVE-AP-MICRO | High-Frequency Bridge

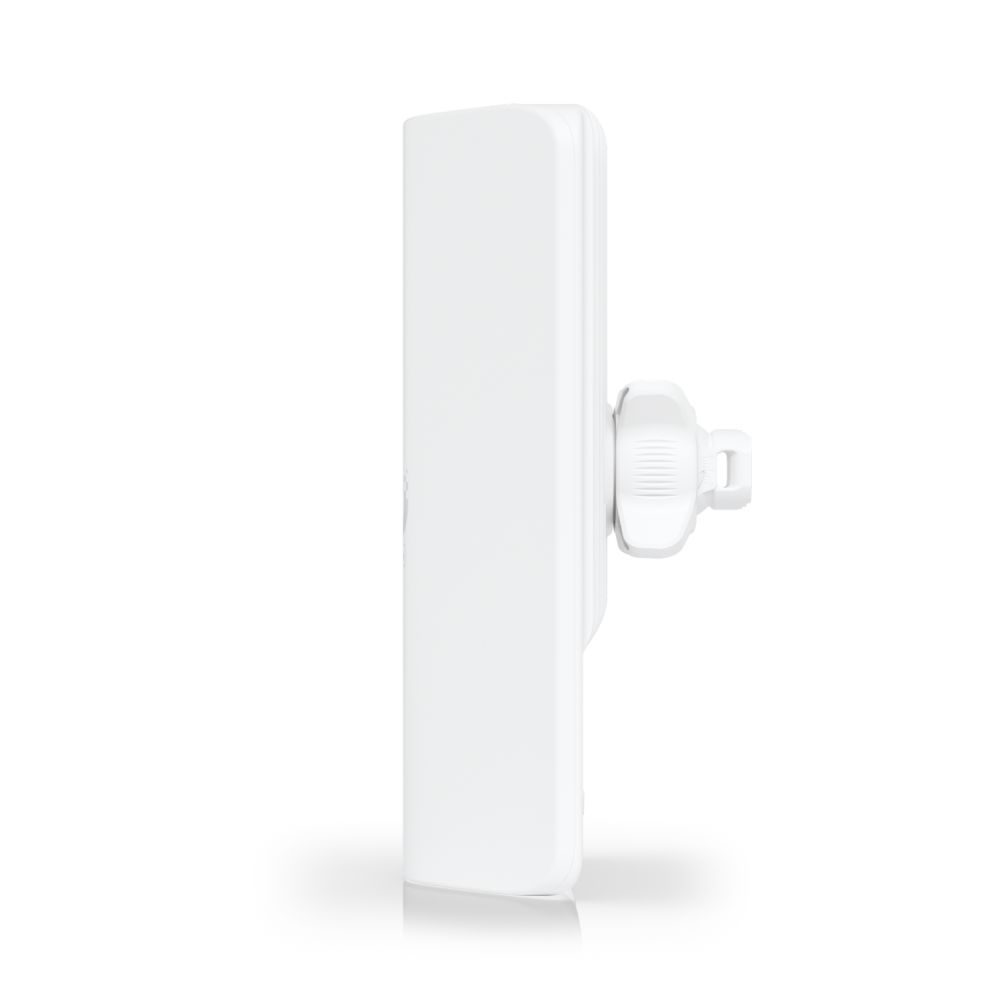

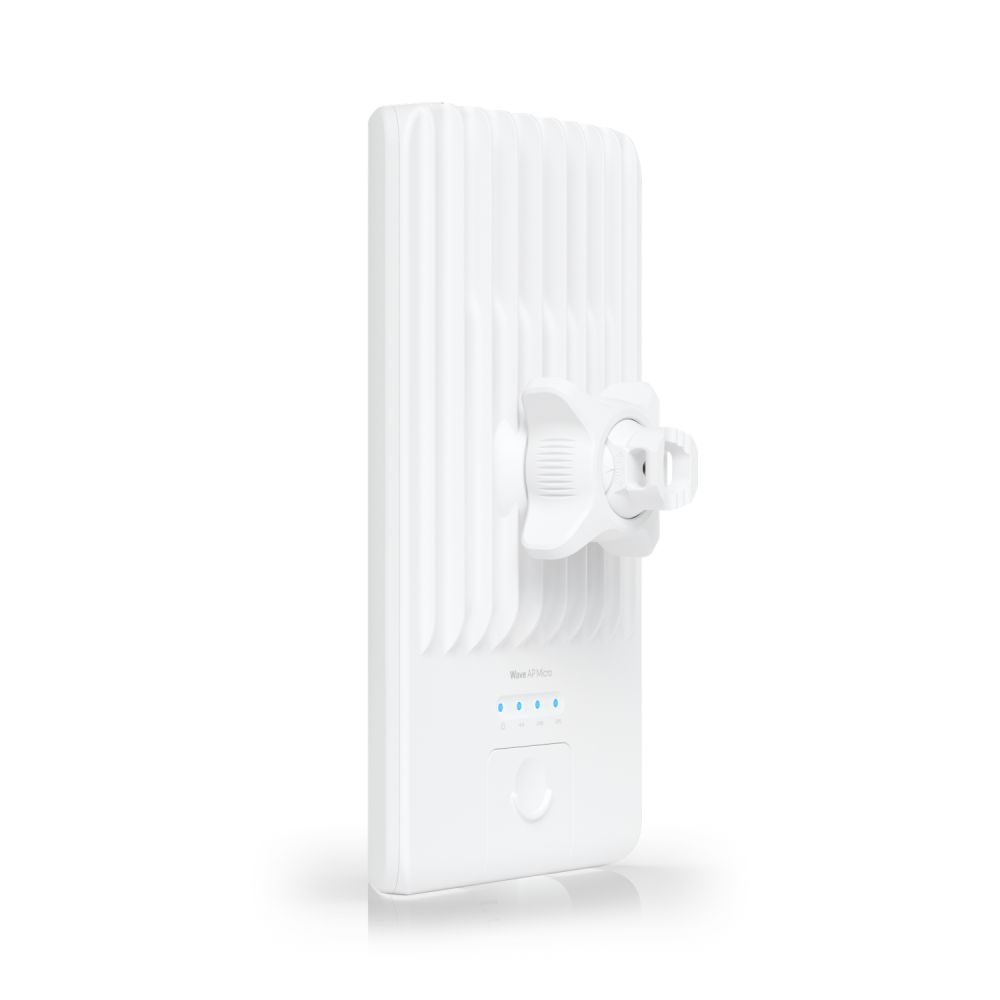

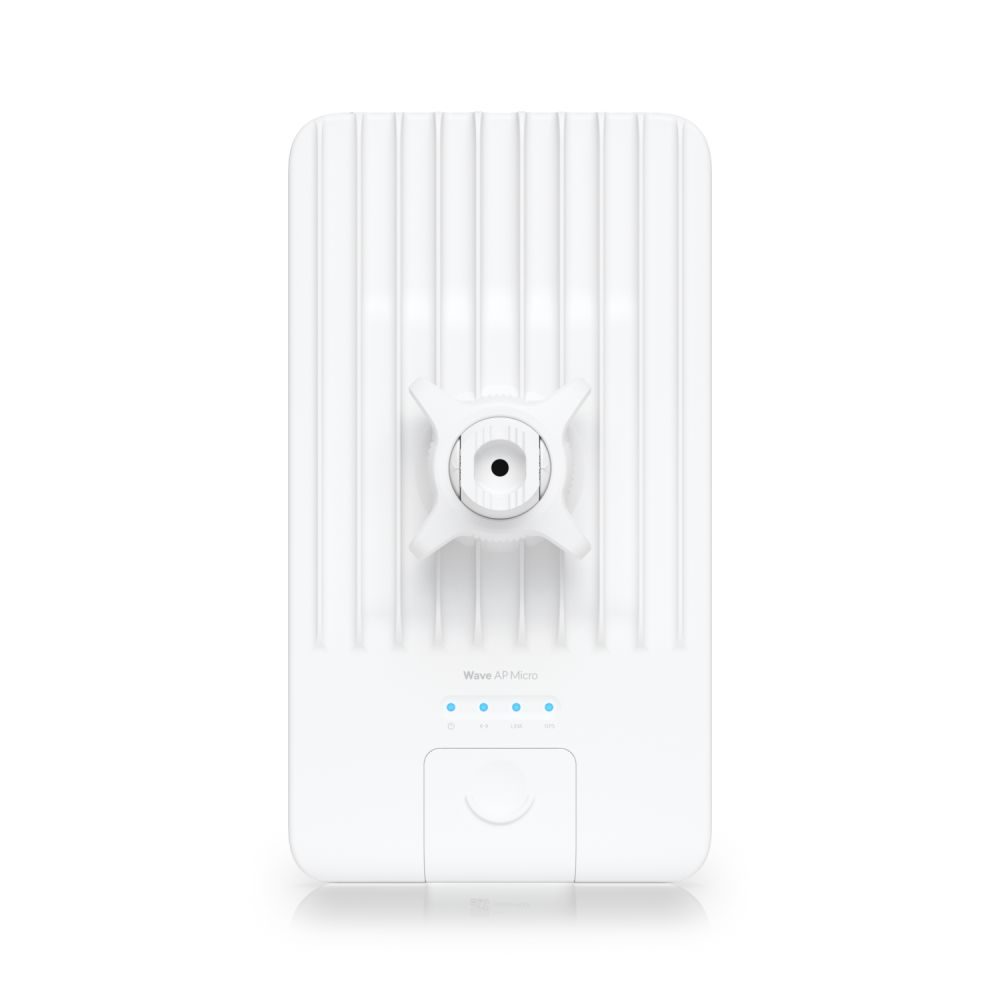

The Ubiquiti UISP WAVE-AP-MICRO bridge/repeater 5000 Mbit/s White is a compact, high-throughput solution for short-to-medium distance point-to-point links. It targets UK network administrators needing reliable 5 Gbps connectivity. This device uses the 57–71 GHz band for primary data transport and includes a 5 GHz backup radio for resilience. Setup is simplified via Bluetooth and the UISP® Mobile app.

Ubiquiti UISP WAVE-AP-MICRO bridge/repeater 5000 Mbit/s White

This section details the core operational benefits of the Wave AP Micro. It delivers 5 Gbps total throughput (2.5 Gbps duplex). It supports up to 15 connected stations. The internal antenna provides 20 dBi gain. Because it uses the 57–71 GHz band, line-of-sight is essential. The 5 GHz backup radio ensures continuity if the primary link is obstructed. In practice, this is ideal for connecting buildings or remote equipment.

Slim Technical Profile

Resilient Multi-Radio Architecture

The primary 57–71 GHz radio handles high-speed data transport. However, the integrated 5 GHz backup radio provides failover connectivity. This ensures your network remains active during minor obstructions or interference. The device also features a Bluetooth radio for initial commissioning. So, you can configure the link quickly using a mobile device on-site.

Rugged Outdoor Deployment

This unit is built for harsh UK weather. It carries an IPX6 rating, meaning it resists powerful water jets. The operating temperature range is -40 to 60 °C. Also, it operates in humidity from 5% to 95%. This makes it suitable for exposed roof mounts or remote mast installations. Always verify your mounting hardware is compatible with the 1.3 kg unit.

Simplified Management & Security

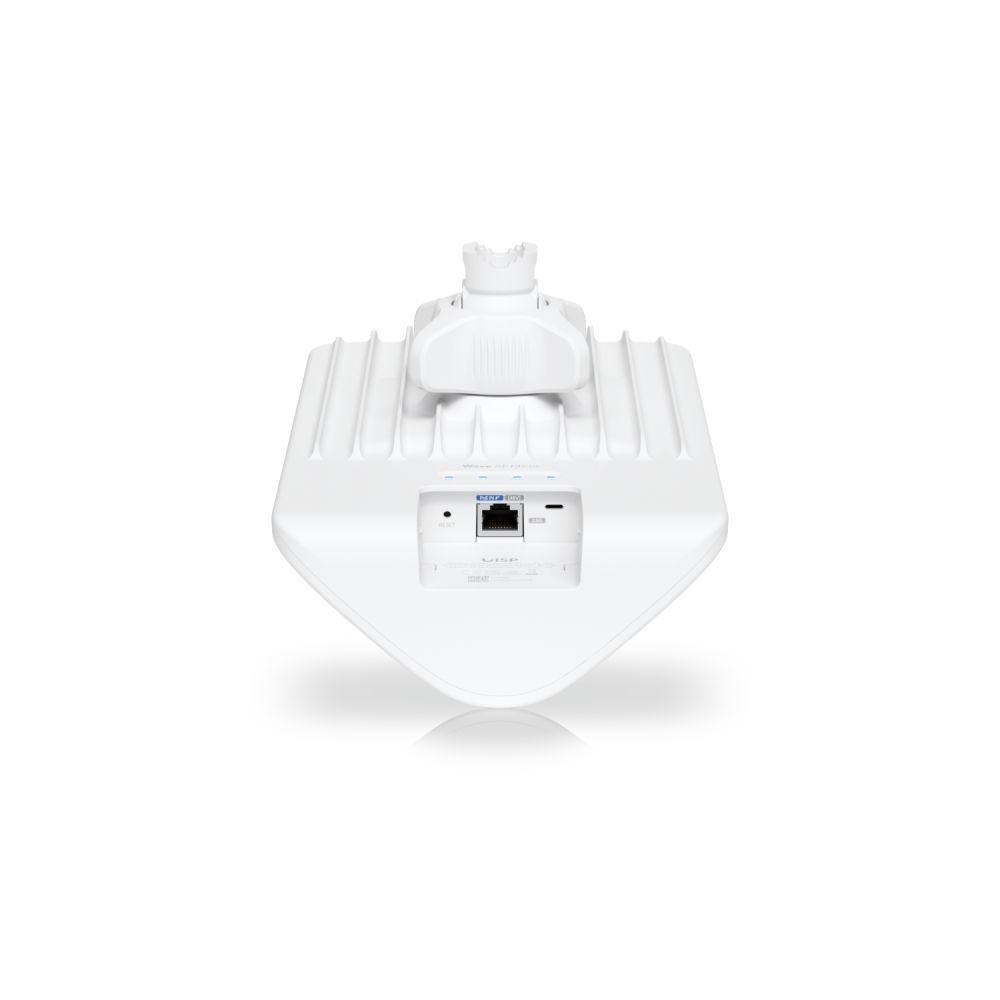

Setup is managed via the UISP® Mobile app over Bluetooth. The device uses ARM Cortex-A53 processing at 1.4 MHz. Security is handled by AES and WPA2-PSK algorithms. For power, it supports PoE (Power over Ethernet). This reduces the need for local mains power at the antenna point. The single RJ-45 port handles both data and power.

Box contents

• Ubiquiti UISP WAVE-AP-MICRO Unit
• Mounting Hardware (specific items not specified; verify bracket type)
• PoE Injector (not explicitly stated; confirm inclusion with supplier)

Check before you buy

• Confirm your required link distance aligns with 57–71 GHz performance limits.
• Verify you have a suitable PoE switch or injector (48V, 0.5A minimum recommended for 24W max).
• Ensure clear line-of-sight between bridge points; high-frequency bands do not penetrate obstacles.
• Check if the white colour finish suits your aesthetic or camouflage requirements.

Frequently Asked Questions

Q: Does the Ubiquiti UISP WAVE-AP-MICRO support UK power standards?

A: The unit uses PoE. You must confirm the included injector or your switch supports UK mains voltage (230V).

Q: Is the 5 GHz backup radio always active?

A: It acts as a failover. The primary 57–71 GHz link is used for main throughput unless obstruction occurs.

Q: What is the maximum number of clients?

A: The specification states it can connect up to 15 stations.

Q: Does this unit have a built-in GPS?

A: It features a GPS LED indicator. However, verify if the GPS antenna is internal or requires an external accessory.

Q: What certifications apply for UK use?

A: The input lists FCC, IC, and CE. Confirm UKCA marking is required for your specific application.

The Consultant’s verdict & warranty

This Ubiquiti unit is best for network professionals needing a compact, high-speed bridge with backup redundancy. It suits short-to-medium distance links where 5 Gbps throughput is critical. The IPX6 rating and wide temperature range support outdoor UK deployments. Covered by the standard Manufacturer Warranty.
