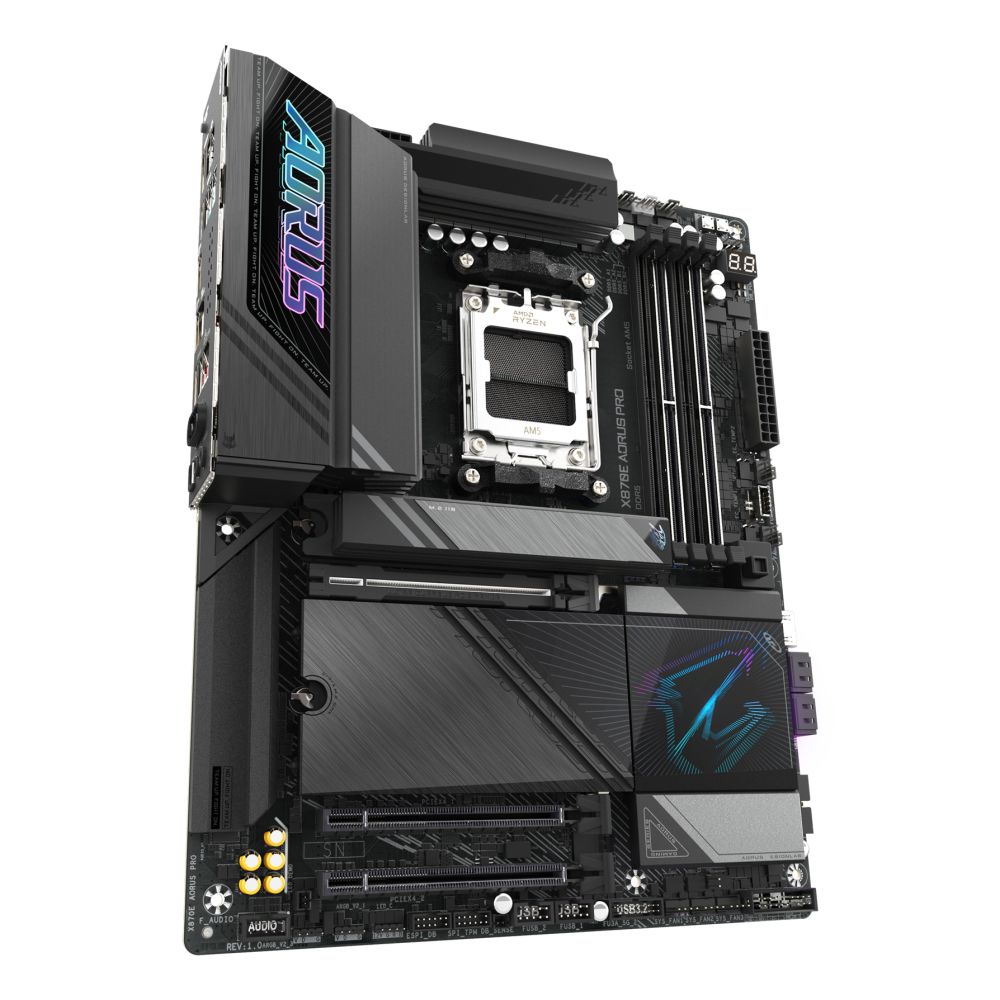

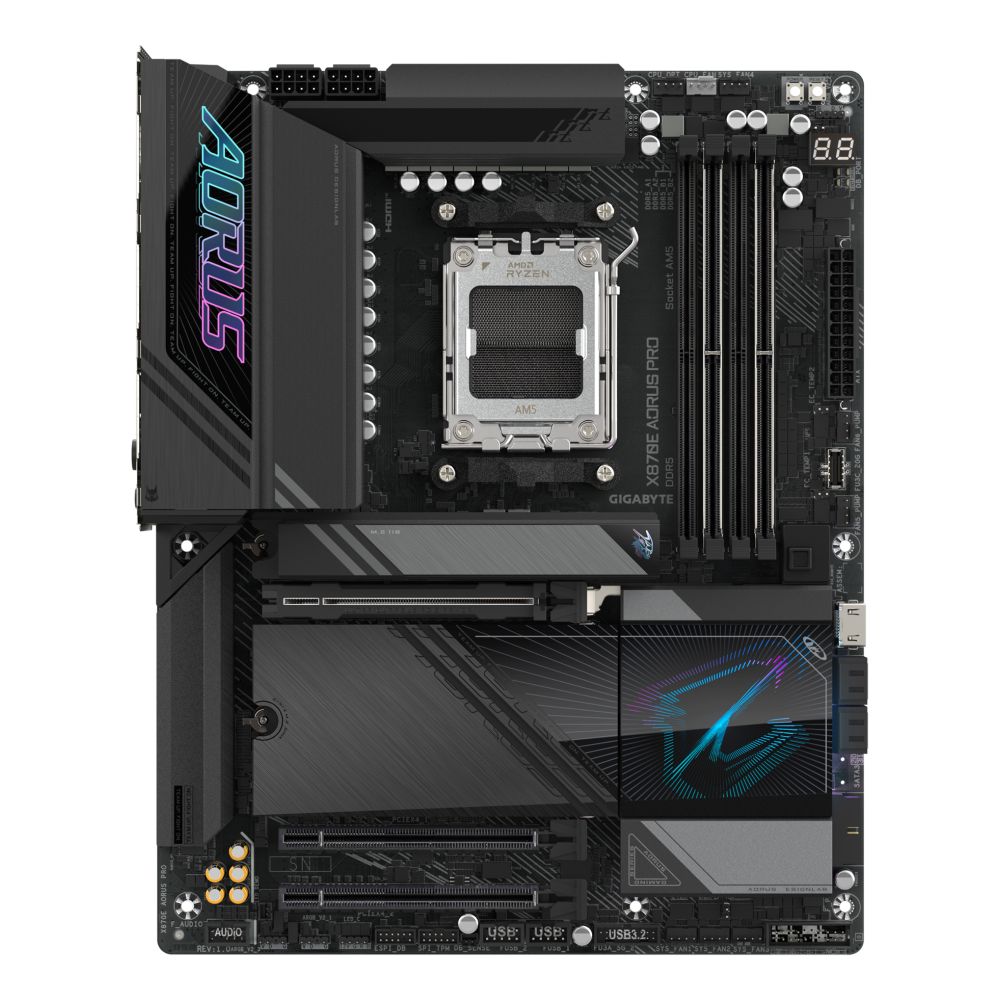

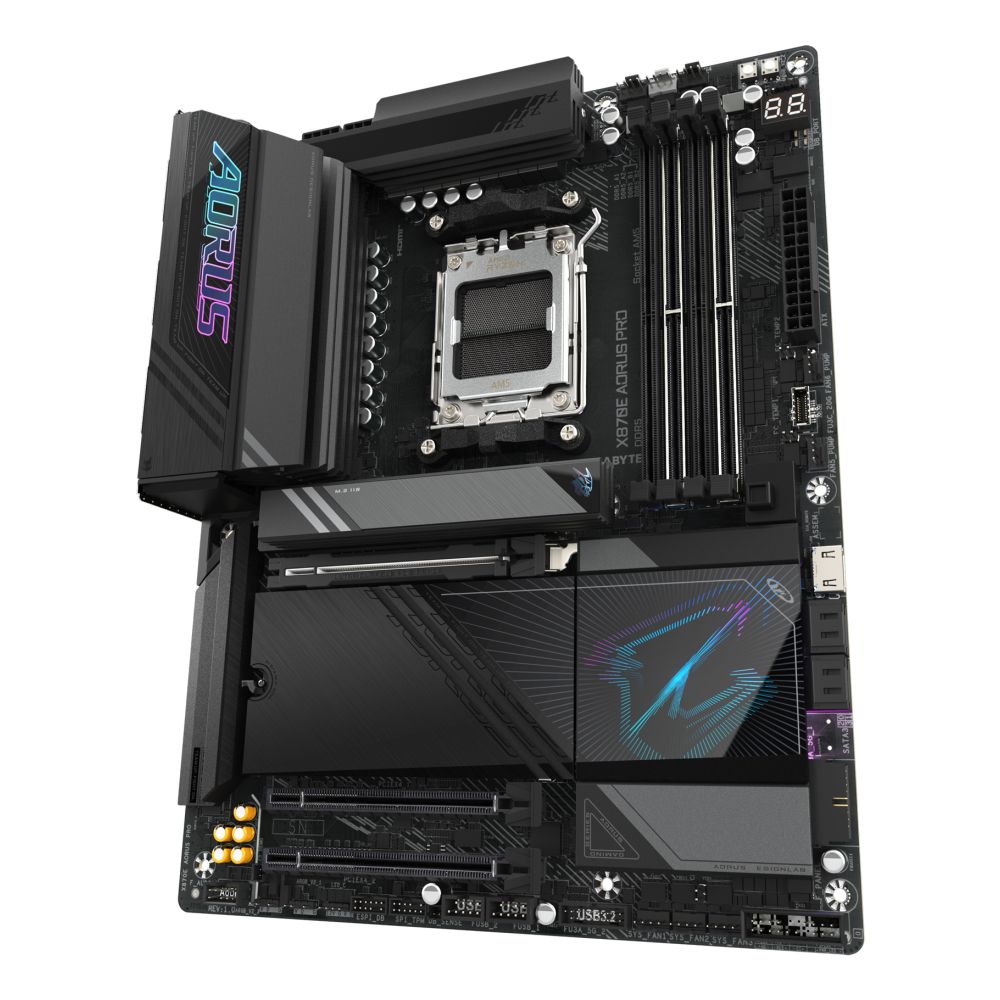

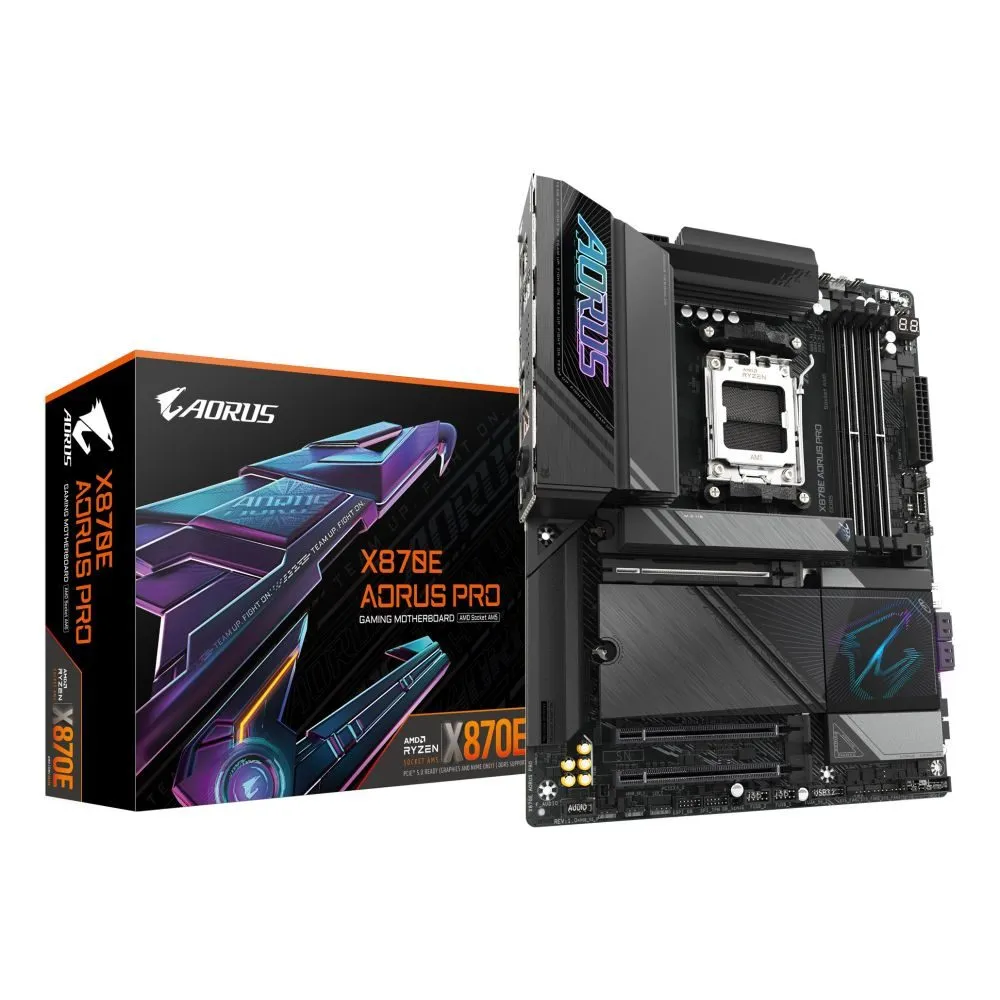

GIGABYTE X870E AORUS Pro Motherboard – AMD Ryzen 9000, PCIe 5.0, DDR5, Wi-Fi 7
£366.86 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Supports AMD Ryzen 9000 CPUs
- PCIe 5.0 and DDR5 support
- Wi-Fi 7 and 2.5GbE LAN connectivity
- ATX form factor with 4 M.2 slots
- Up to 8000MHz DDR5 (OC) memory support
Payment Methods:
You may also like
GIGABYTE B650M AORUS ELITE Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0 M.2
In stock
GIGABYTE X870E AORUS PRO | AMD Ryzen 9000 Platform Powerhouse
The GIGABYTE X870E AORUS PRO Motherboard delivers exceptional performance for AMD Ryzen 9000 CPUs, featuring a robust 16+2+2 phase digital VRM, support for DDR5 memory up to 8000MHz (OC), and comprehensive connectivity including PCIe 5.0, Wi-Fi 7, and 2.5GbE LAN. This ATX motherboard combines cutting-edge technology with reliable stability for demanding PC builds.
Technical Specifications
| Metric | Spec |
|---|---|
| CPU Support | AMD Ryzen 7000/8000/9000 Series |
| Memory Support | DDR5, up to 8200MHz, 256GB max |
| PCIe Slots | 3x PCIe 5.0, 1x PCIe 4.0 |
| Storage | 4x M.2 (3x PCIe 5.0, 1x PCIe 4.0), 4x SATA III |
| Connectivity | Wi-Fi 7, 2.5GbE LAN, USB 4, Bluetooth 5.3 |
Next-Generation AMD Platform Performance
The X870E AORUS PRO is engineered specifically for AMD’s Ryzen 9000 series processors, delivering exceptional power delivery through its 16+2+2 phase digital VRM design. This robust power architecture ensures stable performance under heavy workloads and during overclocking sessions, making it ideal for enthusiasts and professionals who demand consistent, reliable performance.
DDR5 Memory Performance Unleashed
Supporting DDR5 memory up to 8200MHz (OC), this motherboard provides exceptional memory bandwidth for demanding applications. The dual-channel architecture supports up to 256GB of unbuffered non-ECC memory across four DIMM slots, with individual slot capacity up to 64GB. Whether you’re running memory-intensive applications or pushing performance boundaries, the X870E AORUS PRO delivers the bandwidth you need.
Comprehensive Storage and Expansion
With four M.2 slots supporting both PCIe 5.0 and PCIe 4.0, plus four SATA III connectors, this motherboard offers extensive storage flexibility. The RAID support (0, 1, 10) enables various storage configurations for performance or redundancy. Three PCIe 5.0 x16 slots and one PCIe 4.0 x16 slot provide ample room for multiple GPUs, high-speed capture cards, or other expansion cards.
Advanced Connectivity Suite
Stay connected with Wi-Fi 7 (802.11be) and Bluetooth 5.3 for the latest wireless standards. The 2.5GbE LAN with Realtek RTL8125 controller ensures fast, stable wired connections. USB 4 support, along with multiple USB 3.2 Gen 2×2 and Gen 1 ports, provides versatile connectivity for peripherals and external devices.
Box contents
- GIGABYTE X870E AORUS PRO Motherboard
- I/O Shield
- User Manual
- Driver Disk
- SATA Cables
- M.2 Screws
- Wi-Fi Antenna
- CMOS Battery
- Warranty Card
Before you order
- Confirm your CPU is compatible with Socket AM5 (AMD Ryzen 7000/8000/9000 Series)
- Verify your case supports ATX motherboard dimensions (305mm x 244mm)
- Check that your power supply has the required 24-pin ATX and 8-pin EPS connectors
- Confirm your cooling solution is compatible with the AM5 socket
Buyer FAQs
Does this motherboard support DDR4 memory?
How many GPUs can I install on this motherboard?
Does this motherboard have built-in Wi-Fi?
What is the maximum memory capacity supported?
Is the BIOS easy to update?
The bottom line
The GIGABYTE X870E AORUS PRO Motherboard represents an excellent choice for users building high-performance systems around AMD’s Ryzen 9000 series processors. With its robust power delivery, extensive connectivity options, and support for the latest technologies including DDR5-8200 and PCIe 5.0, this motherboard offers exceptional value for enthusiasts, gamers, and content creators. Covered by the applicable manufacturer warranty.
| Weight | 2.4 kg |
|---|---|
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Front panel connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 6 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors 8-pin | 1 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Warranty period | 3 year(s) |
| Processor manufacturer | AMD |
| Maximum internal memory supported by processor | 256 GB |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5600,6000,6400,6600,6666,6800,7000,7200,7800,8000,8200 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 24GB, 32GB |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 8200 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 10 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 4 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| LAN controller | Realtek RTL8125 |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | Qualcomm QCNCM865 |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Audio chip | Realtek ALC1220 |
| Product colour | Black |
| Number of M.2 M slots | 4 |
| PCI Express x16 Gen 3.x slots | 1 |
| PCI Express x4 slots | 2 |
| PCI Express x16 Gen 4.x slots | 1 |
| PCI Express x16 Gen 5.x slots | 1 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS SMBIOS version | 2.7 |
| Desktop Management Interface DMI version | 2.7 |
| DirectX version | 12.0 |
| Windows operating systems supported | Windows 11 x64 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Products per shipping inner case | 1 pc(s) |
| Country of origin | China |
| Width | 305 mm |
| Depth | 244 mm |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Height | 35 mm |
| Package width | 345 mm |
| Package depth | 294 mm |
| Package height | 80 mm |
| Package weight | 2.74 kg |
| Weight | 2.4 kg |
