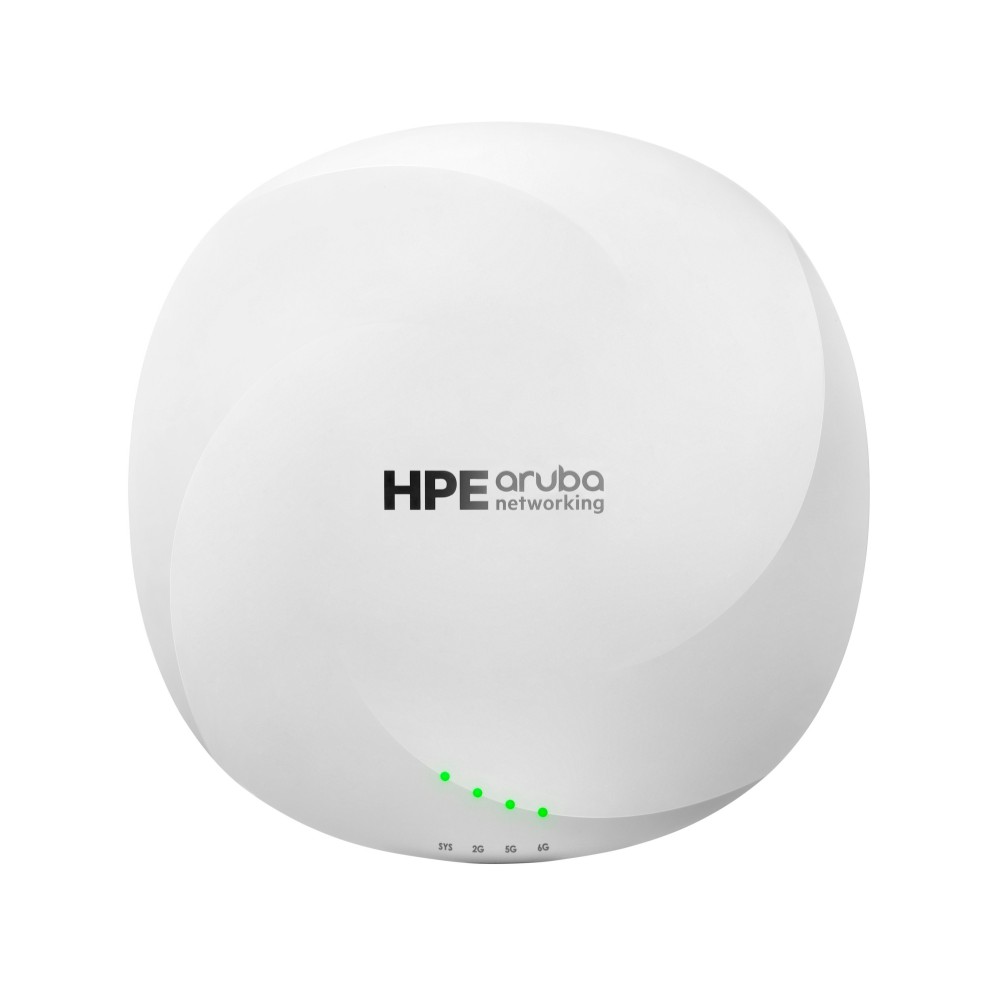

HPE Aruba Networking AP-635 Wi-Fi 6E Access Point Tri-Band 3.9 Gbps 2x Ethernet Internal Antenna 5-Pack White
£5,508.92
Out of stock
Out of stock
Order today, get it by Wed 28 Oct
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Tri-Band Wi-Fi 6E connectivity delivering up to 3.9 Gbps aggregate peak data rate
- Dual Ethernet RJ-45 ports supporting LAN data rates of 2500 and 5000 Mbit/s
- IEEE 802.11ax and 802.11mc standards with WPA3 Enterprise and CNSA encryption options
- Ceiling mounted design with internal omni-directional antennas and UL2043 plenum rating for indoor use
- Power over Ethernet Class 5 support with dual port hitless failover for Ethernet and power continuity
- Compatible with HPE Aruba Networking Wireless OS and Instant OS for on-premises or cloud management
- Integrated Bluetooth 5.0 and GPS satellite functionality alongside USB 2.0 host interface
Available alternatives
Save £14
TP-Link Omada BE9300 Wi-Fi 7 Ceiling Mount Access Point
In stock
Original price was: £272.39.£258.12Current price is: £258.12.
Save £10
TP-Link Omada AX1800 Wi-Fi 6 GPON Access Point
In stock
Original price was: £178.79.£168.71Current price is: £168.71.
Save £8.52
TP-Link Omada EAP653 UR 2976 Mbit/s PoE Wireless Access Point
In stock
Original price was: £122.39.£113.87Current price is: £113.87.
You may also like
Save £3.60
Ubiquiti NanoStation 5AC Loco 1000 Mbps White
In stock
Original price was: £67.19.£63.59Current price is: £63.59.
Save £10
Ubiquiti U7 Long-Range 7300 Mbps PoE
In stock
Original price was: £189.59.£179.36Current price is: £179.36.
Save £6.36
TP-Link Omada AX3000 WiFi 6 Access Point
In stock
Original price was: £117.59.£111.23Current price is: £111.23.
Save £5.87
TP-Link Omada EAP610 WiFi 6 Access Point
In stock
Original price was: £115.19.£109.32Current price is: £109.32.
Save £5.61
TP-Link Omada EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point
In stock
Original price was: £104.39.£98.78Current price is: £98.78.
Save £7.23
TP-Link AX3000 Ceiling WiFi 6 Access Point
In stock
Original price was: £110.39.£103.16Current price is: £103.16.
Save £5.45
Ubiquiti airCube 867 Mbps PoE Black
In stock
Original price was: £86.39.£80.94Current price is: £80.94.
Save £5.17
TP-Link Omada EAP225 1350Mbps PoE Access Point
In stock
Original price was: £87.59.£82.42Current price is: £82.42.
Save £5.76
TP-Link AC1200 MU-MIMO Wall Access Point
In stock
Original price was: £86.39.£80.63Current price is: £80.63.
Description
HPE Aruba AP-635 – Tri-Band Wi-Fi 6E for Campus
We supply the HPE Aruba Networking AP-635 Wi-Fi 6E Access Point Tri-Band 3.9 Gbps 2x Ethernet Internal Antenna 5-Pack White for demanding environments. This unit supports tri-band coverage. It handles high-density user scenarios well. We provide full technical guidance for setup.
Full details for HPE Aruba Networking AP-635 Wi-Fi 6E Access Point Tri-Band 3.9 Gbps 2x Ethernet Internal Antenna 5-Pack White
These units support the latest wireless standards. They allow seamless integration into existing networks.
Core performance metrics
| Metric | Spec. |
|---|---|
| Wi-Fi Standard | 802.11ax (Wi-Fi 6E) |
| Max Aggregate Rate | 3.9 Gbps |
| Frequency Bands | 2.4, 5, 6 GHz |
| Ethernet Ports | 2 x RJ-45 |
| Quantity | 5 Units |
Tri-Band capacity for dense users
Three radios allow efficient spectrum use. The 6 GHz band reduces congestion. This supports bandwidth-heavy applications easily.
Dual Ethernet for high availability
Hitless failover keeps connections stable. Power and data redundancy prevent downtime. Critical operations remain unaffected during switchovers.
Indoor ceiling mounting optimisation
Antennas are tuned for horizontal placement. The unit fits typical ceiling heights. It blends into office environments neatly.
Enterprise security features
WPA3 and CNSA options protect data. Firmware updates manage regulatory tables automatically. Compliance is maintained without manual intervention.
What you receive
The package includes five access points. Each unit arrives ready for configuration. Cables are not included in the box.
Compatibility checks
Confirm your network uses HPE Aruba OS. Verify Power over Ethernet support exists. Check ceiling space for mounting clearance.
Frequently Asked Questions
Q: Does this support 6 GHz?
A: Yes, it operates on the 6 GHz band.
Q: How many ports does it have?
A: There are two Ethernet RJ-45 ports.
Q: Is it wall mountable?
A: It is optimised for ceiling mounting.
Q: What operating system is required?
A: HPE Aruba Networking Wireless OS is needed.
Final thoughts
This 5-pack suits growing campuses. It offers robust performance and security. Contact us for specific warranty details.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 2500,5000 Mbit/s |
| Maximum data transfer rate | 2400 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| GPS (satellite) | Yes |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.9 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 2500,5000 Mbit/s |
| Certification | UL2043 plenum rating Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 5) |
| Maximum data transfer rate | 2400 Mbit/s |
| MIMO | Yes |
| Compatible operating systems | AP-634 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-634 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.03 AP-635: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.9.0.0, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-634 is only supported on HPE Aruba Networking OS 10.7.0.0 and later deployments and HPE Aruba Networking OS 8.12.0.0 and later deployments that include a HPE Aruba Networking Mobility Conductor. Standard power operation is not supported on Instant OS deployments or 8.x HPE Aruba Networking OS deployments without a HPE Aruba Networking Mobility Conductor. |
| Wireless LAN features | |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.9 Gbps |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Network | |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ports & interfaces | |

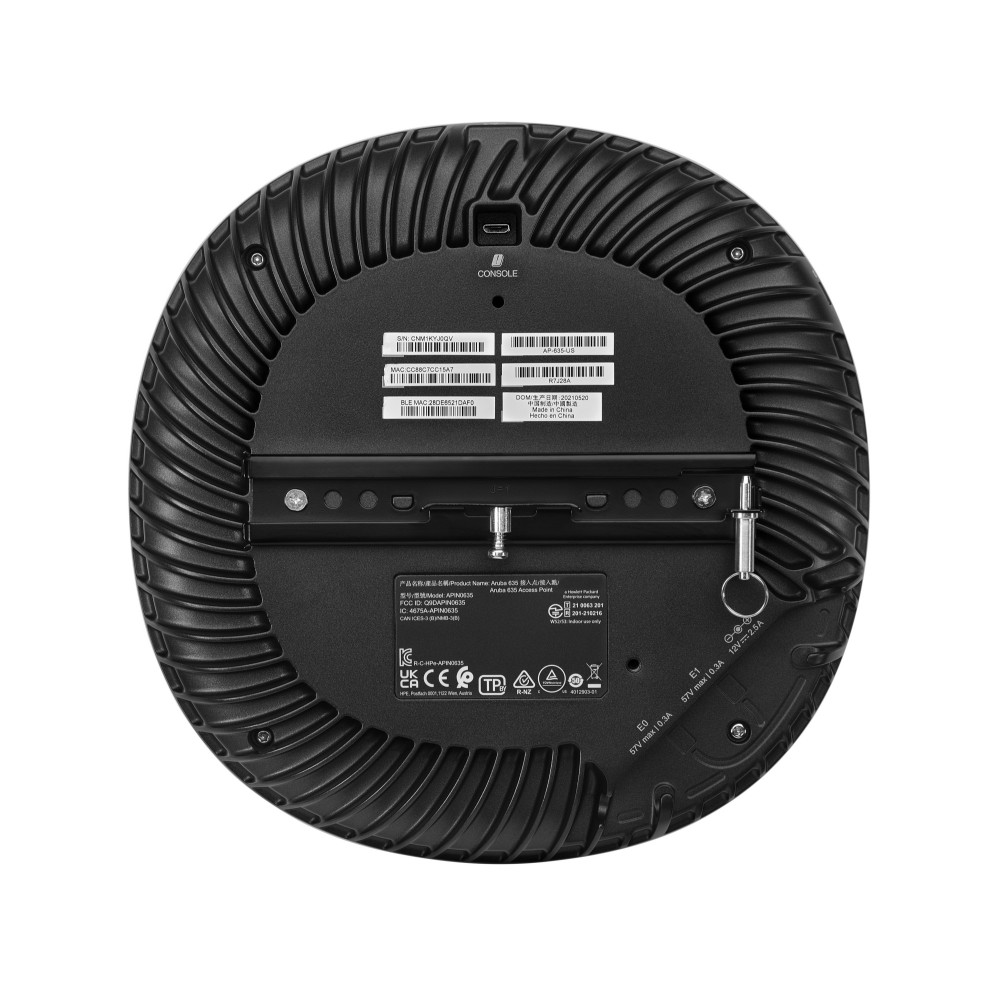

| I/O ports | E0, E1: Two Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| GPS (satellite) | Yes |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.9 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 2500,5000 Mbit/s |
| Maximum data transfer rate | 2400 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| MIMO | Yes |
| MACsec support | No |
| Compatible operating systems | AP-634 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-634 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.03 AP-635: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.9.0.0, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-634 is only supported on HPE Aruba Networking OS 10.7.0.0 and later deployments and HPE Aruba Networking OS 8.12.0.0 and later deployments that include a HPE Aruba Networking Mobility Conductor. Standard power operation is not supported on Instant OS deployments or 8.x HPE Aruba Networking OS deployments without a HPE Aruba Networking Mobility Conductor. |
| Security | |
| Security algorithms | WPA, WPA2, WPA3 |
| Management features | |
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling |
| Product colour | White |
| Certification | UL2043 plenum rating Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 5) |
| Recommended usage | Indoor |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 7 dBi |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Mounting | The AP-635 built-in antennas are optimised for horizontal orientation of the AP, mounted at a typical ceiling height. |
| Weight (imperial) | 1.3 kg (2.86 lbs) |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Certificates | |
| Certification | UL2043 plenum rating Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 5) |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 50 mm |
| Weight | 1.3 kg |
| Height | 220 mm |
| Other features | |
| Mounting | The AP-635 built-in antennas are optimised for horizontal orientation of the AP, mounted at a typical ceiling height. |
| I/O ports | E0, E1: Two Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| Weight (imperial) | 1.3 kg (2.86 lbs) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 100% |
| System requirements | |
| Compatible operating systems | AP-634 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-634 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.03 AP-635: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.9.0.0, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-634 is only supported on HPE Aruba Networking OS 10.7.0.0 and later deployments and HPE Aruba Networking OS 8.12.0.0 and later deployments that include a HPE Aruba Networking Mobility Conductor. Standard power operation is not supported on Instant OS deployments or 8.x HPE Aruba Networking OS deployments without a HPE Aruba Networking Mobility Conductor. |
