Stop Overpaying for the Best Motherboard in 2026: A B-Series Board Is All Most Builds Need
Buy the ASUS TUF Gaming B650-Plus WiFi. Socket first, always: AM5 for current Ryzen, LGA1851 for Intel. A B-series board covers almost every gaming and work build; X-series money is better spent elsewhere.
Your build, your board:
- Most AM5 buildsASUS TUF Gaming B650-Plus WiFi. Why
- Cheapest B650 hereASRock B650M-HDV/M.2. Why
- PCIe 5.0 graphics and USB4ASUS Prime X870-P WiFi. Why
- Building IntelMSI PRO B860-P WiFi. Why
- Small caseGigabyte B650I AX. Why
- Upgrading an old i5-8400An LGA1151 board with a 300-series chipset. Which one
The best motherboards for 2026, side by side
Six boards, one line each. Match the socket to your processor first, then read the size column against your case.
| Pick | Socket and chipset | Size | M.2 slots | Network |
|---|---|---|---|---|
| Most builds: ASUS TUF Gaming B650-Plus WiFi | AM5, B650 | ATX | 3, one PCIe 5.0 | 2.5Gb LAN, Wi-Fi 6 |
| Budget: ASRock B650M-HDV/M.2 | AM5, B650 | Micro-ATX | 2, one PCIe 5.0 | 2.5Gb LAN, no Wi-Fi |
| Step-up: ASUS ROG Strix B650-A Gaming WiFi | AM5, B650 | ATX | 3, one PCIe 5.0 | 2.5Gb LAN, Wi-Fi 6E |
| High end: ASUS Prime X870-P WiFi | AM5, X870 | ATX | 4, one PCIe 5.0 | 2.5Gb LAN, Wi-Fi 7, 2 x USB4 |
| Intel: MSI PRO B860-P WiFi | LGA1851, B860 | ATX | 3, one PCIe 5.0 | 5Gb LAN, Wi-Fi 7, Thunderbolt 4 |
| Small: Gigabyte B650I AX | AM5, B650 | Mini-ITX | 1, PCIe 4.0 | 2.5Gb LAN, Wi-Fi 6E |
PCIe 5.0 M.2 slots need a Ryzen 7000 or 9000 (or a Core Ultra 200S on Intel).
Best motherboard for most AM5 builds: ASUS TUF Gaming B650-Plus WiFi
Everything a gaming or work build needs, a PCIe 5.0 SSD slot, 2.5Gb Ethernet, Wi-Fi and BIOS FlashBack, without X-series money.
- SocketAM5, B650
- Memory4 x DDR5, up to 256GB
- M.23 slots, one PCIe 5.0 x4
- Network2.5Gb LAN, Wi-Fi 6
- ExtrasBIOS FlashBack, 20Gbps USB-C
ASUS TUF GAMING B650-PLUS WIFI
- AMD B650 chipset with Socket AM5 for Ryzen 7000 Series CPUs
- Supports DDR5 memory up to 128 GB with speeds to 7600 MHz
- Three M.2 slots with PCIe 5.0 and NVMe RAID support
- Good for: a Ryzen 7000 or 9000 gaming build, X3D chips included
- Good for: a new Ryzen on a board with an older BIOS: BIOS FlashBack updates it with no processor fitted
- Skip it if: you want a PCIe 5.0 graphics slot or USB4 ports: see the X870 pick
- Skip it if: your case is small: this is a full-size ATX board
The TUF Gaming B650-Plus WiFi is our recommended motherboard for gaming on AM5 because it gets the basics right. ASUS lists four DDR5 slots, three M.2 slots (the first runs at PCIe 5.0 x4 with a Ryzen 7000 or 9000), Realtek 2.5Gb Ethernet, Wi-Fi 6 and a 20Gbps USB-C port on the back. Its graphics slot is PCIe 4.0, which is plenty for a gaming card today.
Step-up: ASUS ROG Strix B650-A Gaming WiFi
- SocketAM5, B650
- Memory4 x DDR5, up to 128GB
- M.23 slots, one PCIe 5.0 x4
- NetworkIntel 2.5Gb LAN, Wi-Fi 6E
ASUS ROG STRIX B650-A GAMING WIFI ATX Motherboard
- AMD B650 chipset with Socket AM5 for Ryzen 7000 series CPUs
- PCIe 5.0 x16 slot plus three M.2 slots for high-speed storage
- DDR5 memory support up to 128GB with speeds to 6400MHz
The ROG Strix B650-A is the same B650 class with Wi-Fi 6E and Intel networking, plus BIOS FlashBack. Pick it if you want the 6 GHz WiFi band or prefer the ROG software.
Best budget B650M motherboard: ASRock B650M-HDV/M.2
A no-frills Micro-ATX board that still has a PCIe 5.0 SSD slot and 2.5Gb Ethernet.
- SocketAM5, B650
- Power8+2+1 phases, 50A Dr.MOS
- Memory2 x DDR5
- M.2PCIe 5.0 x4 and PCIe 4.0 x4
- Network2.5Gb LAN, no Wi-Fi
Asrock B650M-HDV AMD B650 AM5 micro ATX
- AMD B650 micro ATX motherboard for AMD Ryzen™ 7 processors
- DDR5-SDRAM support with 64 GB maximum memory
- PCIe 4.0 x16 slot and M.2 slot for high-speed storage
- Good for: a Ryzen 5 or Ryzen 7 gaming build on a budget
- Good for: a wired desk: 2.5Gb Ethernet is built in
- Skip it if: you need Wi-Fi: add a card in its M.2 Key E slot, or a USB adapter
- Skip it if: you want four memory slots: it has two
B650M simply means a B650 chipset on a smaller Micro-ATX board. The B650M-HDV/M.2 keeps the parts that matter: ASRock lists an 8+2+1 phase power design with 50A Dr.MOS stages, one Blazing M.2 slot at PCIe 5.0 x4, a second at PCIe 4.0 x4, four SATA ports and BIOS Flashback. Spend what you save on the graphics card.
Best high-end AM5 motherboard: ASUS Prime X870-P WiFi
PCIe 5.0 for the graphics card and the SSD, two USB4 ports and Wi-Fi 7: the X-series features worth paying for.
- SocketAM5, X870
- Graphics slotPCIe 5.0 x16
- M.24 slots, one PCIe 5.0 x4
- USB42 x 40Gbps
- Network2.5Gb LAN, Wi-Fi 7
ASUS Prime X870-P WIFI ATX Motherboard, AMD AM5, DDR5
- AMD X870 chipset supporting Ryzen 7000/8000/9000 series processors on Socket AM5
- Four M.2 slots plus two SATA III connectors for flexible HDD and SSD storage configurations
- DDR5 memory support up to 8000 MHz across four DIMM slots with a 192 GB maximum capacity
- Good for: fast USB4 drives and docks
- Good for: a top graphics card you plan to keep through several upgrades
- Skip it if: you are building a typical gaming PC: the B650 boards above do the same job for less
- Skip it if: you need lots of SATA drives: it has two SATA ports
AMD’s chipset table lists PCIe 5.0 graphics and USB4 as standard on X870, and a PCIe 4.0 graphics slot on B850. The Prime X870-P WiFi delivers both, plus four M.2 slots and BIOS FlashBack. You only need the pricier X870E if you want the extra chipset lanes for many drives and cards.
Best Intel motherboard: MSI PRO B860-P WiFi
A clean LGA1851 board for Core Ultra 200S builds, with Wi-Fi 7, 5Gb Ethernet and a Thunderbolt 4 port.
- SocketLGA1851, B860
- Memory4 x DDR5, up to 256GB
- M.23 slots, one PCIe 5.0 x4
- Network5Gb LAN, Wi-Fi 7
- PortsThunderbolt 4, 40Gbps
MSI PRO B860-P WIFI Intel B860 LGA 1851 ATX Motherboard
- Supports Intel Core Ultra processors
- Wi-Fi 7 with EZ Antenna
- 5G LAN and Thunderbolt 4
- Good for: a Core Ultra 200S gaming or work build
- Good for: fast memory: B860 boards can overclock memory, and MSI lists XMP 3.0 support
- Skip it if: you want to overclock the processor itself: that needs a Z890 board
The PRO B860-P WiFi has a PCIe 5.0 x16 graphics slot and a PCIe 5.0 x4 M.2 slot from the processor, by MSI’s spec, plus a rear Thunderbolt 4 port for fast drives and docks. B860 gives a gaming build everything that matters; Z890 adds processor overclocking and more lanes. More boards sit in our Intel LGA1851 range.
Best Mini-ITX motherboard: Gigabyte B650I AX
A B650 board shrunk to 17cm square for a small case, with Wi-Fi 6E and 2.5Gb Ethernet.
- SocketAM5, B650
- SizeMini-ITX, 17 x 17 cm
- Memory2 x DDR5, up to 128GB
- M.21 slot, PCIe 4.0 x4
- Network2.5Gb LAN, Wi-Fi 6E
GIGABYTE B650I AX Motherboard – AM5, B650, DDR5, mITX, Wi-Fi 6E
- AMD B650 chipset for Socket AM5 processors (Ryzen 7000/8000/9000 Series)
- Supports up to 128GB DDR5 RAM with speeds up to 6400 MHz (OC)
- Mini-ITX form factor with 1x PCIe 4.0 M.2 slot and 2x SATA III connectors
- Good for: a small desk or living-room build with one graphics card
- Skip it if: you want more than one M.2 SSD: it has one
- Skip it if: you plan lots of drives: it has two SATA ports
Mini-ITX boards give you one graphics slot and fewer drives in exchange for a much smaller case. The B650I AX keeps EXPO memory support, Wi-Fi 6E and Gigabyte’s Q-Flash Plus button for BIOS updates without a processor. Check your case’s cooler height and graphics card length before you buy.

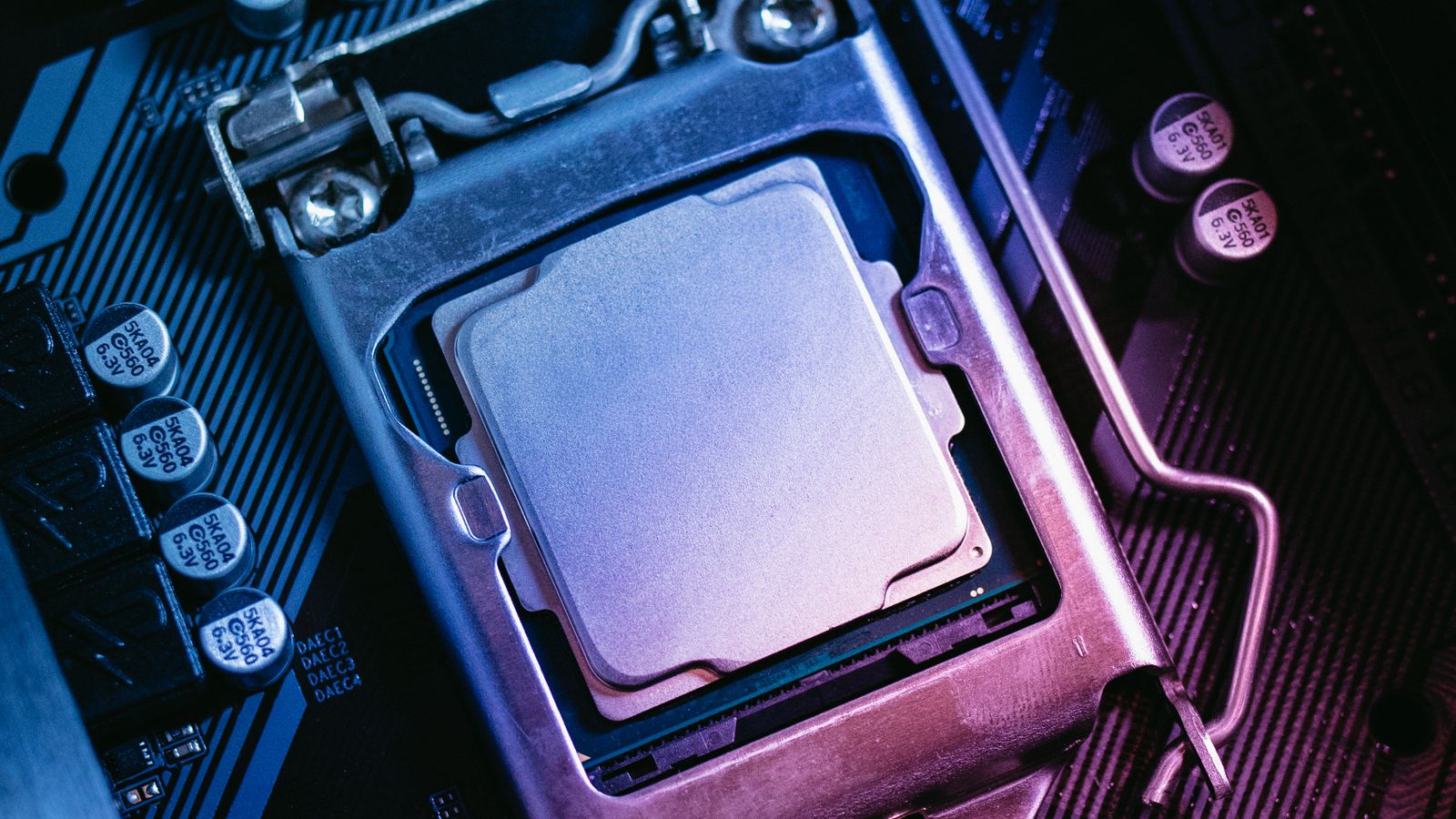

Start with the socket, not the brand
The socket is the physical connection between the processor and the board, and the two have to match. Choose your processor first and let it pick the socket; our best gaming CPU guide helps if you have not settled on a chip.
- AMD AM5: every current Ryzen, including the 7800X3D and 9800X3D. DDR5 only. AMD said on 31 May 2026 that it will support AM5 through 2029, so it is the upgrade-friendly platform.
- AMD AM4: the older socket, still good value. The 5700X3D and 5800X3D remain strong budget gaming chips on cheaper DDR4; see our best AM4 motherboard guide.
- Intel LGA1851: the home of the Core Ultra 200S (Arrow Lake) processors, also DDR5.
- Intel LGA1700: the 12th, 13th and 14th generation Core chips.
Upgrading an older Intel PC? An 8th-generation Core i5-8400 uses LGA 1151 with a 300-series chipset such as B360, H370, Z370 or Z390. Older 100 and 200-series LGA 1151 boards look the same but do not officially support it. New boards for it are long gone, so if yours has died, a used 300-series board is the budget fix; if you want a faster PC, a new platform is the better spend.
Chipsets explained: A620 vs B650 vs B850 vs X870 (and Intel B860 vs Z890)
Two boards with the same socket can be very different, and that difference is the chipset. It sets the ceiling: how fast the graphics and SSD slots run, whether you can overclock the processor, and how many extra ports the board can offer.
| Chipset | Socket | Graphics slot | Fastest SSD slot | Processor overclocking |
|---|---|---|---|---|
| AMD A620 | AM5 | PCIe 4.0 | PCIe 4.0 | No |
| AMD B650 | AM5 | PCIe 4.0 | PCIe 5.0 on many boards | Yes |
| AMD B850 | AM5 | PCIe 4.0 | PCIe 5.0 | Yes |
| AMD X870 and X870E | AM5 | PCIe 5.0 | PCIe 5.0, plus USB4 as standard | Yes |
| Intel B860 | LGA1851 | PCIe 5.0 from the processor | No, memory only | |
| Intel Z890 | LGA1851 | PCIe 5.0 from the processor | Yes | |
For most builds, the B tier is the answer. A B650 or B850 board gives you memory overclocking with EXPO, a PCIe 5.0 M.2 slot on B850 and many B650 boards, and enough power delivery for a fast gaming processor, without the X-series price. Reach for X870, X870E or Z890 only if you need PCIe 5.0 on the graphics slot, USB4, lots of drives, or processor overclocking on Intel.

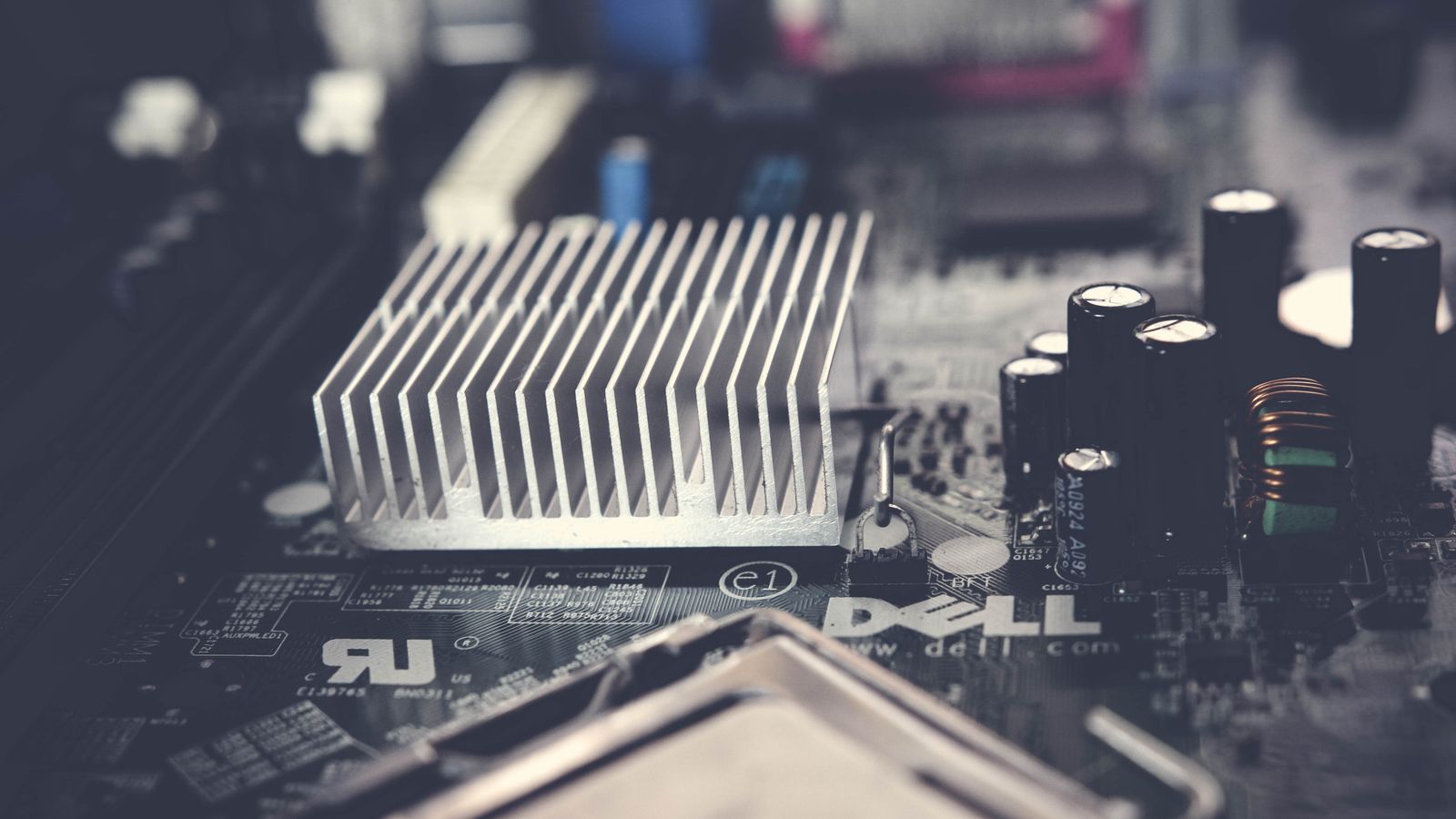

VRM and power delivery: the part nobody photographs
The VRM, short for voltage regulator module, is the cluster of chokes, capacitors and power stages around the socket that turns the messy power from your supply into the clean, steady voltage a CPU needs. A weak VRM on a cheap board runs hot and throttles a high-core or X3D chip under sustained load, which quietly robs you of the performance you paid for.
You do not need a twenty-phase monster. You need a board rated for your CPU. A mid-range B650 or B850 has plenty of headroom for a 7800X3D or 9800X3D. If you are running a 16-core Ryzen 9 or doing heavy all-core work like rendering, step up to a board with a stronger VRM and proper heatsinks. The motherboard is only one link in the power chain, so pair it with a good unit from our best power supply guide.
Form factor: ATX vs Micro-ATX vs Mini-ITX
Form factor is simply the size of the board, and it has to match your case. It also decides how many expansion slots and M.2 drives you get.
| Form factor | Size | Expansion slots | Best for |
|---|---|---|---|
| ATX | Full size | Most PCIe and M.2 | Best value per feature, easy cooling |
| Micro-ATX | Smaller square | Fewer slots | Budget and compact builds |
| Mini-ITX | Tiny | One PCIe slot | Small form factor, single GPU |
ATX is the default for a reason: the most slots, the easiest airflow and the best price for the features. Micro-ATX is the value pick for a tidy build that still takes a graphics card. Mini-ITX looks fantastic in a small case, but you pay a premium, you get one expansion slot, and cooling needs more thought. Decide on the case and the board size together.
The features that actually matter in 2026
Spec sheets are long on purpose. These are the points worth checking before you buy, and the ones you can safely ignore.
- M.2 slots: count them. Two is the practical minimum, three is comfortable if you keep games and work on separate drives.
- PCIe 5.0: useful for the fastest SSDs, but a gaming card works fine in a PCIe 4.0 slot, so do not let the graphics slot alone justify a pricier board. Our graphics card guide has more on that.
- Wi-Fi 7 and 2.5GbE: get Wi-Fi if you will not run an Ethernet cable. Wired is still faster and cheaper, but a Wi-Fi 7 board keeps a desk neat.
- USB4 or USB-C: handy for docks, fast external drives and a single-cable monitor.
- BIOS Flashback: updates the firmware with no CPU installed. On a brand-new platform this one feature can save a build.
- Memory support: check the board’s QVL for the kit you want. DDR5-6000 CL30 is the best match for AM5, and our RAM guide explains why.
What you can skip: RGB you will hide under a desk, a second high-speed network port you will never plug in, and “AI” overclocking buttons that rarely beat a five-minute manual tune.
How much should you spend on a motherboard?
Match the board to the rest of the build, not the other way round. Spend on the processor, graphics card and SSD first, then buy the cheapest board that has the features on your list. Prices move every week, so the cards show today’s.
| Tier | Chipsets | What you get | Our pick |
|---|---|---|---|
| Entry | A620, H810 | DDR5 and the basics, no processor overclocking | Only for the tightest builds |
| Most builds | B650, B850, B860 | Memory tuning, often a PCIe 5.0 SSD slot, Wi-Fi on many | TUF Gaming B650-Plus WiFi |
| Budget, smaller case | B650 Micro-ATX | The same chipset with fewer slots | ASRock B650M-HDV/M.2 |
| High end | X870, X870E, Z890 | PCIe 5.0 graphics, USB4, more lanes, overclocking | ASUS Prime X870-P WiFi |
Before you buy, check the board’s memory list (QVL) and CPU support list on the maker’s website. A board built before your processor came out may need a BIOS update, and a BIOS FlashBack button lets you do it with no processor installed.
Motherboard questions
No. A good B650 or B850 board runs a 7800X3D or 9800X3D well. The X3D chips are not heavy power users, so a mid-range board has the power delivery they need. Put the saved money into the graphics card or a faster SSD.
It is a B650 chipset on a Micro-ATX board. The chipset gives the same features as a full-size B650 board, but the smaller board has fewer slots: the ASRock B650M-HDV/M.2, for example, has two memory slots and two M.2 slots. It fits Micro-ATX and ATX cases.
Any DDR5 module will physically fit an AM5 or LGA1851 board, but check the board’s QVL for the speed you want. DDR5-6000 CL30 is the obvious pick for most people on AM5, and a quick EXPO or XMP toggle in the BIOS sets it running.
Micro-ATX saves money and fits smaller cases, and it still takes a full-size graphics card. Choose ATX if you want more M.2 and PCIe slots, stronger VRMs or easier airflow.
For storage, slightly, if you want the fastest SSDs, and B850 boards and many B650 boards already have a PCIe 5.0 M.2 slot. For graphics, a gaming card works fine in a PCIe 4.0 slot, so do not let a PCIe 5.0 graphics slot alone justify a much pricier board.
If the board is AM4 and its BIOS supports the chip, yes. AM4 still takes the excellent 5700X3D for cheap gaming upgrades. For any current Ryzen you need an AM5 board.
Only if you will not plug in an Ethernet cable. Wired is faster and cheaper, but a Wi-Fi 7 board is well worth it for a compact desk or a room with no nearby socket.
An LGA 1151 board with a 300-series chipset, such as B360, H370, Z370 or Z390. The i5-8400 is an 8th-generation Coffee Lake chip, and older 100 and 200-series LGA 1151 boards do not officially support it even though the socket looks the same. New 300-series boards are no longer made, so look for a used one, or put the money towards a new AM5 or LGA1851 platform.
Every motherboard we sell
AM5 boards first, cheapest first. Intel builders: the LGA1851 boards follow.
Sources
- TUF Gaming B650-Plus WiFi, ASUS UK. 4 x DDR5 up to 256GB, three M.2 (M.2_1 PCIe 5.0 x4), PCIe 4.0 graphics slot, Realtek 2.5Gb, Wi-Fi 6, USB 3.2 Gen 2x2 Type-C, BIOS FlashBack, ATX.
- ROG Strix B650-A Gaming WiFi, ROG UK. 4 x DDR5 up to 128GB, three M.2 (M.2_1 PCIe 5.0 x4), Intel 2.5Gb, Wi-Fi 6E, BIOS FlashBack, ATX.
- B650M-HDV/M.2, ASRock. 8+2+1 phases with 50A Dr.MOS, 2 x DDR5, Blazing M.2 PCIe 5.0 x4 and Hyper M.2 PCIe 4.0 x4, M.2 Key E for WiFi, 2.5G LAN, BIOS Flashback, Micro ATX.
- Prime X870-P WiFi, ASUS UK. PCIe 5.0 x16, four M.2 (M.2_1 PCIe 5.0 x4), two SATA, 2 x USB4 40Gbps, Realtek 2.5Gb, Wi-Fi 7, BIOS FlashBack, ATX.
- PRO B860-P WiFi, MSI. 4 x DDR5 up to 256GB, XMP 3.0, PCIe 5.0 x16, three M.2 (M.2_1 PCIe 5.0 x4), Realtek 5Gbps LAN, Intel Wi-Fi 7, Thunderbolt 4, ATX.
- B650I AX, Gigabyte. Mini-ITX 17 x 17 cm, 2 x DDR5 up to 128GB, one M.2 PCIe 4.0 x4, two SATA, Realtek 2.5GbE, Wi-Fi 6E, Q-Flash Plus.
- AMD Socket AM5 chipsets, AMD. Graphics and NVMe PCIe generation, processor and memory overclocking, and USB4 by chipset.
- AMD Computex 2026: AM5 support through 2029, AMD, 31 May 2026.
- Wikipedia: Socket AM5. B650 and B650E chipset differences.
- Wikipedia: LGA 1851. Overclocking by Intel 800-series chipset.
- Wikipedia: Coffee Lake. 300-series chipsets for 8th-generation Core processors.
