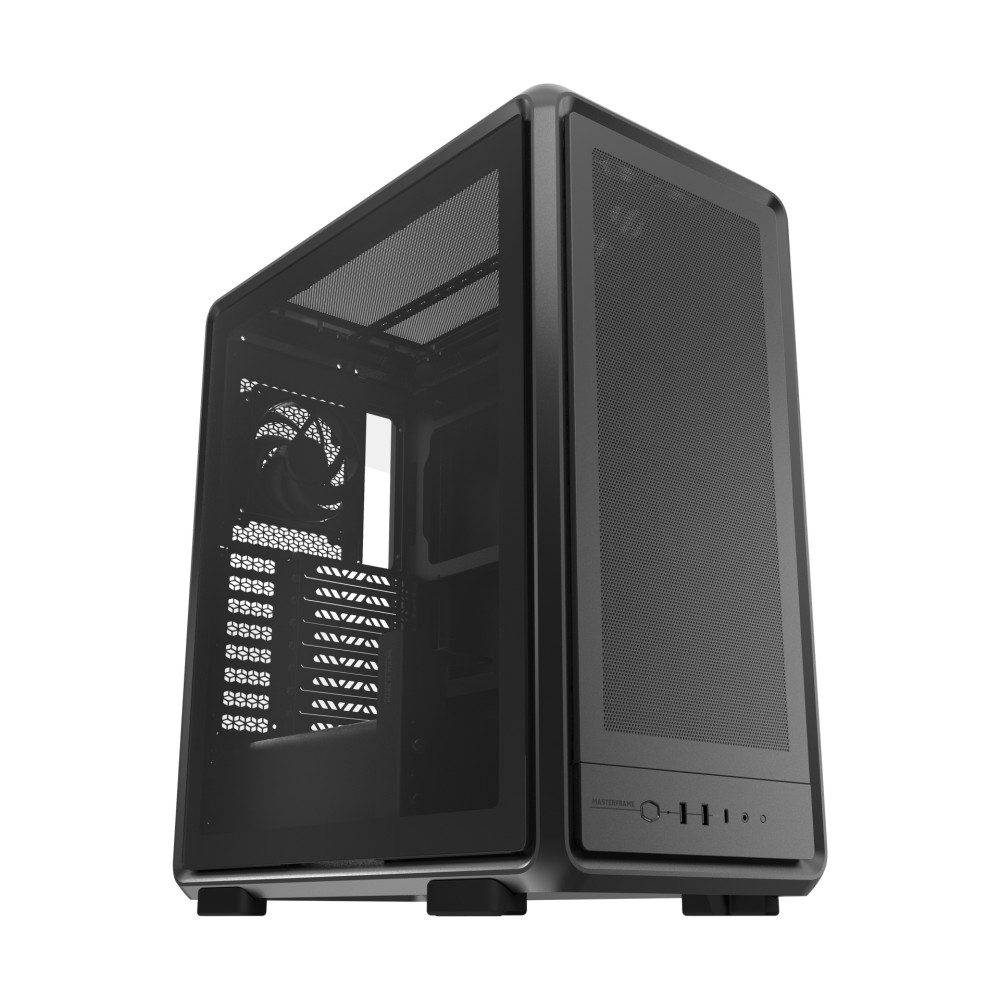

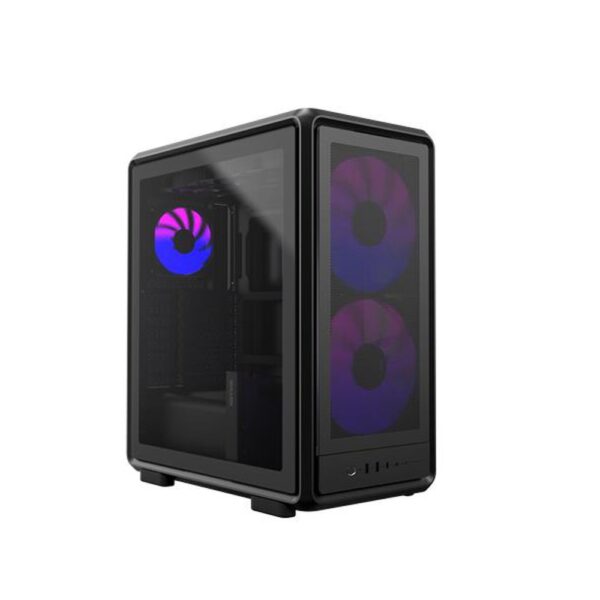

Cooler Master MasterFrame 500 Mesh Midi Tower Black ATX Case
£139.59 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 60.9 L Midi Tower ATX case in black with tempered glass side window
- FreeForm 2.0 open-frame design with modular panels for custom builds
- Supports EATX, micro ATX, Mini-DTX, Mini-ITX and SSI CEB motherboards
- Extensive cooling with front, top and rear radiator support up to 360 mm
- Includes 2x 200 mm front and 1x 120 mm rear fans with multi-colour illumination
- Max CPU cooler 19 cm, GPU 39 cm, PSU 23.5 cm with cable management and anti-dust filter
Payment Methods:
You may also like
Cooler Master MasterFrame 500 Mesh | Open-Frame Midi Tower
The Cooler Master MasterFrame 500 Mesh Midi Tower Black, Transparent is built for modular ATX builds. It suits UK enthusiasts who want extreme cooling and customisation. This chassis uses the FreeForm 2.0 platform for flexible configurations. It supports E-ATX motherboards and offers enhanced mesh panels for airflow.
FreeForm 2.0 Open-Frame Design
The exposed exo-structure improves chassis adaptability. You can configure this case for different scenarios. The open design allows easy access during assembly. This supports maker-driven builds and creative modifications.
Extensive Cooling and Radiator Support
It supports up to eight fans and multiple radiator sizes. Front and top mounts accept up to 360 mm radiators. The rear supports 120 mm. Two 200 mm front fans and one 120 mm rear fan are installed. This ensures strong thermal performance for high-power components.
Flexible Motherboard and Hardware Compatibility
It fits Mini-ITX to E-ATX motherboards. The case accepts SSI CEB and Mini-DTX formats too. Maximum CPU cooler height is 19 cm. Graphics cards up to 39 cm fit with ease. PSU length support reaches 23.5 cm for ATX units.

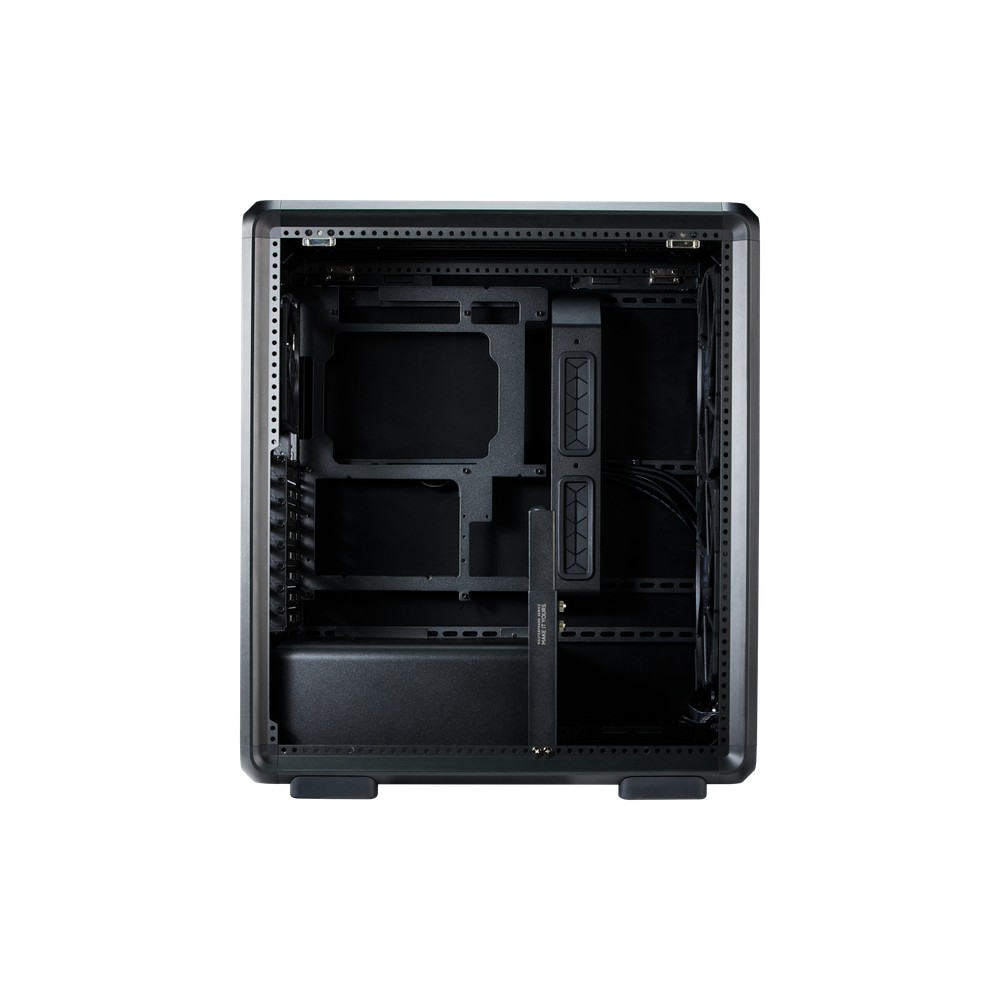

Tool-Free Panel Removal and Cable Management
Side panels remove without tools for quick access. Cable management features help you maintain a clean internal layout. This reduces clutter and improves airflow around components. It simplifies upgrades and routine maintenance.
Illumination and Connectivity
Illumination is located on the case fans with multi-colour options. Front I/O includes one USB 3.2 Gen 2×2 Type-C port. It also has two USB 3.2 Gen 1 Type-A ports. Audio input and output are present. The power supply is not included.
Product Specifications
| Metric | Spec. |
|---|---|
| Form Factor | Midi Tower |
| Motherboard Support | EATX, micro ATX, Mini-DTX, Mini-ITX, SSI CEB |
| Max GPU Length | 39 cm |
| Max CPU Cooler Height | 19 cm |
| Front Radiator Support | 120–360 mm |
| Installed Front Fans | 2x 200 mm |
Box contents
- Cooler Master MasterFrame 500 Mesh chassis
- 2x 200 mm front fans (pre-installed)
- 1x 120 mm rear fan (pre-installed)
- GPU support bracket
- User documentation
Key points to check
- Confirm your motherboard size matches EATX, micro ATX, Mini-DTX, Mini-ITX, or SSI CEB support.
- Verify your CPU cooler height is under 19 cm.
- Check your graphics card length is under 39 cm.
- Confirm your PSU is ATX form factor and under 23.5 cm in length.
Common questions
Q: Does this case include a power supply?
A: No, the power supply is not included. You must supply an ATX PSU.
Q: What radiator sizes are supported?
A: Front and top support 120, 140, 240, 280, and 360 mm. The rear supports 120 mm.
Q: Is the side panel tempered glass?
A: Yes, the material includes tempered glass for a transparent side window.
Q: How many drive bays are available?
A: One 3.5-inch bay and one 2.5-inch bay are specified. A combo cage is present.
Q: Does it support USB 3.2 Gen 2×2?
A: Yes, there is one front USB 3.2 Gen 2×2 Type-C port.
The Consultant’s verdict and warranty
Buy the Cooler Master MasterFrame 500 Mesh Midi Tower Black, Transparent if you want an open-frame case for custom water-cooling or large air coolers. It suits builders who value tool-free access and modular design. Covered by the applicable manufacturer warranty.
| Design | |
|---|---|
| Volume | 60.9 L |
| Anti-dust filter | Yes |
| Material | Aluminium, SGCC, Tempered glass |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 1 |
| Supported motherboard form factors | EATX, micro ATX, Mini-DTX, Mini-ITX, SSI CEB |
| Side window | Yes |
| Illumination location | Case fans |
| Illumination colour | Multi |
| Illumination | Yes |
| Cable management | Yes |
| Product colour | Black, Transparent |
| Number of expansion slots | 8 |
| Maximum CPU cooler height | 19 cm |
| Maximum graphics card length | 39 cm |
| Maximum PSU length | 23.5 cm |
| Type | PC |
| Form factor | Midi Tower |
| Technical details | |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 1 |
| Supported motherboard form factors | EATX, micro ATX, Mini-DTX, Mini-ITX, SSI CEB |
| Supported HDD sizes | 2.5,3.5" |
| Side window | Yes |
| Product colour | Black, Transparent |
| Number of expansion slots | 8 |
| Maximum CPU cooler height | 19 cm |
| Maximum graphics card length | 39 cm |
| Maximum PSU length | 23.5 cm |
| Type | PC |
| Form factor | Midi Tower |
| Material | |
| Material | Aluminium, SGCC, Tempered glass |
| Indication | |
| Illumination location | Case fans |
| Illumination colour | Multi |
| Illumination | Yes |
| Ergonomics | |
| Cable management | Yes |
| Power supply | |
| Supported power supply form factors | ATX |
| Power supply included | No |
| Ports & interfaces | |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,140,240,280,360 mm |
| Front fans installed | 2x 200 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140,180,200 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140,180,200 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120 mm |
| Storage | |
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
| Volume | 60.9 L |
| Width | 471 mm |
| Depth | 261 mm |
| Height | 544 mm |
| Other features | |
| Volume | 60.9 L |
| Identifiers | |
| Distributor SKUs | 4719512160954 |
| Additional EANs | 0884102133183 |
