Palit GeForce RTX 5060 Ti Infinity 16GB GDDR7

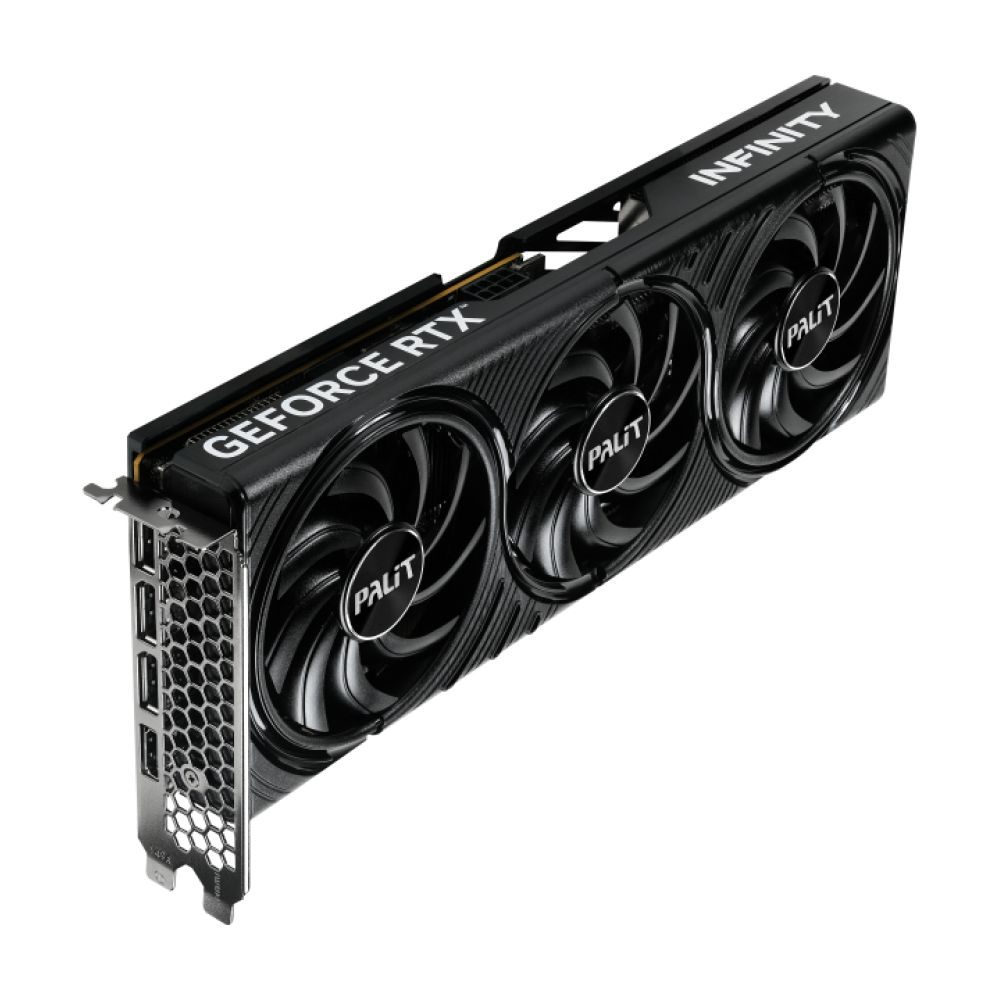

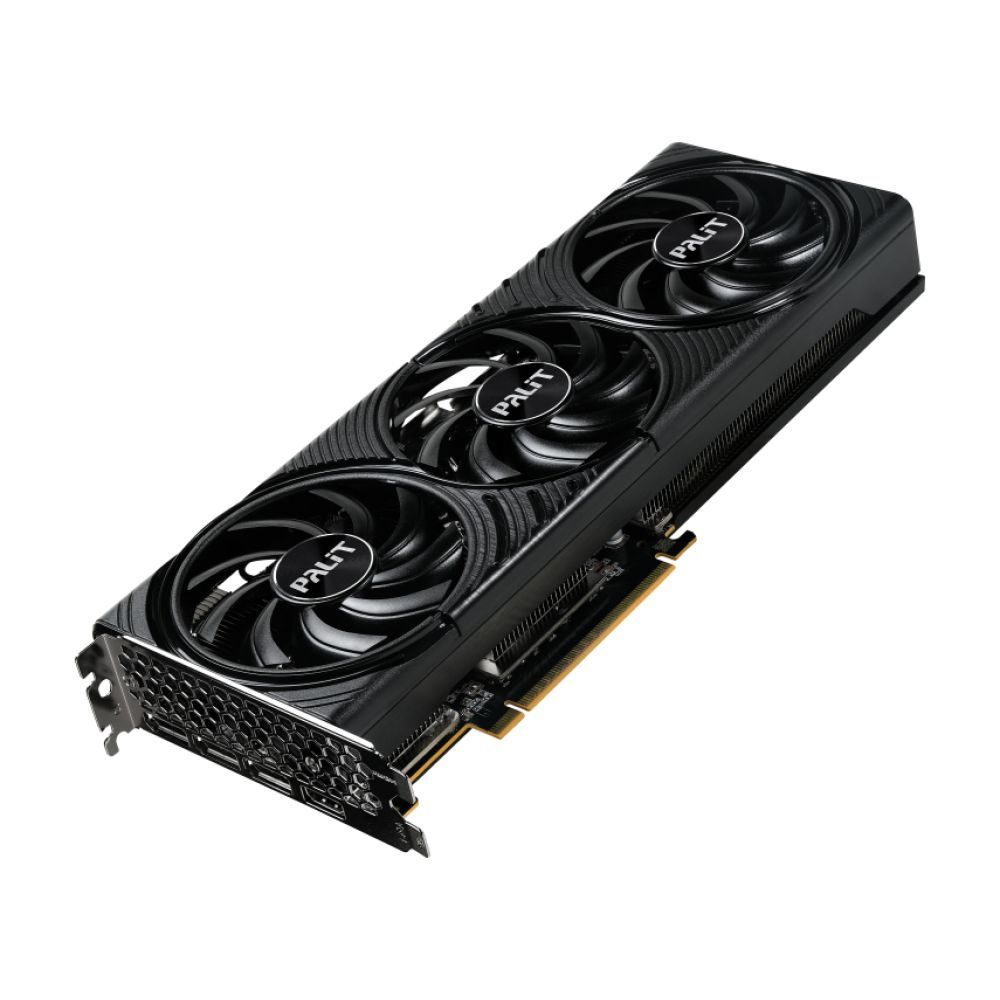

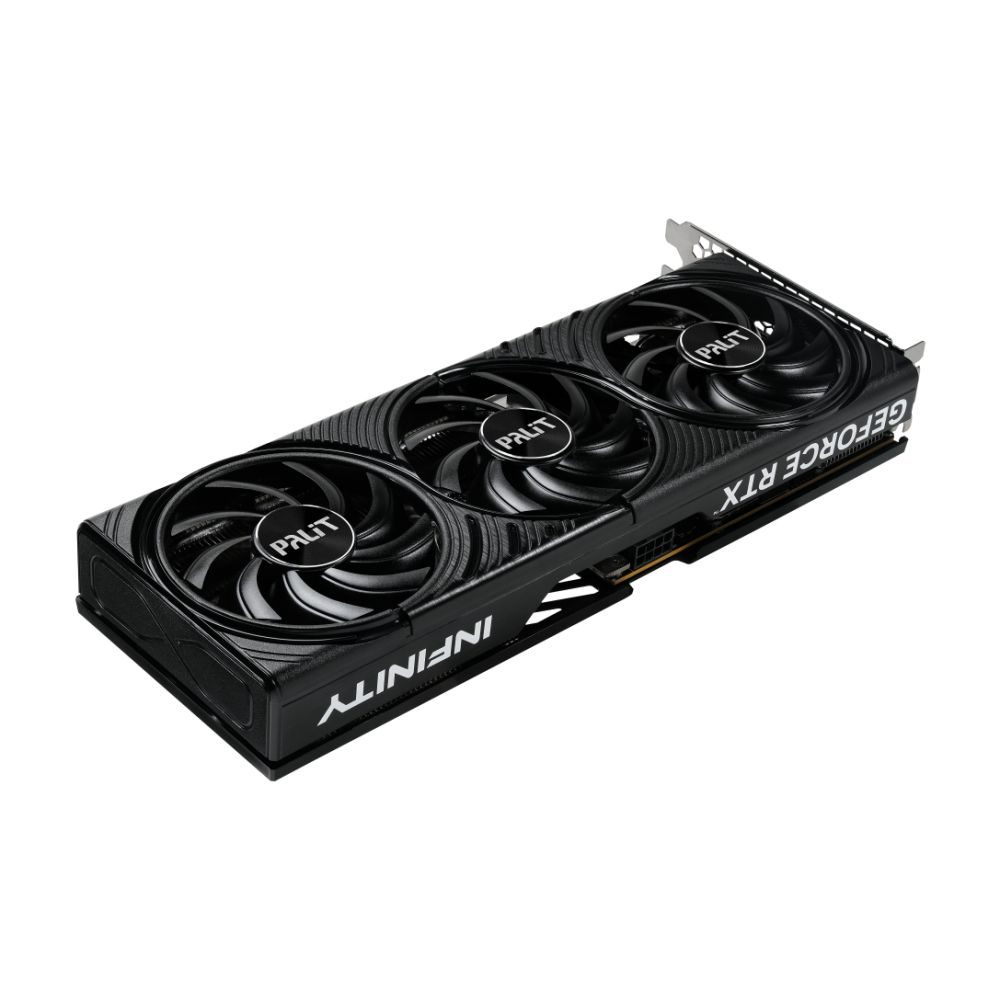

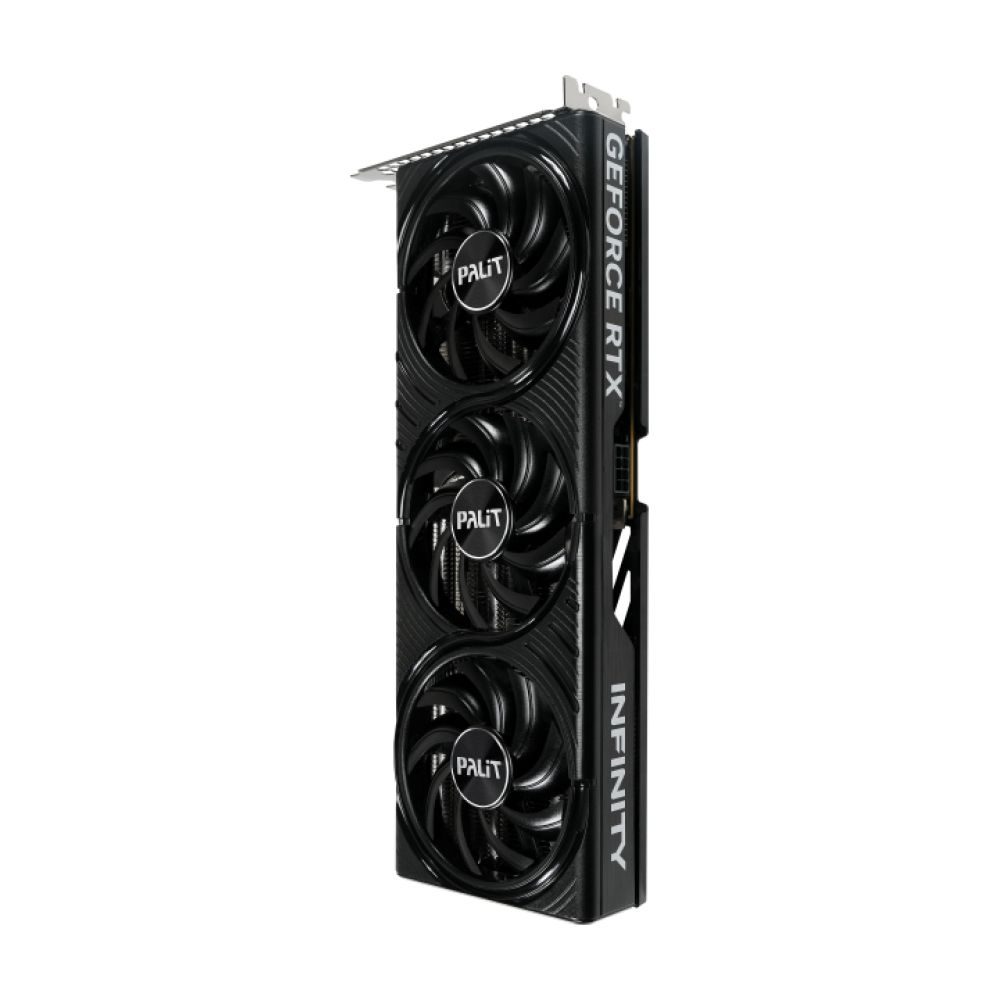

Palit GeForce RTX 5060 Ti Infinity 3 | SFF NVIDIA Graphics Card

The Palit GeForce RTX 5060 Ti Infinity 3 NVIDIA 16 GB GDDR7 is engineered for compact PC builds. This model targets users seeking high-end performance in a Small Form Factor (SFF) design. It delivers the power of NVIDIA Blackwell architecture without occupying excessive space.

Specifications

SFF-Ready Enthusiast Design

This card fits compact cases while maintaining enthusiast-level specs. The length is 291.9 mm, and it uses a 2-slot profile. Because it is SFF-ready, you can build a powerful yet space-saving system. Always verify case clearance for the 116.6 mm height and 291.9 mm length before purchase.

Advanced Cooling with Zero RPM

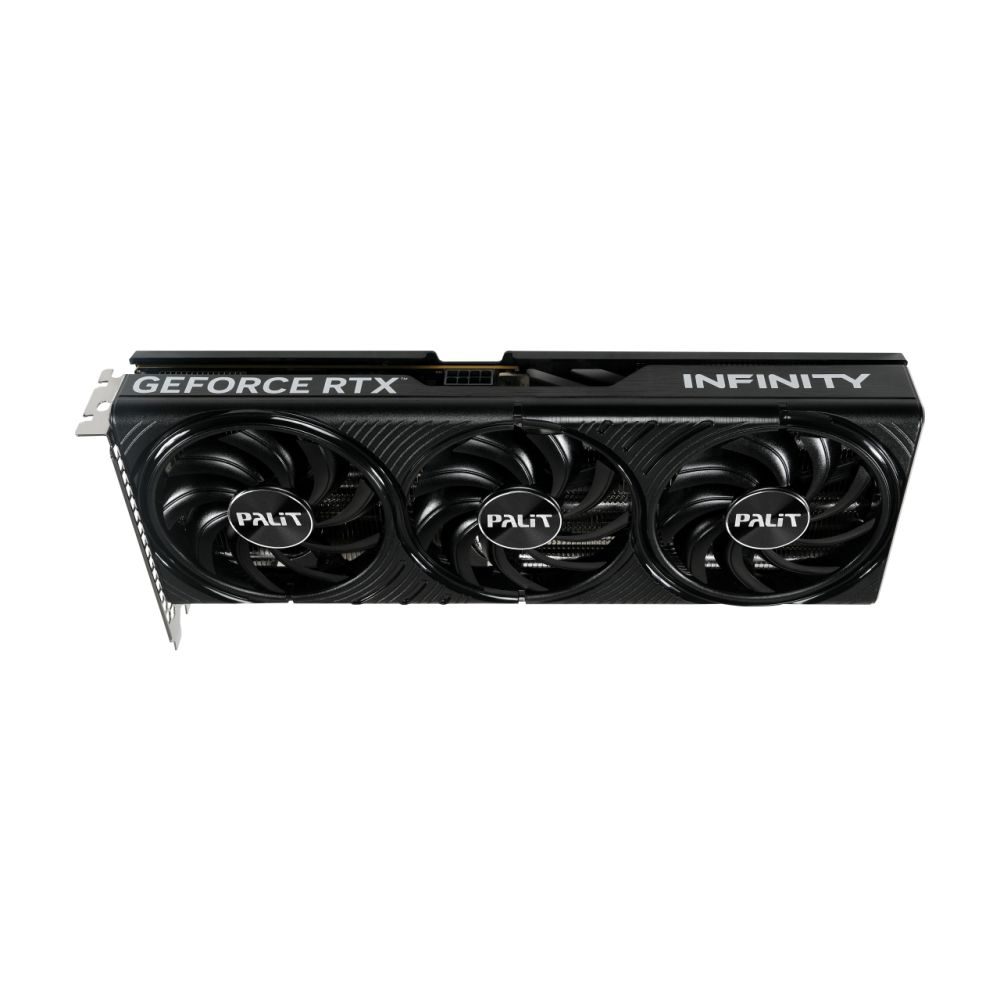

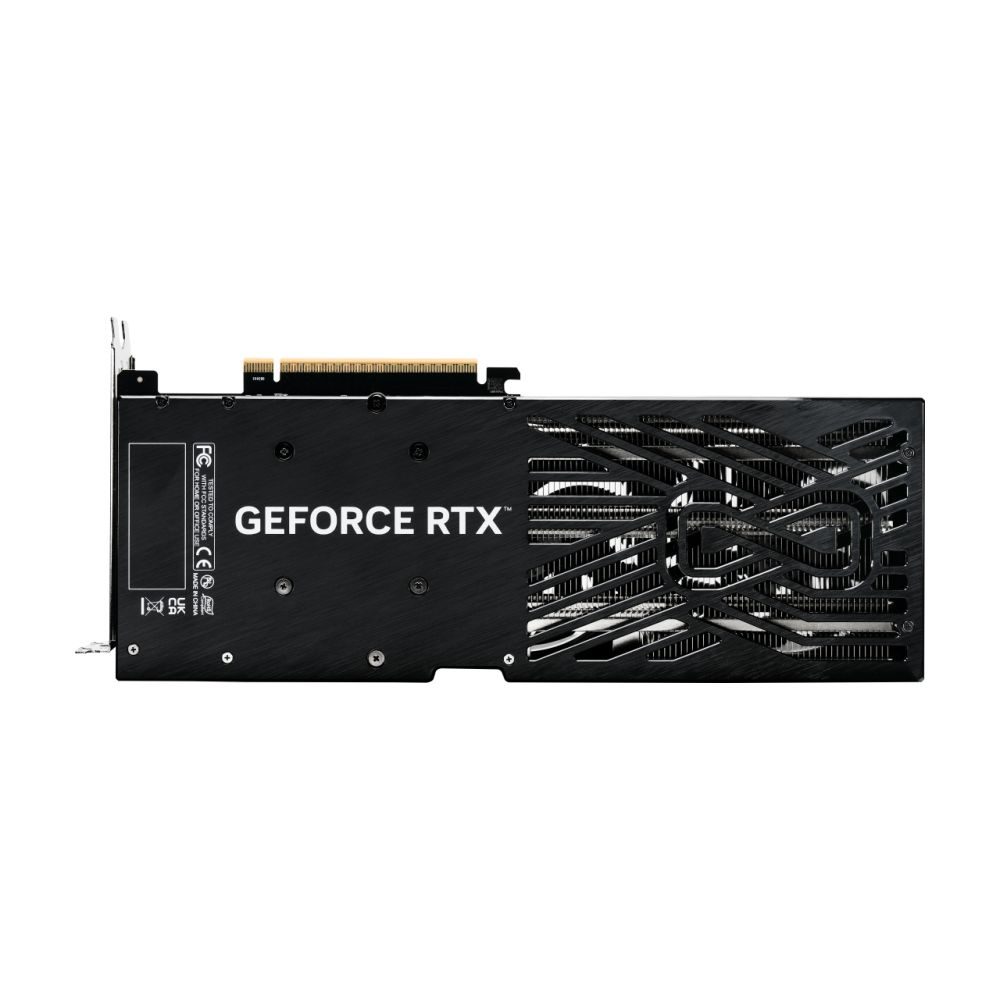

The cooler uses a 3-fan setup with active cooling. It features a composite heat pipe structure for improved thermal dissipation. In practice, the fans stop during light tasks for silent operation. They activate when the GPU reaches ~60°C or TGP exceeds ~150W. This balances noise levels and thermal performance effectively.

NVIDIA Blackwell Architecture

Powered by 4608 CUDA cores, this GPU supports DirectX 12 Ultimate. The processor boost clock reaches 2572 MHz. It handles full ray tracing and neural rendering via fourth-gen RT Cores. Because it uses GDDR7 memory, data transfer rates hit 28 Gbit/s with a bandwidth of 448 GB/s.

AI-Enhanced Gaming and Creation

DLSS 4 uses fifth-gen Tensor Cores to boost frame rates and image quality. NVIDIA Reflex 2 reduces latency for competitive gaming. For creators, NVIDIA Studio drivers support video editing and 3D rendering. The ninth-gen encoder accelerates AI effects in top creative applications.

Connectivity and VR Support

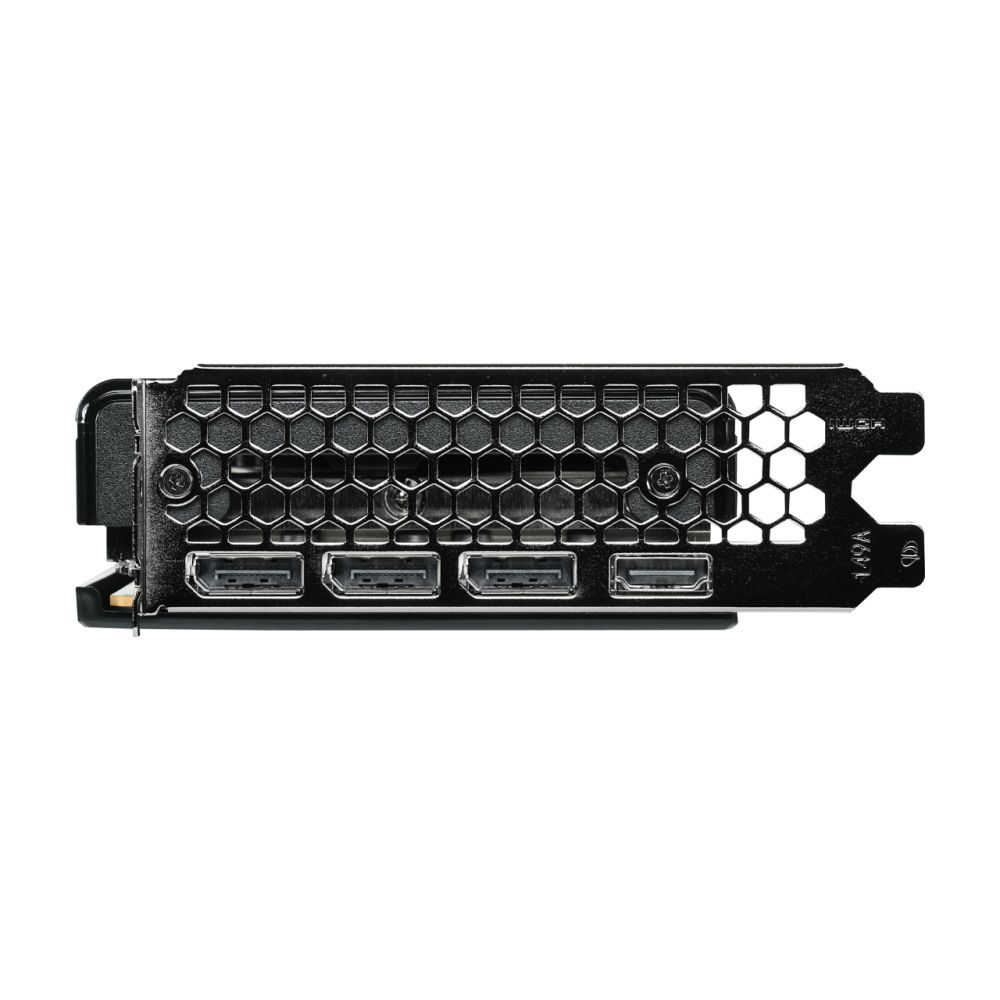

The card supports up to four displays via HDMI 2.1b and DisplayPort 2.1b. It is VR-ready and supports NVIDIA G-SYNC for tear-free visuals. Note that Dual Link DVI is not supported. If you use legacy monitors, verify compatibility with the available digital ports.

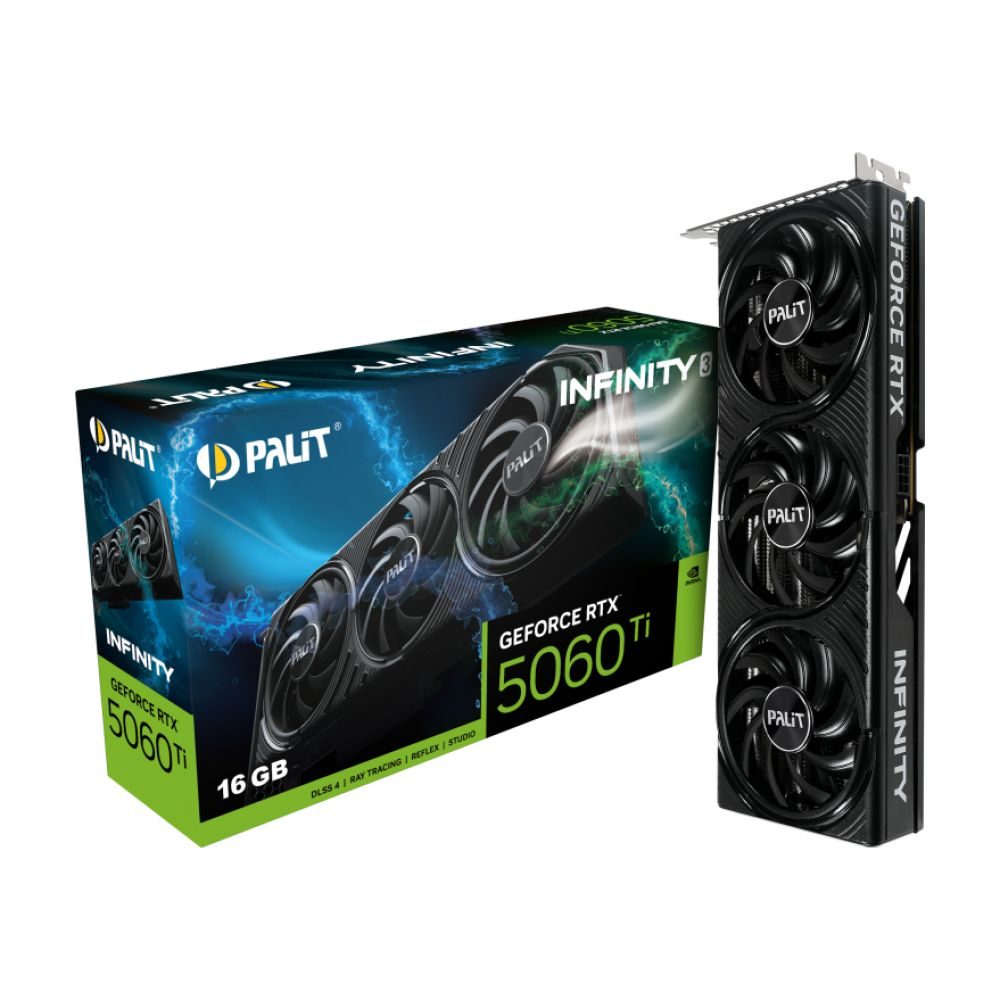

What is in the box

• Palit GeForce RTX 5060 Ti Infinity 3 Graphics Card
• Documentation

Check before you buy

• Confirm your case supports cards up to 291.9 mm length and 2-slot width.

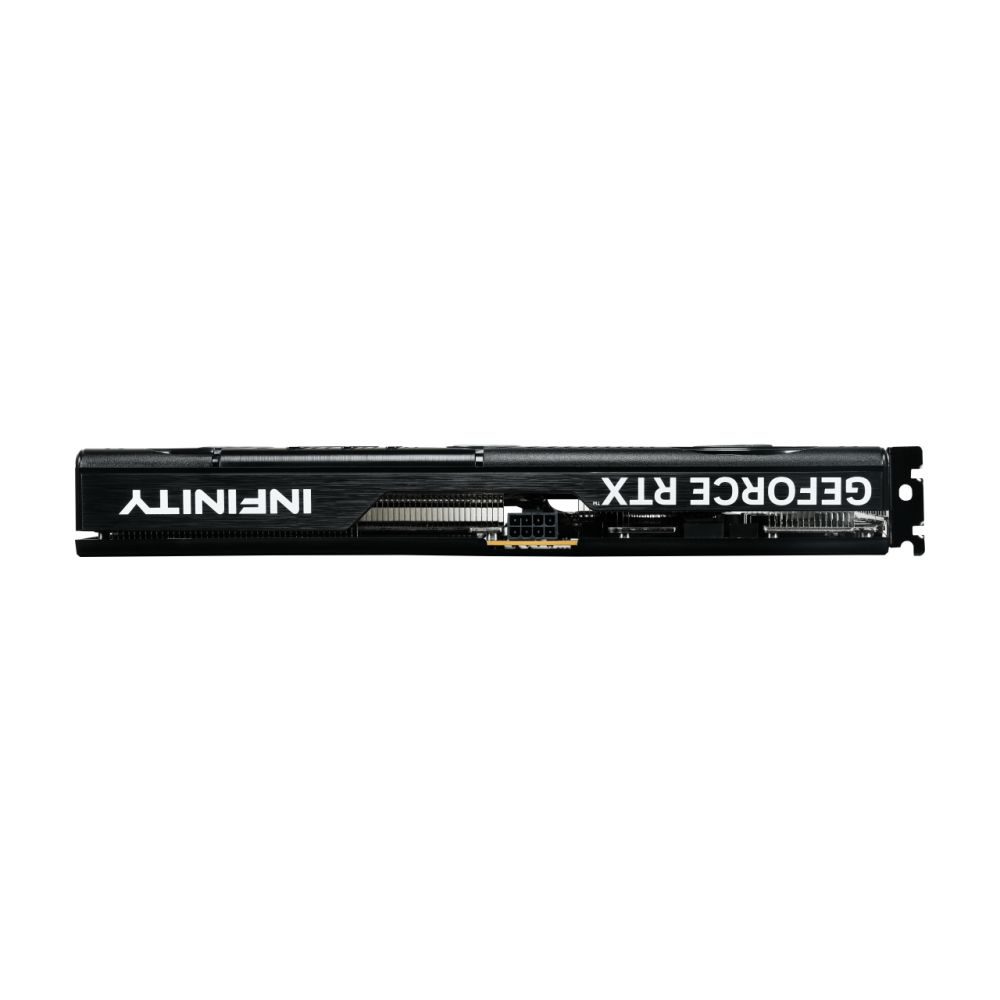

• Verify you have a 600 W power supply with a spare 1x 8-pin connector.
• Check motherboard clearance for the card’s 116.6 mm height.
• Confirm your monitor cables match HDMI 2.1b or DisplayPort 2.1b standards.

Questions and answers

Q: Does this card support 4K gaming?

A: Yes, it supports maximum resolutions up to 7680 x 4320 pixels.

Q: Is the Palit GeForce RTX 5060 Ti Infinity 3 NVIDIA 16 GB GDDR7 VR ready?

A: Yes, the card is compatible with Virtual Reality headsets.

Q: What power supply do I need?

A: A minimum 600 W system power supply is required with one 8-pin connector.

Q: Does it support NVIDIA G-SYNC?

A: Yes, it is compatible with NVIDIA G-SYNC displays.

Q: Is a TV tuner included?

A: No, this card does not have an integrated TV tuner.

Our verdict & warranty

This GPU is ideal for users building a compact gaming or creative workstation. It offers modern connectivity, AI features, and silent cooling in a small footprint. Covered by the applicable manufacturer warranty.
