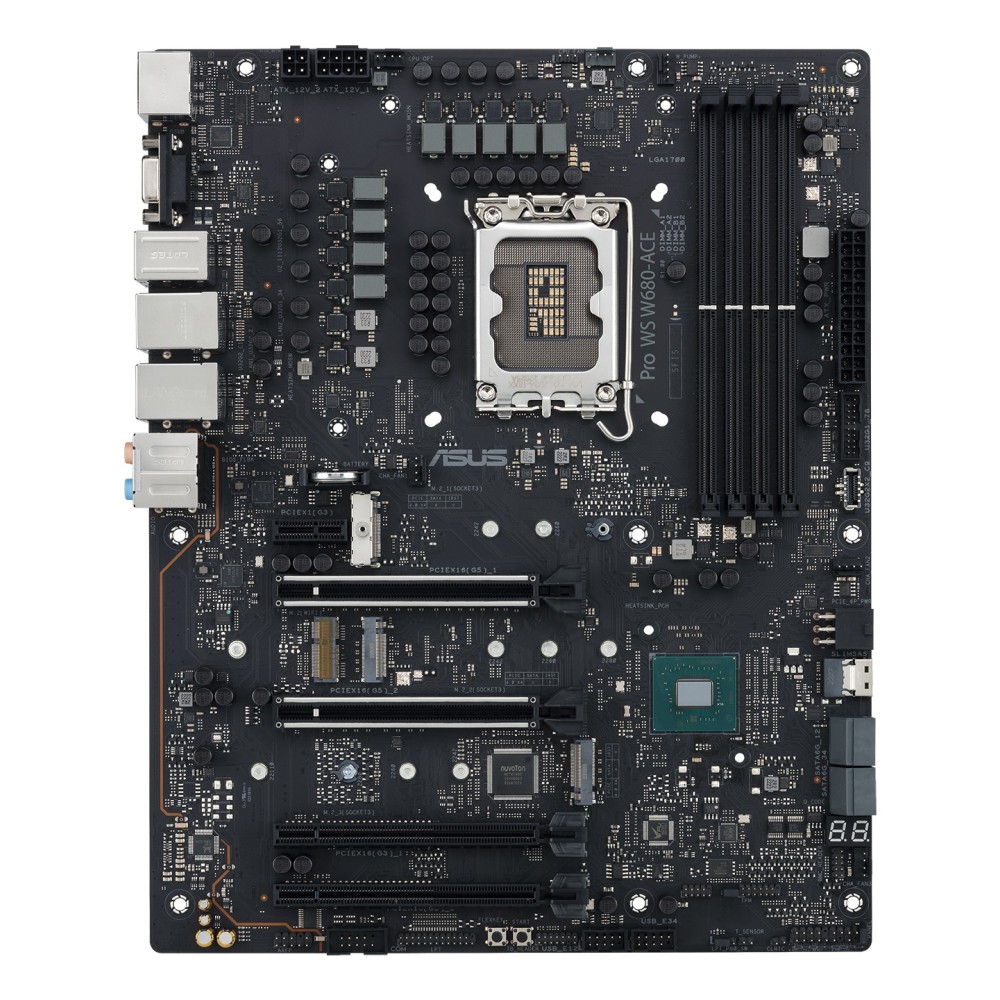

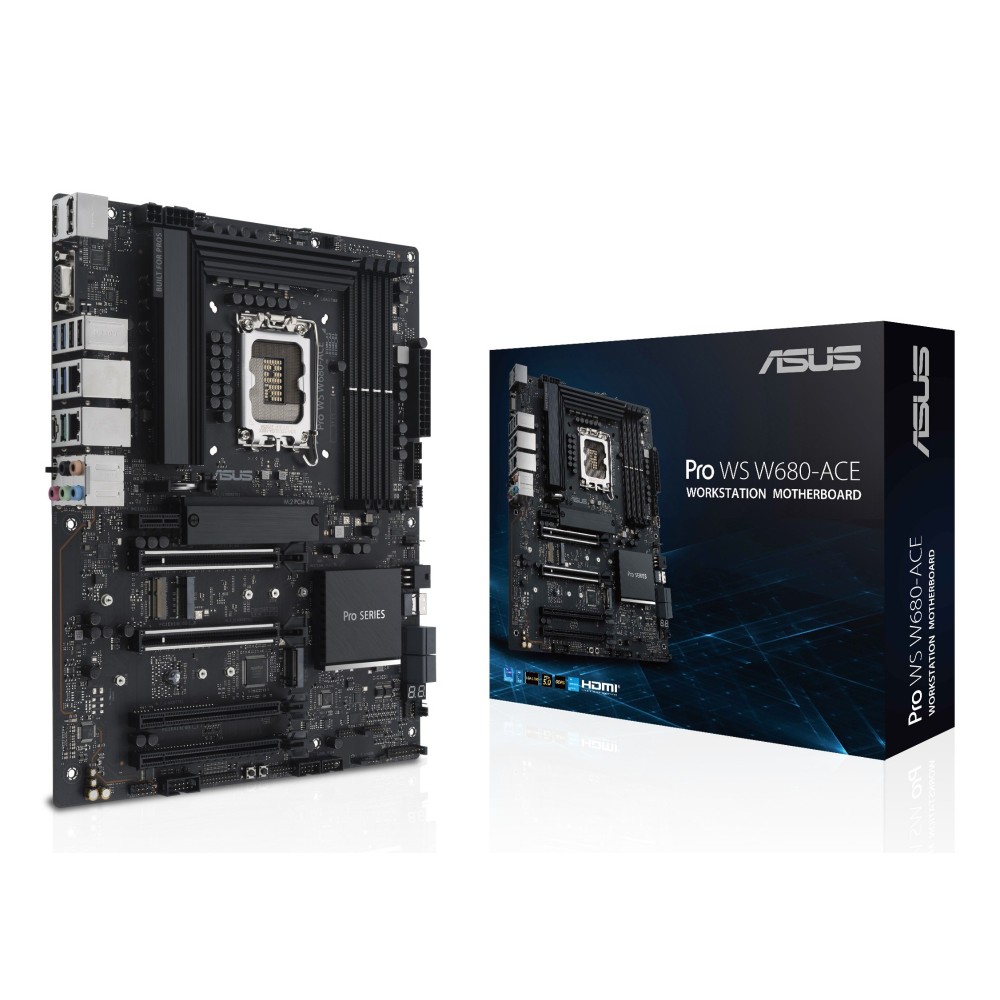

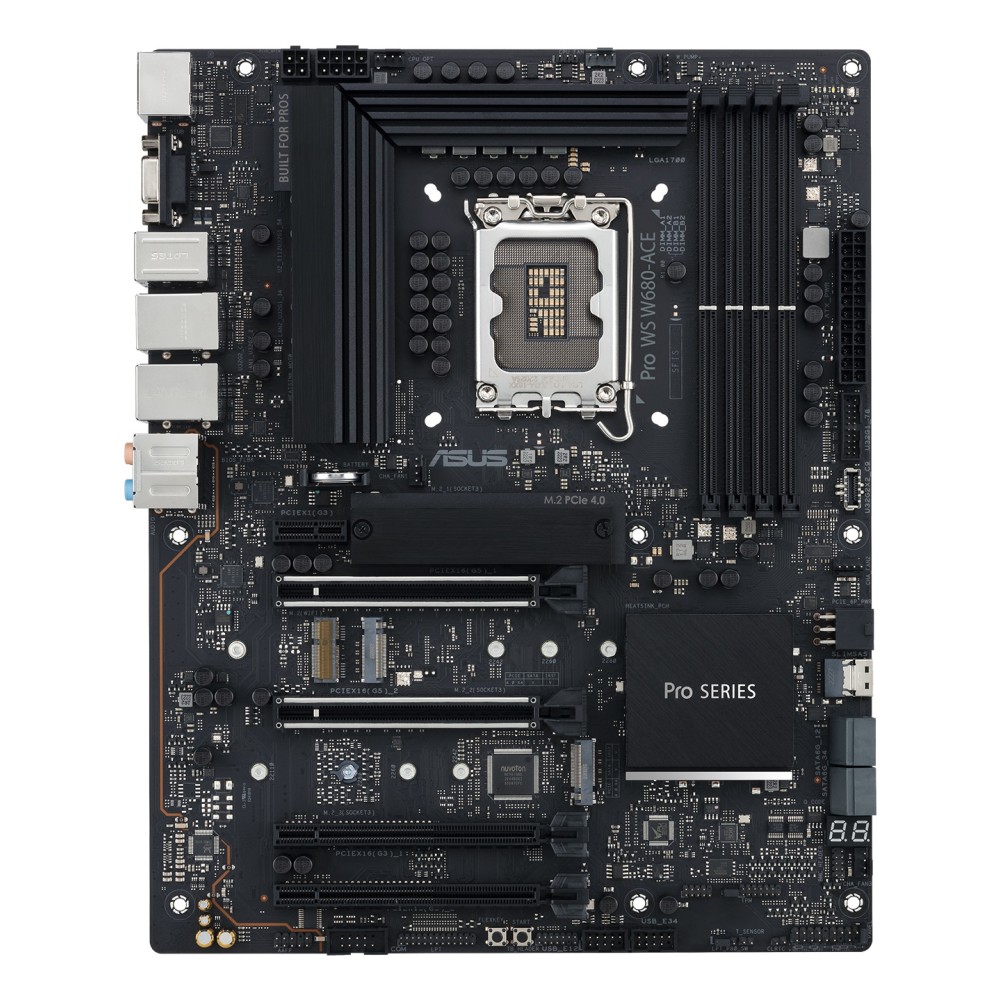

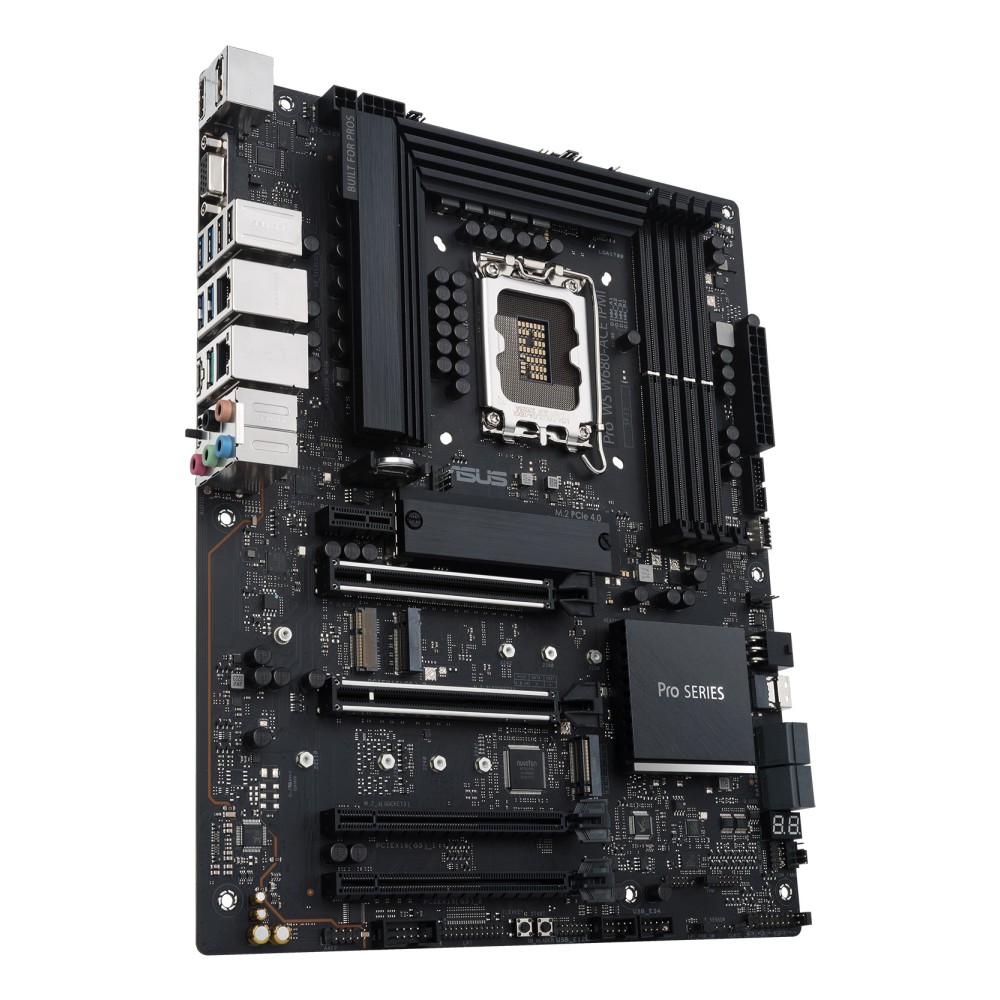

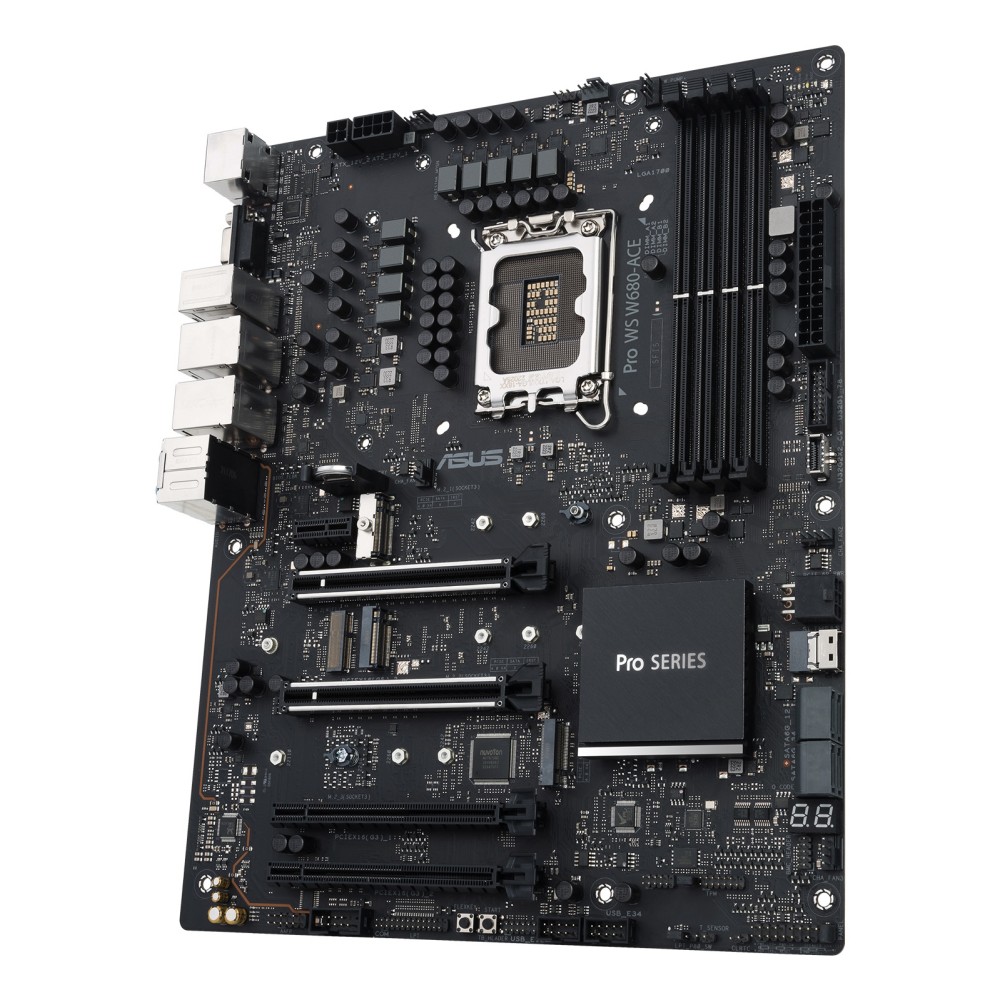

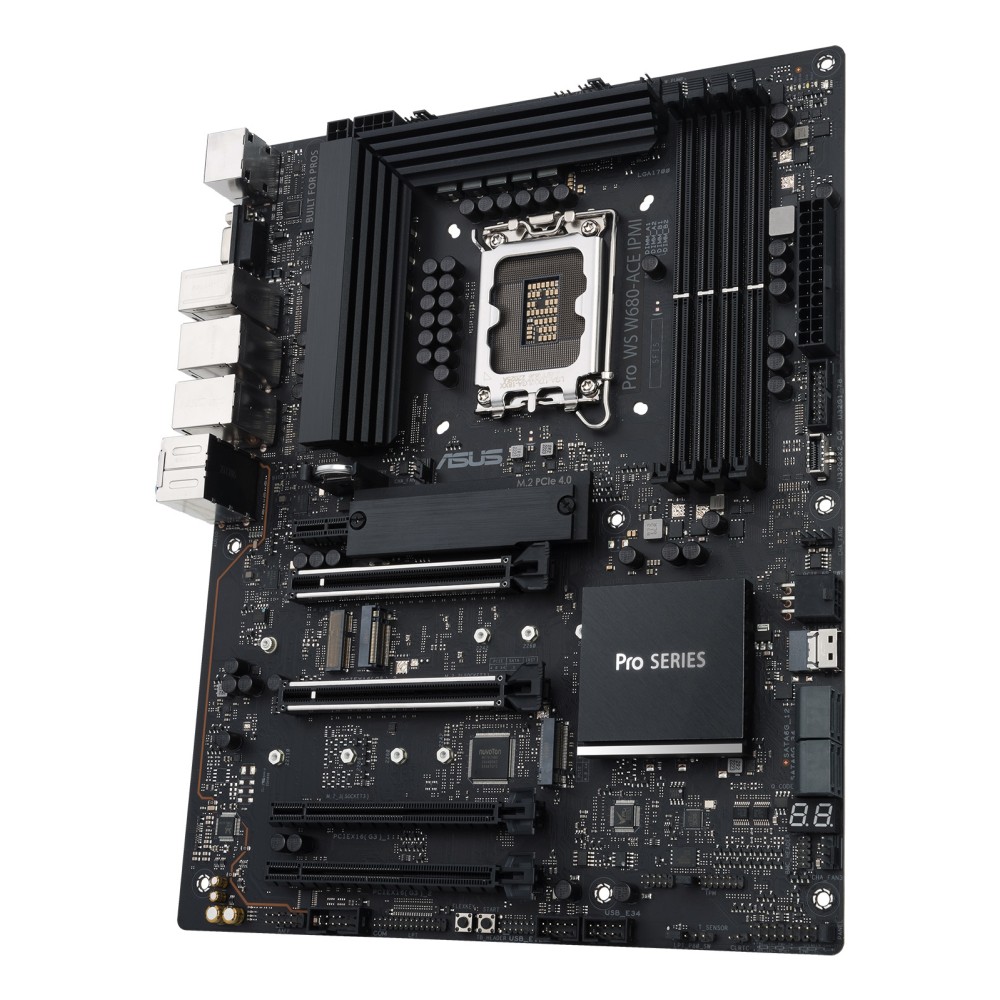

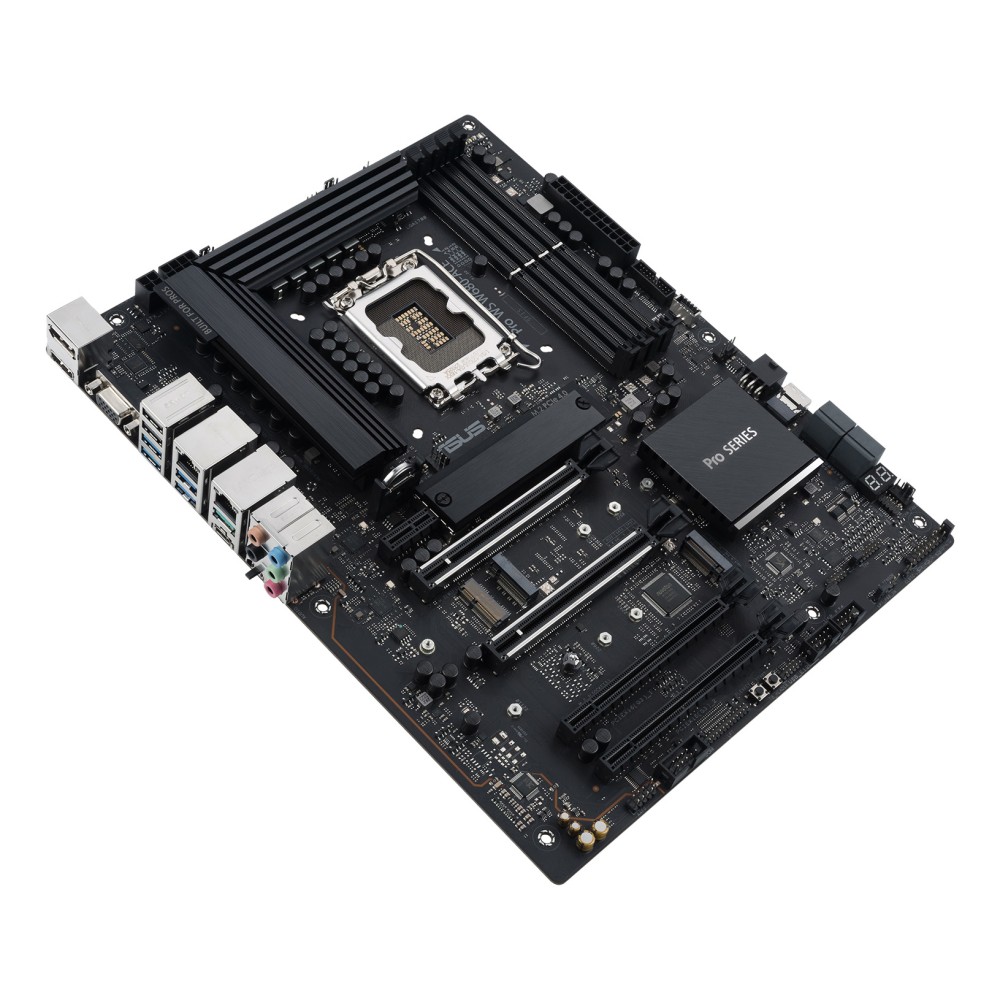

ASUS PRO WS W680-ACE Motherboard LGA 1700 Intel W680 ATX DDR5

ASUS PRO WS W680-ACE – Workstation Power

We are pleased to offer the ASUS PRO WS W680-ACE Motherboard LGA 1700 Intel W680 ATX DDR5. This professional-grade board is ideal for creative professionals and IT administrators. It delivers robust performance and exceptional reliability for demanding applications. We designed it for continuous, stable operation in rigorous environments.

Core Workstation Specifications

Enhanced Data Integrity with ECC Memory

This motherboard supports ECC memory. This feature is crucial for maintaining data integrity. ECC memory automatically detects and corrects data corruption. It significantly reduces the risk of system crashes. This ensures workstation stability during intensive tasks.

Accelerated Connectivity for Demanding Workloads

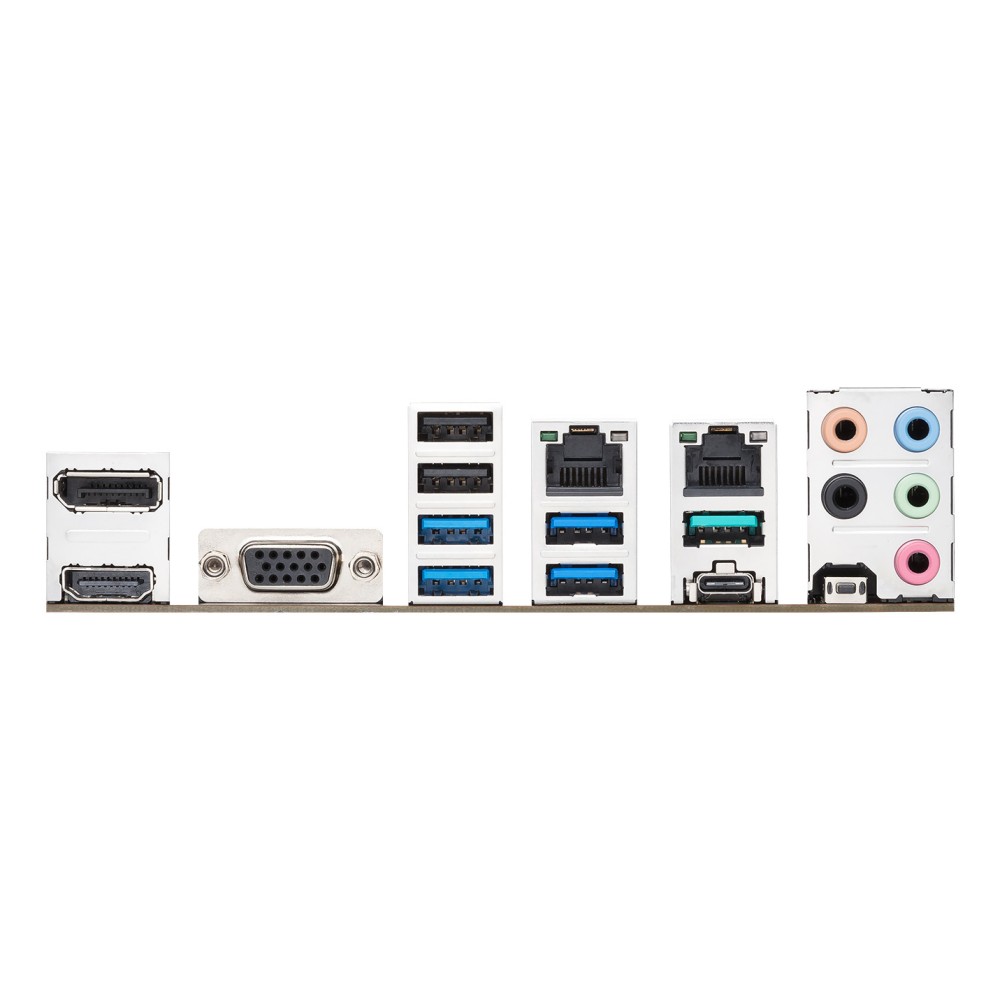

Benefit from dual 2.5 Gigabit Ethernet ports. This provides a substantial bandwidth improvement over traditional LAN. You can achieve faster file transfers and seamless high-resolution video streaming. Also, we include a Thunderbolt header for versatile high-speed peripheral connections.

Flexible Storage and Expansion Options

Three M.2 slots support PCIe 4.0, delivering speeds up to 64 Gbps. These slots offer flexible M.2 interfaces. RAID 0, 1, 5, and 10 configurations are available. This enhances data protection and increases fault tolerance. We also include four SATA III connectors.

Robust Cooling for Sustained Performance

Effective thermal management is built-in. A large VRM heatsink and an expanded PCH heatsink improve heat dissipation. Each M.2 slot has a dedicated heatsink. This keeps your M.2 SSDs at optimal operating temperatures. Consistent performance and reliability are maintained.

Simplified M.2 Installation with Q-Latch

The innovative Q-Latch simplifies M.2 SSD installation. You can easily install or remove drives without tools. This design uses a simple locking mechanism. It secures the drive neatly, eliminating traditional screws.

Assured Durability and Compatibility

We designed this board for 24/7 operation. It works reliably in temperatures up to 45°C. Extensive compatibility testing ensures broad support for components. This includes over 1,000 devices and 520+ DDR5 memory modules. We conduct over 8,000 validation hours for each model.

What you receive

• ASUS PRO WS W680-ACE Motherboard
• SATA cables
• User guide

Before you order

• Confirm your chosen CPU uses the LGA 1700 socket.
• Check your case supports an ATX form factor motherboard.
• Ensure your power supply has an 8-pin EPS power connector.
• Verify your RAM choice is DDR5-SDRAM.

Frequently Asked Questions

Q: Does this motherboard support Intel’s latest processors?

A: Yes, it supports 12th and 13th Gen Intel Core, Celeron, and Pentium Gold processors.

Q: Can I use both ECC and non-ECC memory with this board?

A: Yes, it is compatible with both ECC and non-ECC unbuffered DDR5 memory modules.

Q: How many graphics cards can I install?

A: It features two PCIe 5.0 x16 slots for multi-GPU setups, including NVIDIA Quadro support.

Q: Is Wi-Fi included on this motherboard?

A: No, this model does not have integrated Wi-Fi connectivity.

Q: What operating systems are supported?

A: It fully supports Windows 10 x64 and Windows 11 operating systems.

The bottom line

The ASUS PRO WS W680-ACE Motherboard LGA 1700 Intel W680 ATX DDR5 is for professionals. It suits those in AI training, deep learning, or 3D rendering. Its robust features and workstation-grade reliability make it an excellent choice. Warranty cover varies by product, so please contact us to confirm.
