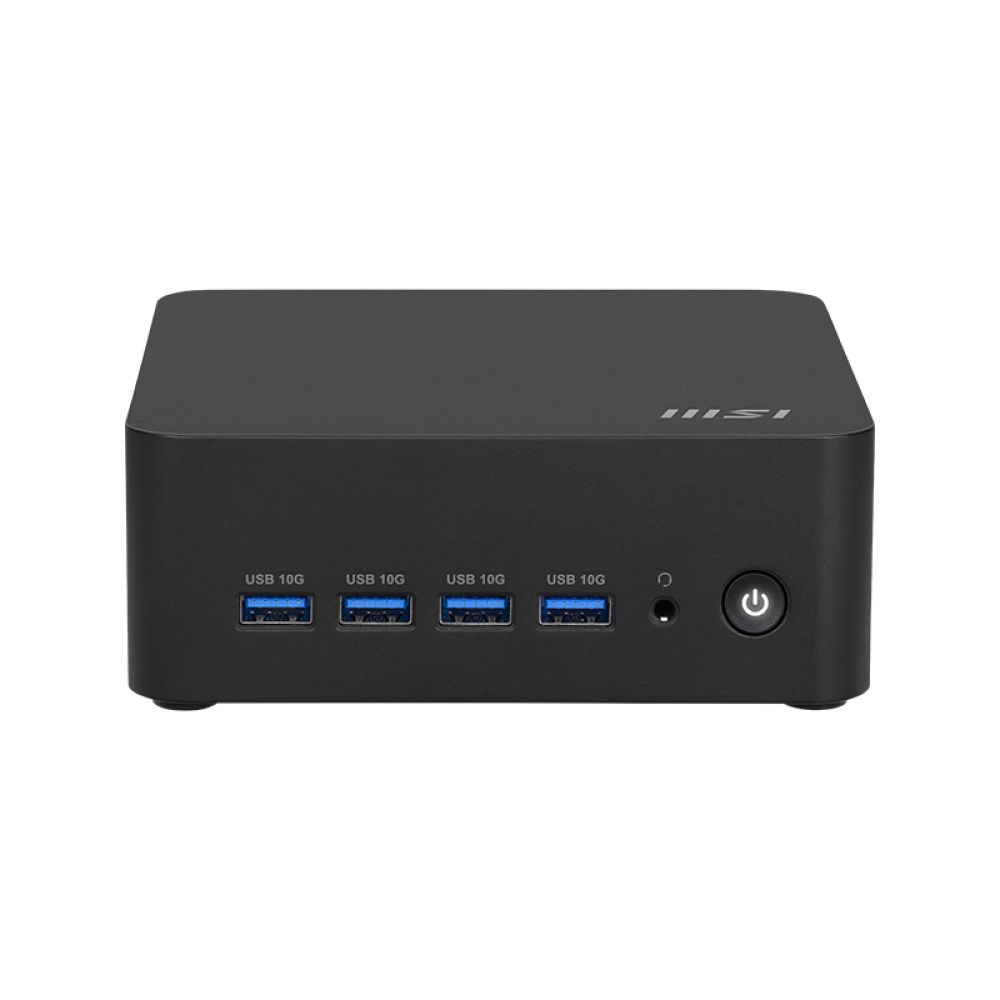

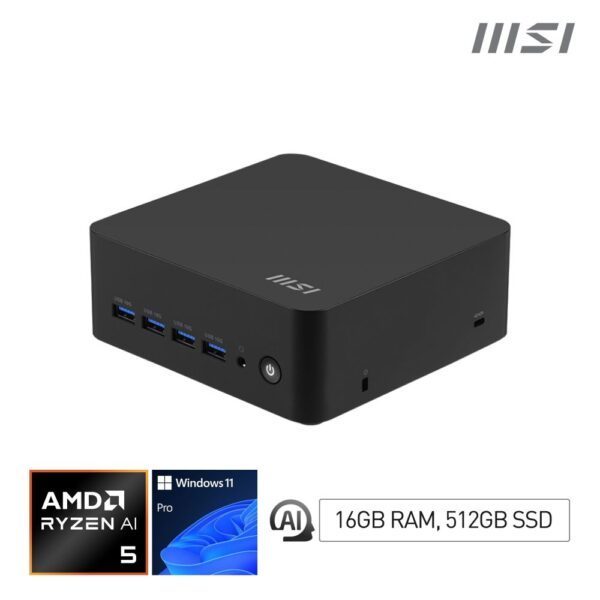

MSI Cubi Z AMD Ryzen 5 8645HS Mini PC (16GB RAM, 512GB Storage, Windows 11 PRO)
Original price was: £800.39.£752.39Current price is: £752.39.
Out of stock
Out of stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- AMD Ryzen 5 8645HS processor with built-in NPU for AI acceleration

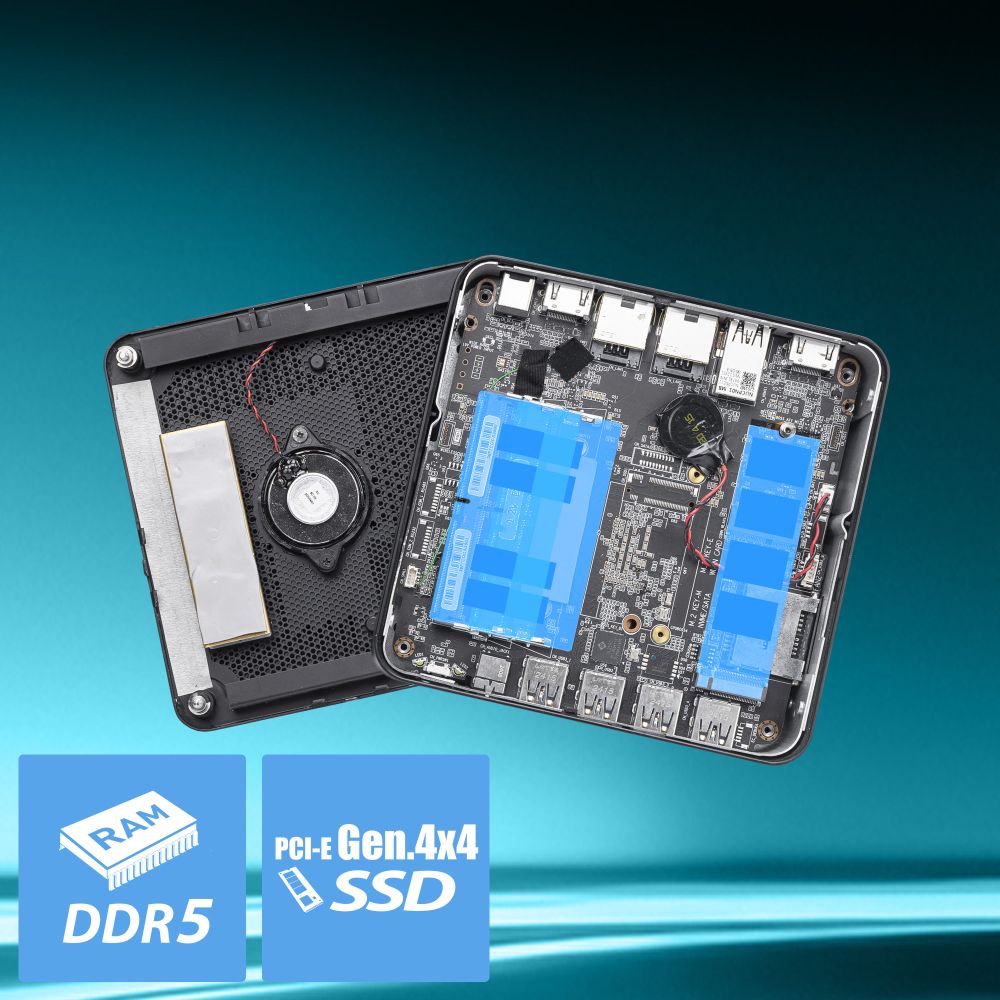

- 16GB DDR5-5600MHz RAM and 512GB NVMe SSD in compact 0.9L chassis
- Dual HDMI 2.1 ports supporting up to four displays
- Dual 2.5G LAN plus Wi-Fi 6E and Bluetooth 5.3 for fast connectivity
- VESA mountable design with Kensington lock for secure, space-saving installation
Available alternatives
MSI Cubi NUC 1M Intel Core 5 120U Desktop PC, 16GB RAM, 512GB Storage, Win 11 Pro
In stock
MSI Cubi Z AI 8M AMD Ryzen 9 8945HS Barebone Mini PC
In stock
MSI Cubi NUC AI 1UMG Intel Core Ultra 7 155H Barebone Mini PC
In stock
DELL Pro QCM1250 Mini PC with i5-14500T, 16GB DDR5, 512GB SSD, Windows 11 Pro
In stock
You may also like
MSI Cubi NUC AI 1UMG Intel Core Ultra 7 155H Barebone Mini PC
In stock
Lenovo ThinkCentre M70q Gen 5 i5 Mini PC Black
In stock
HP Pro Mini 400 G9 i5-14500T 16GB 512GB SSD Win11 Pro
In stock
HP Pro Mini 400 G9 i5 Desktop PC Black
In stock
ARCTIC Senza 5700G Pro Mini PC
In stock
GIGABYTE BRIX i7-1355U Mini PC
In stock
MSI Cubi Z AI 8M AMD Ryzen 9 8945HS Barebone Mini PC
In stock
MSI Cubi 5 12M i7 Barebone Mini PC
In stock
Lenovo ThinkCentre neo 50q Mini PC
In stock
MSI Cubi NUC AI 1UMG Intel Core Ultra 5 125H Barebone Mini Computer
In stock
ARCTIC Senza 5500GT Compact PC
In stock
Gigabyte BRIX Barebone Kit with Intel Core Ultra 5 225H CPU
In stock
MSI Cubi NUC 1M Intel Core 7 Barebone Mini PC
In stock
MSI Cubi Z AI 8M | Compact AMD Ryzen 5 AI Mini PC
The MSI Cubi Z AI 8M AMD Ryzen 5 8645HS Desktop PC, SFF, Mini Computer, HTPC, (16GB RAM, 512GB Storage, Windows 11 PRO), AMD Radeon Graphics/DDR5/Dual HDMI/Dual LAN/Wi-Fi 6E/BT 5.3/VESA is a compact AMD Ryzen 5-powered mini PC designed for AI-enhanced productivity in tight spaces. With a built-in NPU, dual 2.5G LAN, and VESA mounting, it’s ideal for professionals needing both performance and versatility in a minimal footprint.
Key Specs at a Glance
| Metric | Spec |
|---|---|
| Processor | AMD Ryzen 5 8645HS (4.3 GHz) |
| Memory | 16GB DDR5-5600 (2x8GB) |
| Storage | 512GB NVMe M.2 SSD |
| Graphics | AMD Radeon Graphics |
| OS | Windows 11 Pro |
Built-in AI Processing for Modern Workloads
The AMD Ryzen 5 8645HS features an integrated NPU (Neural Processing Unit) supporting FP16 and Int8 datatypes, enabling local AI acceleration for tasks like video conferencing enhancements, real-time transcription, and AI-assisted productivity tools. This makes the Cubi Z AI 8M well-suited for users leveraging Windows Studio Effects or AI-powered applications without relying solely on cloud processing.

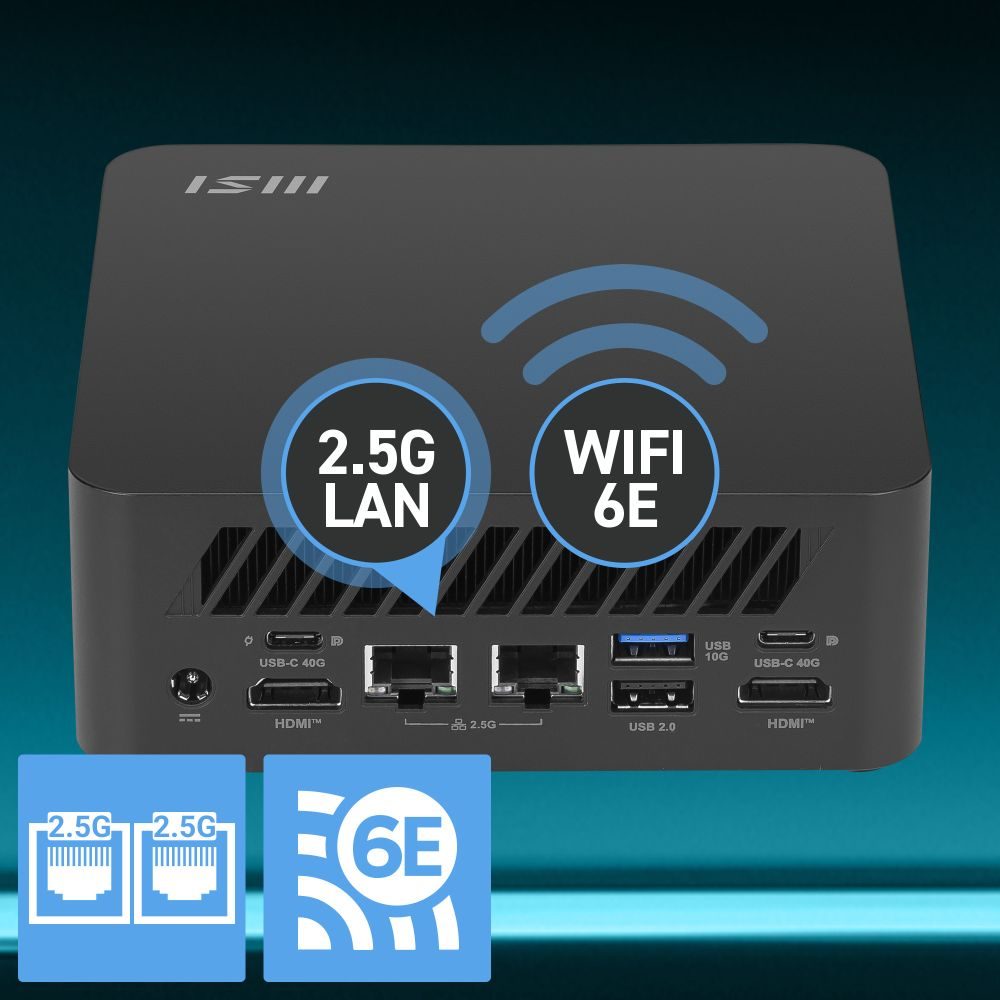

Dual 2.5G LAN & Wi-Fi 6E for Fast, Reliable Networking
Equipped with dual 2.5G Ethernet ports and Wi-Fi 6E (802.11ax) with 2×2 MIMO antennas, the Cubi Z AI 8M delivers high-speed, low-latency connectivity. Whether you’re streaming 4K content, transferring large files, or participating in video conferences, the combination of wired and wireless options ensures stable performance across demanding scenarios.

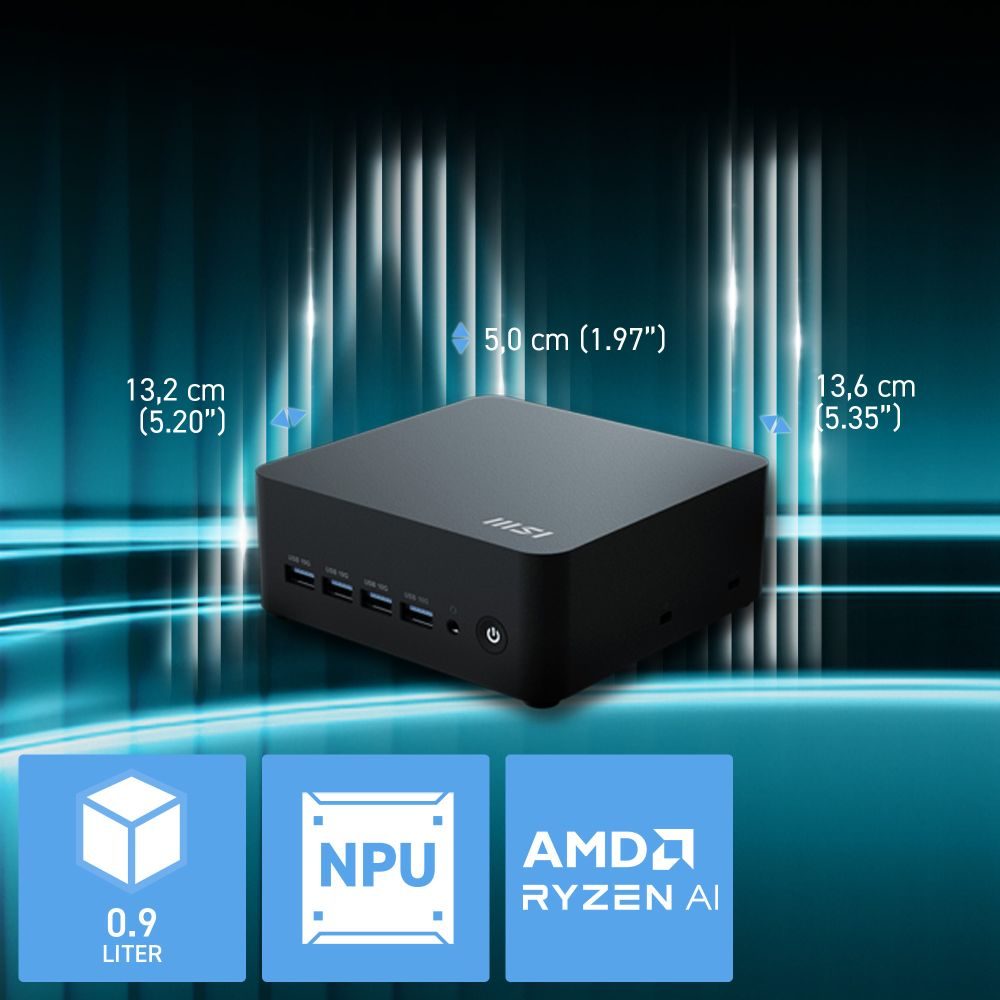

Compact Design with Flexible Mounting Options

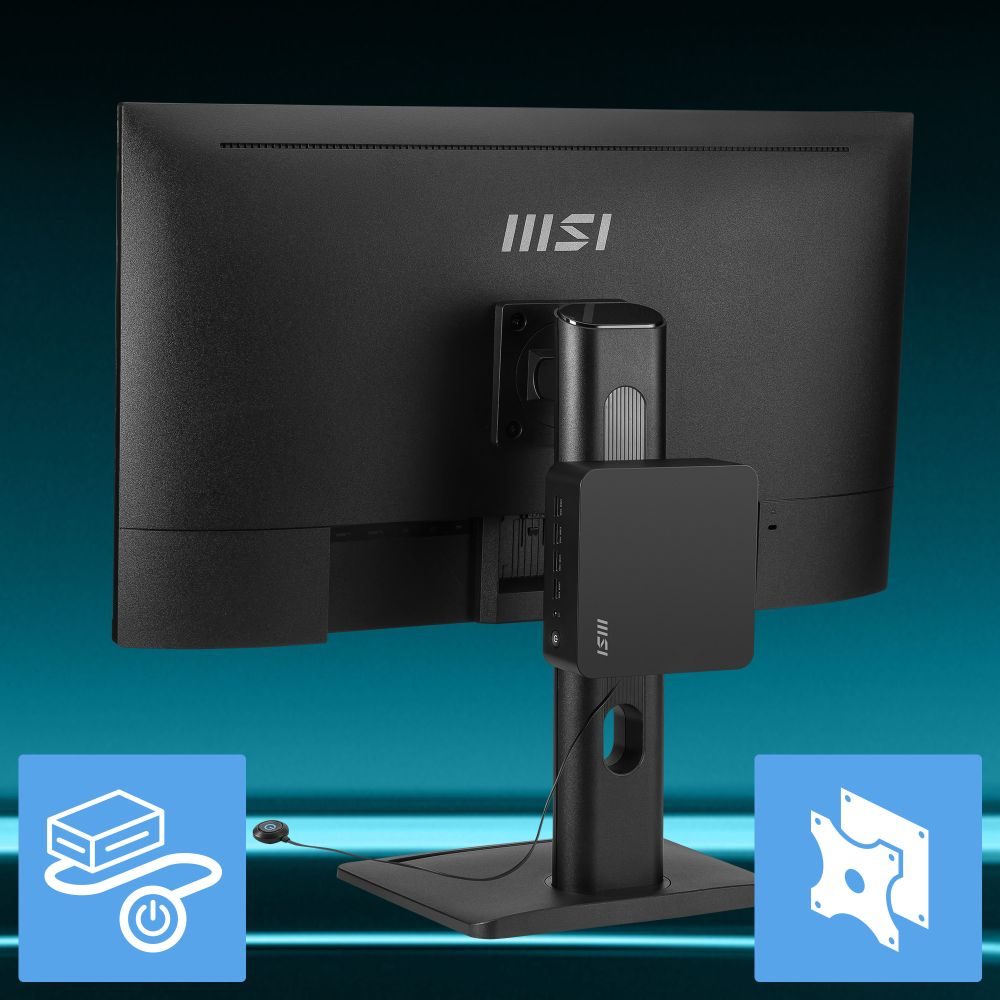

Measuring just 136 x 132 x 50.1 mm and weighing 790 g, this mini PC fits seamlessly into any workspace. The VESA mount compatibility allows you to attach it directly behind a monitor, saving desk space. Its metal and plastic chassis is built for both horizontal and vertical placement, making it adaptable to various setups.

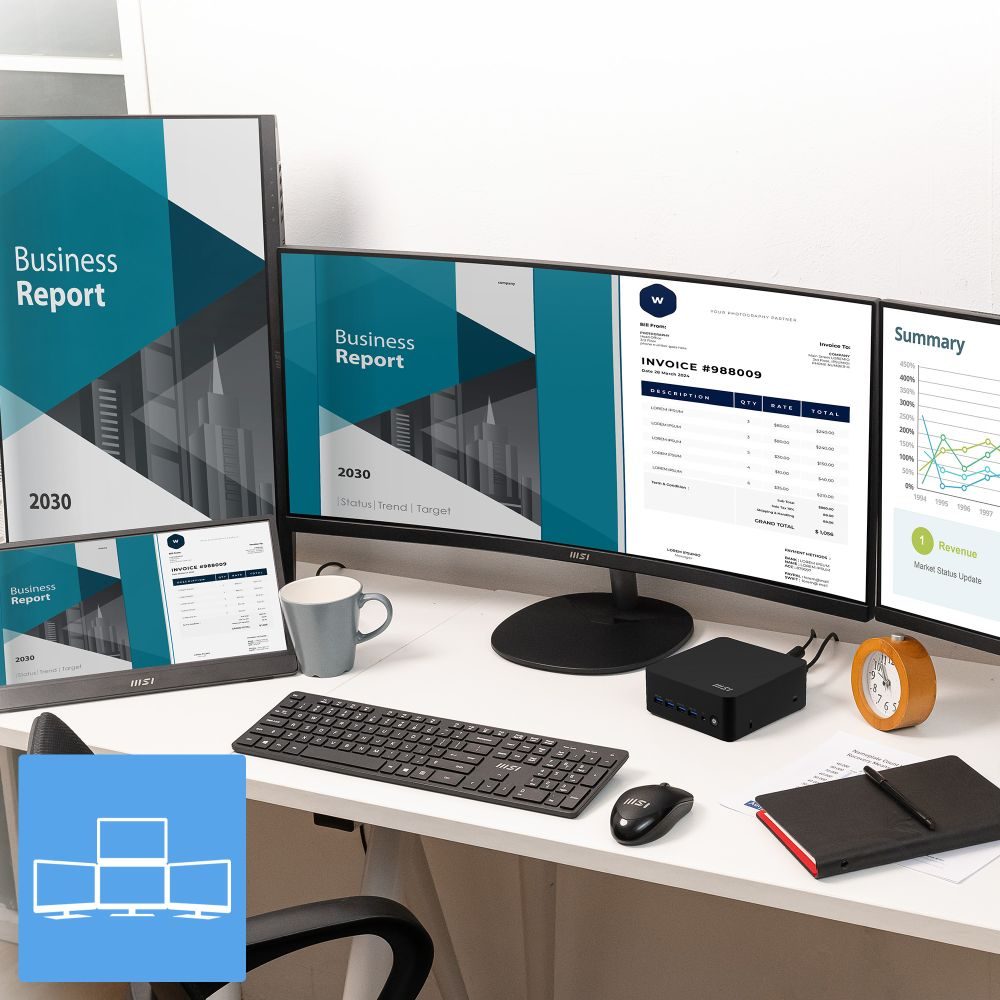

Dual HDMI 2.1 for Multi-Display Setups
With two HDMI 2.1 ports, the Cubi Z AI 8M supports up to four displays when combined with USB-C/DisplayPort output. This makes it ideal for multitasking professionals, content creators, or anyone needing an extended desktop across multiple screens without compromising on resolution or refresh rate.
What Is in the Box
- MSI Cubi Z AI 8M mini PC
- Power adapter (120W)
- AC power cable (1.8m)
- VESA mounting kit
- Quick start guide
Things to Check First
- Confirm the power supply matches your region’s voltage (120-240V).
- Verify your monitor setup supports the required HDMI/DisplayPort connections.
- Check that your workspace can accommodate the 136 x 132 x 50.1 mm dimensions.
- Ensure your software leverages NPU acceleration if AI features are important.
Buyer FAQs
Can I upgrade the memory or storage?
Does it support dual monitors out of the box?
Is this PC suitable for gaming?
What security features are included?
Can I mount it behind a monitor?
The short version
The MSI Cubi Z AI 8M is a well-balanced mini PC for professionals seeking AI-enhanced performance in a compact, versatile design. Its built-in NPU, robust connectivity options, and flexible mounting make it ideal for modern workspaces where space and performance matter. Covered by the applicable manufacturer warranty.
| Processor frequency | 4.3 GHz |
|---|---|
| Number of processors installed | 1 |
| Processor family | AMD Ryzen™ 5 |
| Neural processor unit NPU | AMD Ryzen AI |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI datatype support on NPU | FP16, Int8 |
| AI software frameworks supported by NPU | Onnx, Windows ML |
| Non-ECC | No |
| ECC | No |
| Memory layout slots x size | 2 x 8 GB |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Memory channels | Dual-channel |
| Buffered memory type | Unregistered (unbuffered) |
| Memory data transfer rate | 5600 MT/s |
| Intel Optane Memory module installed | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 1 |
| SSD interface | M.2 |
| Number of SSDs installed | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | Not supported |
| Total storage capacity | 512 GB |
| Intel Optane Memory module capacity | 0 GB |
| SSD memory type | TLC |
| SSD form factor | M.2 |
| Total HDDs capacity | 0 GB |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Discrete graphics card | No |
| Optical drive type | No |
| Bluetooth version | 5.3 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Wake-on-LAN ready | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Bluetooth Low Energy BLE | Yes |
| Miracast | Yes |
| WLAN controller model | AMD RZ616 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Antenna type | 2×2 |
| WLAN controller manufacturer | AMD |
| LAN controller | Realtek RTL8125B |
| Antenna design | Internal |
| Combo headphone/mic port | Yes |

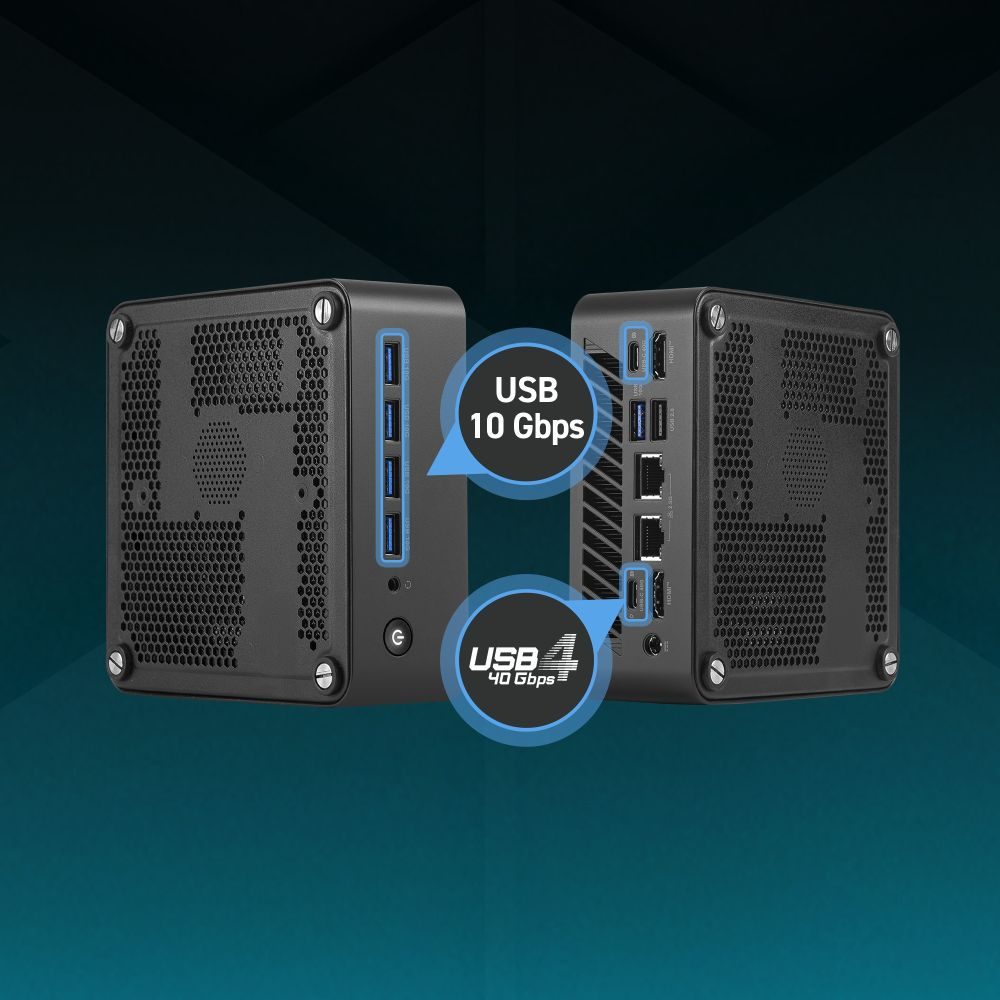

| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 5 |
| USB 2.0 ports quantity | 1 |
| S/PDIF out port | No |
| Microphone in | No |
| Line-out | No |
| Line-in | No |
| HDMI ports quantity | 2 |
| Ethernet LAN RJ-45 ports | 2 |
| DVI port | No |
| DC-in jack | Yes |
| PowerShare | No |
| USB Type-C DisplayPort Alternate Mode | No |
| Intel Thunderbolt 4 | No |
| Fibre NIC port Flex I/O | No |
| Intel Thunderbolt 5 | No |
| Number of rear USB ports | 4 |
| Number of front USB ports | 4 |
| Number of front audio ports | 1 |
| Housing material | Metal, Plastic |
| Water cooling system | No |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Viewing window | No |
| Colour name | Black |
| RGB memory lighting | No |
| Introduction year | 2025 |
| Introduction month | December |
| Copilot key | No |
| Certified refurbished | No |
| BIOS type | UEFI |
| Audio chip | Realtek ALC269 |
| Virtual Reality VR ready | No |
| Market positioning | Business |
| Password protection | Yes |
| Password protection type | BIOS, Power on, Supervisor |
| Product type | Mini PC |
| Audio system | High Definition Audio |
| Compatible processor series | AMD Ryzen PRO 8000 Series |
| Audio output channels | 2.0 channels |
| Powered by | AMD Ryzen |
| Trusted Platform Module TPM version | 2.0 |
| Fingerprint reader | No |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Pre-installed software | MSI Center、Nahimic 3 |
| Operating system installed | Windows 11 Pro |
| Windows 11 free upgrade | No |
| Apple Intelligence | No |
| Copilot+ PC | No |
| Video encode engine | Yes |
| Video decode engine | Yes |
| Power supply input frequency | 50-60 Hz |
| Power supply input voltage | 120-240 V |
| Power supply | 120 W |
| Storage temperature T-T | -20 – 60 °C |
| Operating relative humidity H-H | 0 – 85% |
| Storage relative humidity H-H | 0 – 90% |
| Operating temperature T-T | 0 – 35 °C |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UL |
| Volume | 0.9 L |
| Width | 136 mm |
| Depth | 132 mm |
| Height | 50.1 mm |
| Weight | 790 g |
| Package width | 469 mm |
| Package depth | 221 mm |
| Package height | 517 mm |
| Package weight | 2 kg |
| VESA mount included | Yes |
| Cables included | AC, Power |
| Manual | Yes |
| Numeric keypad | No |
| Mouse included | No |
| Drivers included | Yes |
| Keyboard backlit | No |
| Keyboard included | No |
| Power cable length | 1.8 m |
| Display included | No |
| Waste Electrical and Electronic Equipment WEEE compliance | Yes |
| VESA mounting | Yes |
| Number of speakers | 1 |
| Trusted Platform Module TPM | Yes |
| On-board graphics card | No |
| Processor manufacturer | AMD |
| Compatible operating systems | Windows 11 Pro |
| Built-in speakers | Yes |
| Refurbished | No |
| Country of origin | China |
| Locale | English |
| Warranty period | 3 year(s) |
| Distributor SKUs | 4711377390316, CL4711377390316 |
