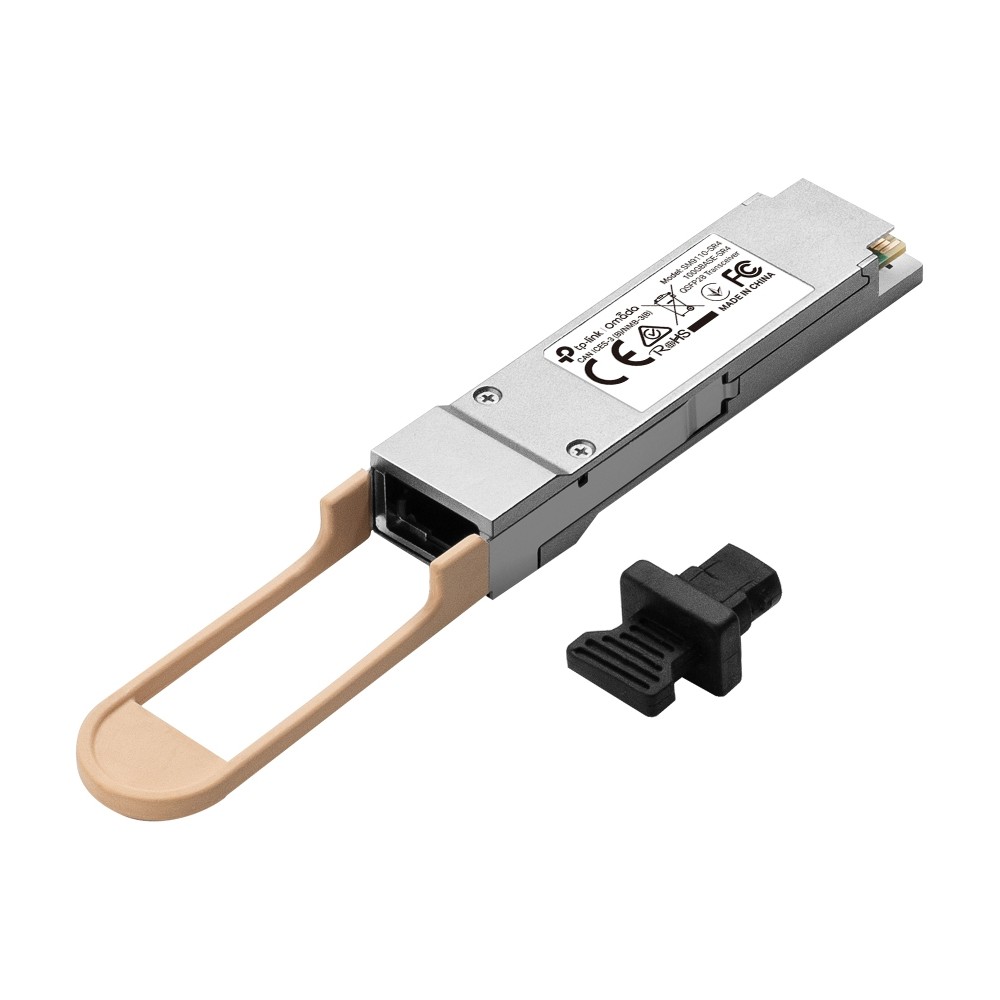

TP-Link Omada SM9110-SR4 QSFP28 Transceiver Module 100G 40G Multi-mode Fibre 850nm MPO 150m
£100.79
In stock
In stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- TP-Link Omada SM9110-SR4 QSFP28 transceiver module for 100G and 40G Ethernet
- Multi-mode fibre support with 50/125 µm core/cladding cable compatibility
- Maximum transfer distance of 150 m based on networking standards IEEE 802.3ba
- 850 nm wavelength using MPO-12 and MTP fibre optic connectors
- Digital Diagnostics Monitoring DDM enabled for optical performance diagnostics
- Hot-swap and Plug and Play design for streamlined network deployment
- Metallic colour with CE FCC and RoHS compliance certificates included
You may also like
StarTech.com Cisco Meraki MA-SFP-1GB-SX Compatible SFP Module, 1.25Gbps, 550m, MMF, LC, DDM
In stock
StarTech.com Gigabit Ethernet to SC Fibre Media Converter, Multi-Mode, 850nm, 550m, Black
In stock
StarTech.com HPE J8177C Compatible SFP Module – 1000BASE-T 1GbE Copper RJ45 100m
In stock
StarTech.com SFP10GSRSST SFP+ Transceiver Module 10Gbps LC Multimode 300m for Cisco
In stock
StarTech.com HPE J9150D Compatible SFP+ Module 10GbE Multi-Mode LC Transceiver 300m 850nm Silver
In stock
Ubiquiti SFP Fibre Optic Transceiver Module
In stock
TP-Link MC210CS Media Converter 1000 Mbit/s
In stock
StarTech.com Multi-Mode LC Fibre Media Converter 10/100/1000 Networks 550m Black
In stock
TP-Link Omada 10G SFP Media Converter
In stock
TP-Link Single-Mode WDM SFP Module
In stock
TP-Link Omada SM9110-SR4 – High-performance 100G fibre optic transceiver
We recommend this module for data centres needing reliable high-speed links. The TP-Link Omada SM9110-SR4 QSFP28 Transceiver Module 100G 40G Multi-mode Fibre 850nm MPO 150m delivers robust connectivity. It supports 100G Ethernet connections effectively. This ensures your network scales without bottlenecks. You get plug and play simplicity.
TP-Link Omada SM9110-SR4 QSFP28 Transceiver Module 100G 40G Multi-mode Fibre 850nm MPO 150m compatibility
| Metric | Spec. |
|---|---|
| Interface Type | QSFP28 |
| Max Data Rate | 100 Gbit/s |
| Wavelength | 850 nm |
| Max Distance | 150 m |
| Connector | MPO-12, MTP |
| Digital Diagnostics | Yes |
Reach further with 100G speeds
This module supports 100G Ethernet up to 100 m on OM4 cable. It also handles 40G connections up to 150 m. You maintain high throughput across longer runs. Your data transfers occur efficiently over fibre.
Works with existing multi-mode infrastructure
It operates on 50/125 µm core/cladding fibre cables. Networking standards include IEEE 802.3ba and IEEE 802.3bm. Your current cabling remains fully supported. This protects your earlier infrastructure investment effectively.
Monitor performance with DDM
Digital Diagnostics Monitoring provides real-time insight into operation. You can track temperature and optical power levels easily. This helps prevent unexpected network failures proactively. Your team identifies issues before they escalate.
Install quickly with hot-swap support
The unit allows replacement without shutting down systems. Plug and play functionality reduces setup time significantly. Your team saves valuable operational resources daily. Maintenance tasks become simple and fast.
What comes in the package
- 1x Transceiver Module
- User guide
Worth checking first
- Confirm your switch port matches QSFP28
- Confirm fibre cable type is multi-mode
- Confirm distance requirements fit 150 m limit
Frequently Asked Questions
Q: Is it compatible with single-mode fibre?
A: No, it supports multi-mode fibre only.
Q: Does it work with 40G Ethernet?
A: Yes, it supports 40G Ethernet connections.
Q: Can I swap it live?
A: Yes, it supports hot-swap operations.
Q: What connector does it use?
A: It uses MPO-12 or MTP connectors.
Our verdict
Ideal for data centres requiring 100G or 40G links. It offers reliable performance and easy integration into Omada setups. We stock this for enterprise networks. It simplifies high-speed expansion tasks efficiently.
| Performance | |
|---|---|
| SFP transceiver type | Fibre optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fibre optic connector | MPO-12, MTP |
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Fibre cable diameters supported (core/cladding) | 50/125 µm |
| Tx power (min) | -8.4 dBmW |
| Tx power (max) | 2.4 dBmW |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Single-mode fibre (SMF) supported | No |
| Multi-mode fibre (MMF) supported | Yes |
| Ethernet interface type | 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| SFP transceiver standard | SR4 |
| Fibre ethernet cabling technology | 40GBASE, 100GBASE |
| Country of origin | China |
| Product colour | Metallic |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Features | |
| Product colour | Metallic |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Form factor | QSFP28 |
| Country of origin | China |
| Certification | QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP |
| Power | |
| Input voltage | 3.3 V |
| Certificates | |
| Certification | QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Network | |
| SFP transceiver type | Fibre optic |
| Fibre optic connector | MPO-12, MTP |
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Ethernet interface type | 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Weight & dimensions | |
| Width | 124 mm |
| Depth | 18.4 mm |
| Height | 11.7 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| User guide | Yes |
| Technical details | |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Fibre cable diameters supported (core/cladding) | 50/125 µm |
| Tx power (min) | -8.4 dBmW |
| Tx power (max) | 2.4 dBmW |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Packaging data | |
| User guide | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Identifiers | |
| Distributor SKUs | 97699, 11475890, CLSM9110-SR4 |
| Additional EANs | 8885020625509 |
