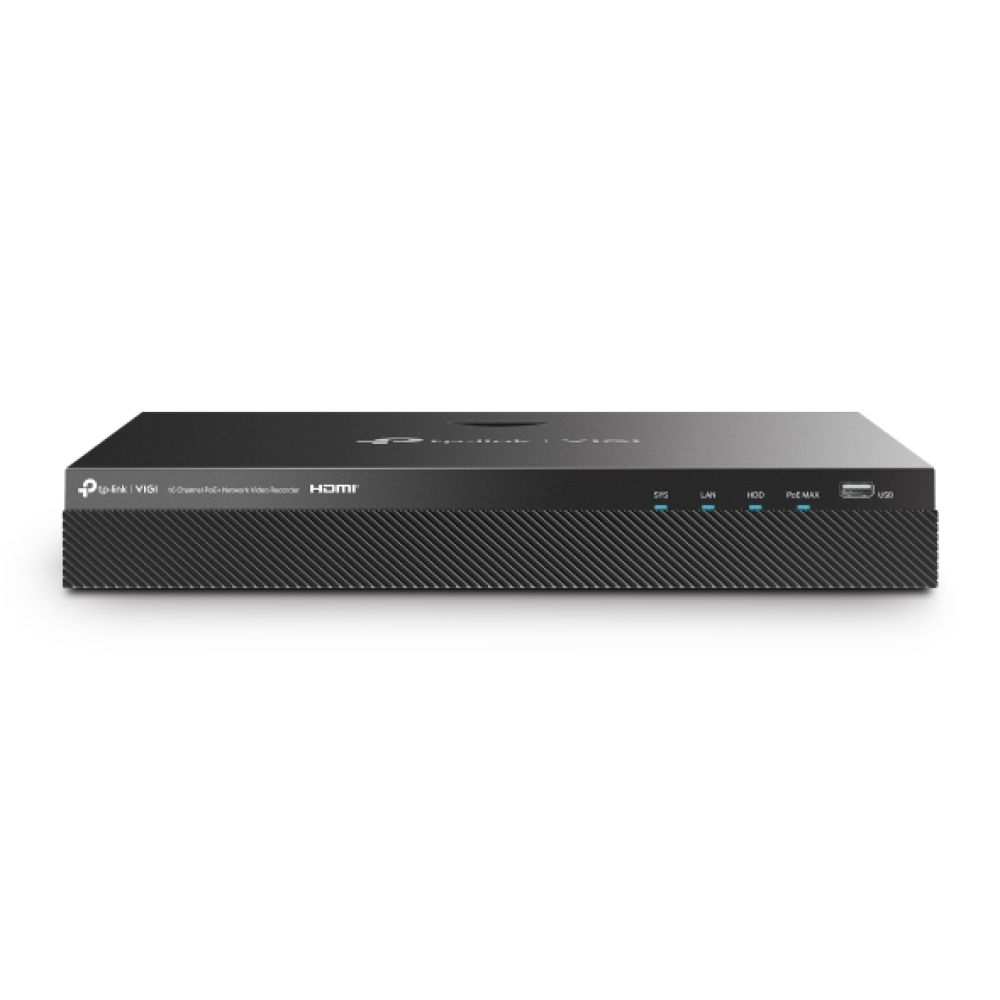

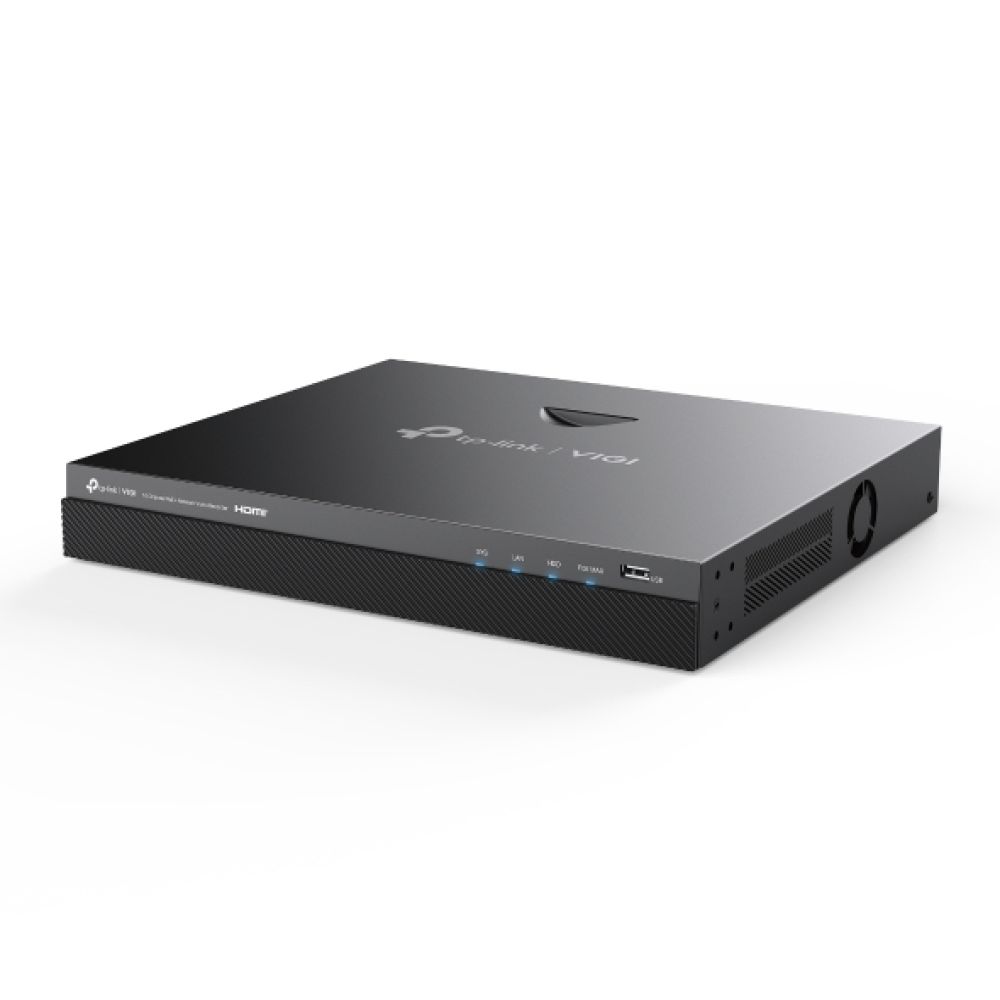

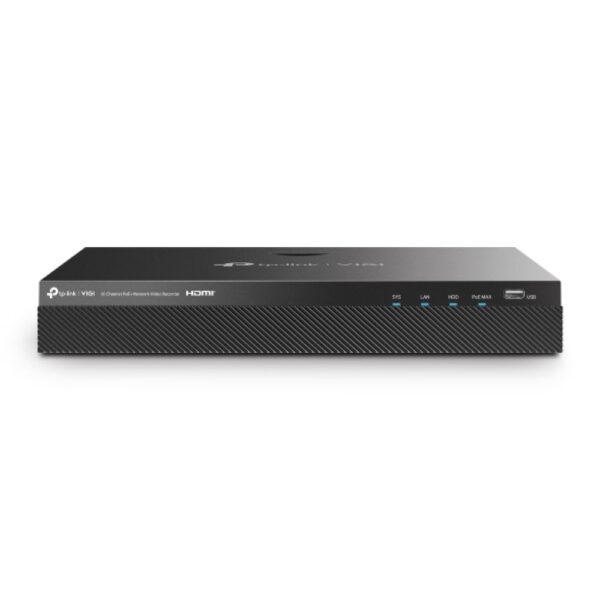

TP-Link VIGI NVR2016H-16MP Network Video Recorder
Original price was: £807.59.£766.79Current price is: £766.79.
Out of stock
Out of stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- 16-channel network video recorder with 4K Ultra HD resolution support
- 2 SATA drive bays supporting up to 10 TB total storage capacity
- 16 PoE ports for direct camera connection without separate power supplies
- Supports H.264, H.264+, H.265 and H.265+ video compression formats
- HDMI and VGA outputs with multiple resolution options up to 3840×2160@30Hz
Available alternatives
TP-Link VIGI NVR2016H Network Recorder
In stock
You may also like
TP-Link Wi-Fi 7 Ceiling Access Point
In stock
TP-Link 5-Port Smart Gigabit Switch
In stock
TP-Link Managed PoE Network Switch
In stock
TP-Link TL-POE150S Gigabit PoE Adapter 48V
In stock
TP-Link JetStream 24-Port PoE+ Managed Switch
In stock
TP-Link TL-SG108E Managed L2 Gigabit Switch
In stock
TP-Link TL-SG1005P 5-Port PoE Switch
In stock
TP-Link Omada EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point
In stock
TP-Link TL-SG1016 16-Port Unmanaged Switch
In stock
TP-Link AX3000 Ceiling WiFi 6 Access Point
In stock
TP-Link Omada 24-Port 2.5G/10G Managed PoE Switch
In stock
TP-Link Gigabit PCI Network Adapter
In stock
TP-Link JetStream 24-Port Gigabit Managed Switch
In stock
TP-Link Omada EAP610 WiFi 6 Access Point
In stock
TP-Link Omada AX3000 Gigabit VPN Router
In stock
TP-Link 48-Port Gigabit Network Switch
In stock
TP-Link TL-SG1024 Unmanaged Gigabit Switch
In stock
TP-Link Omada Controller Device
In stock
TP-Link Omada DR3650V Wi-Fi 6 Router
In stock
TP-Link Omada EAP725-WALL Wi-Fi 7 Access Point
In stock
TP-Link 5-Port Gigabit Desktop Switch
In stock
TP-Link Omada EAP225 1350Mbps PoE Access Point
In stock
TP-Link CPE710 Directional Antenna 23 dBi PoE/LAN
In stock
TP-Link TL-SG108 Unmanaged Gigabit Switch
In stock
TP-Link 28-Port PoE+ Managed Switch
In stock
TP-Link JetStream 24-Port Managed Switch
In stock
TP-Link VIGI NVR2016H | 16-Channel 16MP Network Video Recorder
The TP-Link VIGI NVR2016H-16MP network video recorder Black is a professional-grade surveillance hub built for UK businesses and large properties needing reliable 24/7 monitoring. With support for 16 channels and 16MP resolution, it delivers crisp, detailed footage across multiple cameras without compromising performance.
| Metric | Spec. |
|---|---|
| Video Channels | 16 |
| Max Resolution | 3840 x 2160 pixels |
| Storage Capacity | 10 TB (2 x SATA HDDs) |
| Network Ports | 16 PoE + 1 LAN |
| Power Budget | 140 W |
16 Channels, Zero Compromise on Clarity
Sixteen independent video channels allow you to connect and manage multiple cameras across different zones—indoors, outdoors, entrances, and perimeters—without signal degradation. The NVR2016H processes footage at up to 16MP resolution, ensuring every licence plate, face, or detail remains sharp even when zoomed in. This makes it ideal for retail spaces, warehouses, and multi-site facilities where missing a detail could mean missing a critical incident.
Built for UK Network Standards
The NVR2016H supports IEEE 802.3af/at PoE standards, meaning it can power compatible cameras directly through its 16 PoE ports—reducing cable clutter and installation time. It also includes 10/100/1000 Mbps Ethernet, UPnP, and NTP for seamless integration into existing UK network infrastructures. With CE, UKCA, and FCC certifications, it meets regulatory requirements for use across the UK and Europe.
Flexible Storage & Playback for 24/7 Operation
Dual SATA drive bays support up to 10 TB of total storage, giving you weeks of continuous recording before overwriting. Recording modes include manual and scheduled options, while playback supports digital zoom, fast forward, and pause across all 16 channels simultaneously. Whether you’re reviewing an incident or monitoring live feeds, the system handles it without lag.
Robust Build for Commercial Environments
Housed in a durable black chassis measuring 330 x 285 x 45 mm and weighing 2.1 kg, the NVR2016H is designed for fixed installation in control rooms or server cabinets. It operates reliably in temperatures from -10°C to 55°C and humidity levels of 10-90%, making it suitable for everything from heated offices to unheated storage areas. The 40 W max power draw keeps energy costs predictable.

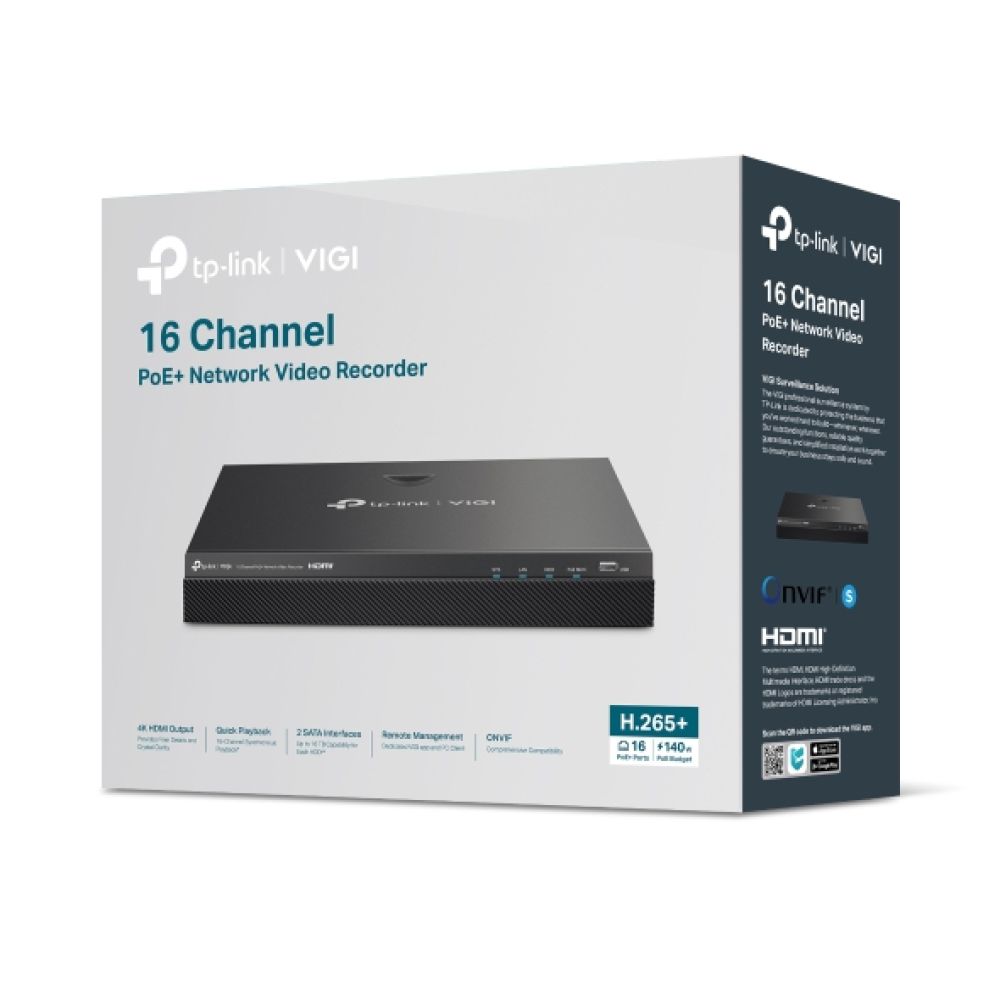

In the Box
- TP-Link VIGI NVR2016H-16MP network video recorder
- AC power adapter
- Quick installation guide
- AC cables
Things to check first
- Confirm your cameras support PoE or require separate power injectors
- Verify you have compatible SATA HDDs for installation
- Check your network switch/router can handle 16-channel bandwidth
- Ensure your display supports HDMI input for local monitoring
Frequently Asked Questions
Can I use this NVR with third-party cameras?
Does it come with pre-installed hard drives?
Can I access footage remotely?
Is Wi-Fi available on this model?
Buying advice
The TP-Link VIGI NVR2016H-16MP network video recorder Black is built for UK professionals who need uncompromising surveillance across multiple locations. Its 16-channel capacity, 16MP clarity, and robust storage make it a future-proof choice for businesses scaling their security infrastructure. Covered by the applicable manufacturer warranty.
| Performance | |
|---|---|
| Video input channels | 16 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Supported network protocols | UPnP (Plug and Play), NTP (Network Timing) |
| Audio formats supported | G.711 A-law, G.711 μ-law, G.726 |
| Playback modes | Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Playback controls | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Recording modes | Manual, Schedule |
| Maximum frame rate | 30 fps |
| Supported resolutions | HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz |
| Video motion detection | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p, 1080p |
| Output bandwidth | 60 Mbit/s |
| Input bandwidth | 80 Mbit/s |
| Wireless LAN features | |
| Wi-Fi | No |
| Hard drive | |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |
| HDD capacity | 0 GB |
| Storage | |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |
| HDD capacity | 0 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| Supported network protocols | UPnP (Plug and Play), NTP (Network Timing) |
| eSATA | Yes |
| DC-in jack | Yes |
| Line-in | Yes |
| Audio output | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 16 |
| eSATA ports quantity | 1 |
| Internal SATA ports quantity | 2 |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| HDMI ports quantity | 1 |
| Features | |
| Certification | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| Reset button | Yes |
| Product colour | Black |
| Power | |
| Output voltage | 53.5 V |
| Output current | 2.43 A |
| Power consumption (max) | 40 W |
| Total Power over Ethernet (PoE) budget | 140 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 330 mm |
| Depth | 285 mm |
| Height | 45 mm |
| Weight | 2.1 kg |
| Package weight | 4.1 kg |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | AC |
| AC adapter included | Yes |
| Identifiers | |
| Distributor SKUs | 10453782, 90889, VIINVR2016H16MP, NS90889 |
| Additional EANs | 4895252504026 |
