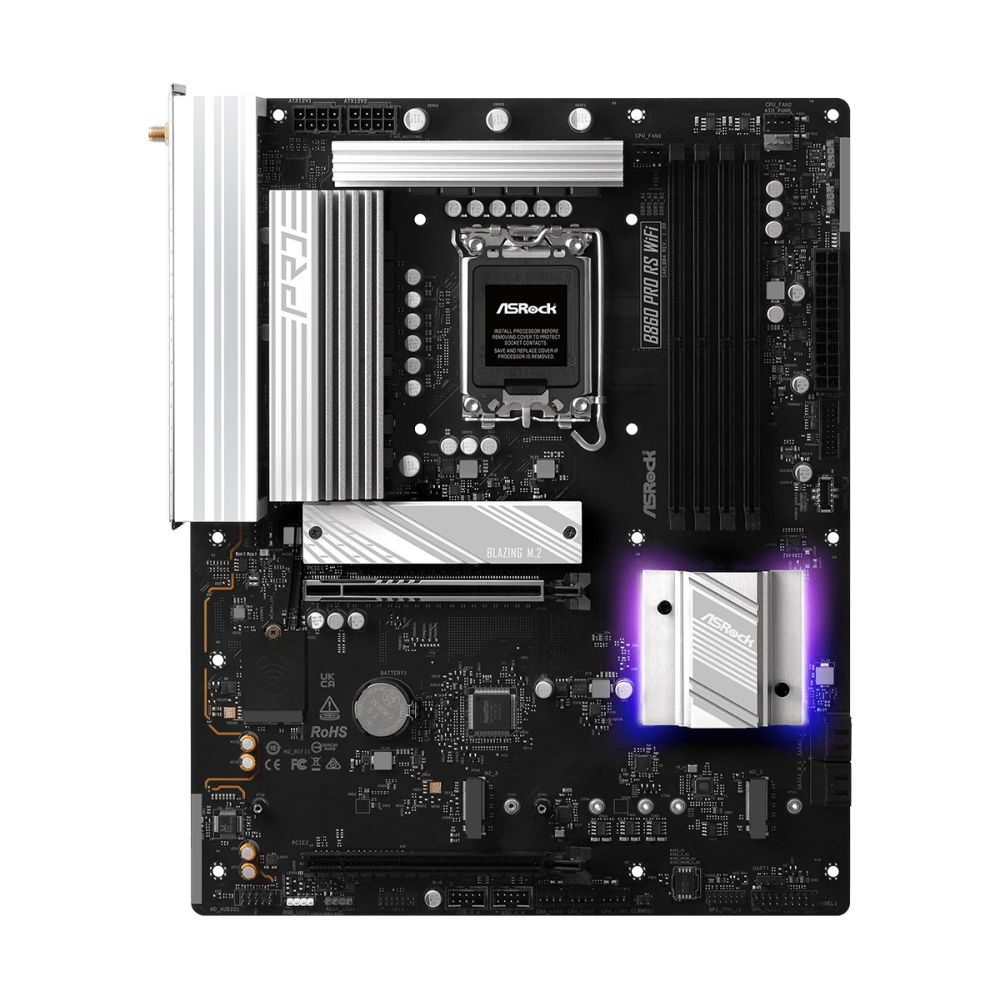

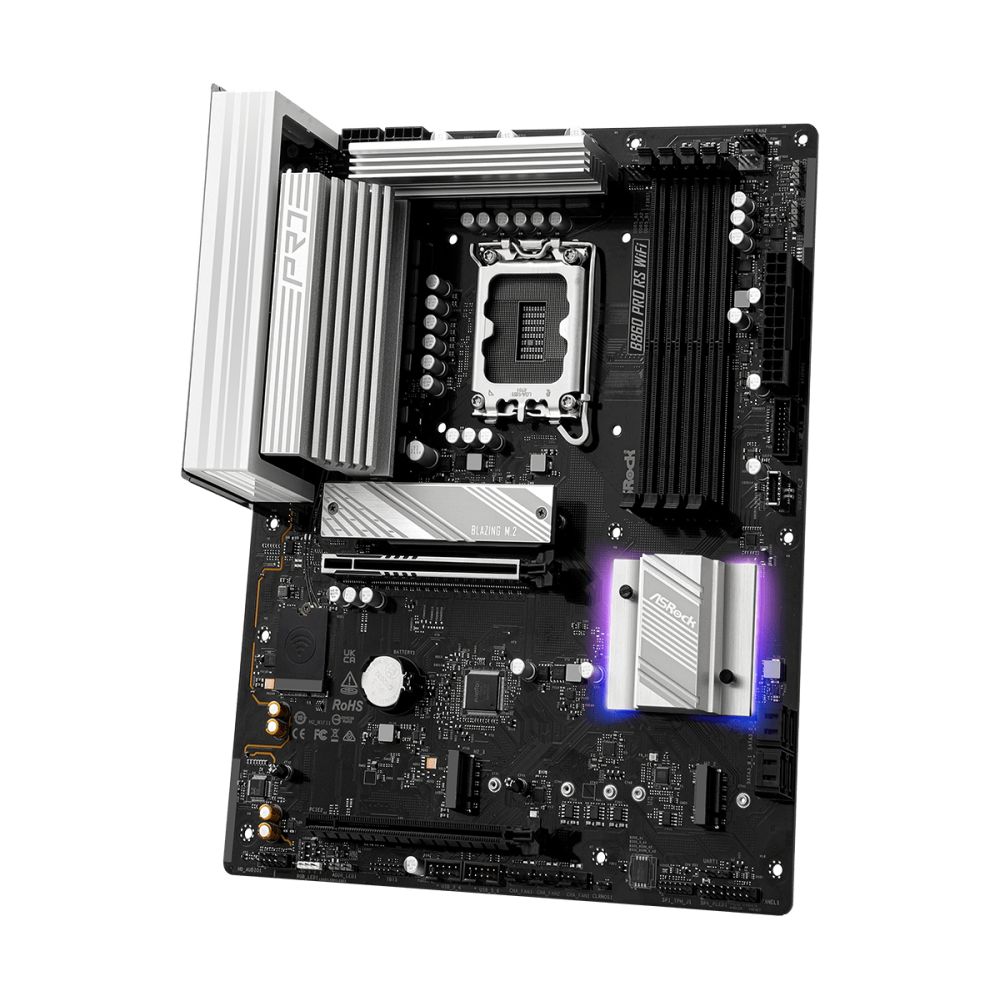

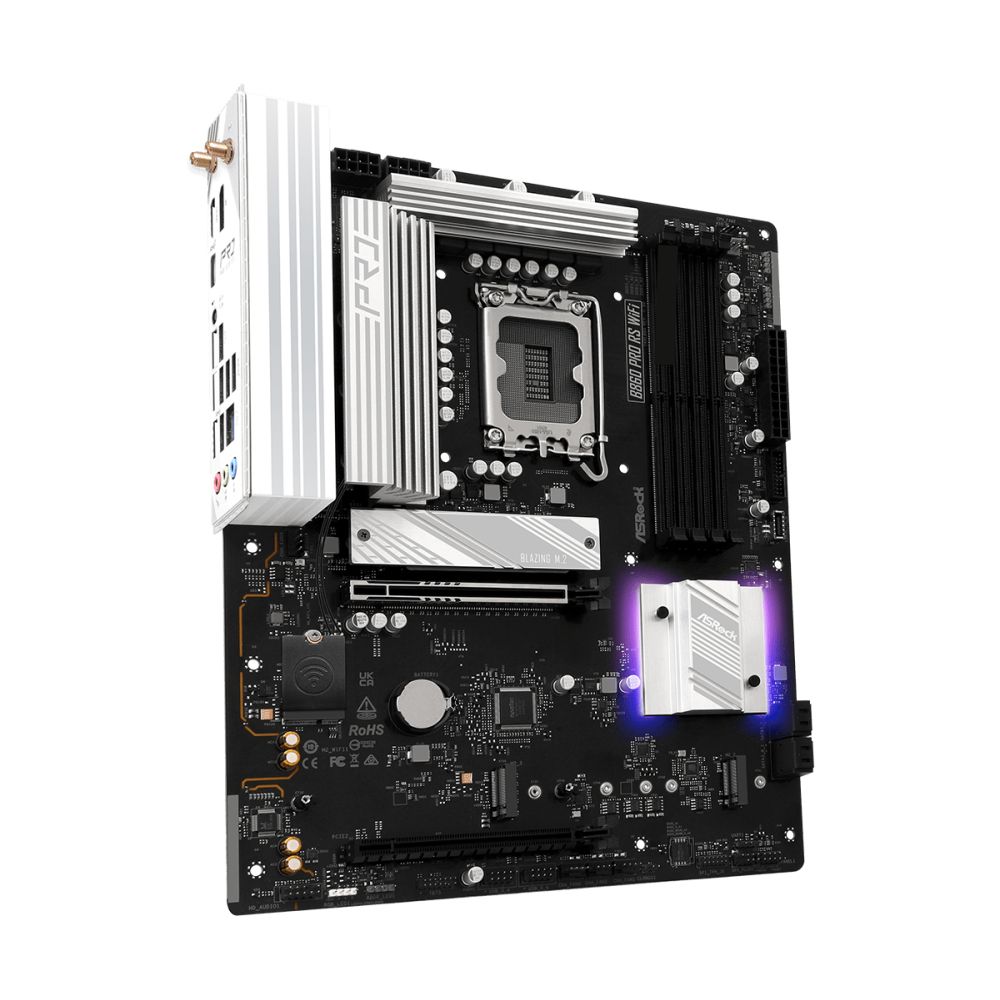

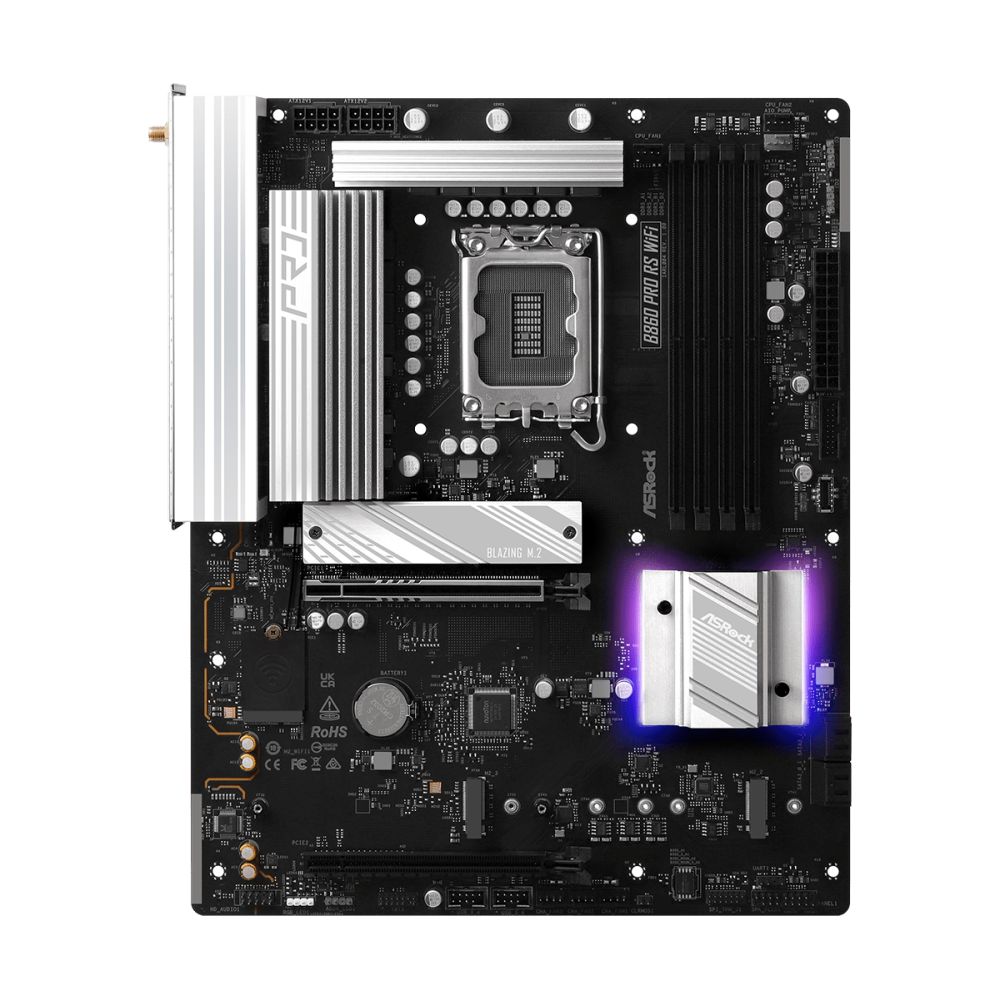

Asrock B860 Pro RS WiFi ATX Motherboard
£141.27 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Intel B860 chipset for LGA 1851 socket
- ATX form factor with 10+1+1 power phase design
- DDR5 memory support up to 256GB at 8666MHz
- PCIe 5.0 and PCIe 4.0 slots for graphics cards
- 2.5Gb/s Ethernet and Wi-Fi 6E connectivity
- 7.1-channel audio with Realtek ALC897 codec
- 1 M.2 slot with PCIe Gen5 support
Payment Methods:
You may also like
ASRock B860 Pro RS WiFi | Intel B860 ATX Motherboard
The ASRock B860 Pro RS WiFi is a high-performance ATX motherboard designed for Intel Core Ultra (Series 2) processors on the LGA 1851 socket. Built with the Intel B860 chipset, this board delivers exceptional stability, advanced connectivity, and future-ready features for both gaming and professional workloads.
Specifications
| Metric | Spec |
|---|---|
| Processor Socket | LGA 1851 (Socket V1) |
| Memory Support | DDR5, up to 8666 MHz, 256 GB max |
| PCIe Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 |
| Wi-Fi | Wi-Fi 6E (802.11ax) + Bluetooth 5.3 |
| LAN | 2.5 Gb/s Ethernet |
Unmatched Power Delivery for Overclocking
The 10+1+1 power phase design with Dr. MOS technology ensures smooth, stable power delivery to your CPU even under heavy overclocking loads. Hi-Density Power Connectors are engineered to handle higher currents, reducing fire risk and improving system reliability during extreme performance tuning.
Blazing Fast Storage and Memory
With support for DDR5 memory up to 8666 MHz and Intel XMP/AMD EXPO profiles, this motherboard unlocks extreme memory performance with minimal effort. The PCIe 5.0 M.2 slot offers up to 128 Gb/s transfer speeds, future-proofing your build for the fastest NVMe SSDs available.
Advanced Cooling and Build Quality
A 6-layer PCB design enhances signal stability and heat dissipation, while the aluminum heatsink efficiently manages thermal performance during intensive tasks. The M.2 bottom heatsink further improves SSD cooling through direct PCB contact, ensuring consistent performance and system longevity.
Next-Gen Connectivity
Stay ahead with Wi-Fi 6E for faster, lower-latency wireless networking and Dragon 2.5 Gb/s LAN for ultra-fast wired connections. Multiple USB ports including a 20 Gbps Type-C and front-panel USB 3.2 Gen 1 Type-C provide versatile, high-speed data transfer options.
Immersive Audio and RGB Customization
Realtek ALC897 audio with Nahimic technology delivers 7.1-channel surround sound with advanced noise cancellation and voice stabilization. Polychrome RGB and SignalRGB support let you personalize lighting effects across compatible devices for a truly unique build aesthetic.

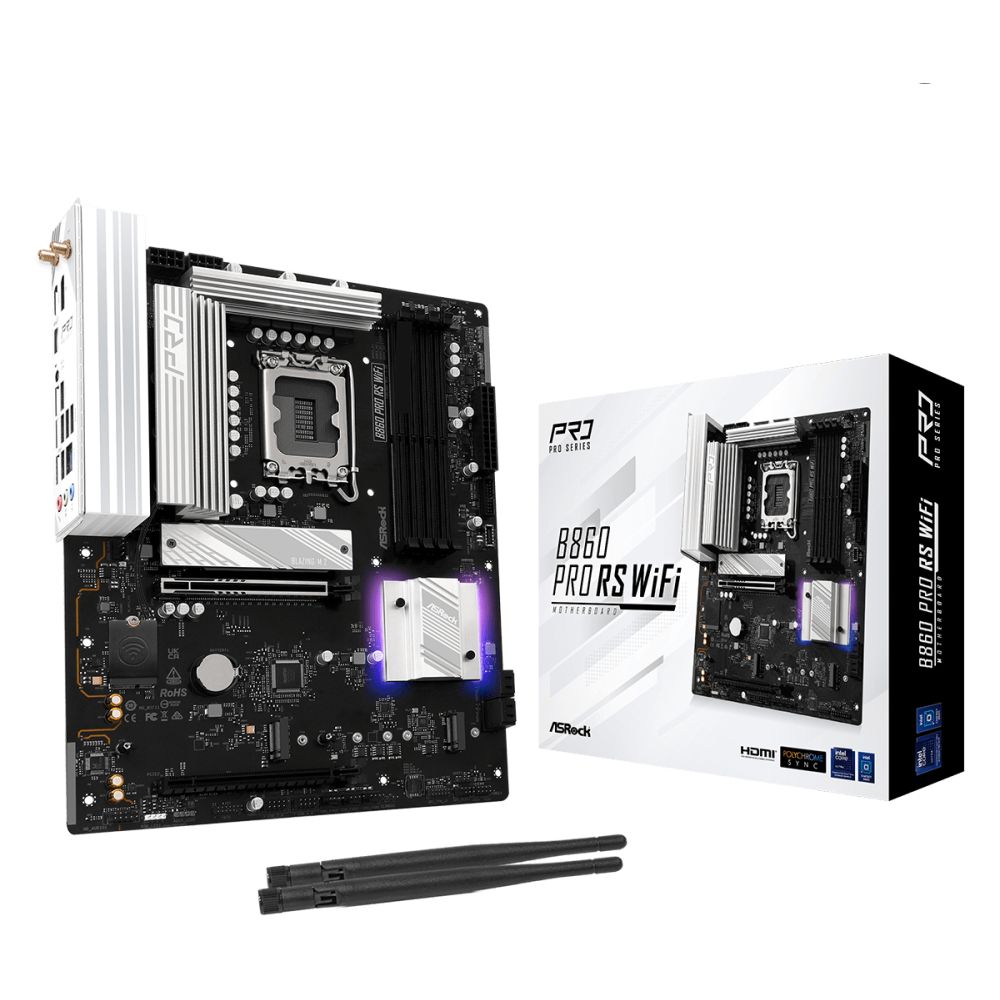

What is in the box
- ASRock B860 Pro RS WiFi motherboard
- SATA cables
- Wi-Fi antenna
- User manual and driver CD
Check before you buy
- Confirm your CPU is compatible with LGA 1851 (Socket V1) and Intel Core Ultra (Series 2).
- Verify your case supports ATX motherboard dimensions (305 x 244 mm).
- Ensure your power supply has the required 8-pin EPS and 24-pin ATX connectors.
- Check that your DDR5 memory is on the motherboard’s qualified vendor list for optimal performance.
Questions and answers
Does this motherboard support DDR4 memory?
How many M.2 SSDs can I install?
Is Wi-Fi 6E included?
Can I use this motherboard for AMD processors?
What RAID configurations are supported?
Summary & warranty
The ASRock B860 Pro RS WiFi is an excellent choice for users building high-performance Intel Core Ultra (Series 2) systems who demand robust power delivery, cutting-edge connectivity, and extensive customization options. Covered by the applicable manufacturer warranty.
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 3 |
| TPM connector | Yes |
| Peripheral Molex power connectors 4-pin | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 8666 MHz |
| ECC сompatibility | Non-ECC |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 5, 10 |
| RAID support | Yes |

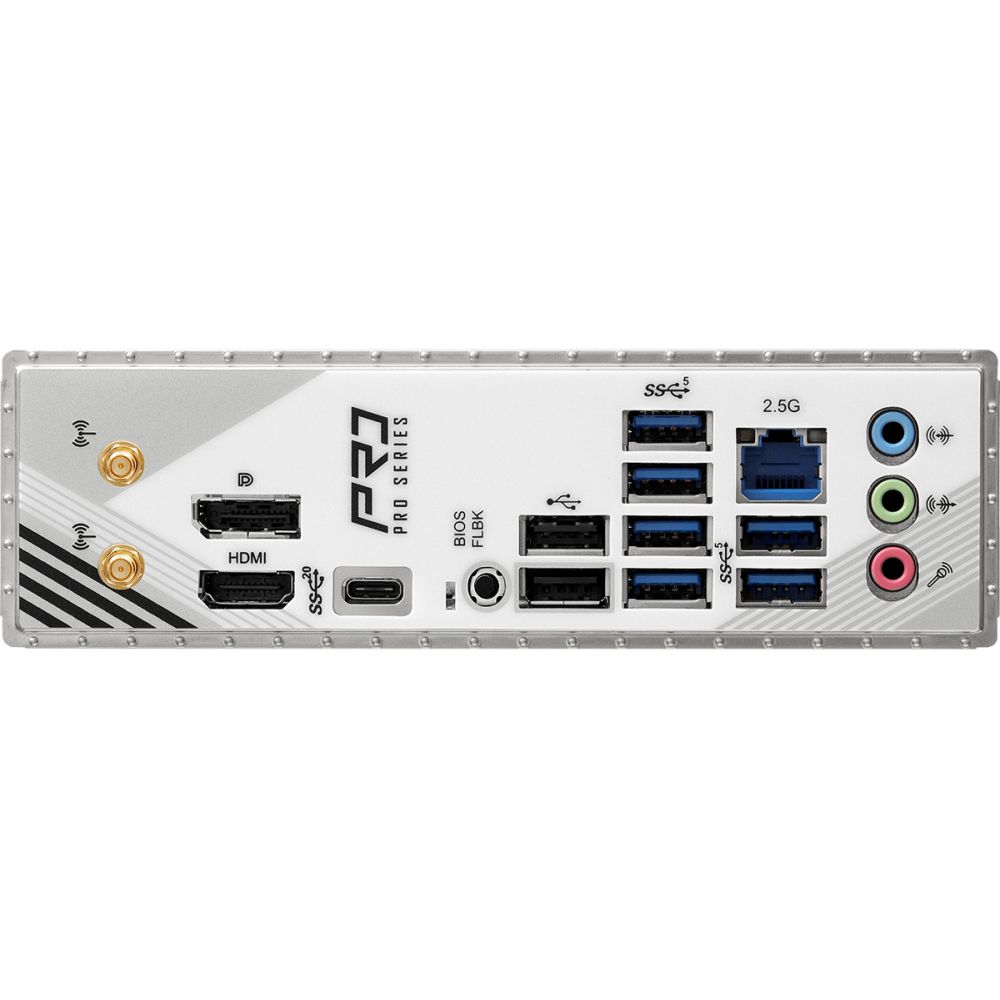

| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 6 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| LAN controller | Dragon RTL8125BG |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Number of M.2 M slots | 1 |
| PCI Express x16 Gen 4.x slots | 1 |
| PCI Express x16 Gen 5.x slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| HDCP | Yes |
| Windows operating systems supported | Windows 11 x64 |
| Width | 305 mm |
| Depth | 244 mm |
| Cables included | SATA |
| Antenna included | Yes |
| Distributor SKUs | 90-MXBRK-A0UAYZ, B860 PRO RS WIFI, 548788, 546391, B860PRORSWIFI, CLB860PRORSWIFI, 20054398000 |
